Mini 4K@60Hz HDMI Over Fiber Optic Extender Up to 10KM HDMI Fiber Converter
Product Description
MiniHDMI 4K60Hzfiber optic converter is developed by our company,with independent intellectual property rights.Absorbing the advantages of similar products at home and abroad,combined with the actual demand of the market,through one corefiber transmission of HDMI 4K60Hz video signal,to achieve no delay,no compression,high quality signal extension of 10 km.
MiniHDMI 4K60Hzfiber optic converter adopts video processing and photoelectric conversionintegrateddesign,high integration,small size,its optical componentsand core circuits are imported components,stable performance,suitable for different working environments.
MiniHDMI 4K60Hzfiber optic converterconforms to the international standard HDCP protocol 1.4, automatically recognizes the EDID, has the power-off EDID memory storage function.
The power consumption of the mini HDMI 4K60Hzfiber optic converter is less than 1.5W, and the power supply is DC 3.5*1.35mm, and the power socket is locked to prevent it from falling off during operation, optional USB cable power supply solves the pain points of power supply and makes it more flexible in use.

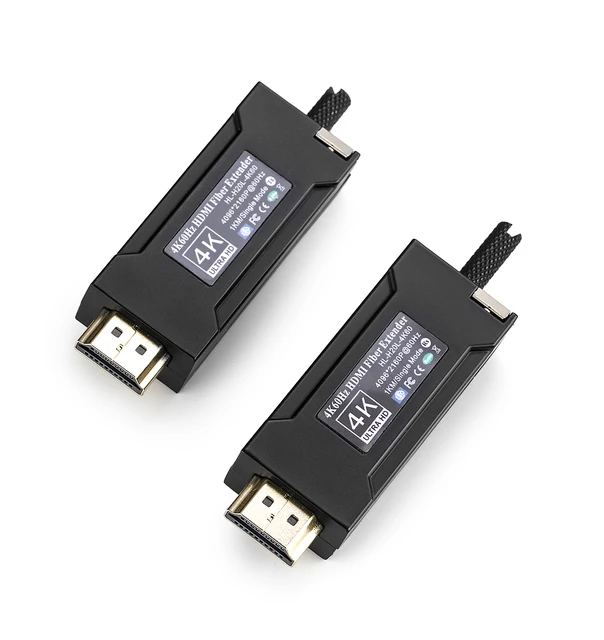

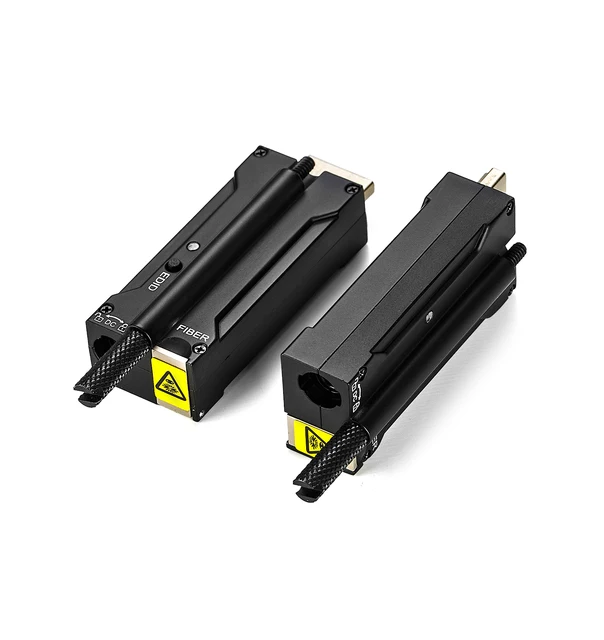

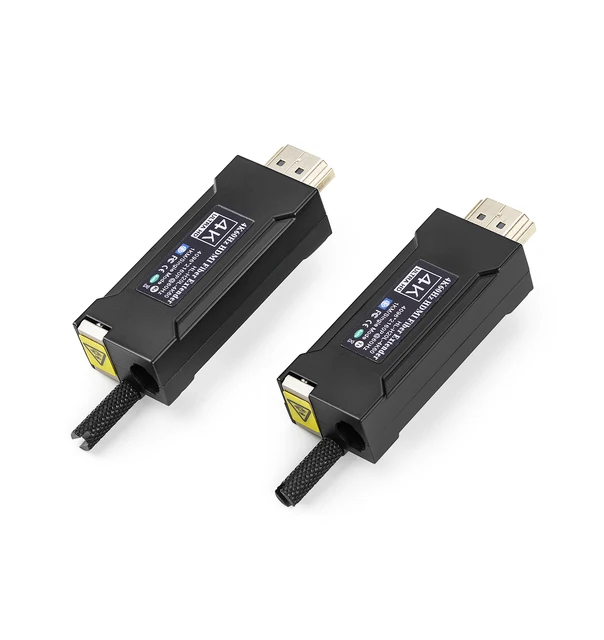

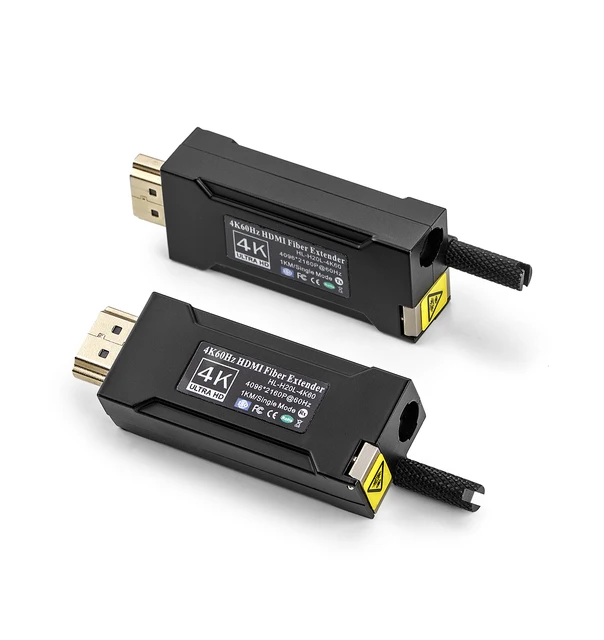

Product Pictures
Application
1.Stage rental;
2.LED largescreen;
3.Projection fusion;
4.Live TV;
5.Radio and television and video recording;
6.Video conferencing;
7.Information release and display system;
8.Command and dispatch center;
Features
1.Support downward compatibility of 4K*2K*60Hz resolution;
2.Built-in EDID mode and EDID manual learning mode,support button mode switching;
3.Support EDID memory storage function after power off;
4.Support unilateral power supply technology and can be powered from the signal source HDMI port;
5.Support dust prevention of fiber optic interfaces and have anti detachment design to prevent the loss of dust covers;
6.Support the power socket with lock to prevent the equipment from falling off during operation;
7.Support portable installation of rear long screws;
8.Support single fiber transmission of10km,compatible with multi-mode and single-mode modes;
9.Support status light display;
10.Plug and play,without debugging;
Specifications
|
Fiber parameter |
|
|
Wavelength |
1310-1550nm（Single fiber） |
|
Rate |
10Gbps |
|
Transmitterpower |
＞-3db |
|
Receiversensitivity |
＞-10db |
|
Transmission distance |
10KM |
|
Fiber connector |
LC |
|
HDMI parameter |
|
|
Version |
HDMI 2.0 |
|
Bandwidth |
10.2 Gbps |
|
Resolution |
4K*2K*60Hz and downward compatibility |
|
Color space |
4K60Hz YUV 4:2:0 4K30Hz RGB, YCbCr 4:4:4 / 4:2:2/ 4:2:0 |
|
Pixel clock |
340MHZ |
|
Physical interface |
HDMIMale |
|
Powerparameter |
|
|
Power supply |
5V |
|
Power dissipation |
＜1.5W |
|
Physical interface |
DC 3.5*1.35mm |
|
Mechanicalparameter |
|
|
The shell metal |
Zine-alloy |
|
Dimensions (length * width * height) |
60*22*17mm |
|
Net weight of product |
51.7g/piece |
|
Way to install |
Direct plug-in |
|
Color |
Black |
|
Packing |
|
|
Material |
Kraft paper |
|
Package size |
210*160*46mm |
|
Gross weight |
0.35KG |
|
Other parameter |
|
|
Working temperature |
-20℃~70℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0-95% (non-condensing） |
|
MTBF |
＞100000hours |

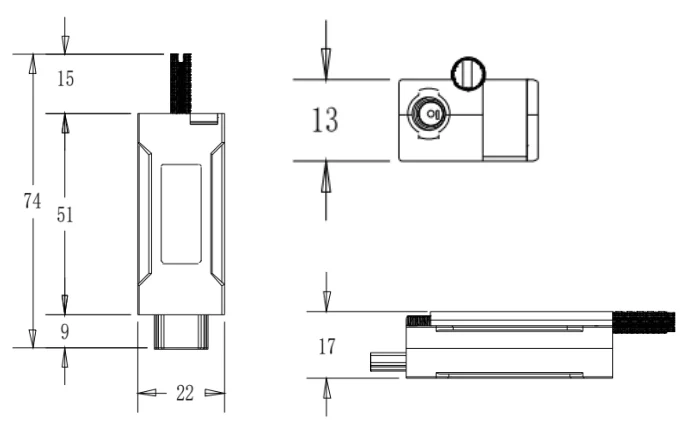

Product Size (Unit : mm)

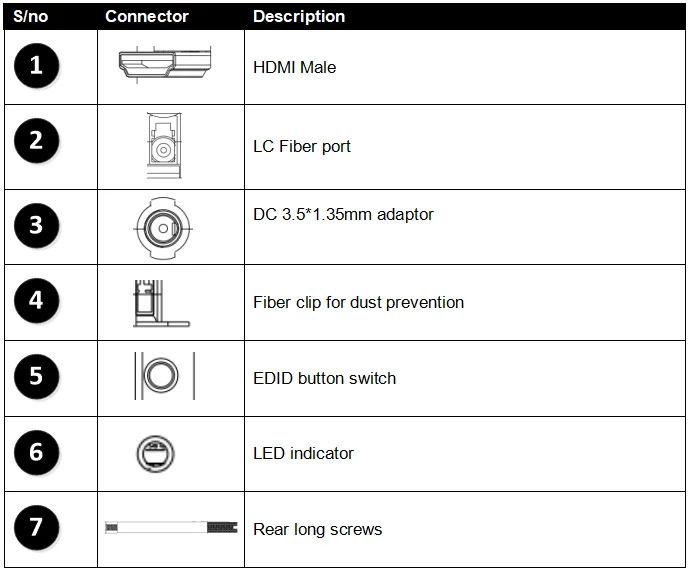

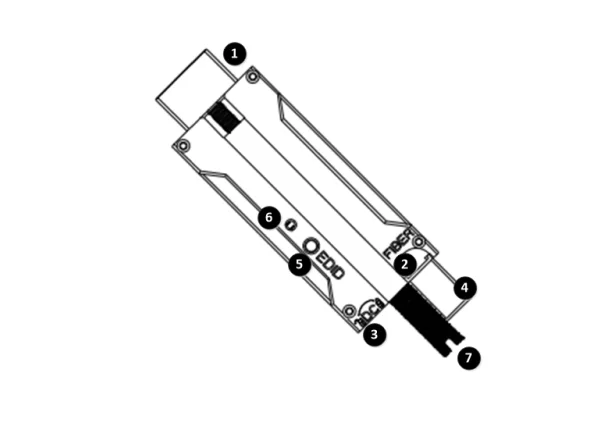

Interface Description

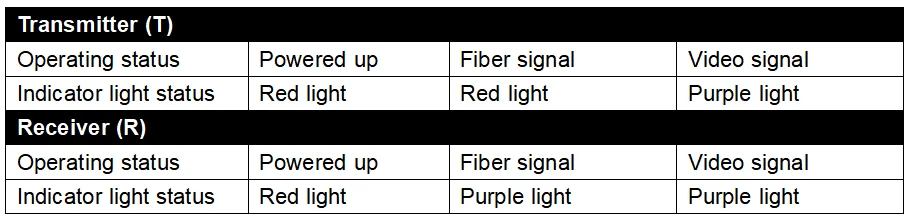

LED Status Description
Connection Diagram

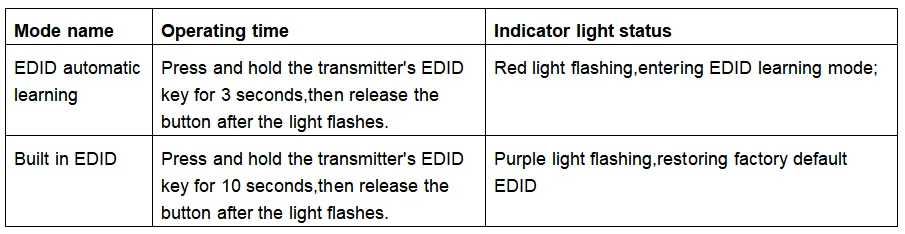

EDID mode switching operation instructions

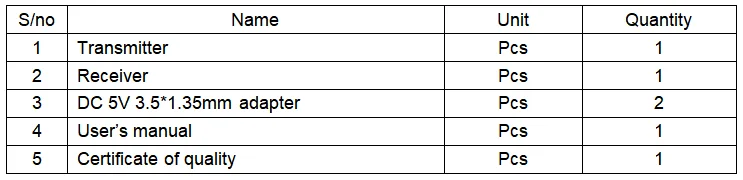

Packing List
Company Profile
| Weight | 16 kg |
|---|---|
| Dimensions | 4 cm |
| Brand Name | NoEnName_Null |
| Item Type | cable |
| Origin | Mainland China |
| Model Number | HL-H20L-4K60 |
| Brand | HO-LINK |
| Use | CCTV/Broadcast/Security/Airports/monitoring |
| Application | CCTV/Broadcast/Security/Airports/monitoring/government,transportation |
| Certification | CE RoHS FCC |
| Warranty Time | 3 years |
| Version | HDMI2.0 |
| Bandwidth | 10.2GHz |
| Rate | 10Gbps |
| Dimension | 60*22*17mm |
| Physical interface | HDMI male type |
