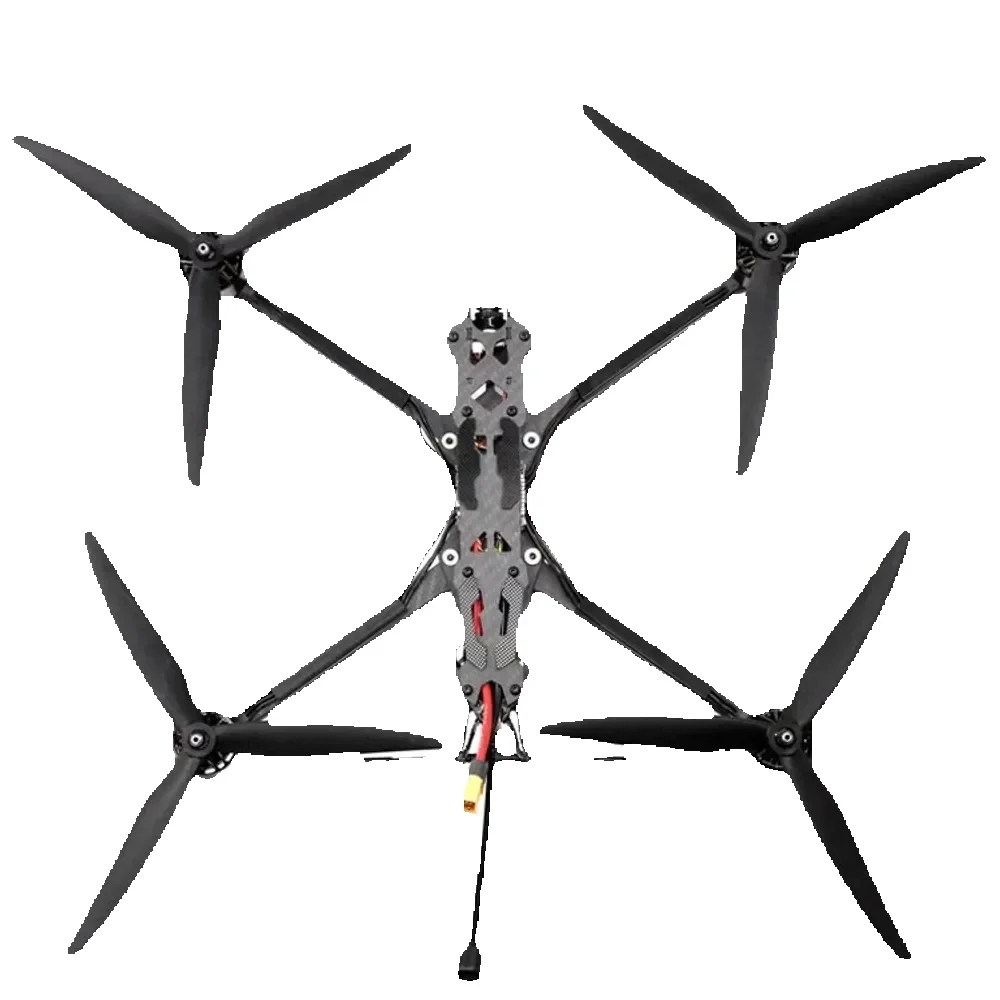

6,000 pcs/month Manufacturer FPV Drone 7 10 13 15 inch Heavy Payload Long Flight with Night Vision Camera Racing FPV Drone

6,000 pcs/month Manufacturer FPV Drone 7 10 13 15 inch Heavy Payload Long Flight with Night Vision Camera Racing FPV Drone - Image 2

6,000 pcs/month Manufacturer FPV Drone 7 10 13 15 inch Heavy Payload Long Flight with Night Vision Camera Racing FPV Drone - Image 3

6,000 pcs/month Manufacturer FPV Drone 7 10 13 15 inch Heavy Payload Long Flight with Night Vision Camera Racing FPV Drone - Image 4

6,000 pcs/month Manufacturer FPV Drone 7 10 13 15 inch Heavy Payload Long Flight with Night Vision Camera Racing FPV Drone

Name: 6,000 pcs/month Manufacturer FPV Drone 7 10 13 15 inch Heavy Payload Long Flight with Night Vision Camera Racing FPV Drone - www.AliDady.com
SKU: 3256807952288451
Price: 666.97 USD
Availability: InStock

$666.97

Details Images

Products Description

DV07 Pro FPV Drone 7 Inch Specifications

1. Frame- 7Inch Carbon Fiber Frame 2. Stack-FC BL F405 ESC F60 Blheli-S 60A -6S 3. DroView 5.8G Reaper Extrme 2.5W 40CH

VTX /1.3G 1.6W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 2807 1300KV MOTOR 6. HQProp 7X4X3 7Inch 3-blade PC Props 7.Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2

DV15 Pro FPV Drone 15 Inch Specifications

1. Frame- 9Inch Carbon Fiber Frame 2. Stack-FC BL F405 ESC F80 Blheli-S 80A -8S 3. DroView 5.8G Reaper Extrme 5W 40CH VTX /5.8G 5W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 3110 1100KV MOTOR 6. HQProp 9 Inch 3-blade PC Props 7.Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2

DV10 Pro FPV Drone 10 Inch Specifications

1. Frame-DroView 10Inch Carbon Fiber Frame 2. Stack-F405 MK2 V2 F55 Blheli-S 55A -6S 3. DroView 5.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 3115 700KV MOTOR 6. German 1050Prop (2PAIRS) 7. Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2

DV13 Pro FPV Drone 13 Inch Specifications

1. Frame-DroView13 Inch Carbon Fiber Frame 2. Stack-F405 Blheli-S 80A -8S 3. DroView15.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX 4. DroView1 1/3 CMOS 1800TVL Camera 5. DroView1 4214 660KV MOTOR 6. German 13 inches (2PAIRS) 7. Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*400mm*2

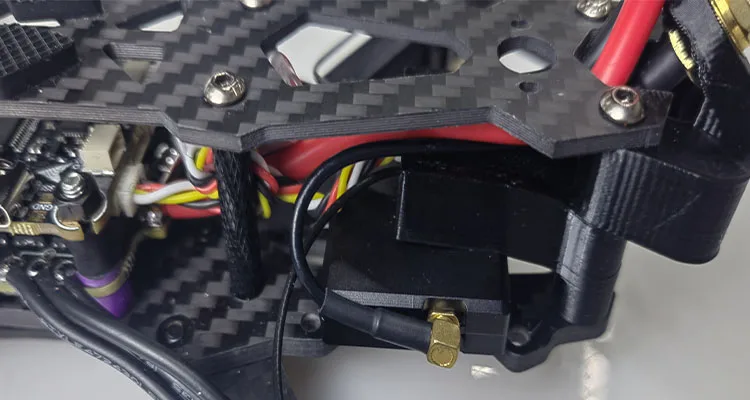

Demountable Arm with Motors, which is for safety shipment and Small Packing Volume

The amrs with motor for DroView FPV Drones are demountable. It only need to install 8PCS Scews when install the FPV Drones. In that case, we can ship the fpv drones by parts for safety shipment. At the meanwhile, the packing volume is smaller when ship by parts. In that case, we have help our client save much shipping cost.

DV07 MOTOR & PROPELLER

Model: DroView 2807 -KV1300 *4pcs

Motor Weight: 47.6g Motor Dimension:33.9*34mm

Internal Resistance: 58mΩ Configuration: 12N/14P Shaft

Diameter: 5.0mm

Rated Voltage: 3-6S

Peak Current: 45.79A Max

Power: 1153.9W

Max Pull: 2239g *4pcs

Prop: GF7*3.5*3

No-load current:0.8A/12V

silica gel:18#200mm

DV07 FC & ESC 4in1 STACK

Model: DroView F405 60A

Stack ESC : F60 Blheli-S 60A -6S 37*42.7mm FC: BL F405 (42688P)37*37mm

Mounting: 30.5*30.5mm

Input: 2-6S Consistent

Current: 60A

BEC: 5V 3A, 10V 2A

Temp Protection: YES

Power Cable: 12AWG, 10cm

Weight: 20.5g

current sensor:YES

motor output:8CH Universal serial port:4CH

DV07 CAMERA

ITEM: DroView 1800TVL Camera

Sensor: 1/3.cmos

Resolution: 1800TVL

FOV: 165° Lens: 2.1mm

TV System: NTSC & PAL

Image: 4:3/16:9

WDR: Super WDR Min.

Illumination: 0.0001Lux Denoise:3DNR Video output:CVBS ElectronicShutter:PAL:1/50~100,000;

NTSC:1/60~100,000

Wide voltage:5-40V Operation temperature:-20℃~+60℃

Weight:5.9g Size:19*19*20mm

Option:Night vision or Thermal Imaging Camera

DV07 VIDEO TRANSMITTER

Item: Item: DroView 5.8G 2.5W VTX (1.3G 1.6W VTX Instead if 5.8G Chips short) Working Voltage:7-36V Working Current: ≤450mA (12V/800mW), ≤850mA (12V/2500mW) Video Input Impedance:75Ω Video Format: NTSC/PAL Antenna interface:MMCX 25mW/13.95dBm 500mW/26.02dBm 1000mW/30.3dBm 2500mW/34.04dBm Output Power:PIT/25/500/1000/2500mW Number of Channels: Standard 40 Channels (A/B/E/F/R) Image transmission protocol:SmartAudio Mounting Hole:20X20.M2 Dimension: 25*37*6.5mm Working Temp: -10-60℃ Weight: 19g

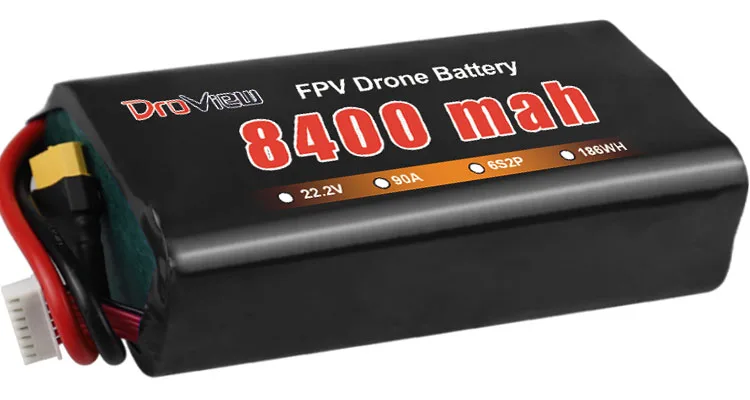

SUGGESTED BATTERY For DV07

Model 1: DroView 6S2P 8400mAh Made by Molicel Cell P42A or P45B Weight: 920g

Model 2: DroView 6S3P 8400mAh Made by Molicel Cell P28A Weight: 900g

Model 3: DroView 6S3P 12000mAh Made by Molicel Cell P42A or P45B Weight: 1250g Battery Connector: XT60

Application

Weight	45 kg
Dimensions	8 cm
Brand Name	ZHENJIJING
GPS	Yes
Video Maximum Resolution[Pixel X Pixel]	1080i/P（1920*1080）
Max Wind Speed Resistance	≥46.3/h
Camera Features	1080p HD Video Recording
Max Takeoff Weight	>7kg
Sensor Size	1/1.0 inches
Category	Camera Drone
Equipped with Aerosol Spraing System/Spread Tank Volume	no
Aircraf Operating Frequency	other
Origin	Mainland China
Hign-concerned Chemical	none
Camera Integration	Camera Included
Drone Weight	1kg
product name	FPV racing Drpne
speed	140KM/H
maximum payload	2-6 kg
Battery recommendations	8400-22000mAh
control distance	80-100
camera	Night Edition/Regular Edition
image transmission frequency	915 m or 750 m
flight time	25-29 minute
