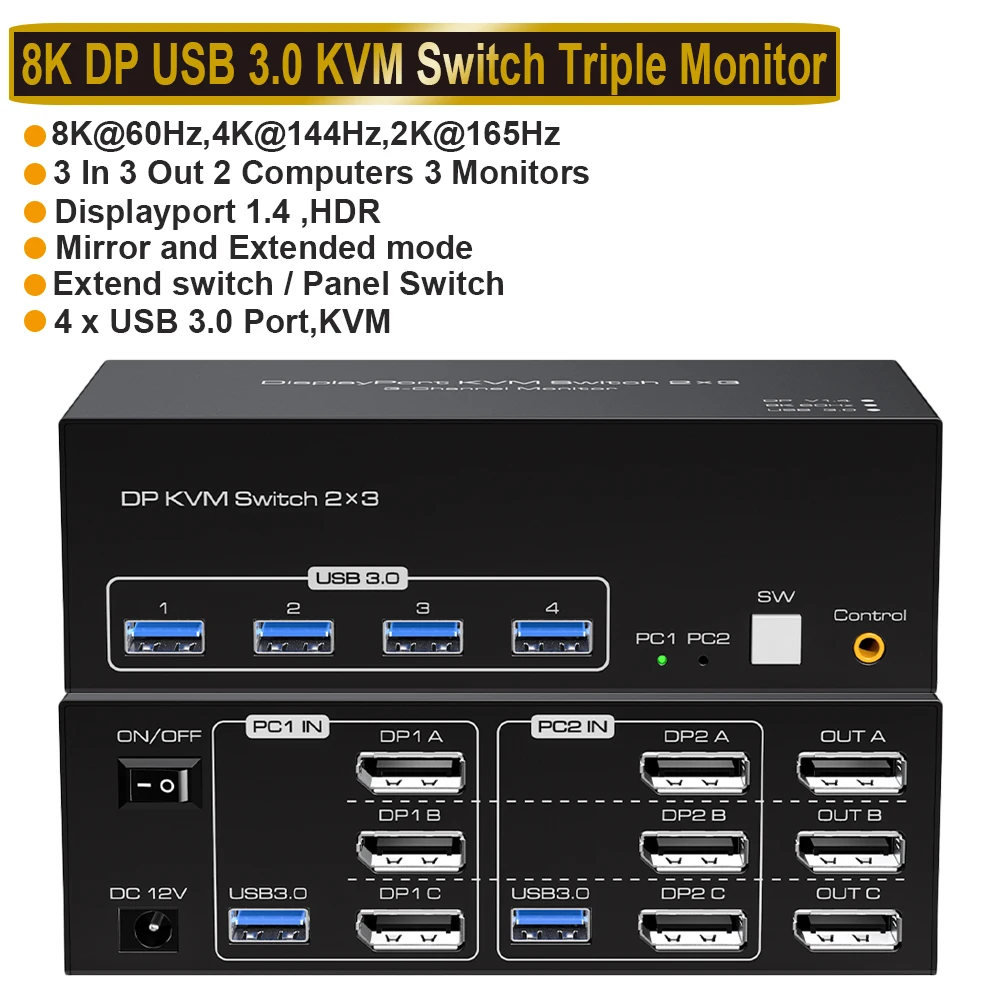

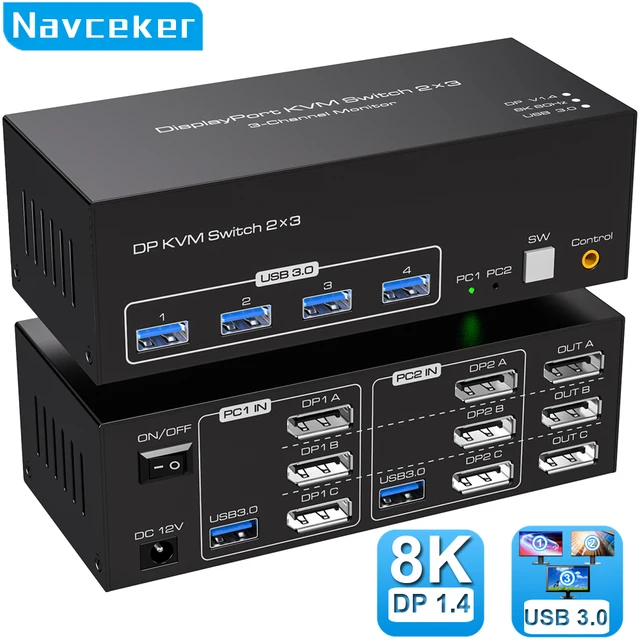

Navceker 8K USB 3.0 3 Channel Displayport KVM Switch 3 Monitors 2 Computers, 4K@144Hz Triple Monitor KVM Switch for 2 Computers Share 3 Monitors with 3 USB 3.0 Ports Keyboard Mouse Switcher

Description:

ZY-ASW233,Navceker 8K 60Hz 2×3 Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and 3 displayport monitor to control 2 computers, laptops, game consoles.

It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 2 computers using a manual switch located on the top of the KVM unit.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

8K HDMI Displayport KVM Switch USB 3.0 Triple Monitor Extended Display, UHD 4K 120Hz RGB 4:4:4, USB Hub Button Switching, PC Monitor Keyboard Mouse Switcher for 2 Computers 3 Monitors with Cables

• 【3 Channel Displayport INPUT 3 Monitor KVM Switch】This 3 monitor kvm perfect for hooking up 2 desktops or laptops to share one set of keyboard, mouse and 3 monitors for extended, mirror display; Perfect for computers with 3 DP monitor for the display outputs. It requires every Laptop/PC support 3 screen or above display functions and must support extended display.

• 【KVM Switch Triple Monitor Ultra HD 8K@60Hz】3 Channel DP kvm switch 3 monitors 2 computers, HDMI port supports resolution up to 8K@60Hz,4K@144Hz,3440×1440@144Hz,1440P@165Hz,

  1080P@240Hz and downwards.2 computer 3 monitor kvm switch support Displayport 1.4 standards.

• 【2 Switching Modes】You can press the button on the panel or use the wired remote controller (included in the package) to switch between 2 computers. It provides several switching options for different scenarios. Please use the 12V power adapter ( include in the package) to power this Displayport triple Monitors KVM switch.

• 【4 USB 3.0 Port】Triple monitor 3-Channel DP KVM switch with 3 integrated USB 3.0 ports which can recognize keyboard, mouse, printer, scanner and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices. The upgraded design hides the messy cables at the back, leaving a USB 3.0 port on the front for inserting a USB flash drive.

• 【What You Get】 1x USB 3.0 3 Channel Displayport Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. We offer 12 months warranty. If you have any questions about the product, please contact us.

USB 3.0 Triple Monitor DP kvm switch for 2 computer sharing 3 monitor and 4 USB 3.0 Ports

Features:

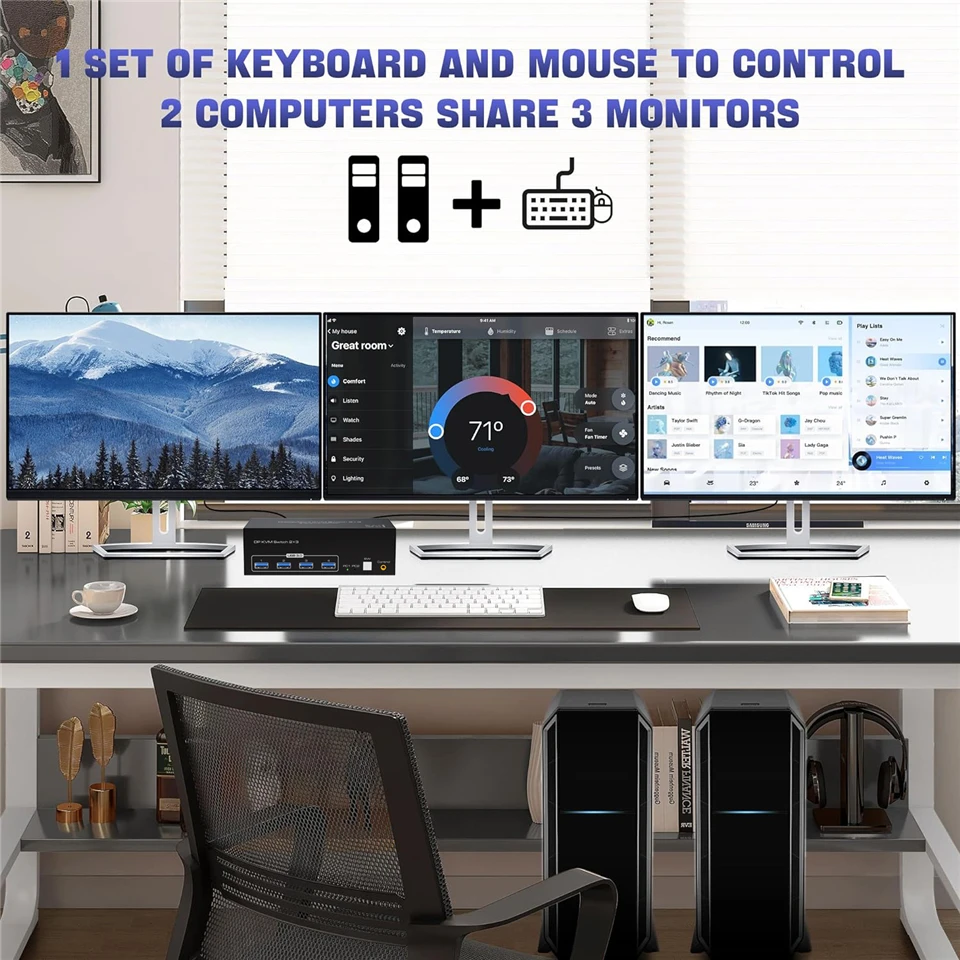

1. 2 computers/laptops share one set of keyboard, mouse, and 3 Displayport monitors

2. Triple monitors output support up to 8K@60Hz for extended and mirror display, support DP 1.4V standards.

3. 2 Switching modes: Button switch and wired remote.

4. With extra 4 x 5Gbps USB 3.0 ports .

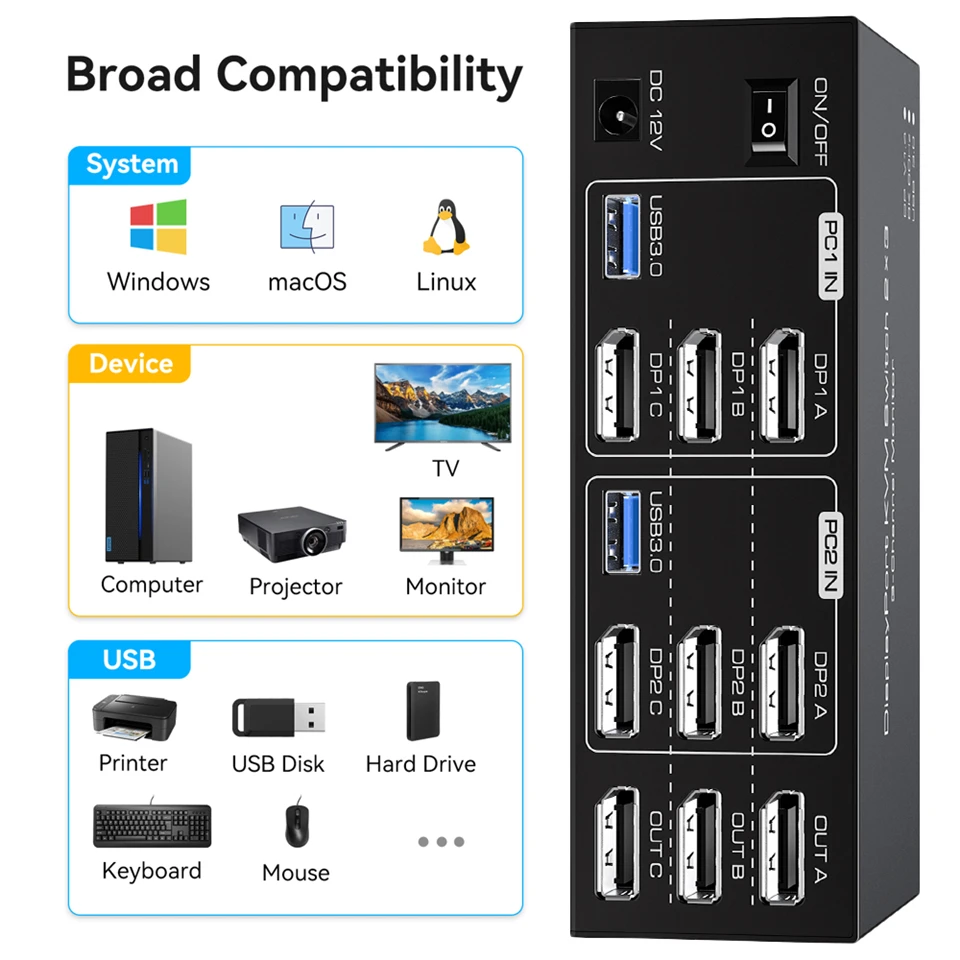

5. Cross-support most major OS including Windows, Linux, Mac, and more.

6. The ports that need to plug in Displayport/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.

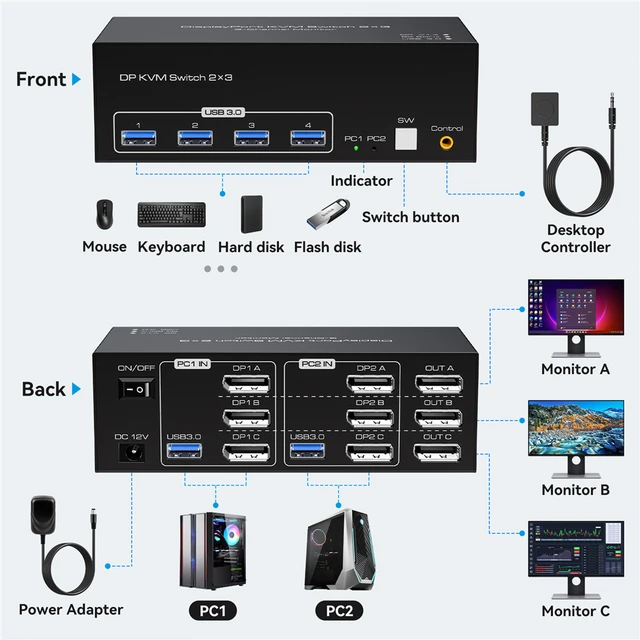

Installation steps:

1. Insert the adapter into the KVM ;

2. Plug the 3* displayport cable into the KVM switch and monitor;(Output)

3. Plug the displayport cable, and USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)

Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.

DP IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1

DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2

4. Insert the mouse and keyboard into the KVM switch

Note：

1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 3 HDMI cables connected to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

Ultra HD 8K@60Hz Triple Monitor KVM Switch

• Confirms to Displayport 1.4v protocol, support HDMI port (8K@60Hz,4K@144Hz,3440×1440 @144Hz,1440P@165Hz) standards and is compatible downwards.

• The 3 monitor requires 3 DP connections from each computer to the KVM switch. When both the display and the signal source support 8K@60Hz, the device can provide a 8K experience.

• Note: Only when both your computer Graphics card and monitor support 8K@60Hz/3440×1440@144Hz

  with DP port, you can get 8K@60Hz/3440×1440@144Hz effect,so if you want the max resolution you have to check your devices first.

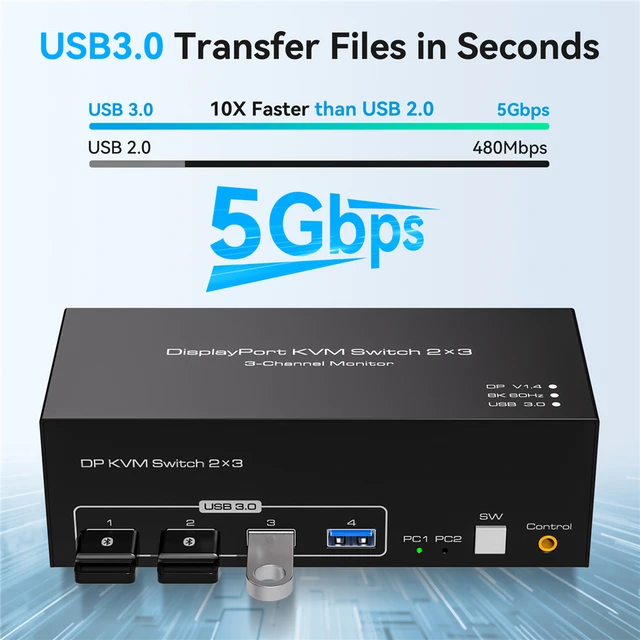

2 PCs Share 4 USB 3.0 Devices

This kvm switch 3 monitors 2 computers with 4 USB 3.0 Ports for keyboard, mouse, printers, USB headsets or webcams.

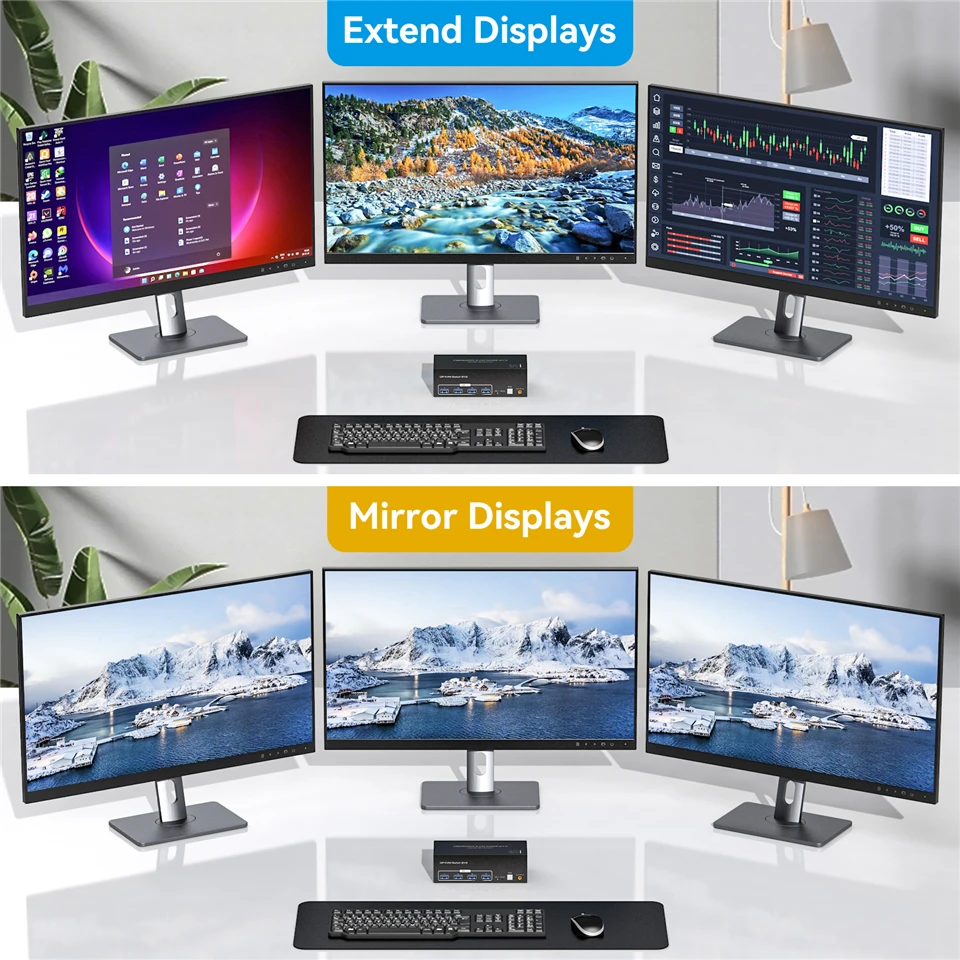

This USB 3.0 kvm switch 3 monitors 2 computers supports two modes of display (mirroring or extended mode)

• Extended mode can output 3 different screens, and mirror mode can output 3 identical screens.

Warm Tips

• Before purchasing, please connect your computer to 3 monitors directly to test whether your computer supports triple monitor output ( mirror and extend)

Triple Monitor KVM Support 2 Switching Modes

• Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

• Please note: This 3 monitor kvm switch does not support hotkey switching.

How do copy mode /extend mode work?

3 Monitor KVM Switch

Set up step:

Windows system to quickly set 3-screen output.

• 1. Press “Windows” and “P” on the keyboard

• 2. Select Extend or Copy

• 3. Enter to confirm
