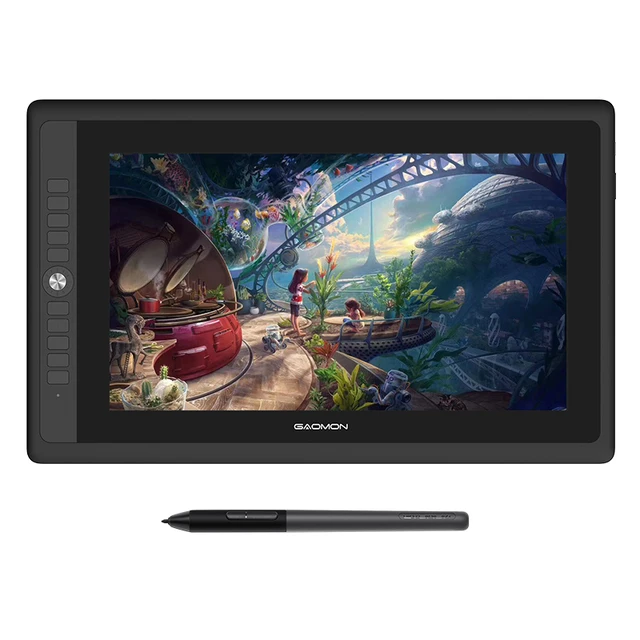

GAOMON PD156 PRO 15.6 Inch Full-Laminated 88% NTSC Graphic Tablet Display with 9 Express Keys and 8192 Passive Tilt-Support Pen

GAOMON 15.6 Inch Full-Laminated 88% NTSC Pen Display with 9 Express Keys and 8192 Passive Tilt-Support Pen – PD156 Pro Drawing Monitor

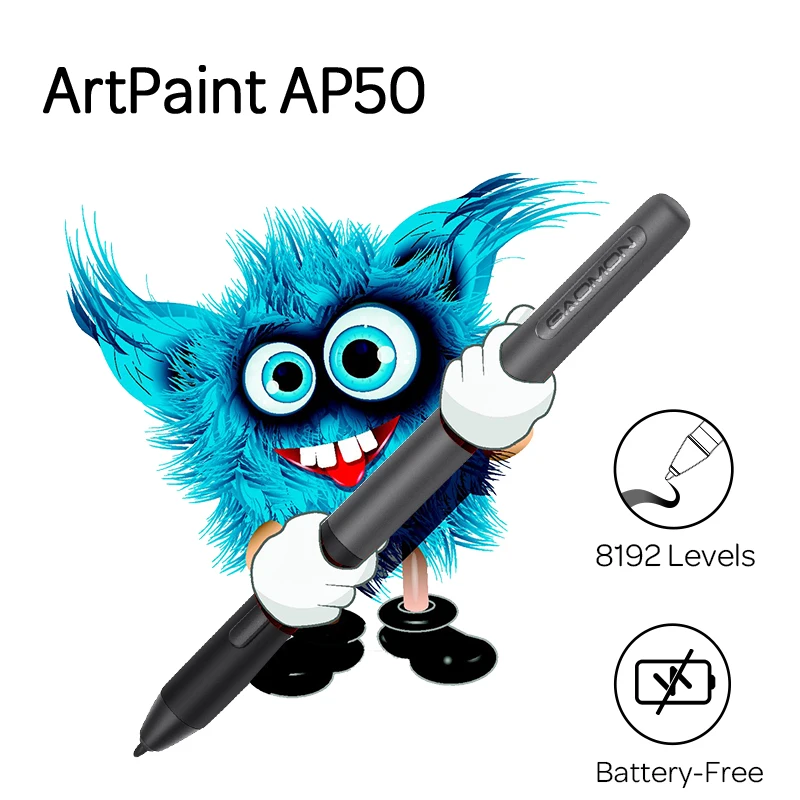

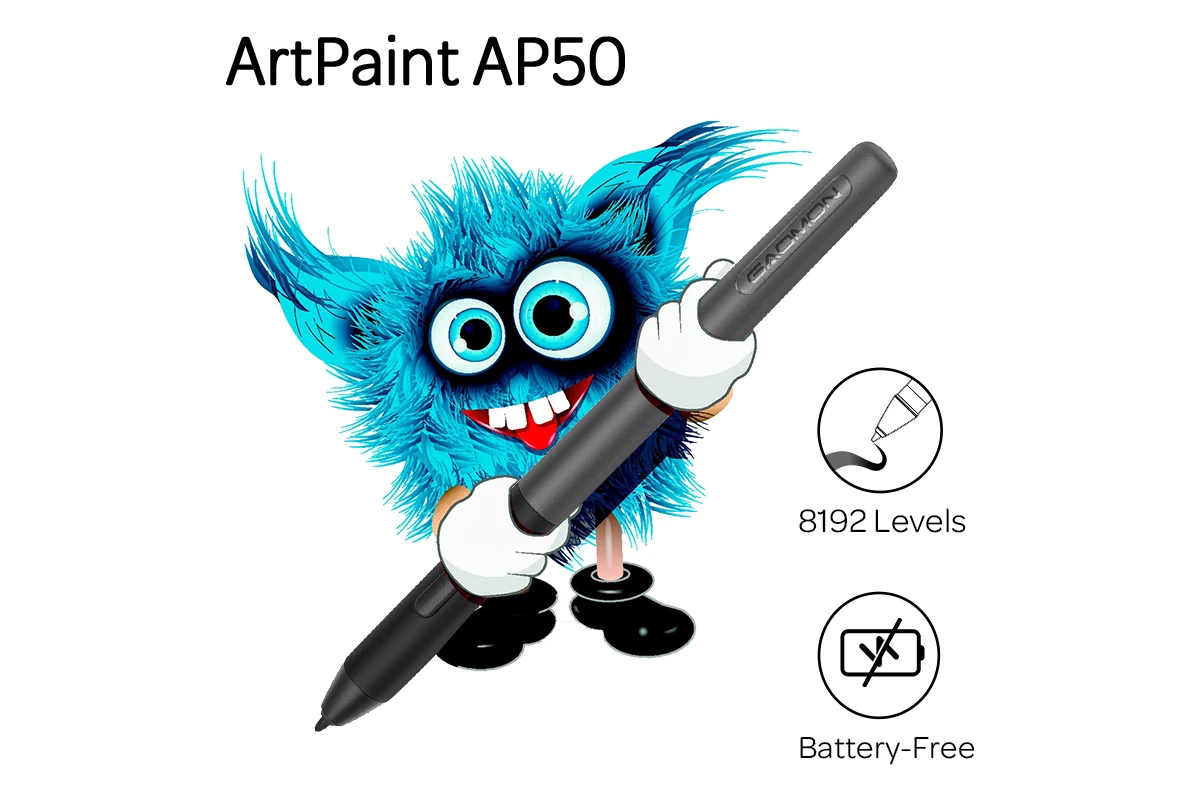

[8192 LEVELS PRESSURE & AP50 PASSIVE PEN & 60 DEGREES TILT SUPPORT]

We can control width, opacity, spacing, angle, of the stroke better with 8192 levels pressure sensitivity. No need to charge the pen. [PEN HOLDER & PEN NIBS]– 8 replacement nibs are put inside the pen holder.

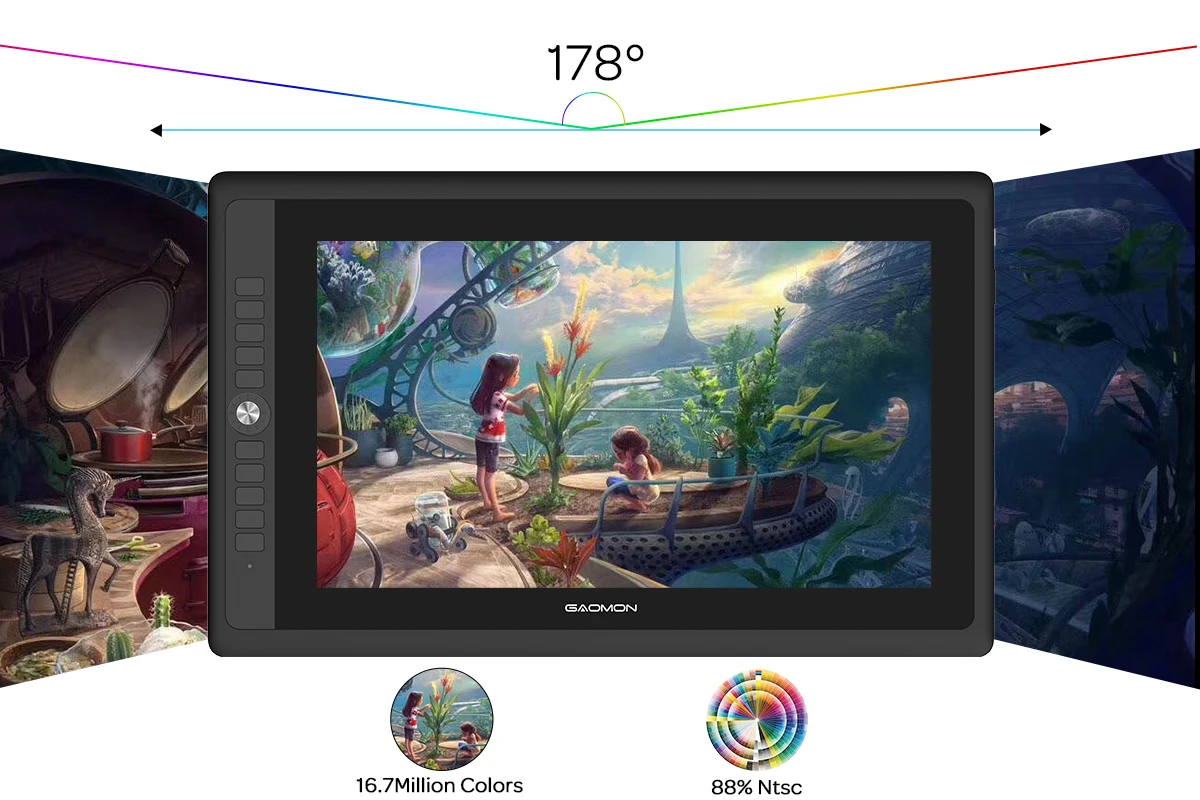

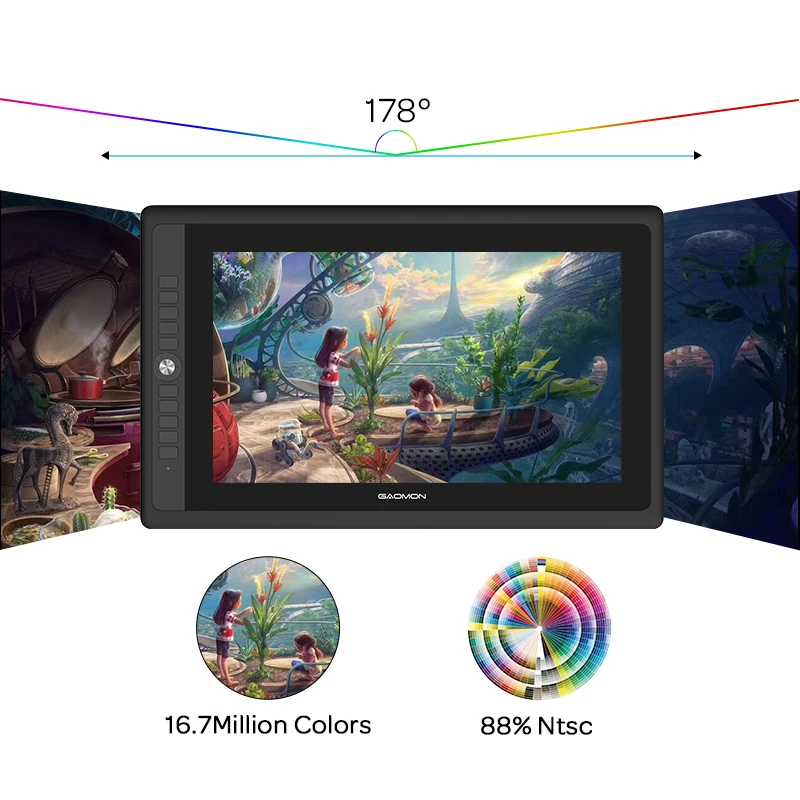

[FULL-LAMINATED HD SCREEN & 88% NTSC COLOR GAMUT ]

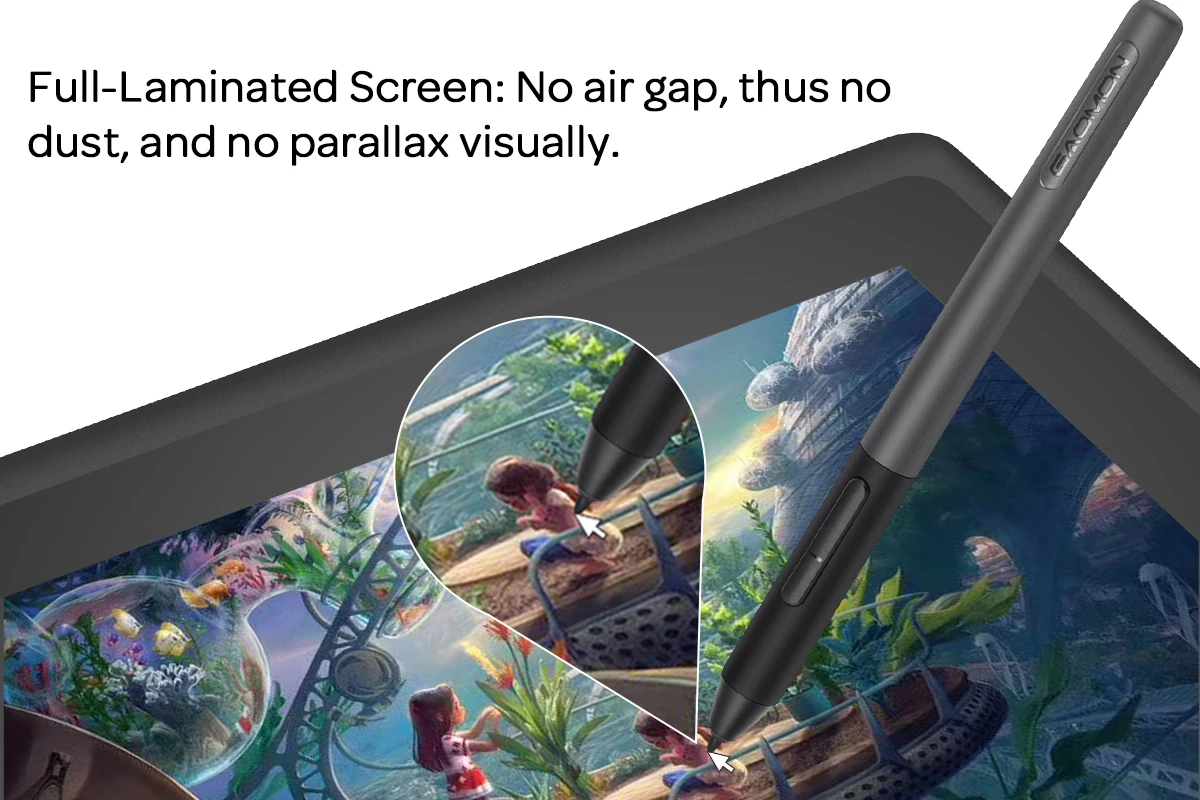

With Full-laminated technology adopted, no air gap,visually the parallax will be deduced to the lowest level. Color Gamut: 88% NTSC. Screen Solution: 1920*1080 [SCREEN FILM ]-With AG film applied on screen, it protects your eyes, and meanwhile increase paper-like drawing experience. [OTHER DISPLAY INFO]– Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10). Display Area: 476.64 x 268.11mm(18.8*10.6 inches).

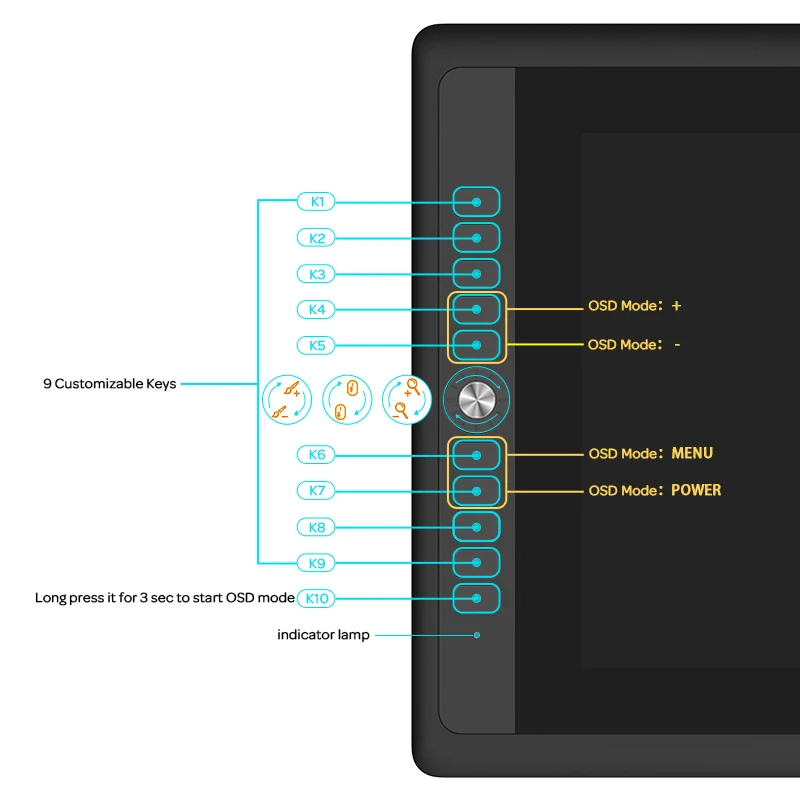

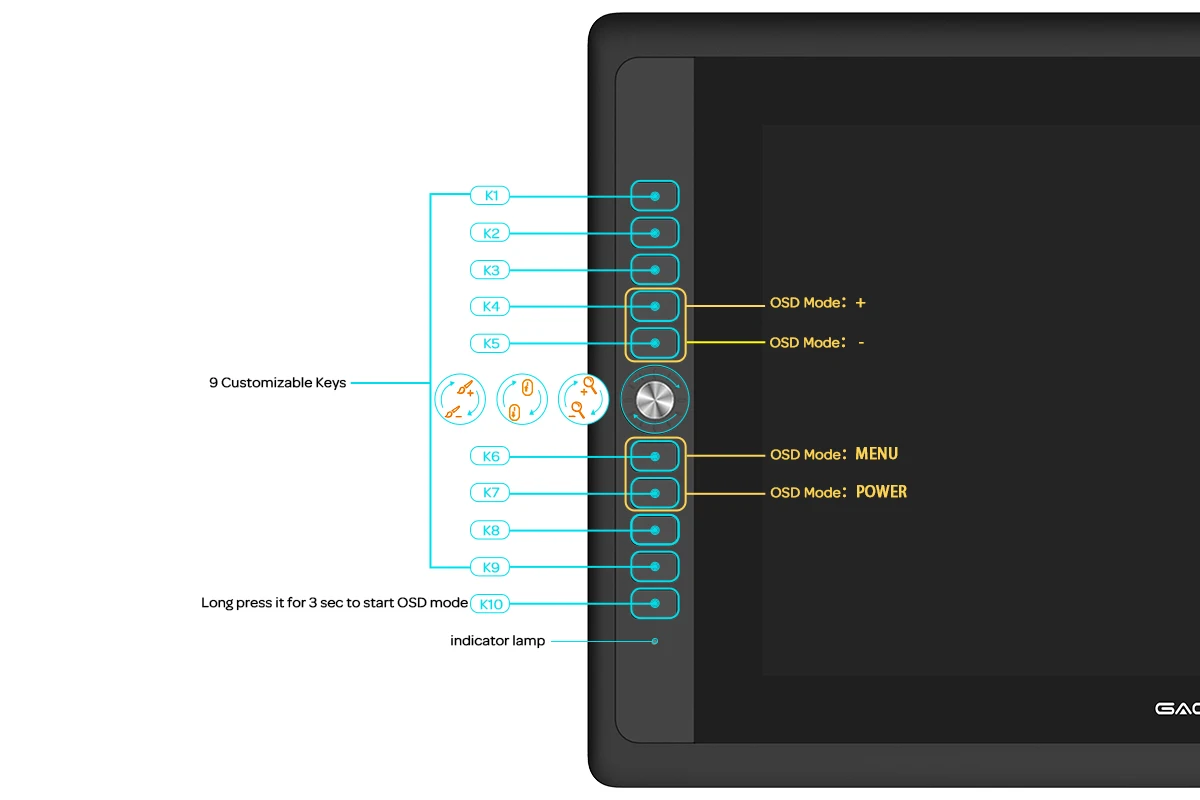

[REDIAL FUNCTION]

It ONLY works after installing GAOMON driver on windows OS. The default setting is to switch functions among zooming canvas, adjusting brush size, and scrolling page by pressing the round key,then rolling the ring to adjust size or move. Note: You can change the 3 default function in GAOMON driver. [LESS CABLE TO PLUG]–Only one Typc-C USB to plug into PD156 Pro. ; And Only USB Type-A & HDMI to plug into computer. Note: When computer cannot provide enough power, you need plug extra power adapter

[OS SUPPORT& PROGRAM COMPATIBILITY]

Work with laptops or desktops which run Windows 7/8/8.1 or above, Mac OS 10.12 or above; Compatible with most of major drawing software, Photoshop、SAI version 2、Illustrator、Krita、Firealpaca、Gimp、SketchBook Pro、MediBang Paint Pro, etc.

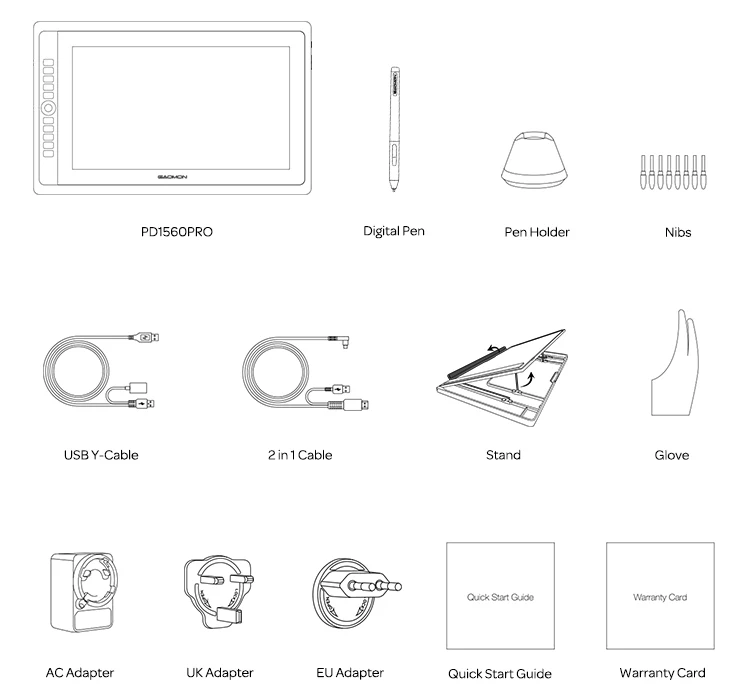

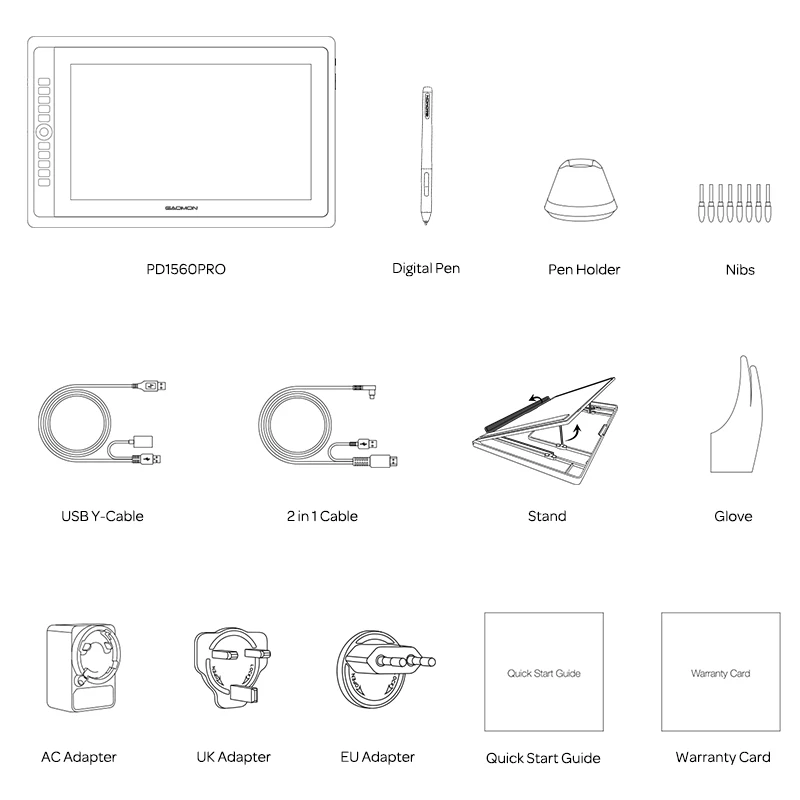

PACKAGE LIST:

Pen Display PD156 PRO x 1// Passive Pen AP50 x 1 // 2-in-1 Cable //

Y-Cable // US STD Power Adapter// Pen Holder x 1 (Replacement Nibsx8 inside)// Adjustable Stand for PD156 PRO x 1//

Case for PD156 PRO x 1// Cleaning Cloth x 1 Glove x 1// Quick Start Guide x 1

WARM PROMPT

1. Tablet Connection:

It is NOT a standalone product.Connect it to a laptop or desktop running windows or mac. It does not work with Chrome OS.
If you use a desktop, please plug the HDMI cable into graphic card of tower but not on motherboard.
If there is no HDMI port on your computer, you need an extra HDMI adapter. For example: VGA to HDMI adapter, DVI to HDMI adapter, Thunderbolt to HDMI adapter, etc. We don't recommend USB to HDMI adapter, and multi-ports hub. We recommend one to one type hdmi adapter. If you don't know which kind of adapter to use, ask GAOMON Tech Support please.
2. Extend & Duplicate:

Press ''windows+p'' on keyboard, then choose ''Duplicate'' or ''Extend''.(Windows OS)
System Preference– Displays–Arrangement–Check or Uncheck ''Mirror Displays'' (Mac OS)
When PD156Pro display exact same with computer monitor, that means you are under Duplicate mode.
When the PD156Pro only display wallpaper of computer monitor, that means you are under Extend mode. Go to GAOMON Driver–Work Area—Choose PD156Pro as work area–Now you can use under extend mode.
If you are not familiar with extended mode, we recommend you use in Duplicate mode.
3. Tips for Windows Users:

Make sure there is no other brands driver on computer
Run as administrator when installing the driver.
4. Tips For Mac 10.14 or 10.15 OS Users:

After you installed GAOMON Driver,when you use the pen wokr button, it will bring out a box ''GaomonTablet'' would like to control this computer using accessibility features''. Please Don't click ''Deny''.
Remember to put GaomonTablet and TabletDriverAgent into the whitelist first of Accessibility of Security & Privacy box. Search ''Mac'' on GAOMONweb FAQ section to see detail steps with pictures.
Why do we need this whitelist step? Mac 10.14 and 10.15 upgraded in security section and need more permission to properly run program which is related to privacy. For example, all computer input devices (like graphics tablets) which needs driver, all programs which need use mac screen recording, camera, microphone etc.
5. GAOMON Tech Support:

GAOMON Tech Support Might Be More Supportive Than You Thought. And welcome to FAQ Section on GAOMONWeb
