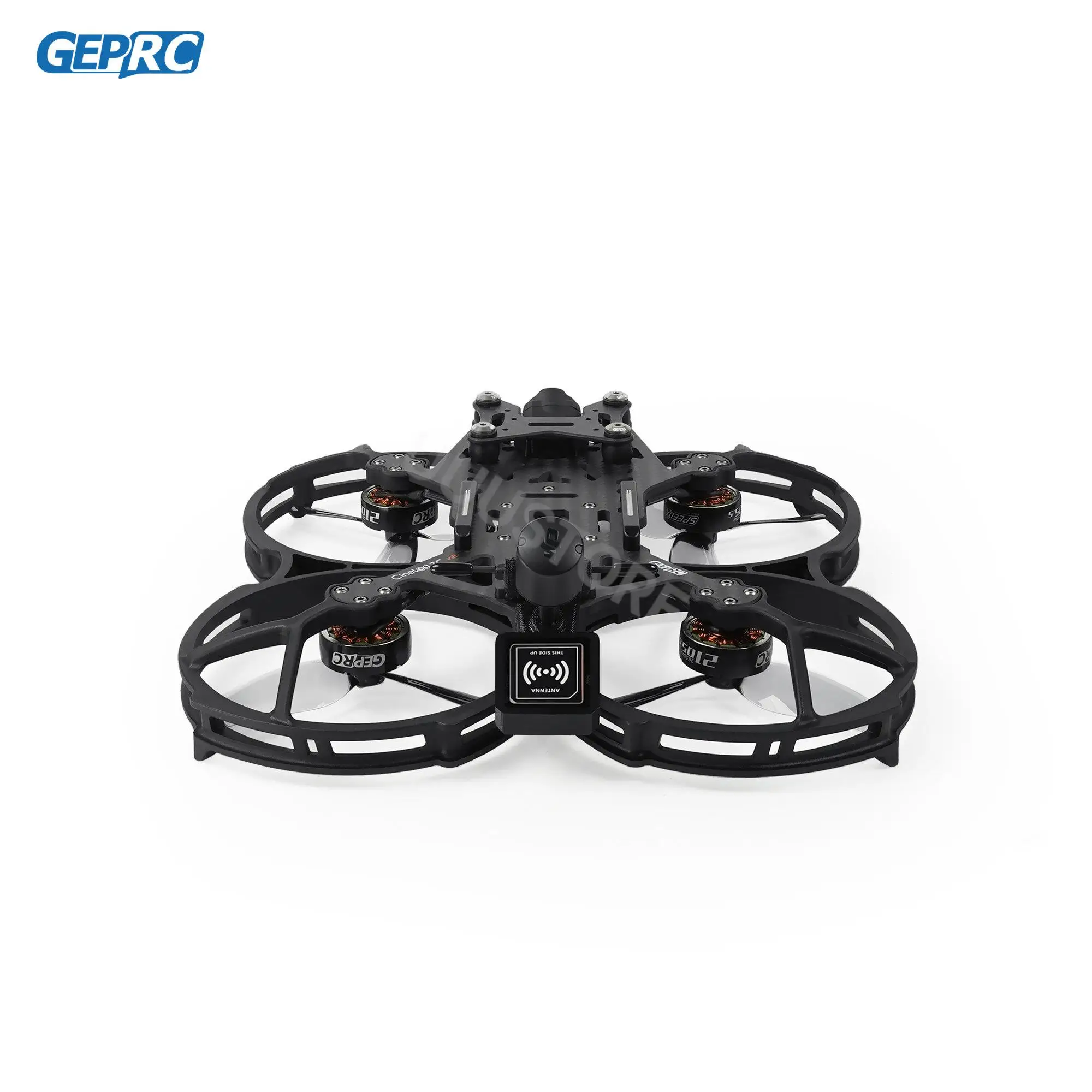

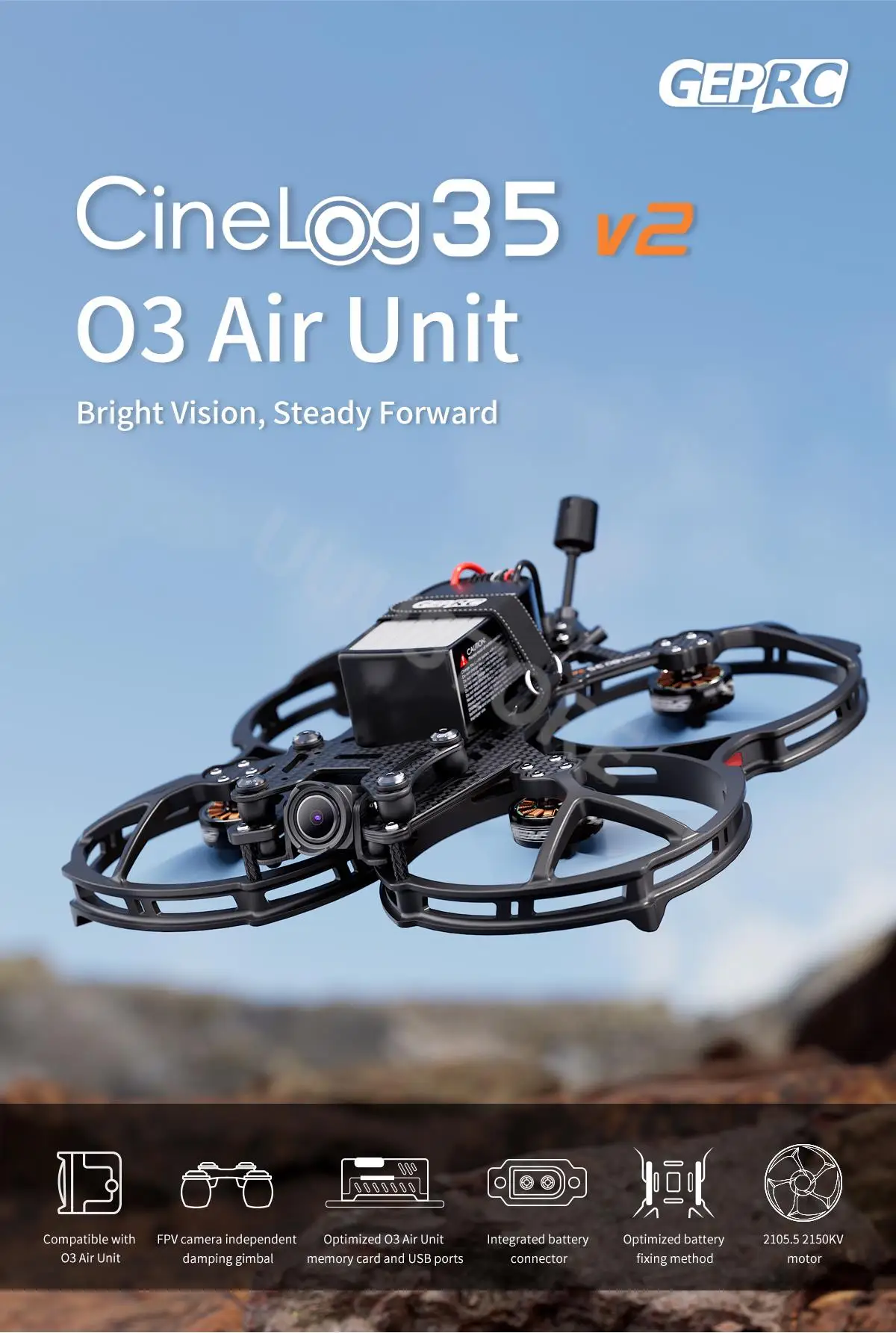

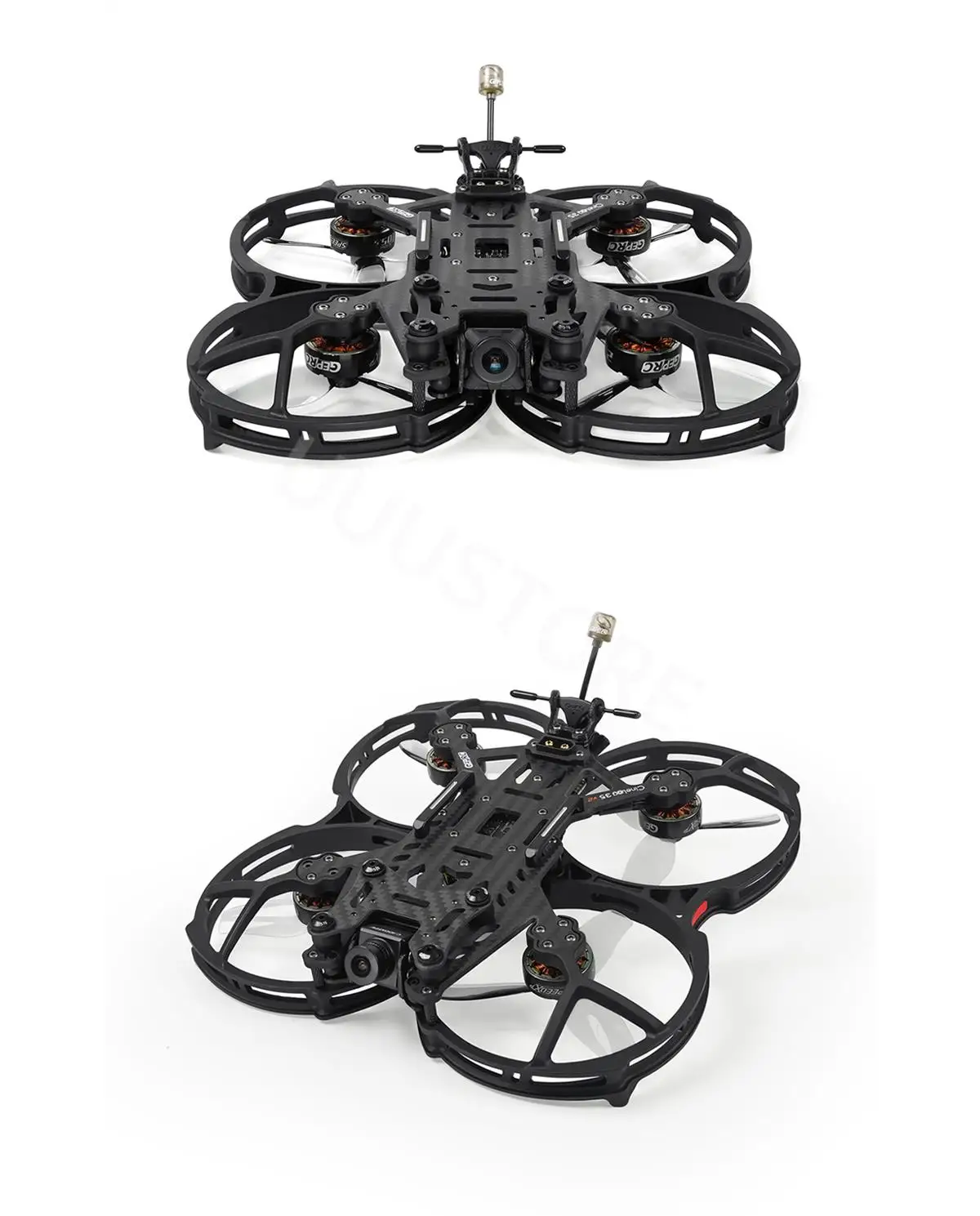

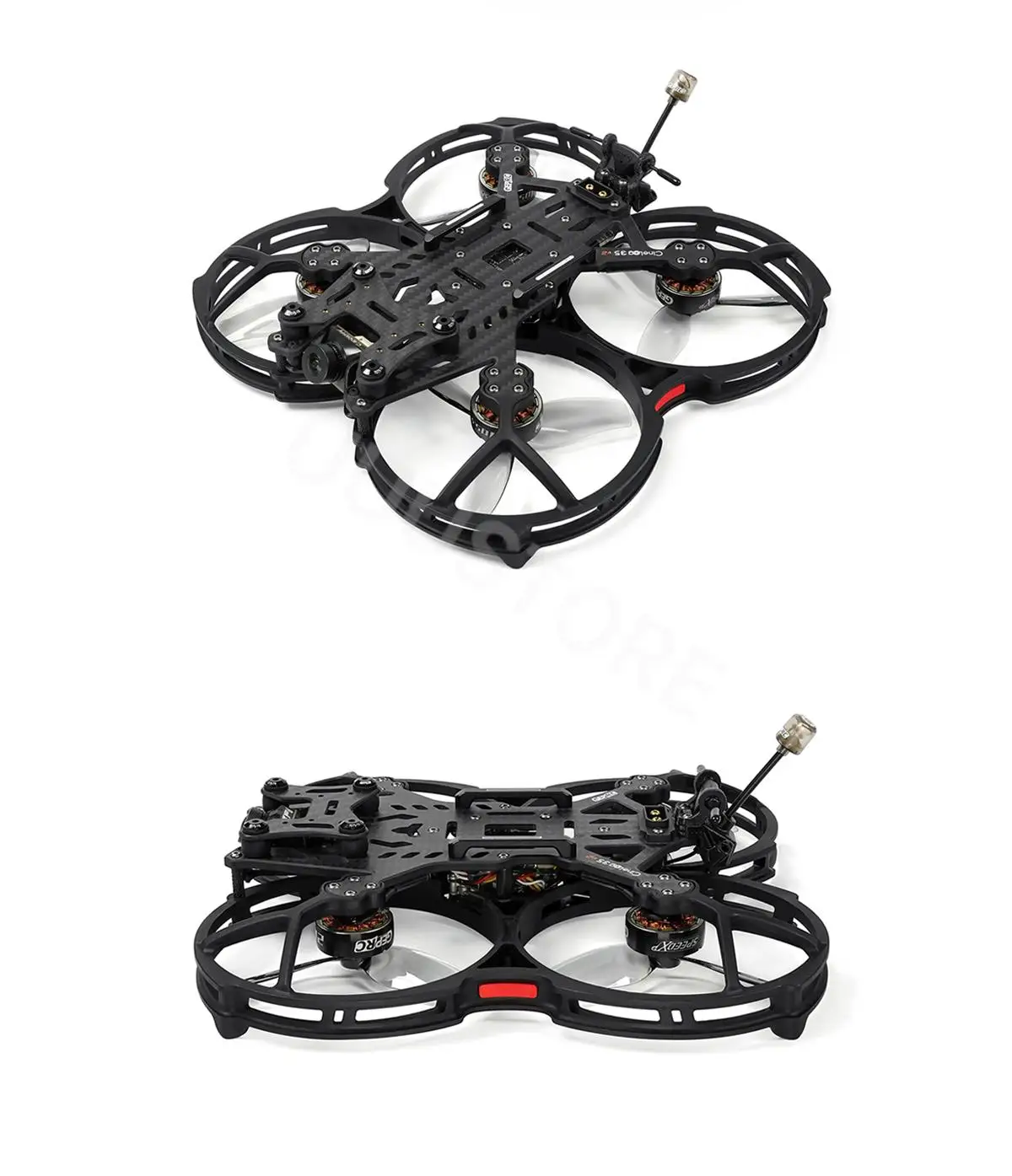

GEPRC CineLog35 V2 3.5 inch HD FPV Cinewhoop Drone O3 Air Unit GEP F722-45A AIO V2 FC 2150KV 6S Motor TBS ELRS RC Quadcopter toy

GEPRC CineLog35 V2 3.5 inch HD FPV Cinewhoop Drone O3 Air Unit GEP F722-45A AIO V2 FC 2150KV 6S Motor TBS ELRS RC Quadcopter toy - Image 2

GEPRC CineLog35 V2 3.5 inch HD FPV Cinewhoop Drone O3 Air Unit GEP F722-45A AIO V2 FC 2150KV 6S Motor TBS ELRS RC Quadcopter toy - Image 3

GEPRC CineLog35 V2 3.5 inch HD FPV Cinewhoop Drone O3 Air Unit GEP F722-45A AIO V2 FC 2150KV 6S Motor TBS ELRS RC Quadcopter toy - Image 4

GEPRC CineLog35 V2 3.5 inch HD FPV Cinewhoop Drone O3 Air Unit GEP F722-45A AIO V2 FC 2150KV 6S Motor TBS ELRS RC Quadcopter toy

Name: GEPRC CineLog35 V2 3.5 inch HD FPV Cinewhoop Drone O3 Air Unit GEP F722-45A AIO V2 FC 2150KV 6S Motor TBS ELRS RC Quadcopter toy - www.AliDady.com
SKU: 3256805369259103
Availability: InStock

Price range: $663.90 through $752.90

Summary

Gathering the experience and evolution of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.

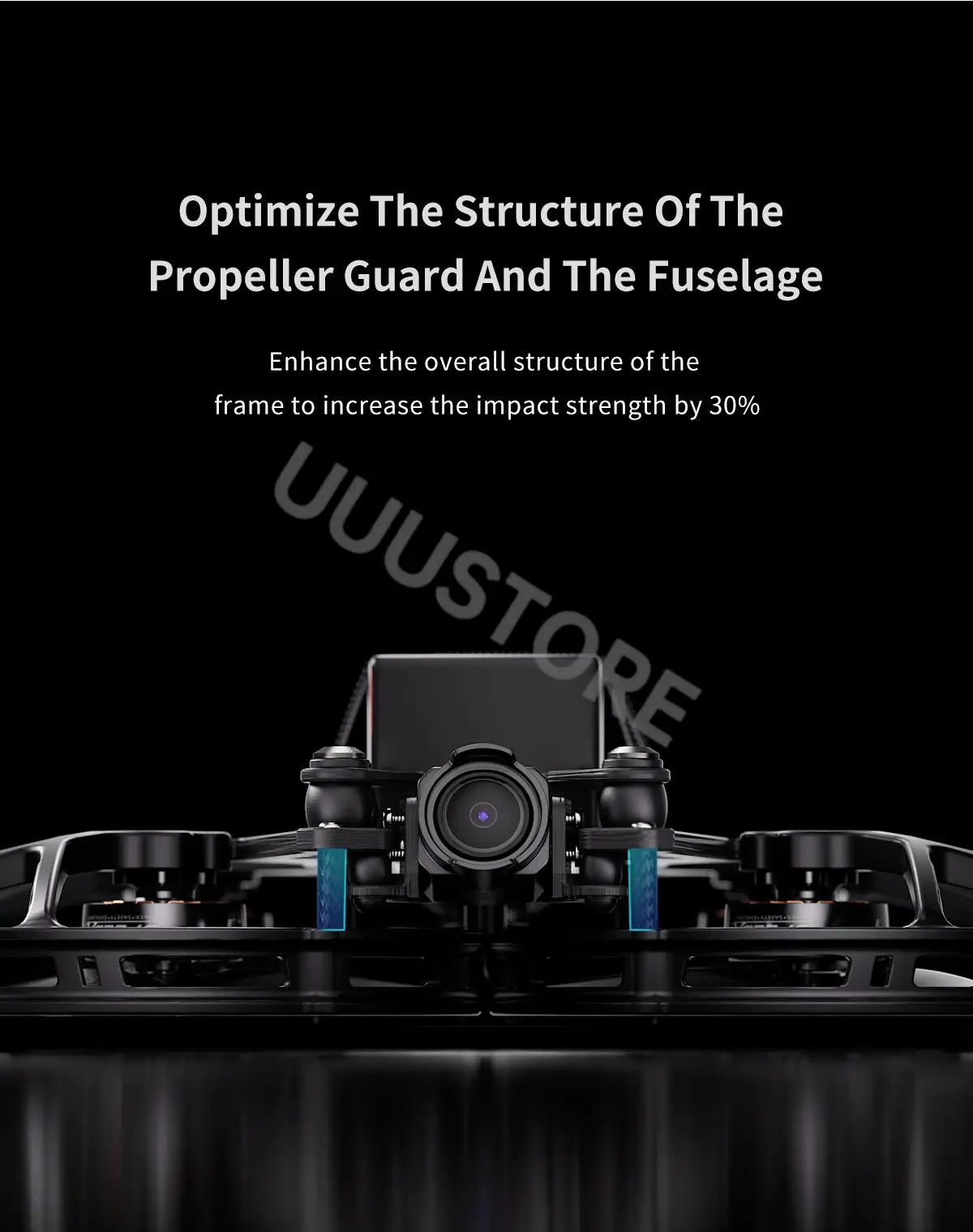

CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.

The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading.

Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.

This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors. The user’s satisfied voice is the motivation for us to move forward.

Feature

New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
Adopts the GEP F722-45A AIO V2 high performance flight controller.

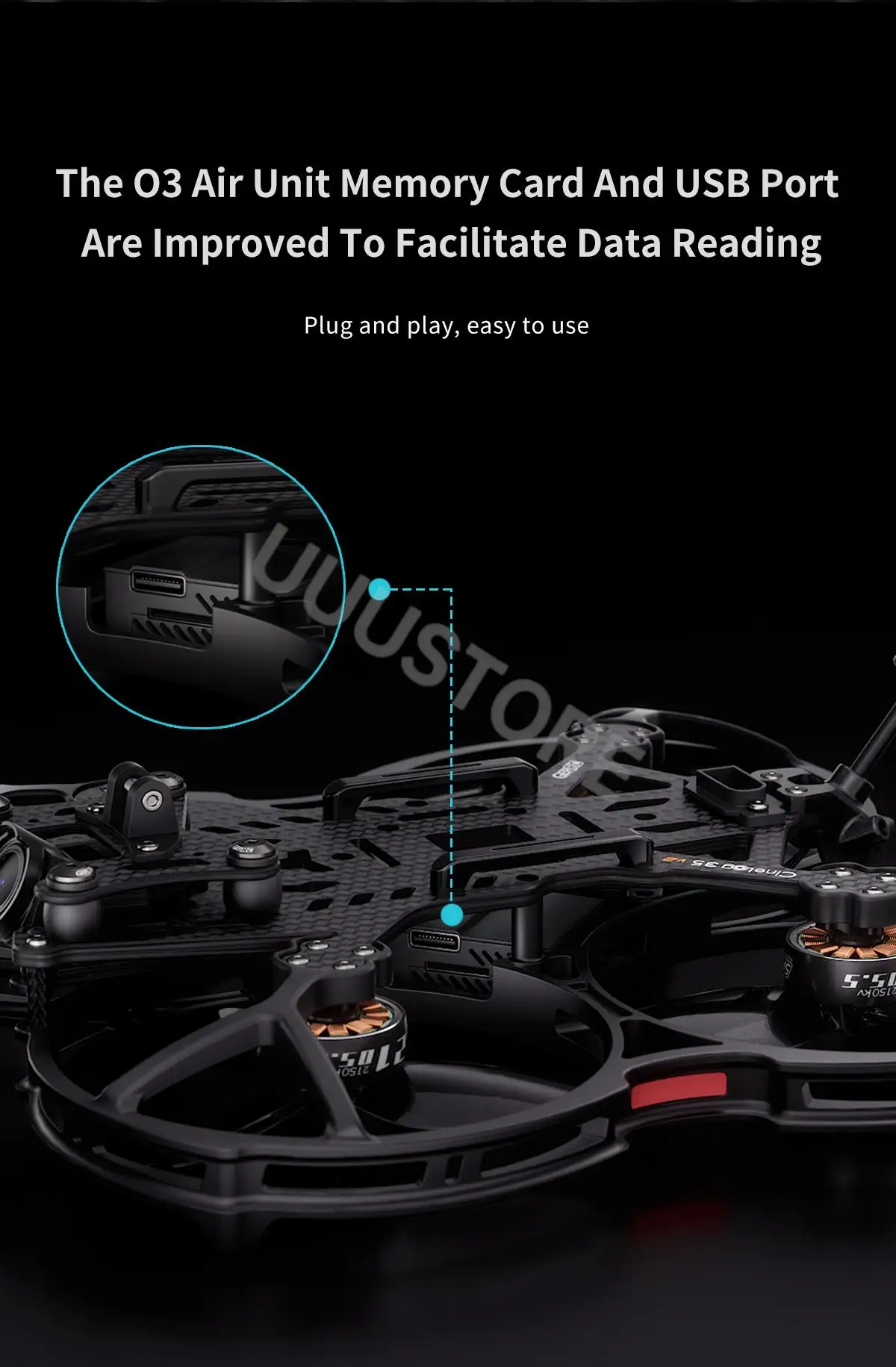

Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading

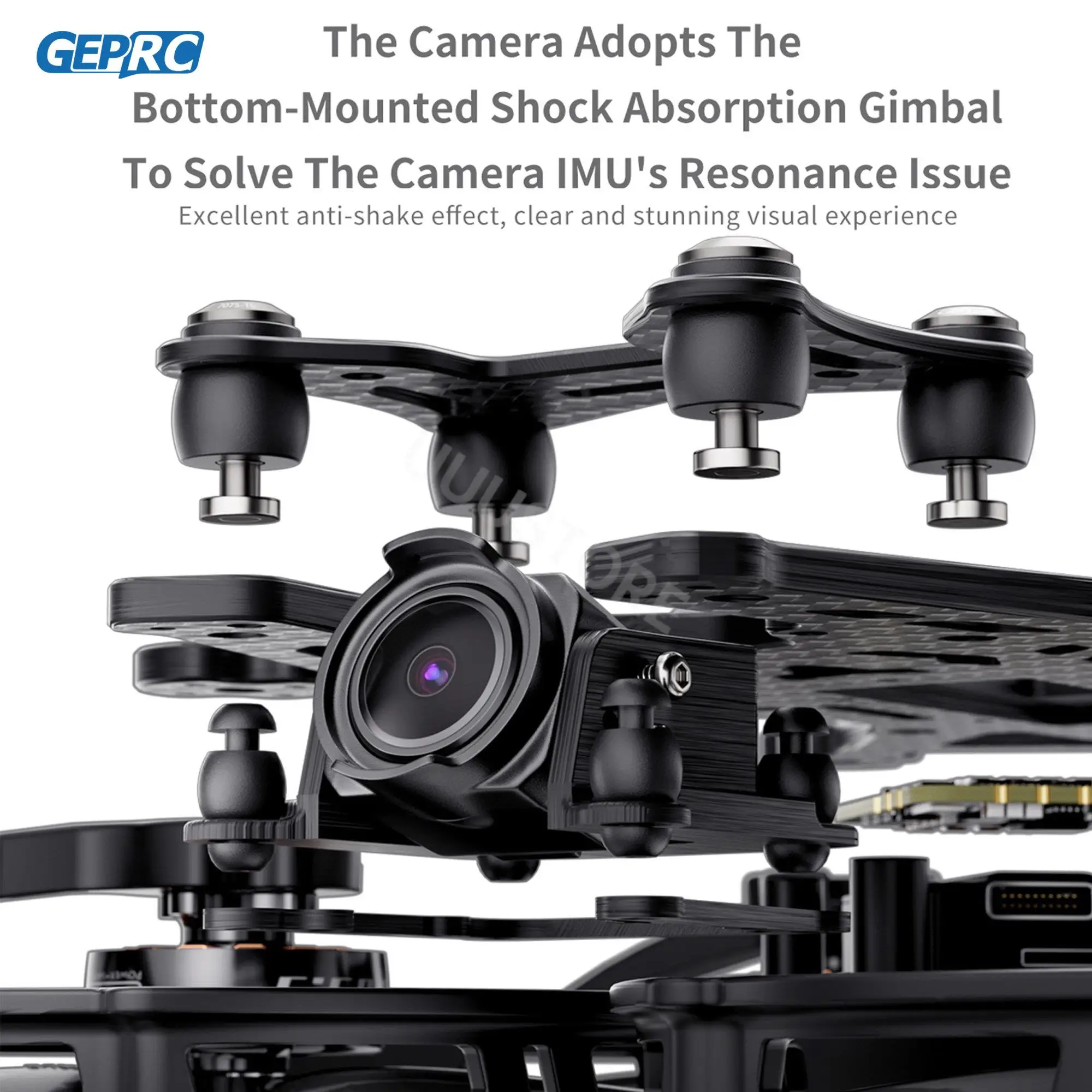

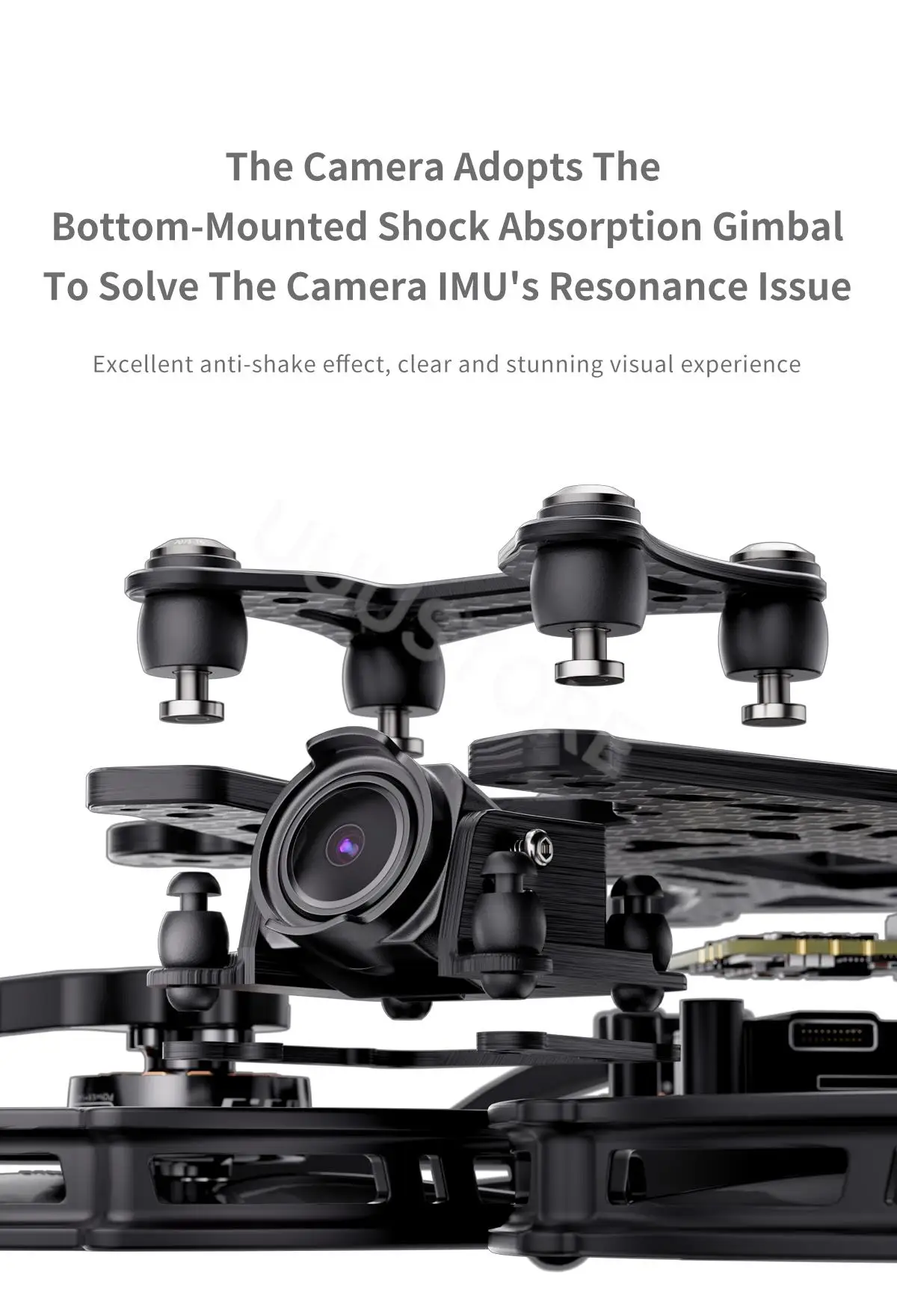

For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.

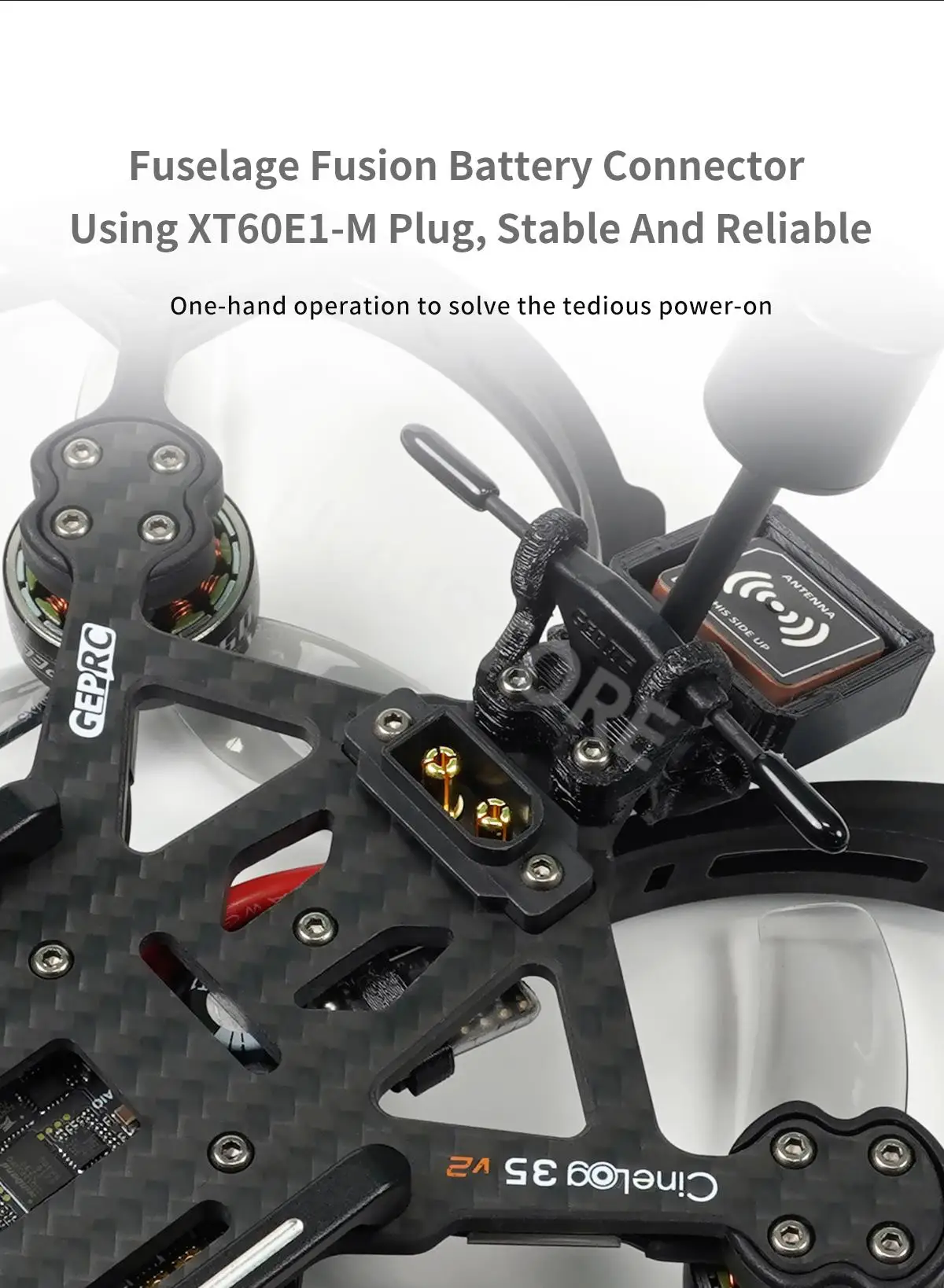

Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.

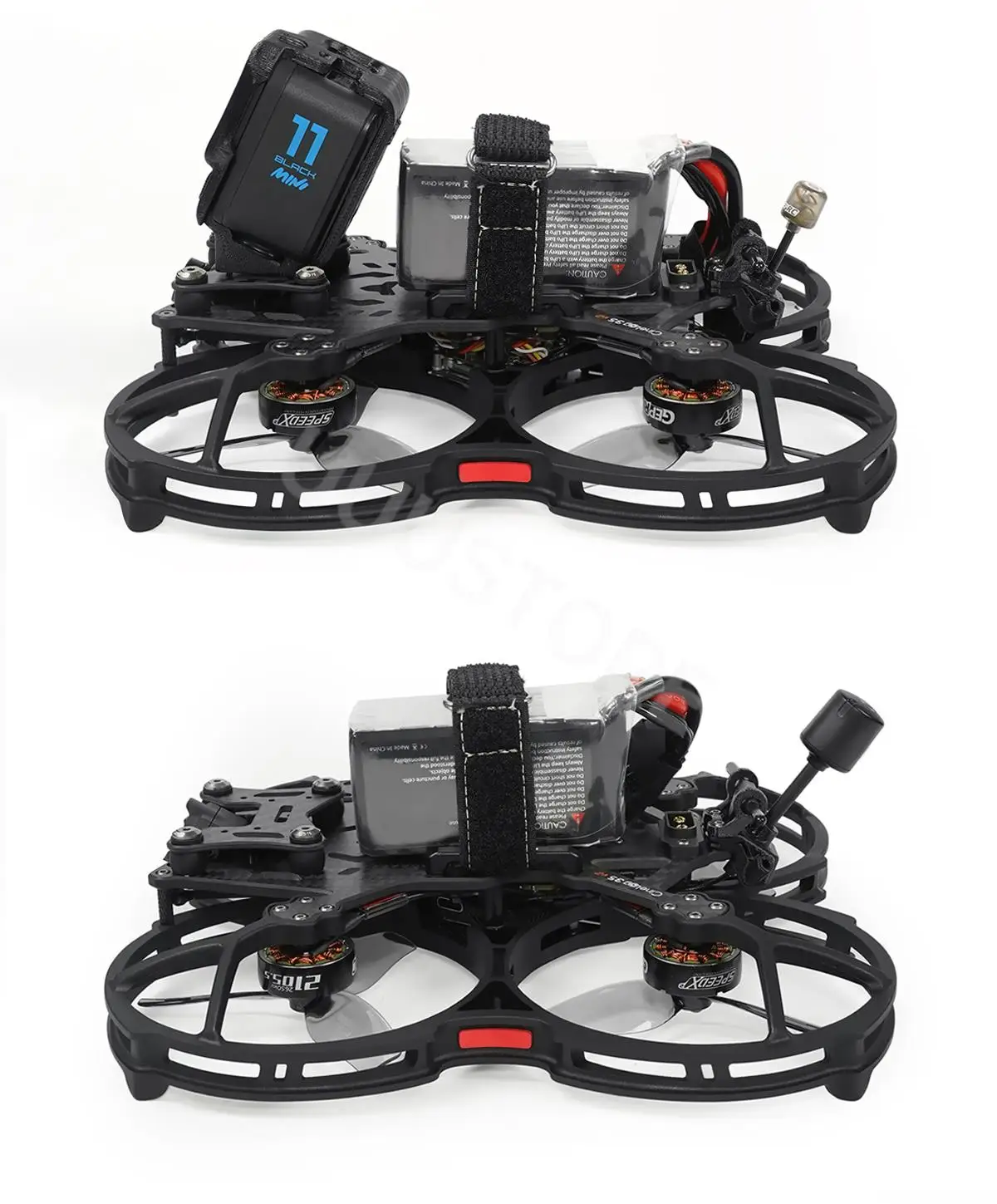

Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

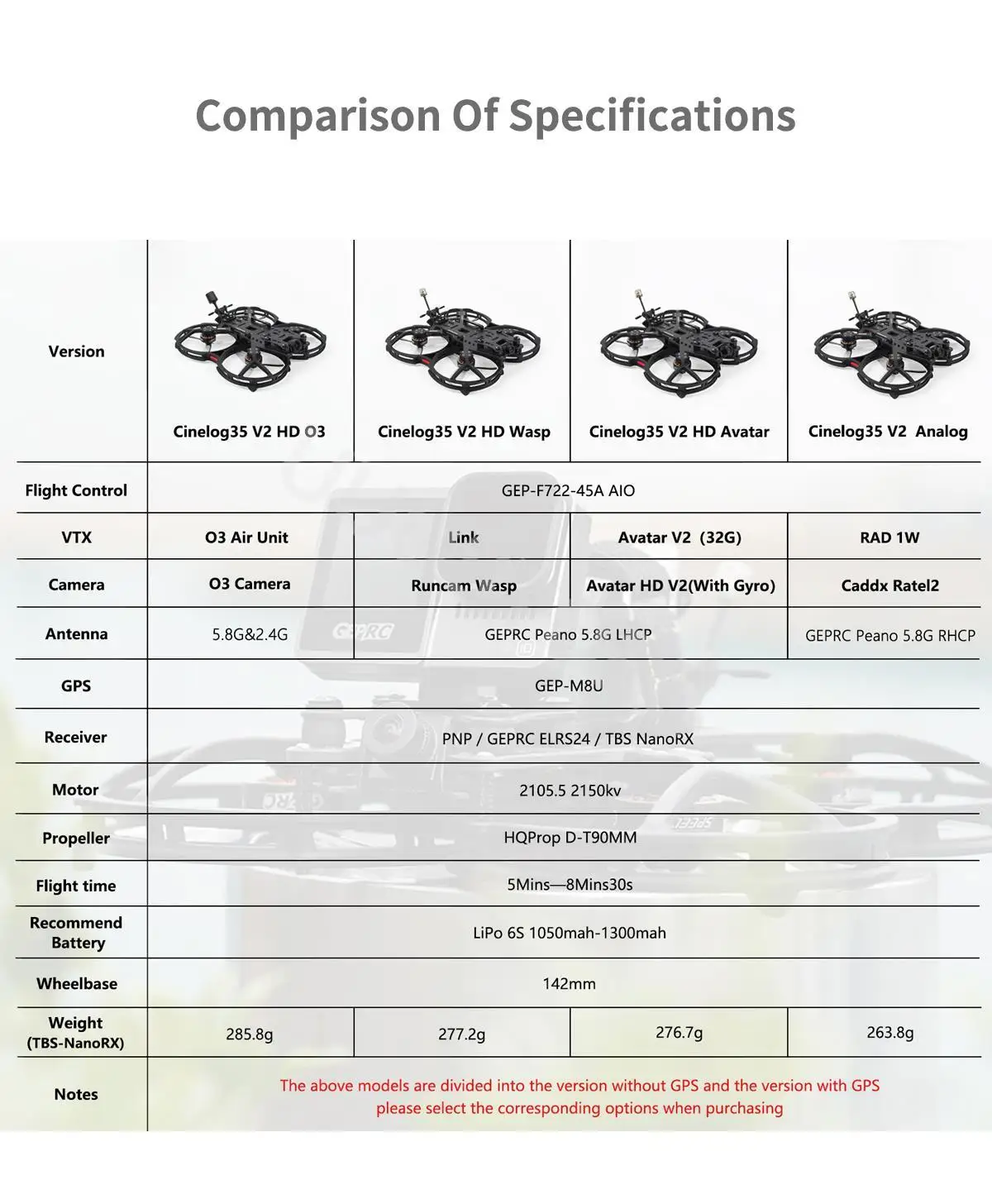

Specifications

Model: Cinelog35 V2 HD O3
Frame: GEP-CL35 V2

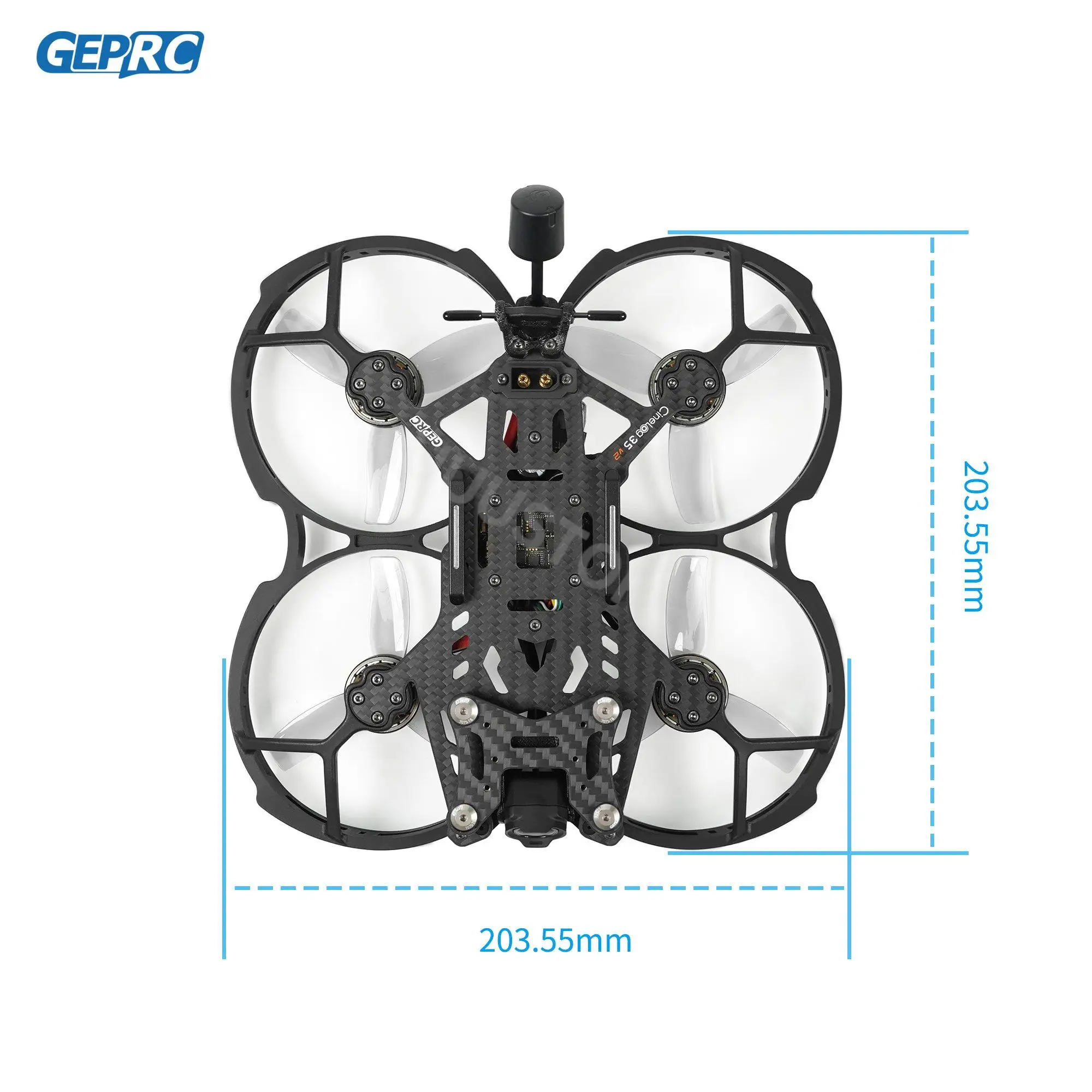

Wheelbase: 142mm
Gimbal plate: 2.0mm
Top plate: 3.5mm
Bottom plate: 1.5mm
FC system:GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 45A
VTX: O3 Air Unit
Camera: O3
Antenna: 5.8G&2.4G
Motor: SPEEDX2 2105.5-2150KV(6S)
Propeller: HQProp D-T90MM

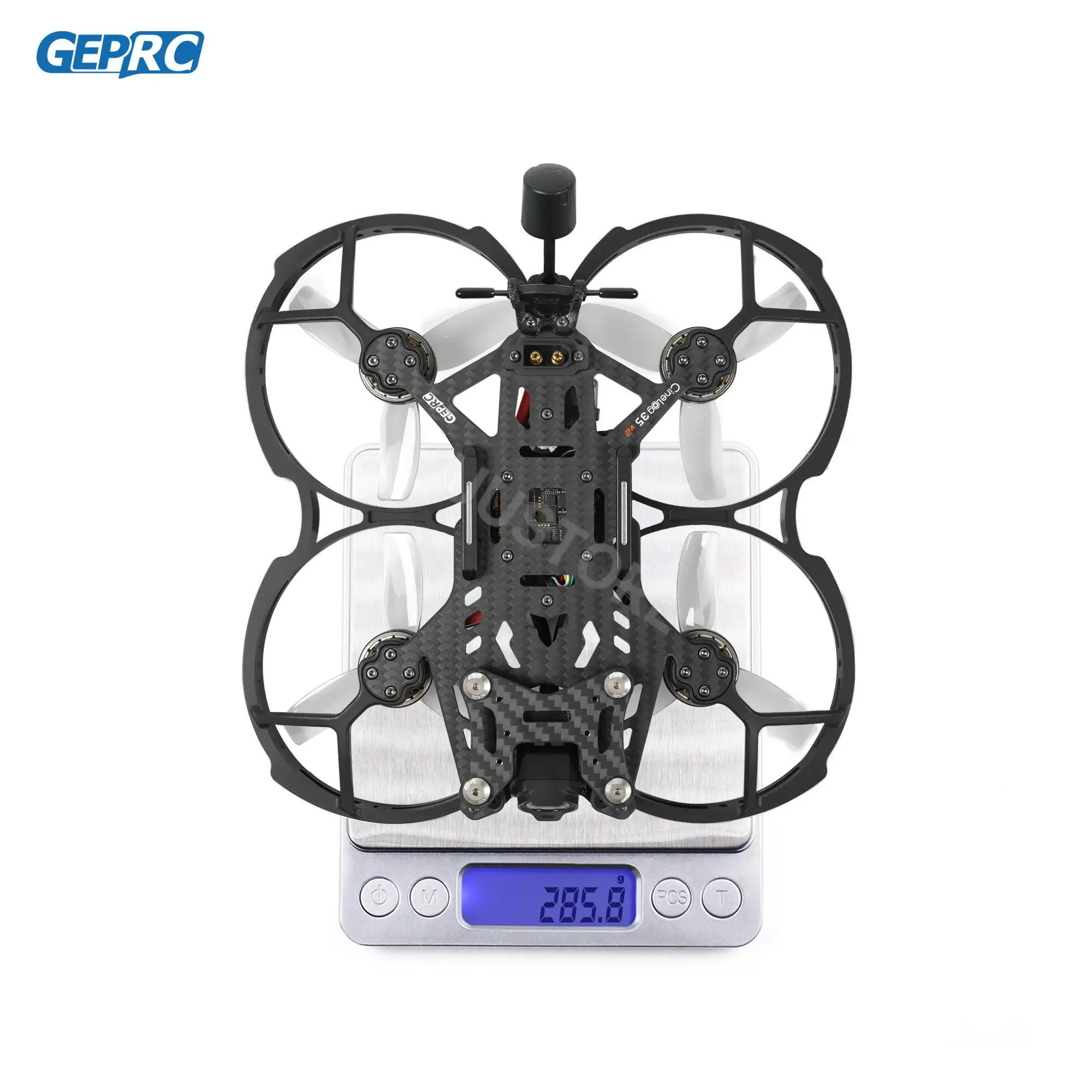

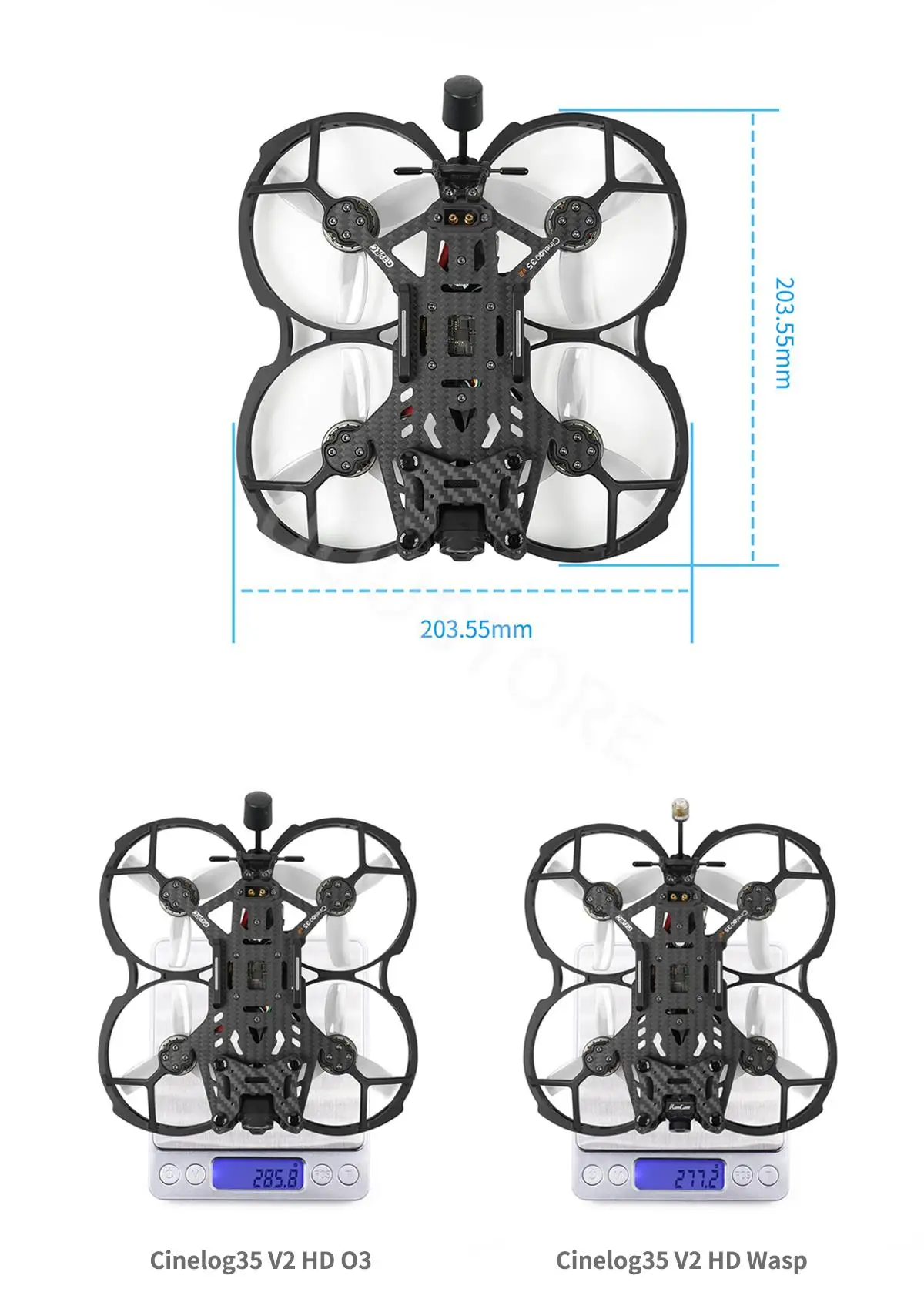

CineLog35 V2 HD O3 TBSNanoRX weight: 285.8g
Receiver: PNP, GEPRC ELRS 2.4G, TBS Nano RX
Recommended battery: LiPo 1050mah-1300mah
Flight time: 5′00″ -8′ 30″

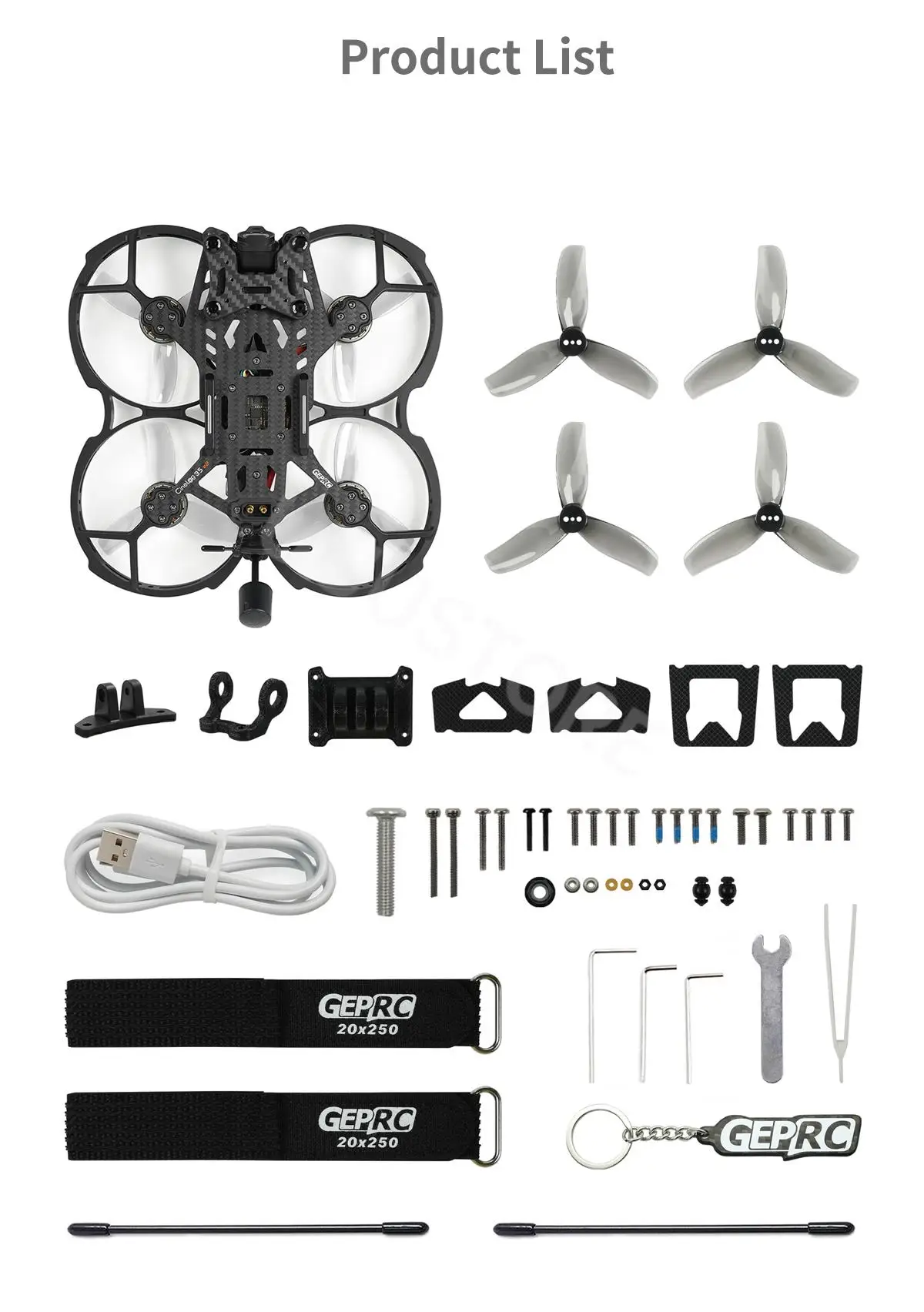

Includes

1 x Cinelog35 V2

2 x HQProp D-T90MM(2 pairs)

2x M20*250mm battery strap

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M5 wrench

1 x plastic tweezers

1 x Antenna fixed tube (pair)

1 x Keychain

1 x Naked fixed Base

1 x Antenna fixed Base

Screw package includes:

2x cup head screws M2*18

2x round head screws with pad M2*5.5

1x round head screws M2*12

2x Rivet nut M2

4x round head screws M2*8

4x round head screws M2*7

4x round head screws M2*6

2x round head screws M2.5*6

2x hexagonal screw M1.6*8

1x Flange nuts M5

2x Press Rivet Nuts_Brass color M2*1.9-OD4.9

2x Iron nut M2

2x Camera lens PTZ shock absorbing rubber

Weight	5 kg
Dimensions	5 cm
Brand Name	NoEnName_Null
Indoor/Outdoor Use	Indoor-Outdoor
Video Capture Resolution	other
Camera Mount Type	other
Controller Battery	Not Include
Origin	Mainland China
Aerial Photography	No
Control Channels	8 CHANNELS
Controller Mode	MODE2
Recommend Age	14+y
Material	Metal
Remote Distance	2000 meters
Package Includes	Operating Instructions
Remote Control	Yes
State of Assembly	Ready-to-Go
Type	HELICOPTER
Features	other
Dimensions	3inch
Certification	CE
Warning	Minors please use under the supervision of an adult
Warranty	3 month
Flight Time	5- 8 minutes

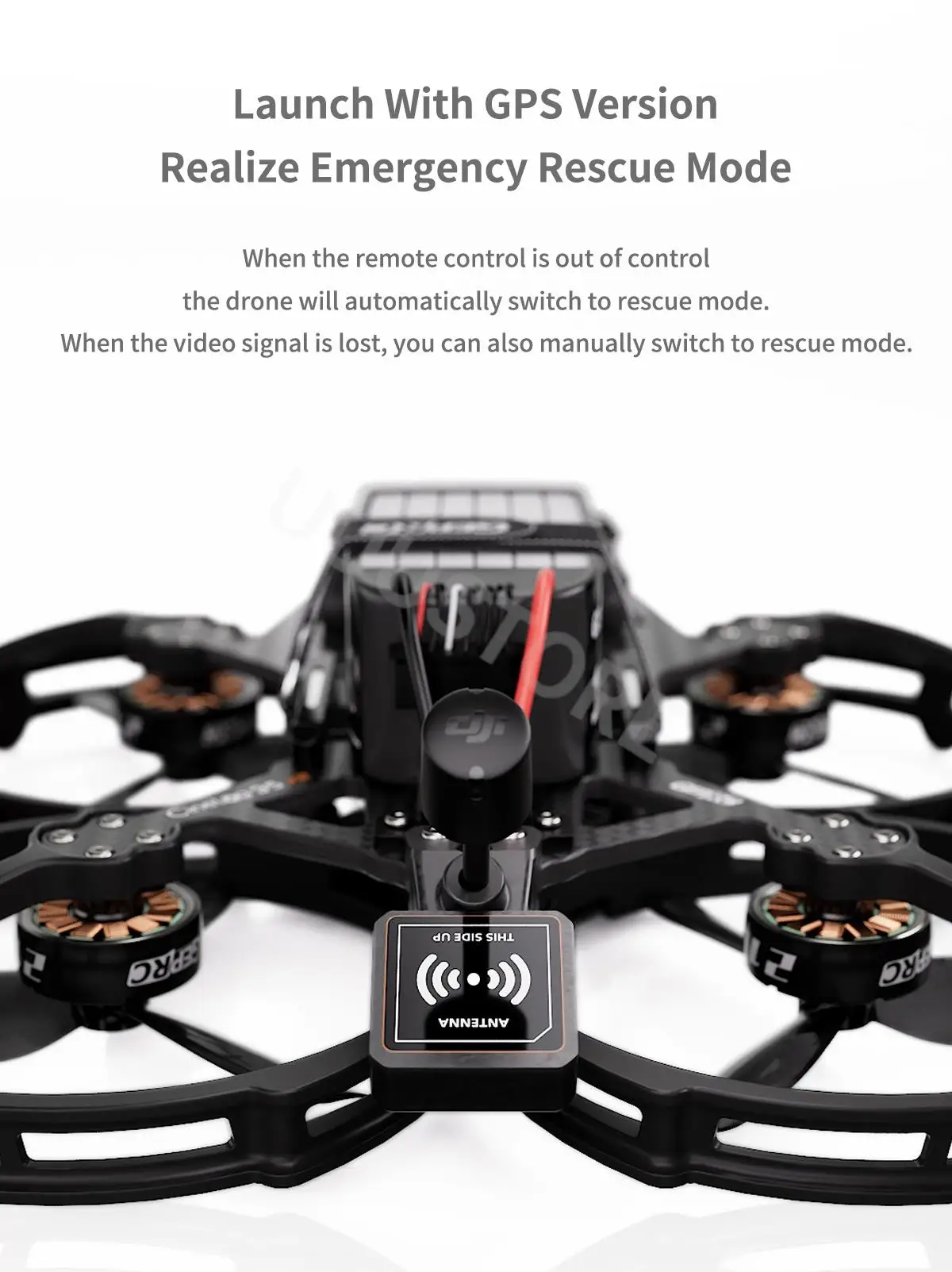

Model Number	Cinelog35 V2 HD O3 GPS
Operator Skill Level	expert
Charging Voltage	14.8V
Charging Time	30 minutes
Plugs Type	XT60
Power Source	Electric
