Geprc Cinelog35 V2 HD 722 45A AIO V2 6S 3.5 Inch Cinematic FPV Racing Drone PNP BNF with DJI O3 Air Unit Digital System

Price range: $858.61 through $874.42

ELRS with GPSELRS without GPS
Clear

Summary
Gathering the experience and evolutian of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.
CineLog35 v2 version integrated with DJI O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.
The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for DJI O3 Air Unit adds a memory card and USB port for easy data reading.
Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.
This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors. The user’s satisfied voice is the motivation for us to move forward.

Feature:
New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
Adopts the GEP F722-45A AIO V2 high performance flight controller.
Propeller Guard adds memory card and USB ports to DJI O3 Air Unit for easy data reading
For DJI O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

Specifications
Model: Cinelog35 V2 HD ( DJI O3 Version)
Frame: GEP-CL35 V2

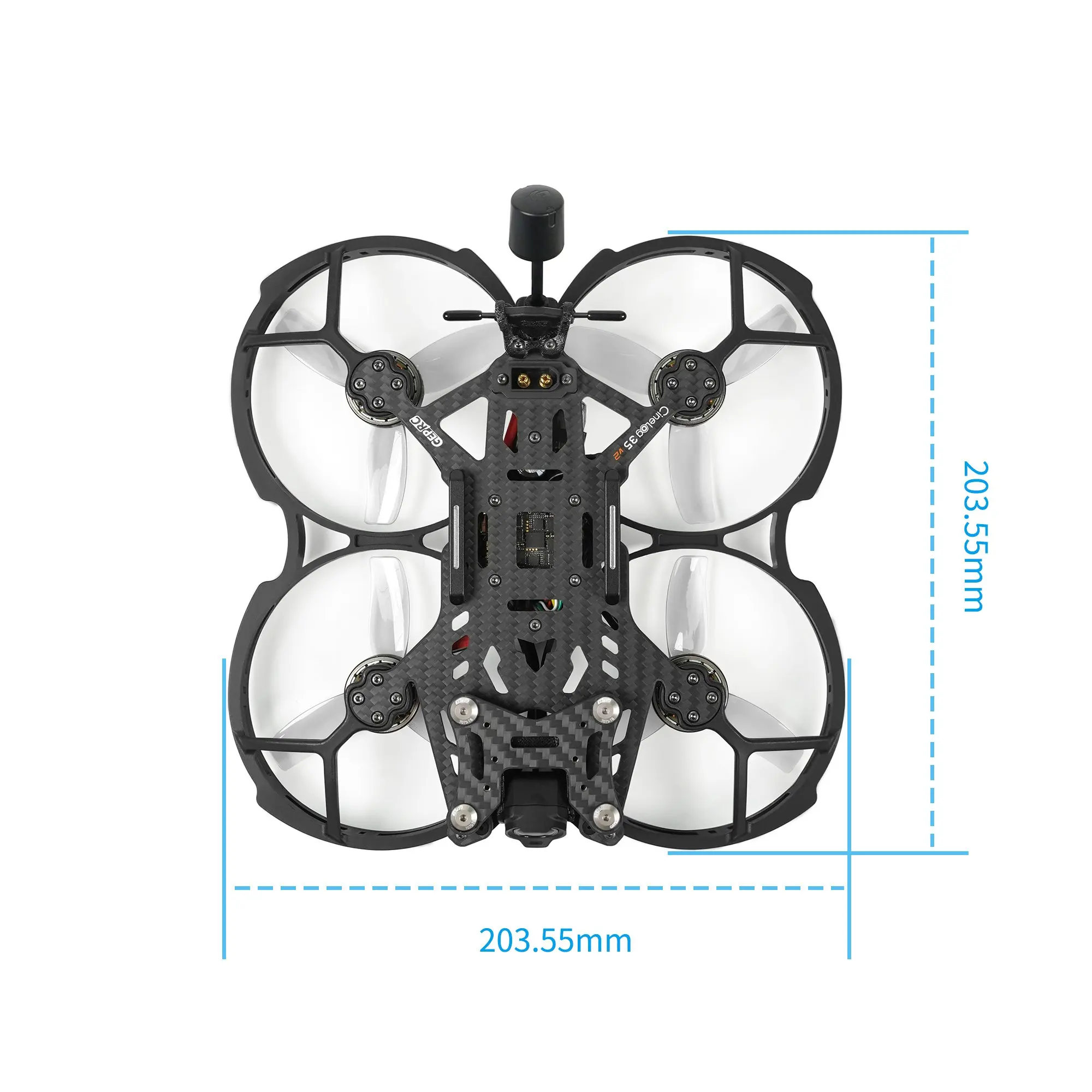

Wheelbase: 142mm
Gimbal plate: 2.0mm
Top plate: 3.5mm
Bottom plate: 1.5mm
FC system:GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 45A
VTX: DJI O3 Air Unit
Camera: DJI O3 Camera
Antenna: 5.8G&2.4G
Motor: SPEEDX2 2105.5-2150KV(6S)
Propeller: HQProp D-T90MM
GPS: GEP-M8U

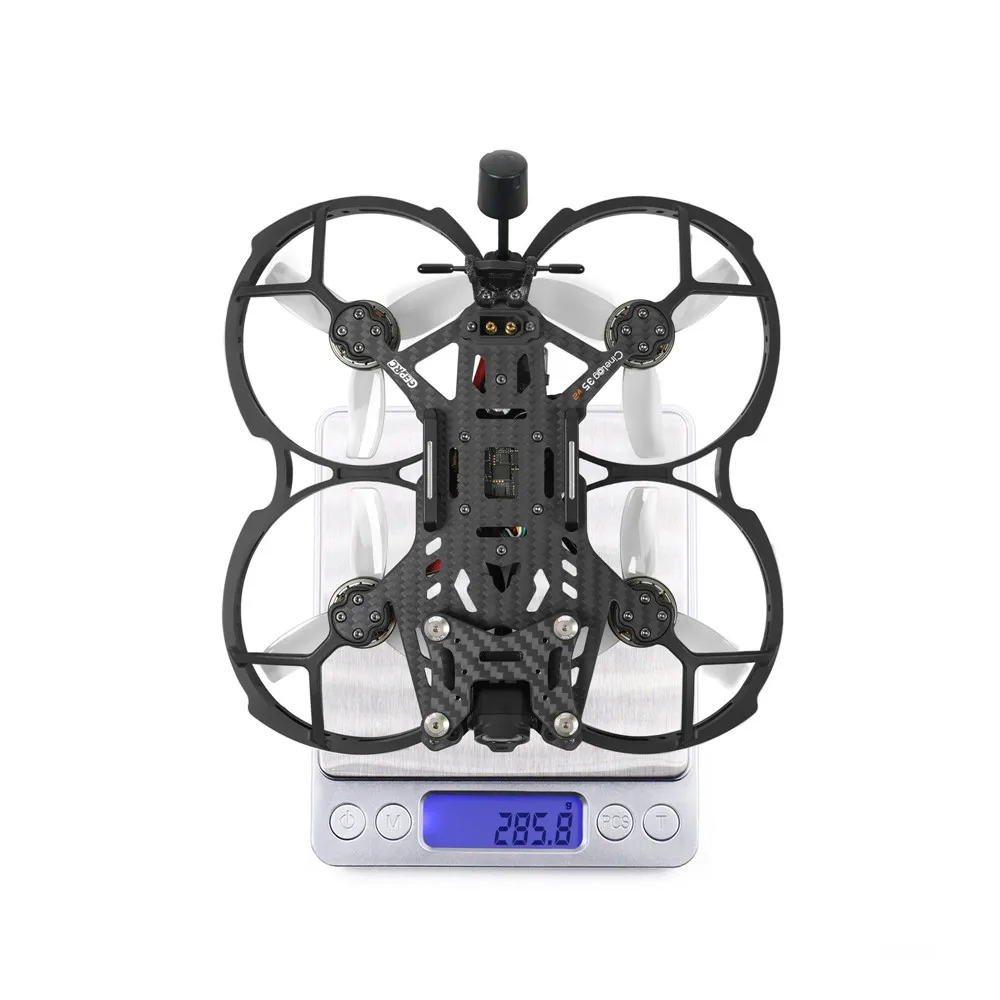

CineLog35 V2 HD O3 TBSNanoRX weight: 285.8g
Receiver: PNP, GEPRC ELRS 2.4G, TBS Nano RX (Optional)
Recommended battery: LiPo 1050mah-1300mah ( NOT Included)
Flight time: 5′00″ -8′ 30″

Package Included:

1 x Cinelog35 V2 HD ( DJI O3)
2 x HQProp D-T90MM2 pairs)
2x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x plastic tweezers
1 x Antenna fixed tube (pair)
1 x Keychain
1 x Mounting Base for GoPro
1 x Mounting Base for Naked GoPro
1 x Antenna Mounting Base


Weight 25 kg
Dimensions 7 cm
Brand Name

EACHINE

Control Channels

2 CHANNELS

Controller Mode

MODE1

Operator Skill Level

Intermediate

Package Includes

Original Box

Remote Control

No

Features

other

Indoor/Outdoor Use

outdoor

Video Capture Resolution

other

Camera Mount Type

other

Origin

Mainland China

Recommend Age

14+y

Material

Plastic

Model Number

Cinelog35 V2 HD

Antenna

5.8G 2.4G

Motor

SPEEDX2 2105.5-2150KV6S

Propeller

HQProp D-T90MM

Choice

yes

semi_Choice

yes
