GEPRC MARK5 HD O3 Freestyle FPV Drone Orange O3 Air Unit VTX GEP-F722 V3 FC RC FPV Bluetooth Quadcopter Freestyle Drone

Price range: $654.99 through $689.99

color	ELRS 2.4G 6SPNP 6STBS Nano RX 6S
Ships From	China Clear

Summary

The HD VTX ushered in a new upgrade, and the brand new VTX of D JI O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance based on MARK5. At the same time, it will be equipped with D JI O3 air unit to design the new MARK5 O3 version.

The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to D JI’s new O3 air unit camera, with a field of view (FOV) of 155°, and the recording specification can support up to 4K 60FPS. We also specially designed TPU fixing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. MARK5 O3 uses GEPRC’s latest TAKER F722 BT BL32 50A STACK, with ICM 42688P gyroscope for smooth flight, redundant performance and ports, and supports Bluetooth wireless connection for tuning. The GEP-BL32 50A 96K 4IN1 ESC with GEPRC 2107.5 motor, and uses new Gemfan 5136 propellers, which has strong power. MARK5 O3 is shipped with two different camera mounts, which can be mounted with a full range of GP action cameras, as well as Naked camera GP 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.

Changelog

April 28, 2024: GEPRC MARK5 DC FC changed from GEP-F722-HD-BT to GEP-F722-BT-HD V3 FC,

April 28, 2024: ESC changed from SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC to GEP-BL32 50A 96K 4IN1 ESC,

April 28, 2024: Stack changed from SPAN F722-BT-HD V2 STACK to TAKER F722 BT BL32 50A STACK.

Features

1. Upgraded lens aluminum alloy side plate, durable and more visual impact

2. Built-in Bluetooth, supports mobile phone wireless connection for parameter tuning

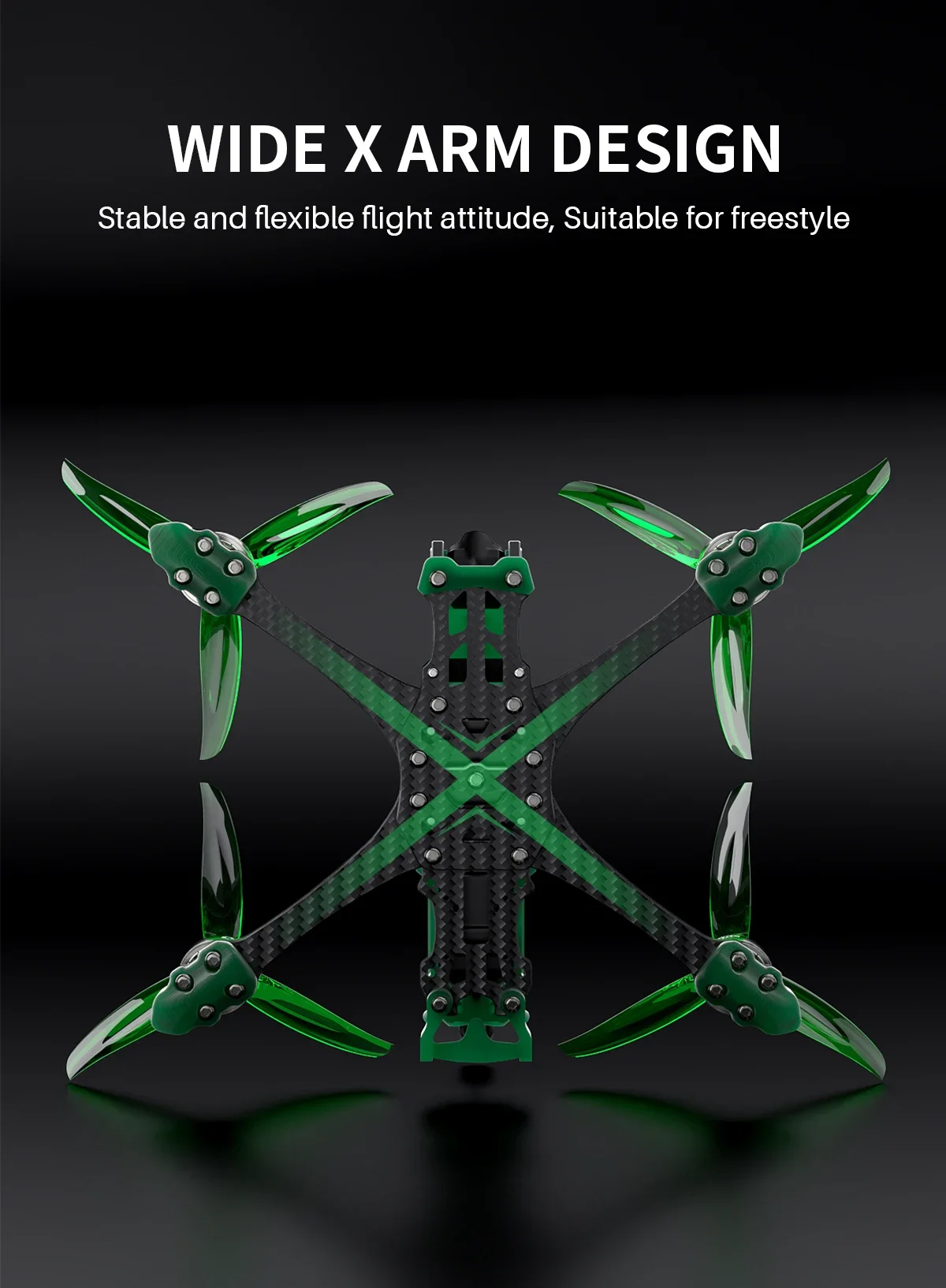

3. Developed specifically for freestyle with a squashed X arm design.

4. The HD version uses D JI’s new O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/60fps recording

5. GEP-BL32 50A 96K 4IN1 ESC with the latest GEPRC 2107.5 motor, with strong power, fast response speed, precise throttle control, and smooth flight experience

6. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment

7. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

8. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GP cameras, as well as Naked camera GP 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear

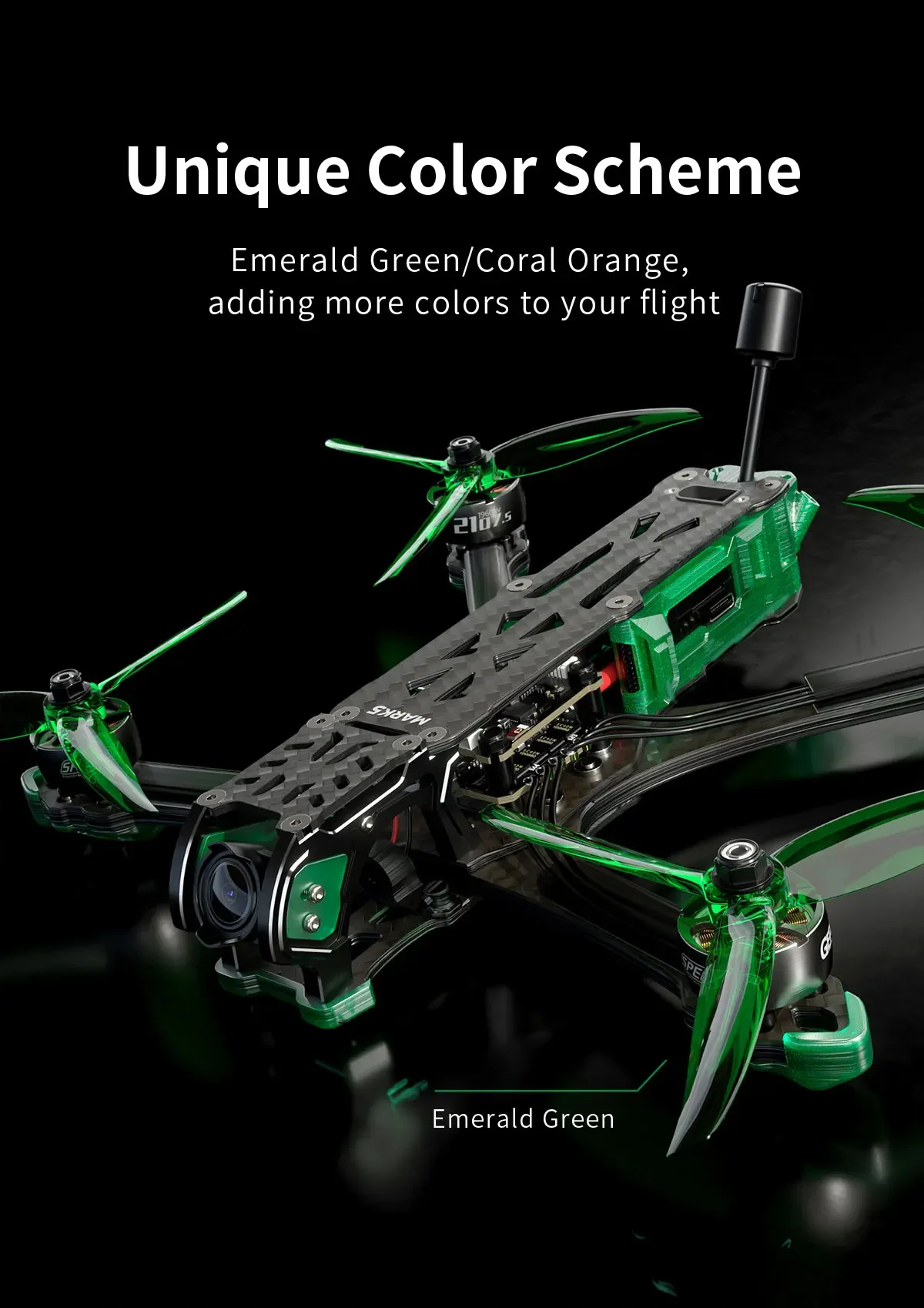

9. Add coral orange and emerald green colors to the O3 version to add more colors to your flight

10. MARK5 O3 is optimized for freestyle, with a smoother flight experience

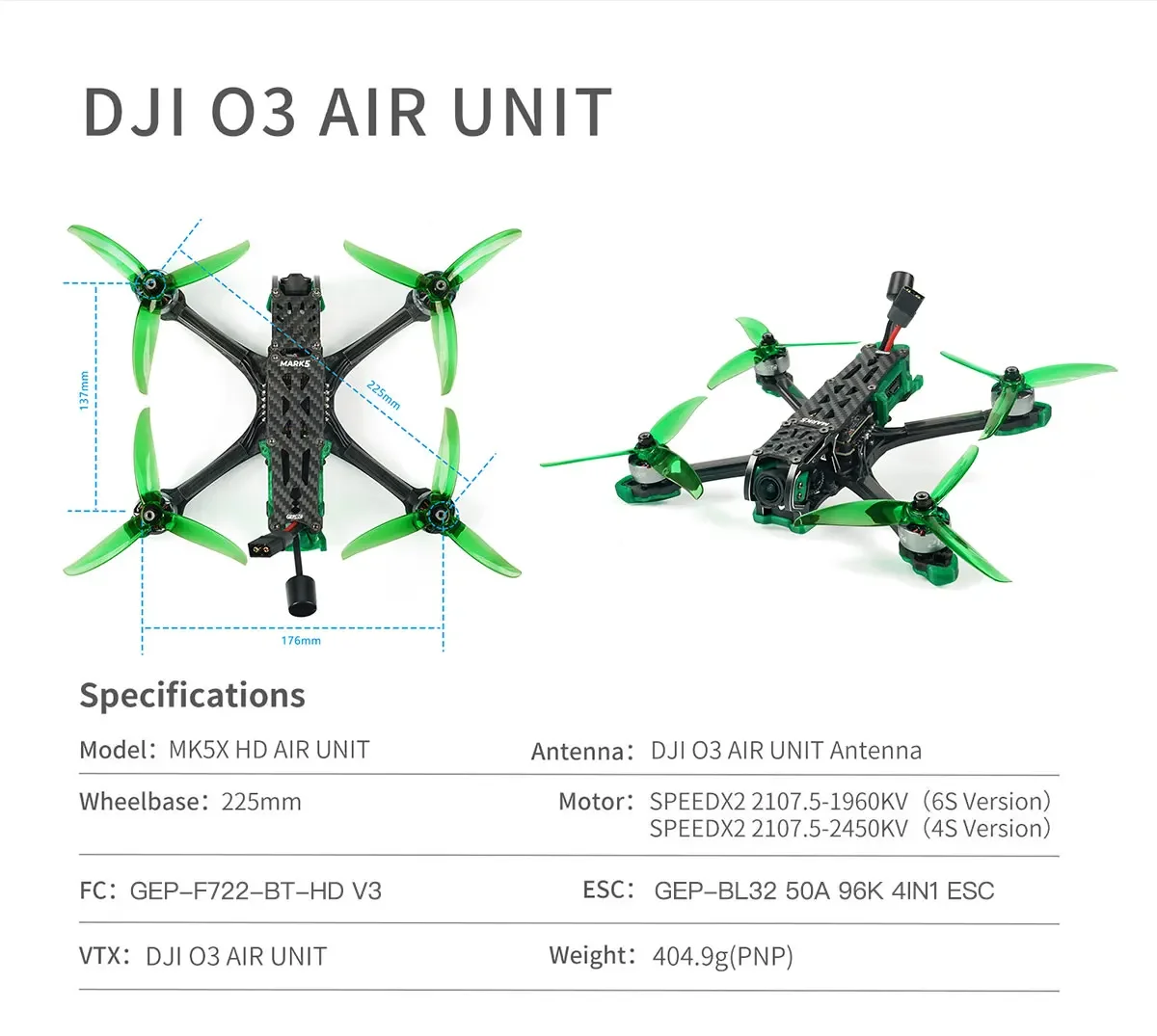

Specifications

Model: MARK5 HD O3 Quadcopter
Brand: GEPRC
Frame: GEP-MK5 O3
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: GEP-F722-BT-HD V3 FC
MCU: STM32F722
Gyro: 42688-P(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC:GEP-BL32 50A 96K 4IN1 ESC
VTX: O3 Air Unit
Camera: D JI O3
Propeller: Gemfan 5136
Antenna: D JI O3 antenna
Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV(4S Version)
Weight: 404.9g (MARK5 HD O3 including 3D printed parts)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)

Includes

1 x MARK5 HD O3 Quadcopter

4 x Gemfan 5136 propellers (pair)

1 x Battery strap M15x250mm

2 x Battery strap M20x220mm

2 x Battery Silicone Pads

1 x 3D printed parts

1 x Action cam mount holder

1 x Set of screws

1 x Set of screwdrivers

1 x Antenna fixed tube

—————-Warranty Policy————–

Warranty Policy Does NOT Cover What?

Crashes or fire damage caused by non-manufacturing factors, including but not limited,to pilot errors. Water damage or other damages caused by improper installation,incorrect use,or operation not in accordance with officialinstructions or manuals.
Damage caused by a non-authorized service provider.
Damage caused by unauthorized modification of circuits and Error weld mismatch or misuse of the battery and charger.

Damage caused by operation in bad weather (i.e. strong winds,rain,snow,sand/dust storms,etc)

Damage caused by operating the product in an environment with electromagnetic interference
(i.e. in mining areas or closeto radio transmission towers,high-voltage wires,substations,etc.)
Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.etransmitter, video-downlink,Wi-Fi signals,etc.)
Damage caused by a crashes when components have aged or been damaged.
Damage caused by operating the unit with a low charge or defective battery of any form.
Damage resulting from any non-GEPRC technical or other support(online community for example),such as assistance with”how-to” questions and or inaccurate product set-up and installation.
GEPRC is not responsible for issues involving 3rd party products and warranty. For example with issues involing Caddx and D J l,the customer must get warranty support directly from the 3rd party company

Purchasing Matters needing attention

1.When players purchase model aircraft products,they need to understand the relevant basic operation knowledge

2.Model aircraft have certain dangers,children need to touch the model under the supervision of adults. Make sure the flying environment is safe and away from people when flying the model

3.When flying in the outer field,you should pay attention to the relevant regulations of the local government or relevant management agencies to avoid unnecessary losses.

4.Before flying the model,please ensure that the model is securely connected,all equipment is working properly,and all control actions are responding normally to avoid accidents.

5.In the store to purchase model products abnormal situation can not be solved,please contact customer service technical support for help,such as do not consult technical support to solve their own or do not operate according to technical support guidance caused by the loss and accident the store does not assume responsibility for compensation.

6.The model aircraft model has a certain risk,please be sure to operate in a safe situation,your purchase behavior represents that you have recognized the above situation and bear the corresponding responsibility,the improper use of products,did not pay attention to safety caused by the loss and injury,the store does not b

About customs duties: We can declare a price of $20~$48 to help you

If you are an EU buyer and the payment amount is less than 150 Euros, AliExpress will charge customs duties and value-added
Tax when you pay. So your package does not need to pay customs duties again when it arrives
If the payment amount is greater than 150 euros, AiExpress will not charge any additional fees when you pay, but when the package arrives at the customs, TPay customs duties according to local national customs policy .you need to pay VAT and customs duties on the package.
We are NOT liable for ANY import tax, custom fee, Remote surcharge or customs delay. lfthe parcel is return back to us due to the buyer’s refusal to pay the above fees, we wouldNOT resend the parcel until the buyer complete those fees and pay ALL the return andresend cost.

Weight	20 kg
Dimensions	20 cm
Brand Name	NoEnName_Null
Indoor/Outdoor Use	Indoor-Outdoor
Video Capture Resolution	other
Camera Mount Type	other
Controller Battery	Not Include
Origin	Mainland China
Takeoff Weight	100g
Aerial Photography	Yes
Control Channels	8 CHANNELS
Transit Time (Days)	1km
Flight Time	<5
Controller Mode	MODE2
Recommend Age	14+y
Anti-wind Ability	no
Hign-concerned Chemical	none
Is Electric	No battery
Material	Metal
Drone Weight	405g
Remote Distance	2000 meters
Package Includes	Operating Instructions
Remote Control	Yes
State of Assembly	Ready-to-Go
Features	other
Dimensions	5 inch
Certification	CE
Warning	Minors please use under the supervision of an adult
Warranty	3 month
Model Number	GEPRC MARK5 HD O3 Freestyle FPV Drone/Orange
Operator Skill Level	expert
Charging Voltage	14.8V
Motor	Brushless Motor
Charging Time	30 minutes
Plugs Type	XT60
Power Source	Electric
