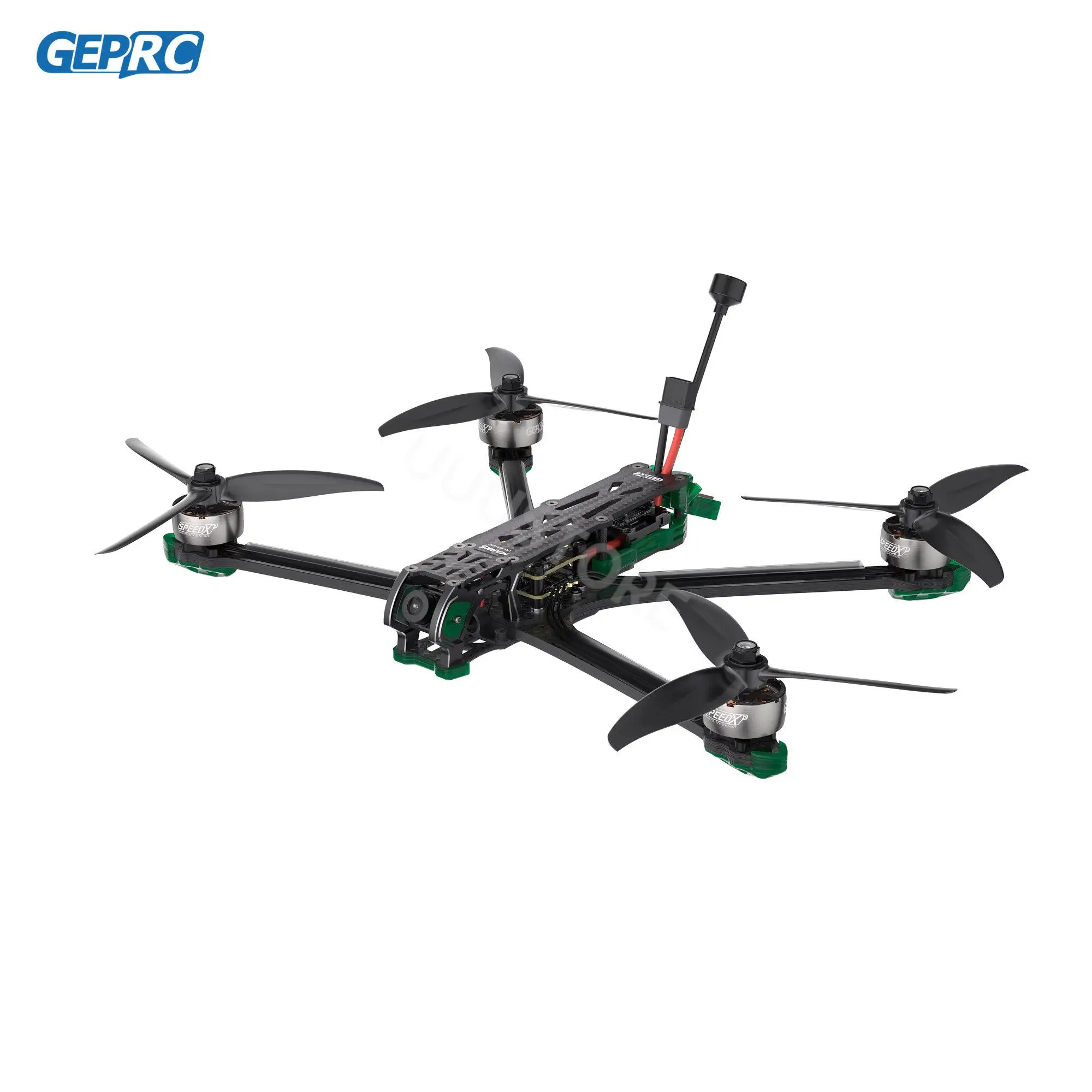

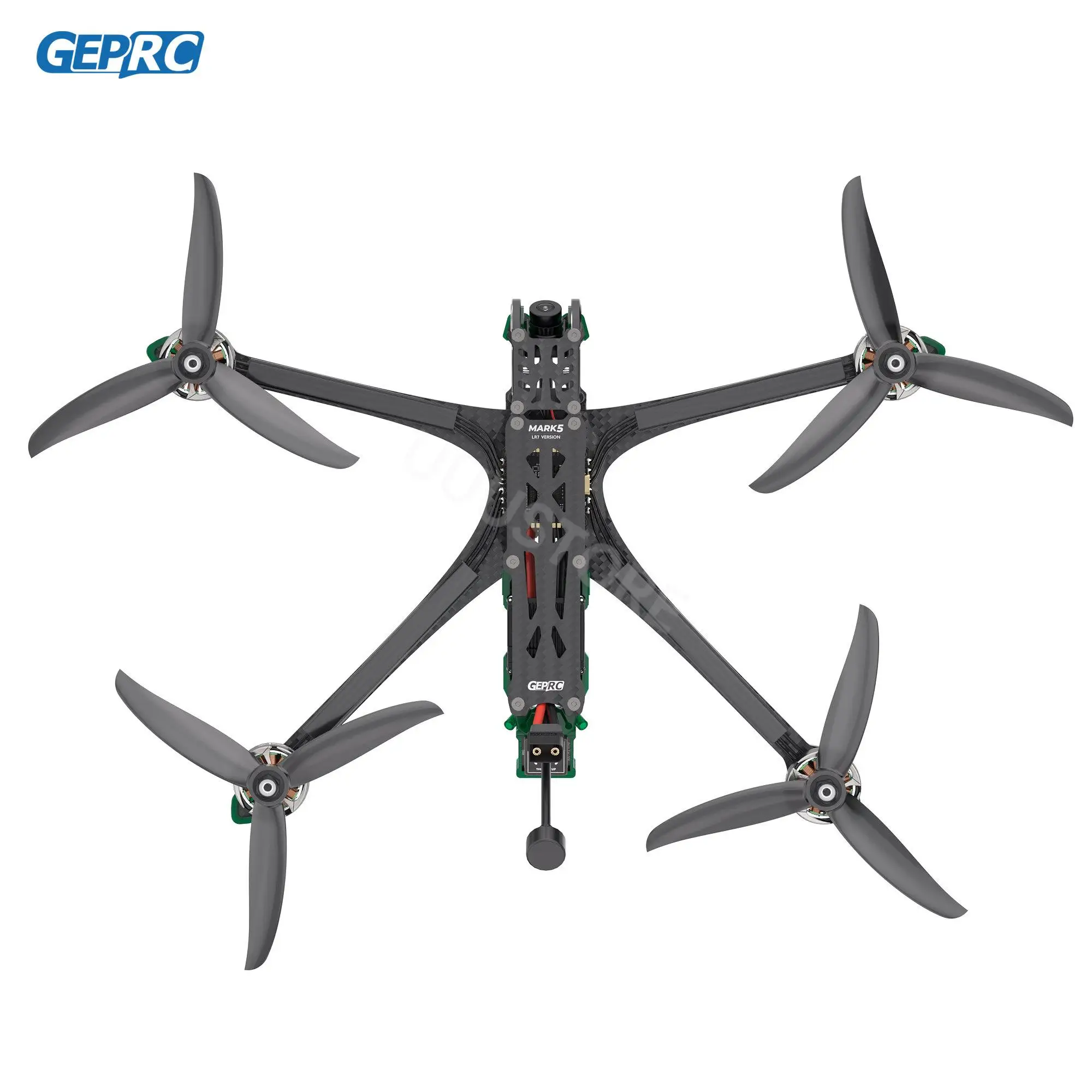

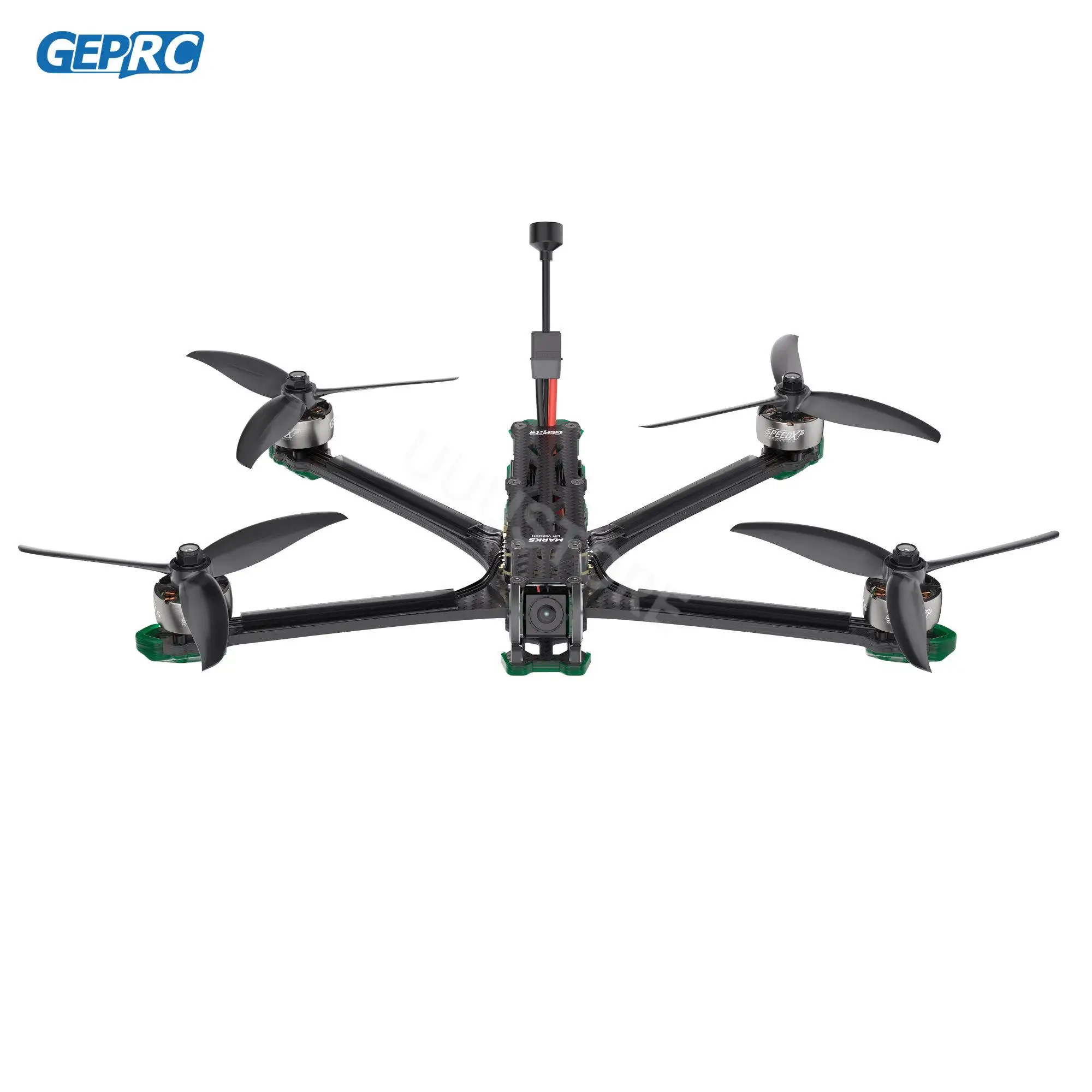

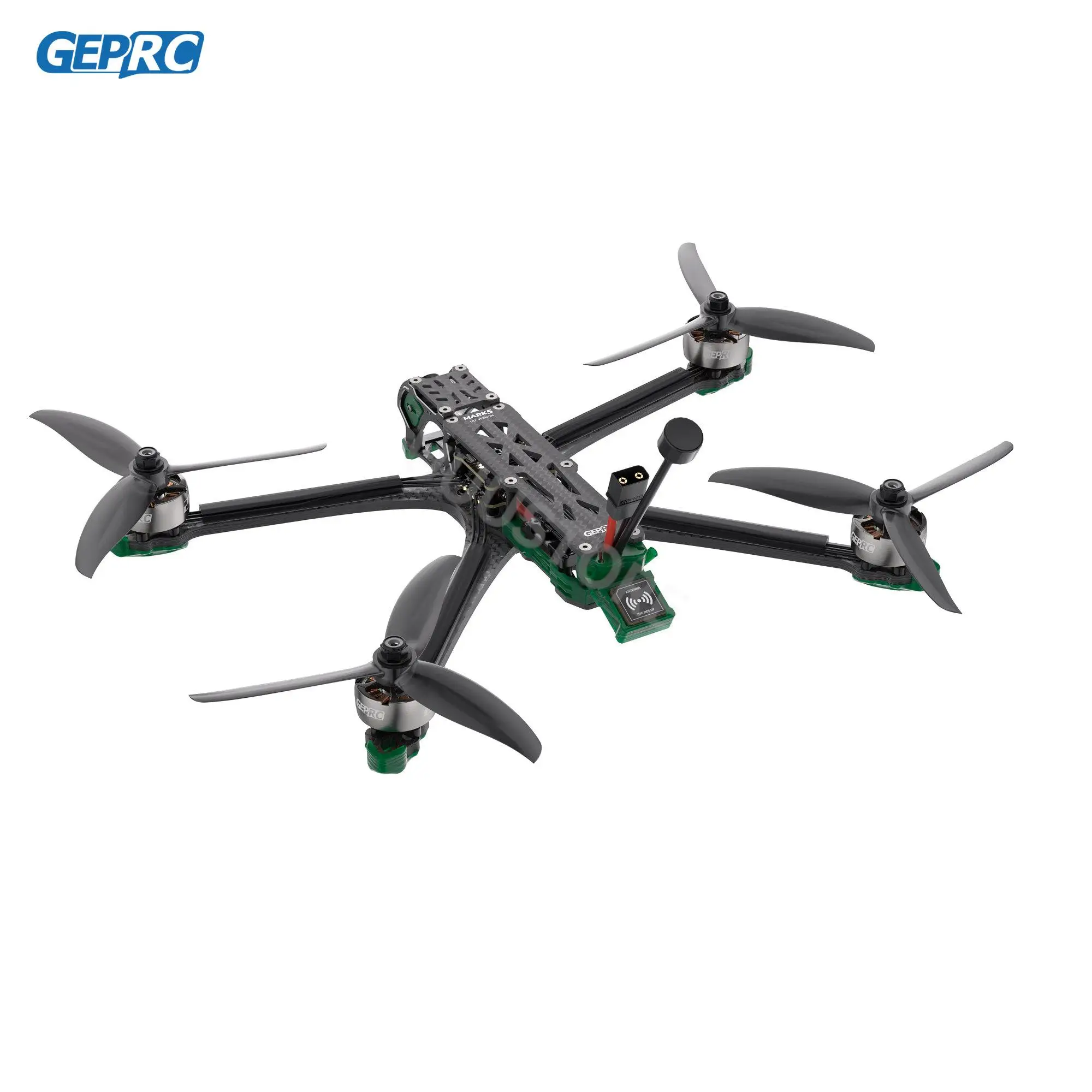

GEPRC MK5D-LR7 HD Avatar V2 7 inch 6S FPV Drone F722 BT HD V2 FC 50A ESC 2806.5 1350KV Motor M8U GPS Avatar HD Kit RC Quadcopter

Name: GEPRC MK5D-LR7 HD Avatar V2 7 inch 6S FPV Drone F722 BT HD V2 FC 50A ESC 2806.5 1350KV Motor M8U GPS Avatar HD Kit RC Quadcopter - www.AliDady.com
SKU: 3256805677468135
Availability: InStock

Price range: $683.90 through $713.90

Summary

MK5D-LR7 is a 7-inch model upgraded on the basis of the MARK5 model. For the mainstream video transmission system in the market, it releases four versions: O3 Air Unit, vista, walksnail, and analog version.

The strength of the arm structure is optimized, without losing the original design style, while the strength is higher, and the flight fault tolerance rate is improved. Equipped with GEPRC new small-sized M8U GPS, it provides a strong guarantee for your Long Range flight. MK5D-LR7 uses GEPRC SPAN F722-BT-HD V2 stack. The flight controller is equipped with ICM 42688P gyroscope, which has smooth flight, redundant performance and ports, and supports Bluetooth wireless connection for parameter adjustment. GEP-2806.5 motor, with HQ Prop 7X4X3 propeller, strong power output. When flying with DC structure, no propeller in view, which is suitable for O3 on board recording.

MK5D-LR7 is shipped with two different camera mounting bases, which can be installed with a full range of GoPro action cameras, as well as Naked GoPro 8 10, Insta 360 GO2 and Caddx Peanut, etc., to record beautiful moments for your flight.

This time MK5D-LR7 will take you to see the law of all things and travel between mountains and rivers.

Features

Upgraded lens aluminum alloy side plate, durable and more visual impact.
Built-in Bluetooth, support mobile phone wireless connection for parameter tuning.
The strength of the arm is upgraded, without losing the original style and at the same time, the strength is higher.
The HD version uses compatible with D J I new O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/120fps recording.
Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
Independent capacitor and buzzer compartment, the operating environment of the whole machine is extremely stable, no shaking, no jitter.
Design two kinds of mouting bases, which can be installed with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.
With GEP-VTC6-6000mAh battery, the flight time is 30 minutes, and with GoPro 10, the flight time is 20 minutes.

Specification

Model: MK5D-LR7
Brand: GEPRC
Frame: GEP-MK5D-LR7
Dimensions: 230mm×350mm
Wheelbase: 335mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 6.0mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
ICM:42688-P (SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
Propeller: HQ Prop 7X4X3 three blade propeller
Motor: SPEEDX2 2806.5 1350KV(6S version)
GPS: GEP-M8U
Weight: 565.5g(MK5D-LR7 Avatar version includes 3D printing parts)
Receiver version: PNP, TBS NanoRX, ELRS 2.4G, ELRS 915
Recommended battery: LiPo 6S 6000mAh(6S version)

Includes

1 x MK5D-LR7

4 x HQ Prop 7X4X3 propeller(pair)

2 x Battery strap M20x250mm

2 x Battery strap M20x300mm

2 x Battery Silicone Pads

1 x 3D printed parts

1 x Action cam mount holder

1 x Set of screws

1 x Set of screwdrivers

1 x Antenna fixed tube

Weight	3 kg
Dimensions	3 cm
Brand Name	NoEnName_Null
Indoor/Outdoor Use	Indoor-Outdoor
Video Capture Resolution	other
Camera Mount Type	other
Controller Battery	Not Include
Origin	Mainland China
Aerial Photography	No
Control Channels	8 CHANNELS
Controller Mode	MODE2
Recommend Age	14+y
Material	Metal
Remote Distance	2000 meters
Package Includes	Operating Instructions
Remote Control	Yes
State of Assembly	Ready-to-Go
Type	HELICOPTER
Features	other
Dimensions	7 inch
Certification	CE
Warning	Minors please use under the supervision of an adult
Warranty	3 month
Flight Time	25 minutes
Model Number	MK5D-LR7 HD Avatar V2 Long Range FPV
Operator Skill Level	expert
Charging Voltage	14.8V
Charging Time	30 minutes
Plugs Type	XT60
Power Source	Electric
