HUION H320M Graphics Tablet 10.2×6.2 Inch LCD Writing Pads Drawing Signature Pad Battery-free Stylus Android Device Connection

2 In 1 Design – the innovated combination of pen tablet and LCD writing tablet

Features of the Writing Tablet

Principle of Work

The writing tablet of H320M is developed based on the E-paper Display (or Bistable LCD) Technology, which allows the plastic LCD to hold an image after the pressure is applied. Image kept on the LCD can be cleared via pressing the Clear All Button, which would require a small amount of energy only.

Other Features

1. 259.2×157.4mm/10.2×6.2inch ideal active area for drawing and keeping notes;

2. Pressure sensitive tablet that brings users organic strokes and lifelike writing experience;

3. Free from cable connection and the coin cell battery will do the energy supply;

4. Clear All Button that helps you erase all the marks kept on the tablet;

5. A multi-purpose tool for writing, sketching, calculating and drafting, etc;

6. Lines input by your digital pen or fingers can all be held on the monochrome(blue) LCD (* scratch with sharp objects will spoil the LCD);

7. Low energy consumption. The battery life of a CR2025 coin cell battery is about 1 to 2 year long, which supports the Clear All Button to work for more than 50 thousand times;

8. Non-radioactive and user friendly LCD.

Features of Pen Tablet

1.Technical Specifications

266PPS Report Rate

to ensure instant and accurate response to any pen movement and minimize occurrence of lagging lines.

8192 Pressure Sensitivity Levels

to bring users pen-on-paper drawing experience and render lines input as different shapes and colors as pressure applied changes.

5080LPI Pen Resolution

to ensure the delicacy of each line input and have details of your work better presented.

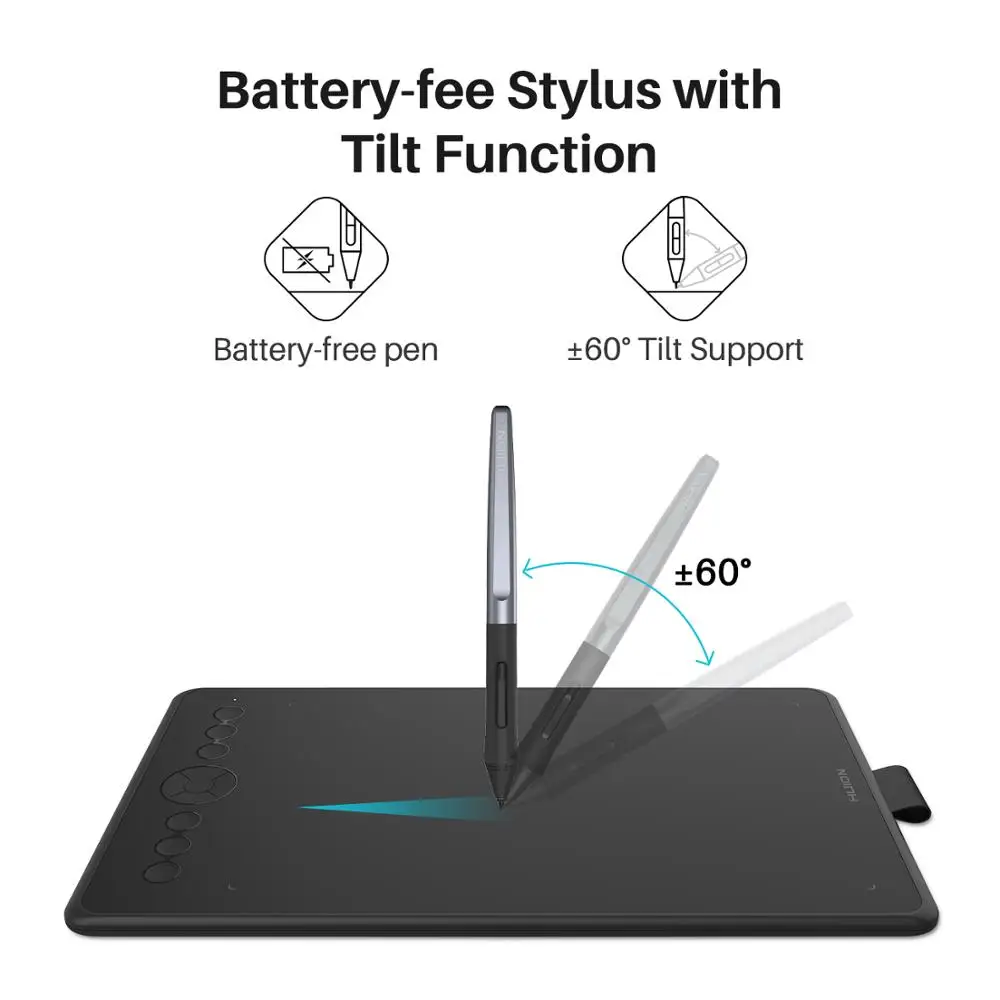

2.Tilt Support

Algorithm is optimized to realize ±60°brush tilt in a more organic way, which supports users to do digital calligraphy as well as simulate pencil sketching without compromising of accuracy or their authentic drawing skills.

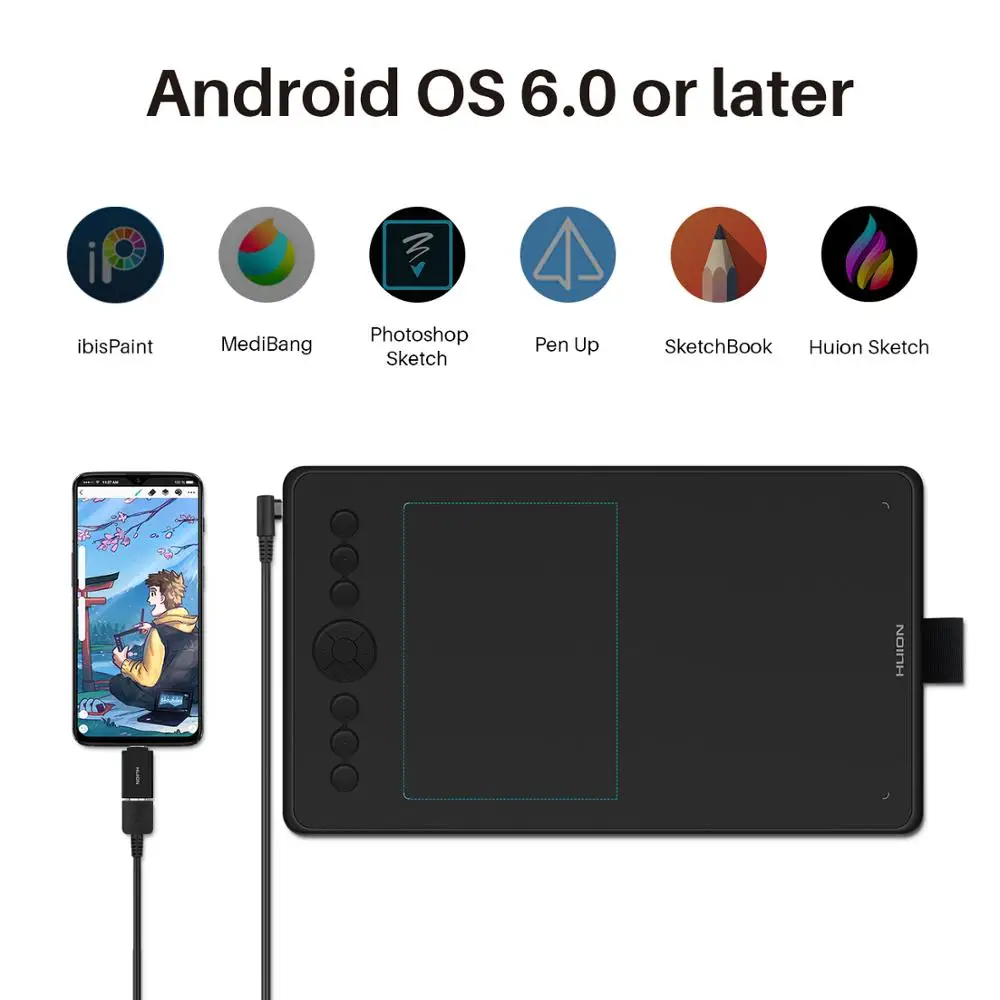

3. Phone Connectivity

Connect your phone to the tablet and in case the Phone Mode is activated automatically, the aspect ratio of active area requires to be adjusted as X: Y=10: 16. Otherwise, long press the pre-programmed express keys (K1 and K6 as showed in the picture) for 3 seconds to activate the Phone Mode.

* Currently only phones/tablets running on Android 6.0 or above versions are supported.
