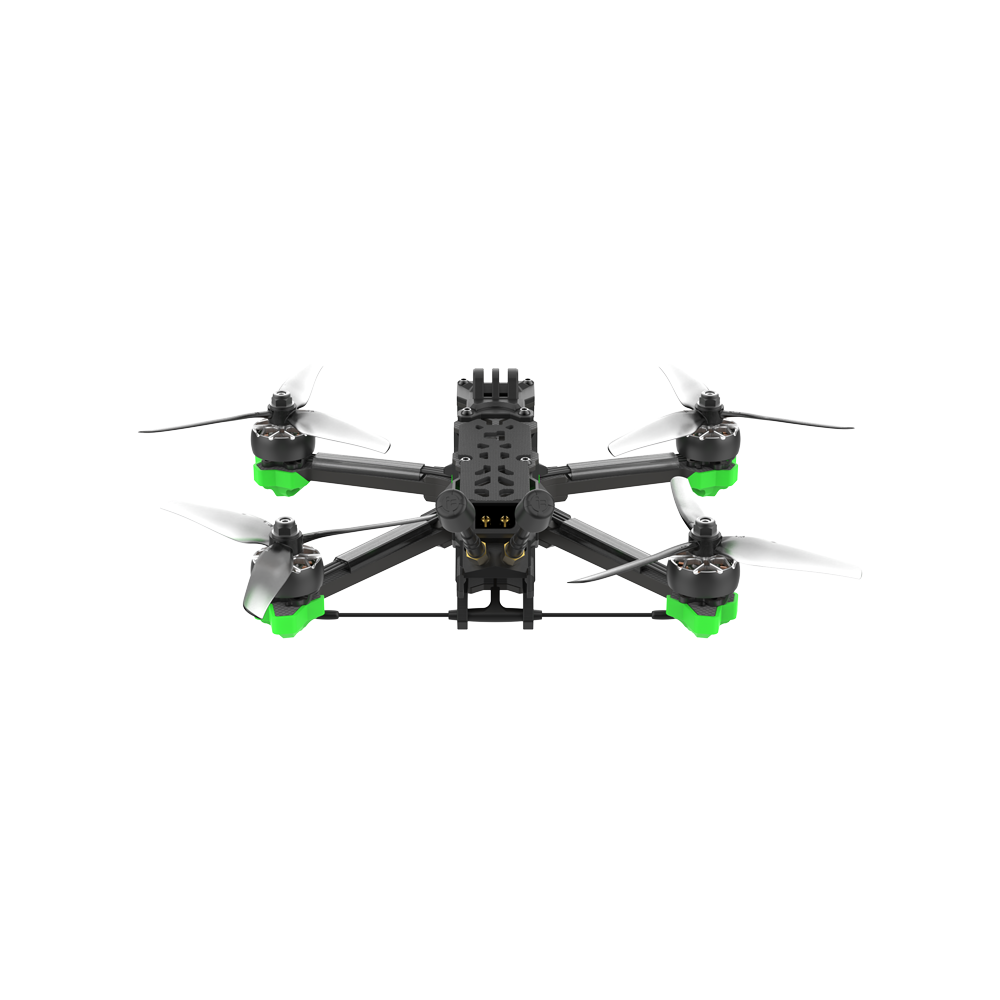

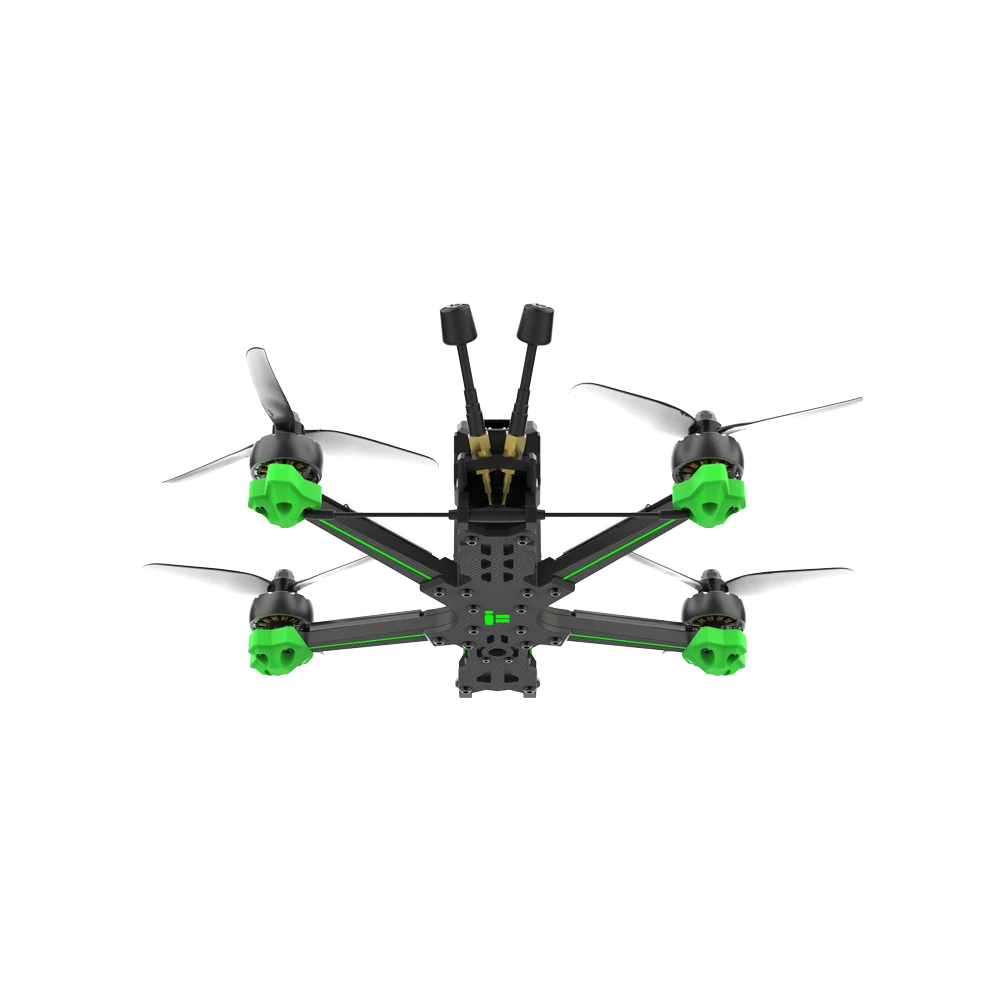

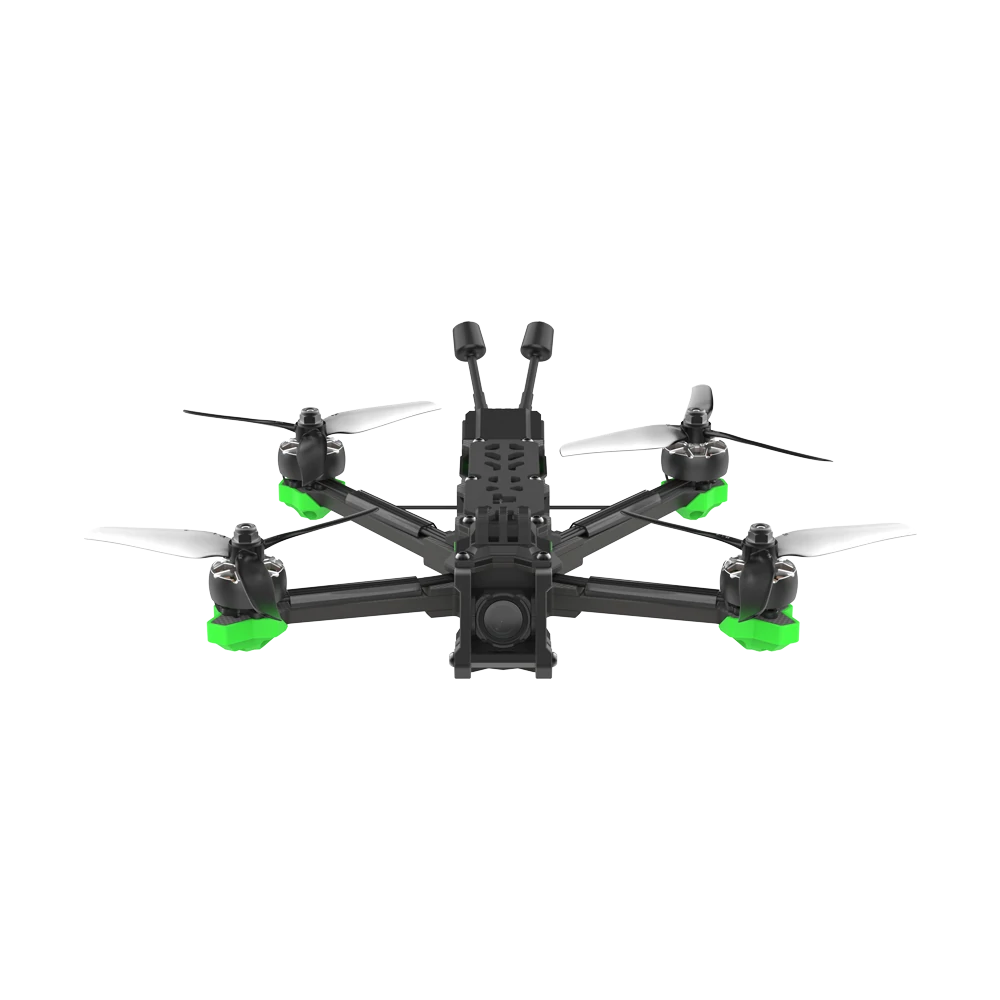

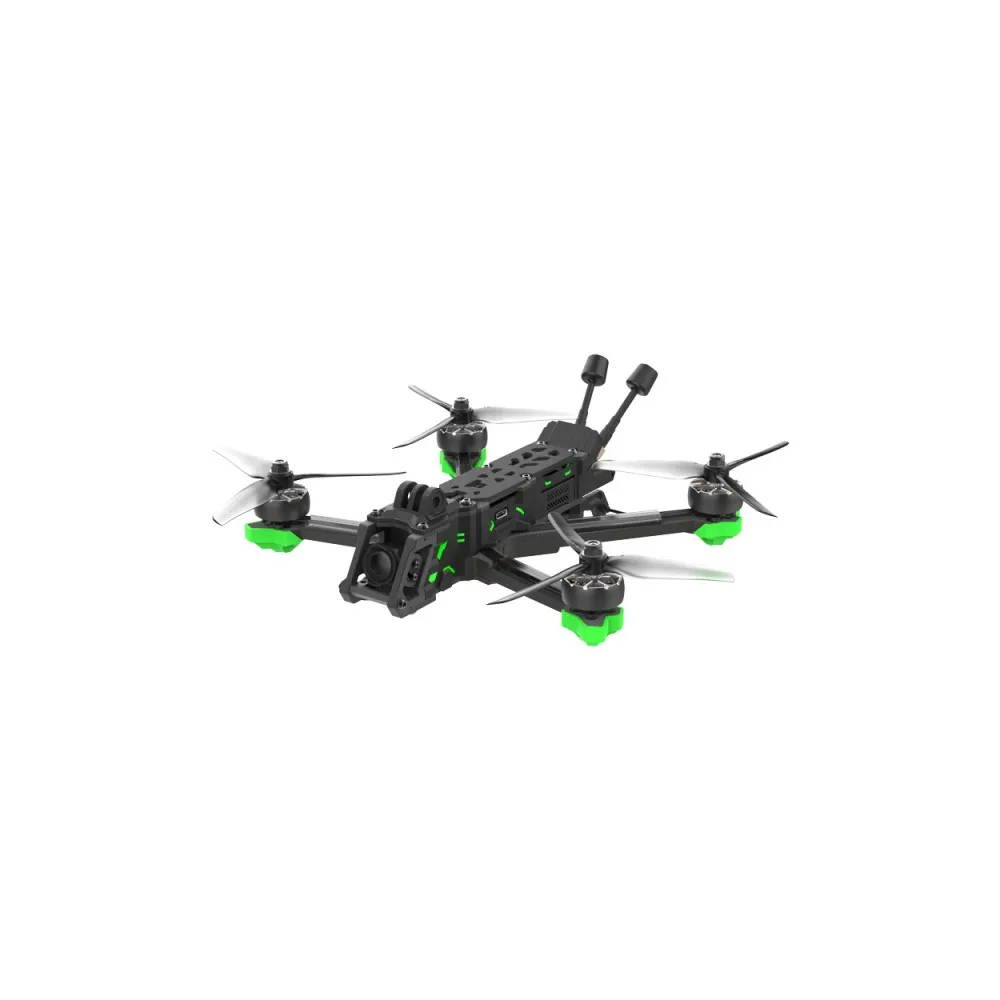

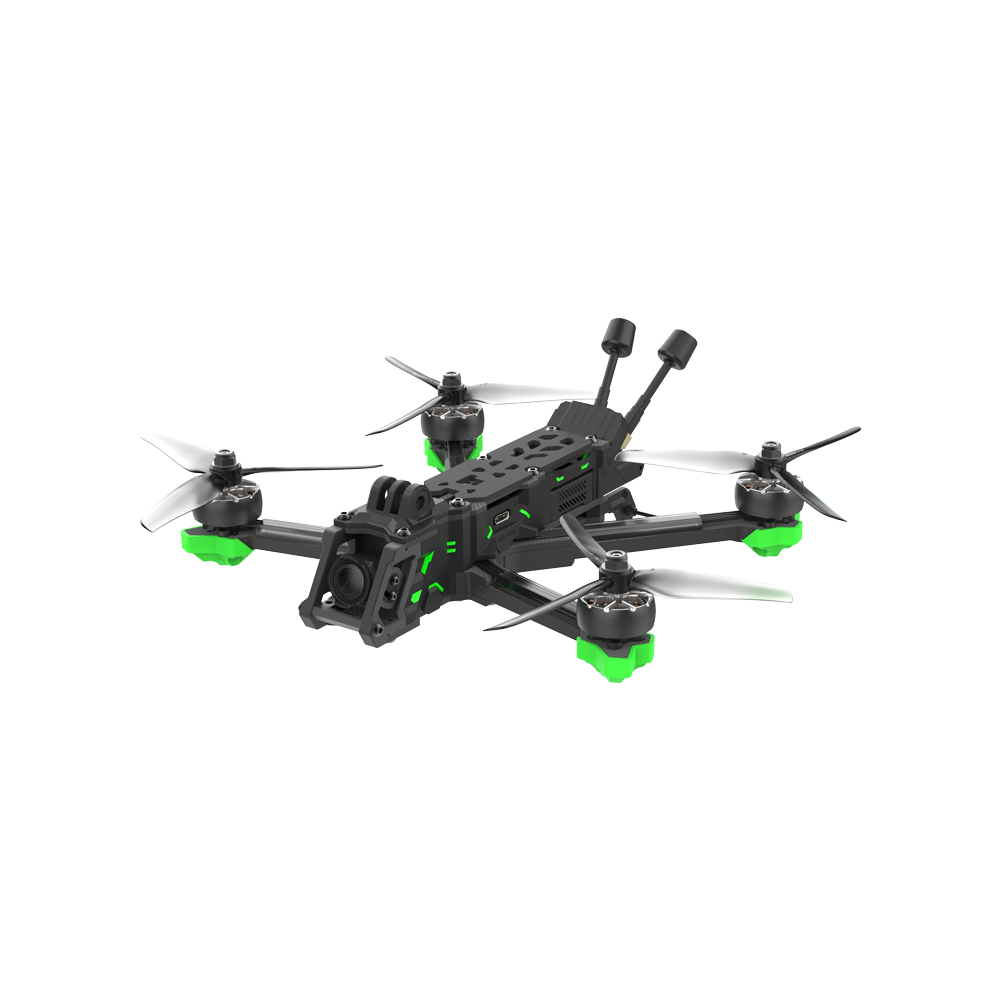

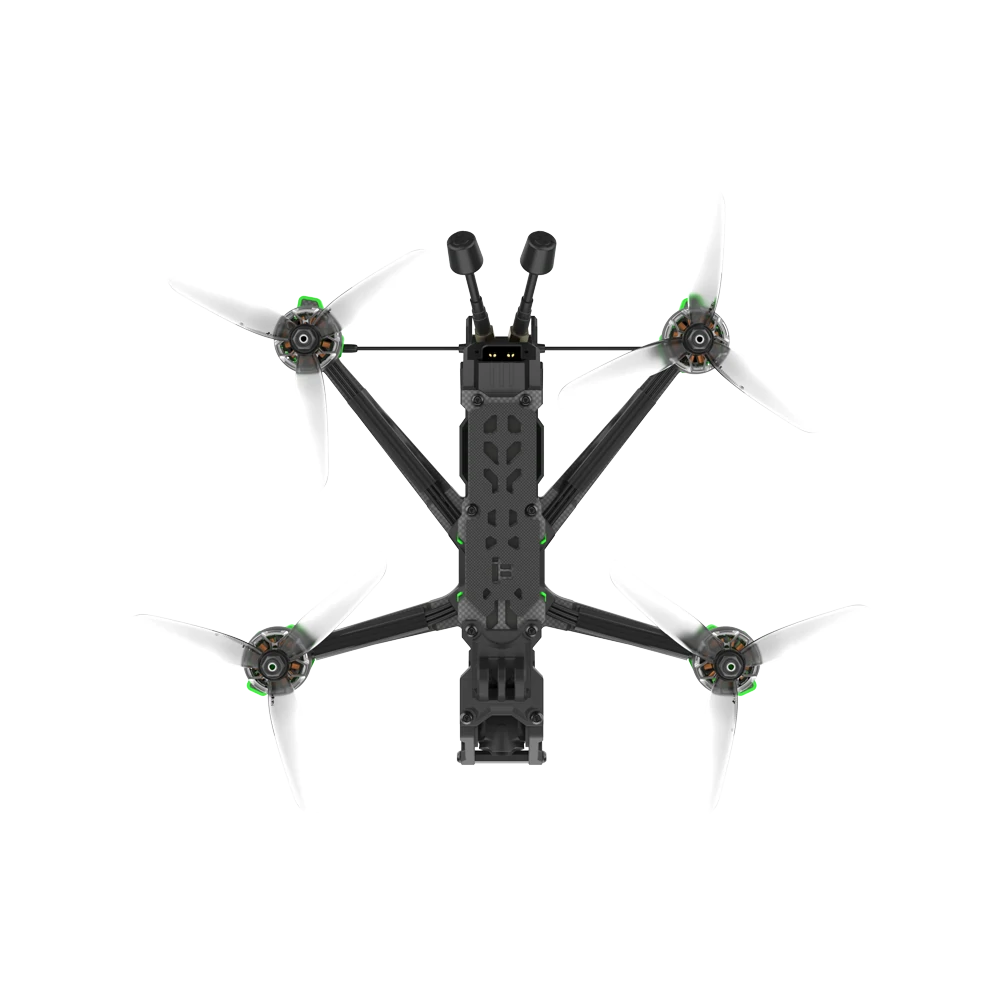

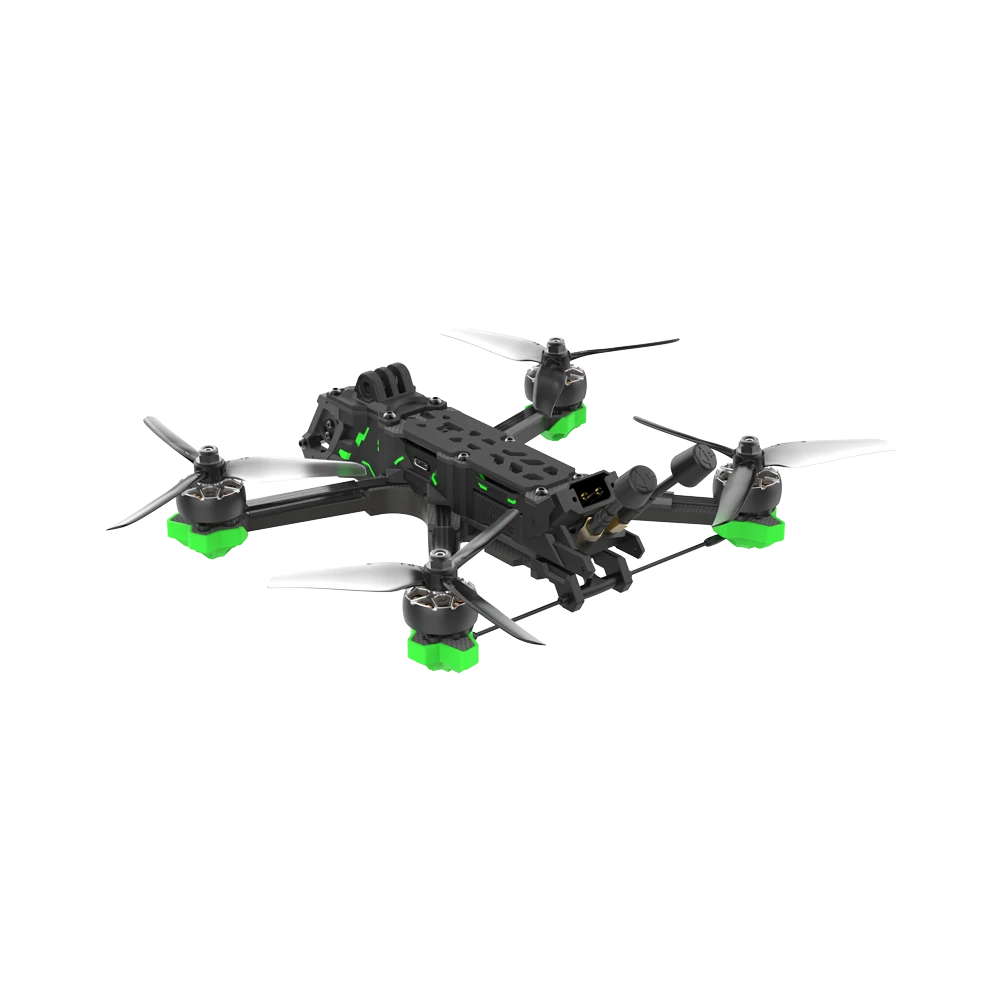

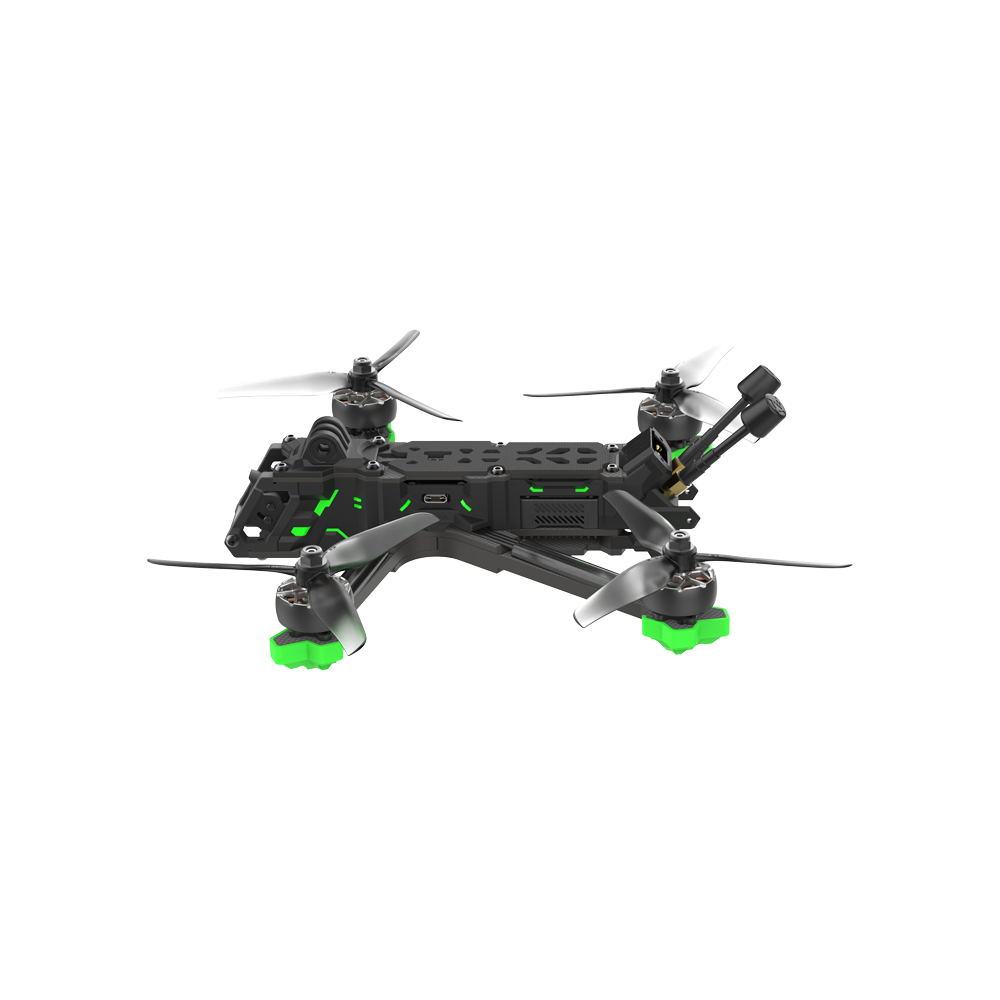

iFlight Nazgul Evoque F5D V2 HD 6S 223mm F7 5 Inch Deadcat Freestyle FPV Racing Drone with DJI O3 Air Unit Digital HD System

Name: iFlight Nazgul Evoque F5D V2 HD 6S 223mm F7 5 Inch Deadcat Freestyle FPV Racing Drone with DJI O3 Air Unit Digital HD System - www.AliDady.com
SKU: 3256806893061767
Availability: InStock

Price range: $815.60 through $891.93

Introduction:

Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!

Hight Lights:

Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durabl unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortvuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

Specification:

Brand: iFlight

Model: Nazgul Evoque F5D V2 ( HD)

FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 223 mm (DeadCat)
Motor: XING2 2207 motors
Prop: Nazgul 5 inch propellers
Weight：445g
Takeoff Weight：Approx. 610 g
Dimensions (L×W×H)：180×180×80 mm
Diagonal Distance：120 mm
Max. Speed：27 m/s (Manual Mode)
Maximum Takeoff Altitude：5000 m
Max. Hover Time：Approx. 8 mins
Maximum Flight Distance：5 km
Max. Wind Speed Resistance：100 Km/H (Level 5)
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas：Dual Antennas

NO GPS

Video Transmission

Product Name：DJI O3 Air Unit
Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
Communication Bandwidth： Max 40 MHz
Live View Quality and Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Audio Transmission: N/A

Package Included:

1 x Evoque F5D 6S HD BNF
2 x Antennas
1 x Battery pad
2 x Battery strap

Weight	23 kg
Dimensions	7 cm
Brand Name	EACHINE
Control Channels	2 CHANNELS
Flight Time	5~10
Transit Time (Days)	as show
Controller Mode	MODE2
Operator Skill Level	Beginner
Is Electric	No battery
Drone Weight	Approx.445g
Anti-wind Ability	Max. Wind Speed Resistance100 Km/H (Level 5)
Package Includes	Original Box
Remote Control	No
Features	other
Indoor/Outdoor Use	outdoor
Video Capture Resolution	other
Camera Mount Type	other
Takeoff Weight	Approx. 610 g
Origin	Mainland China
Type	Airplane
Dimensions	11cm-30cm
Recommend Age	14+y
Charging Voltage	as show
Charging Time	as show
Material	Plastic
Model Number	Nazgul Evoque F5D V2 ( HD)
Power Source	Electric
Controller Battery	Not included
Frame wheelbase	223 mm (DeadCat)
Max. Speed	27 m/s (Manual Mode)
Maximum Takeoff Altitude	5000 m
Max. Hover Time	Approx. 8 mins
