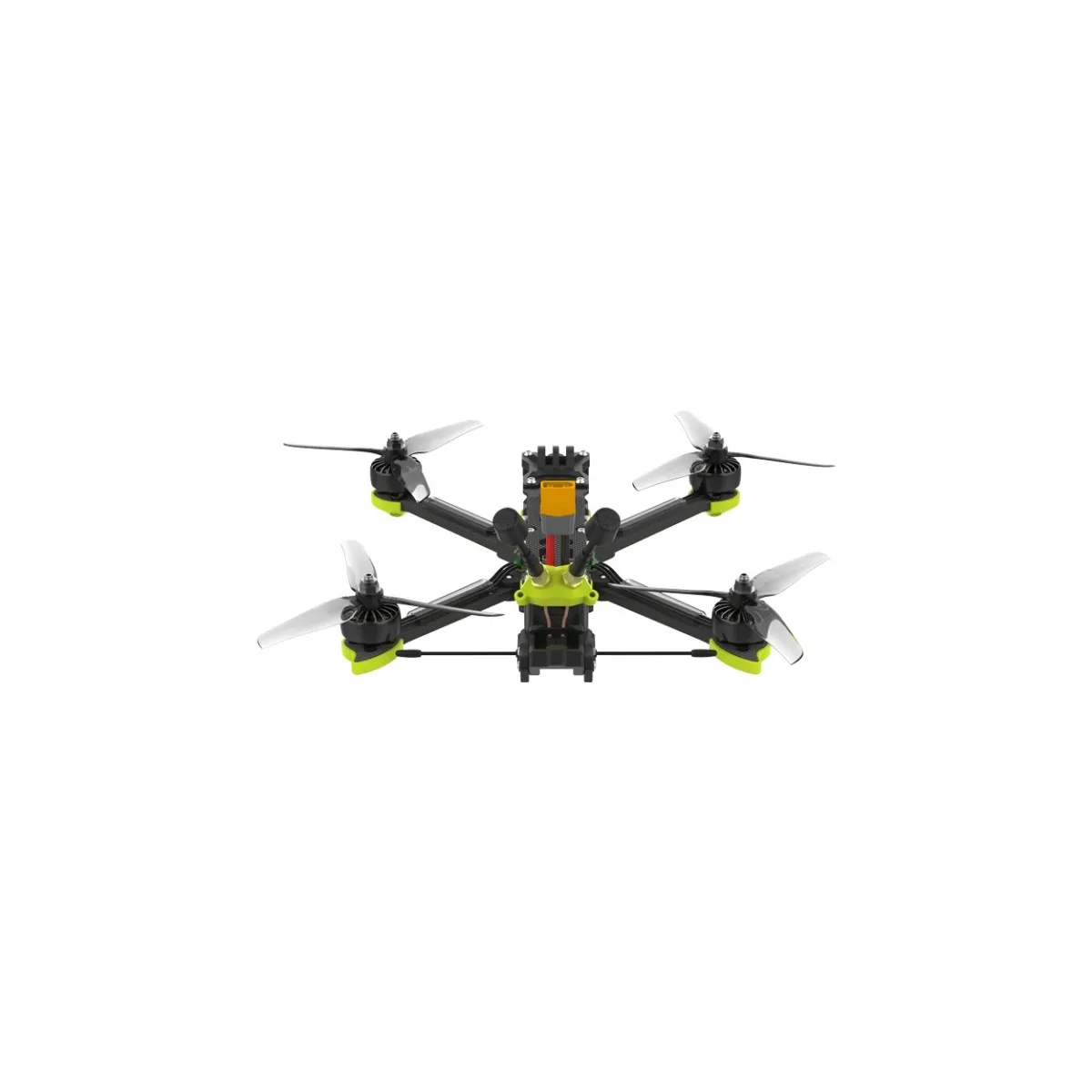

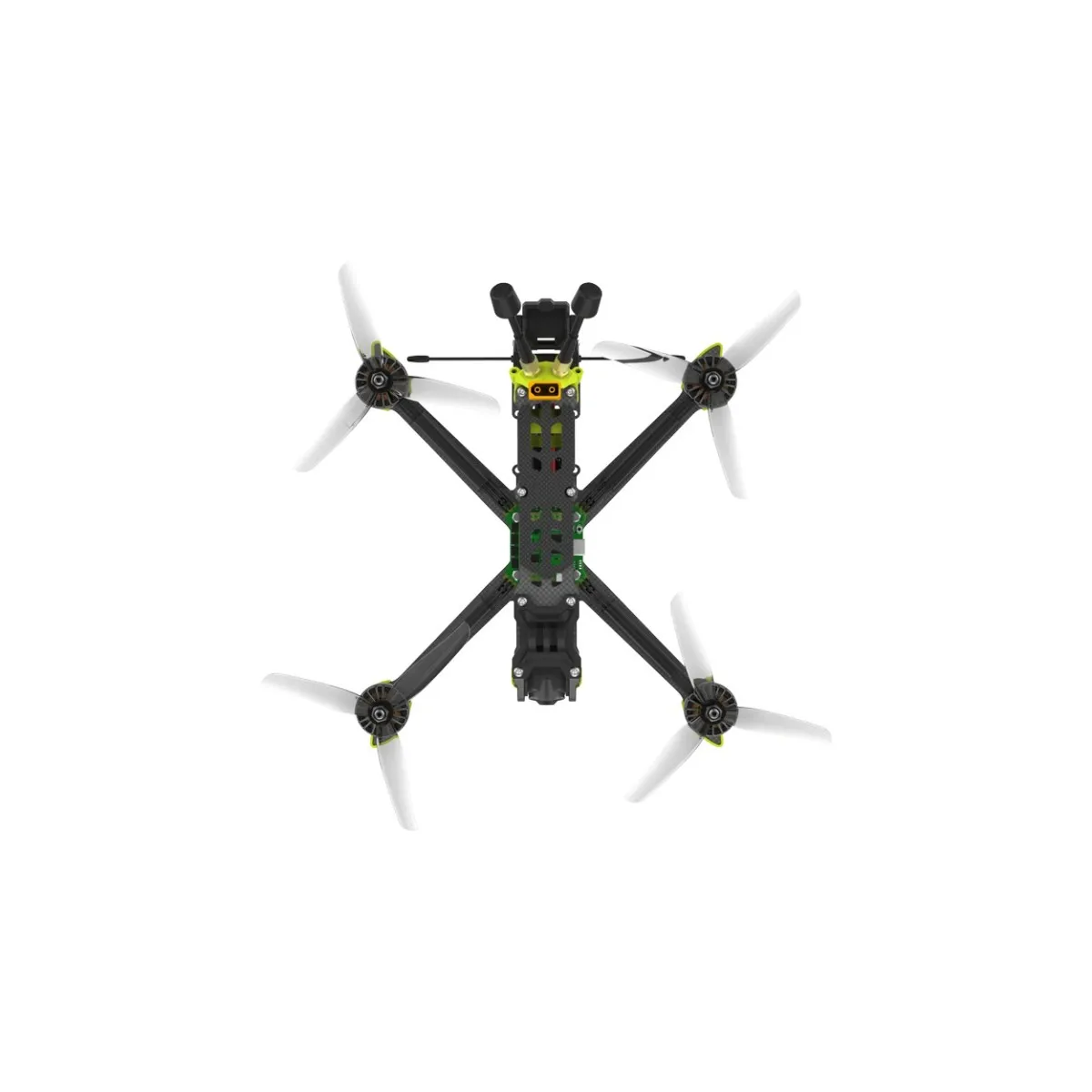

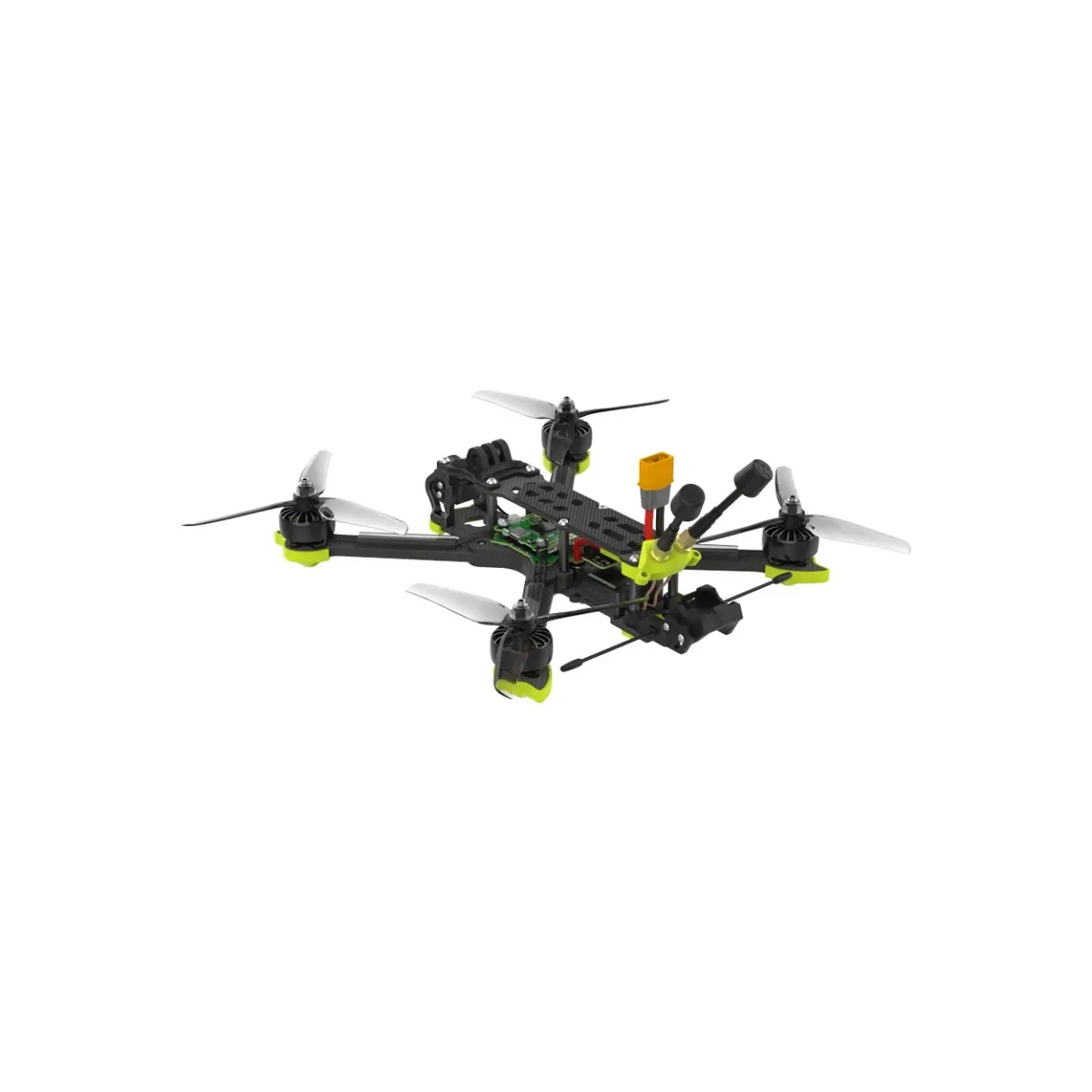

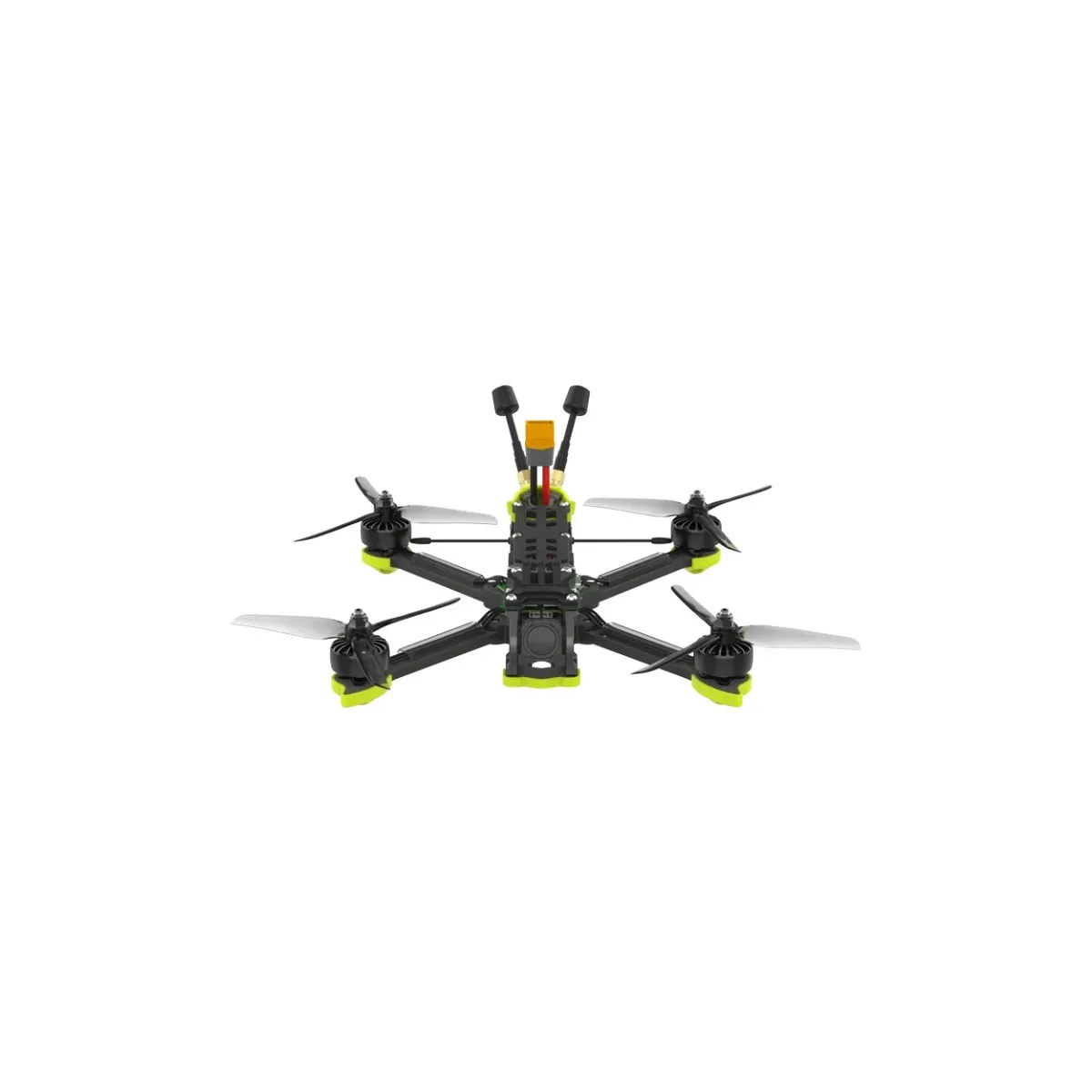

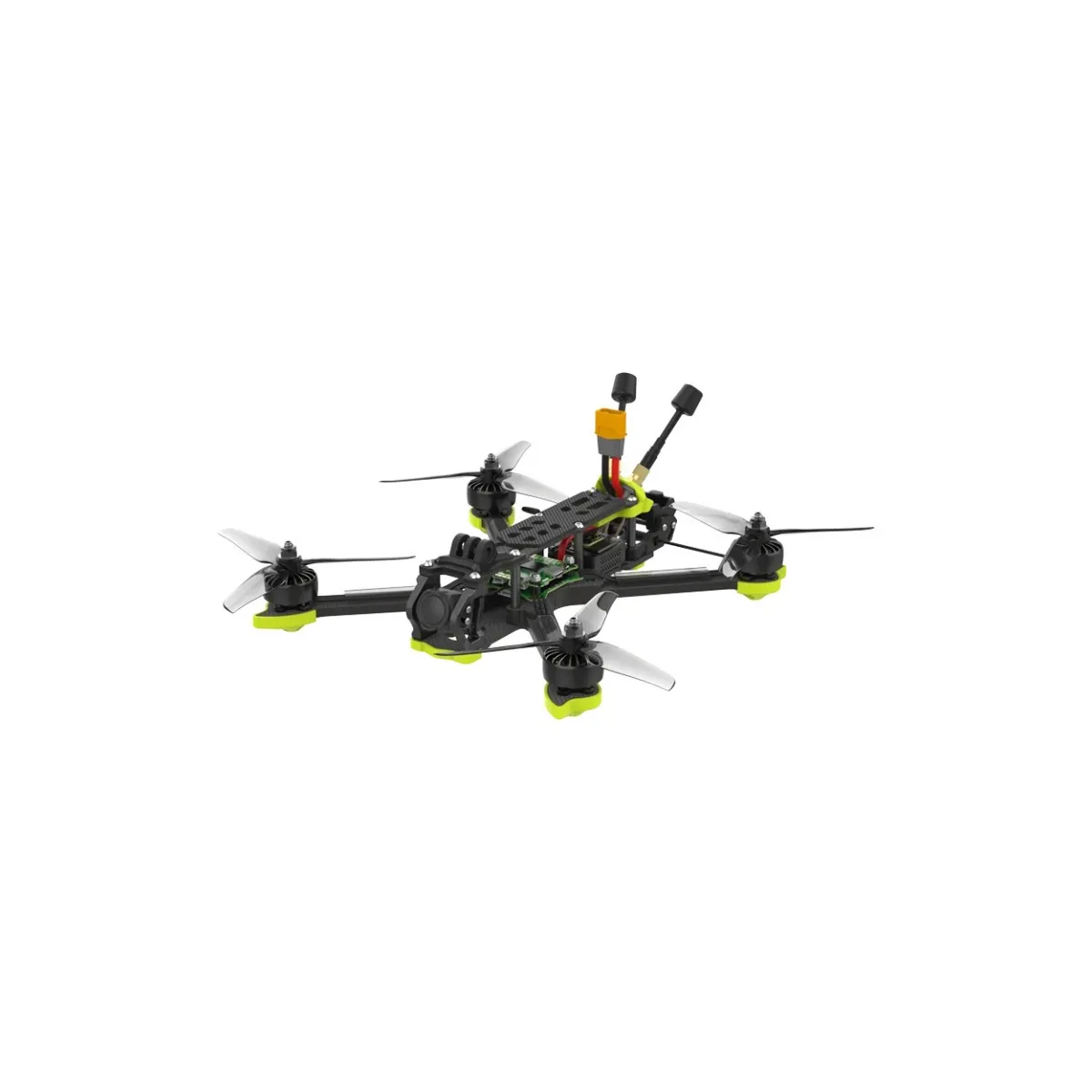

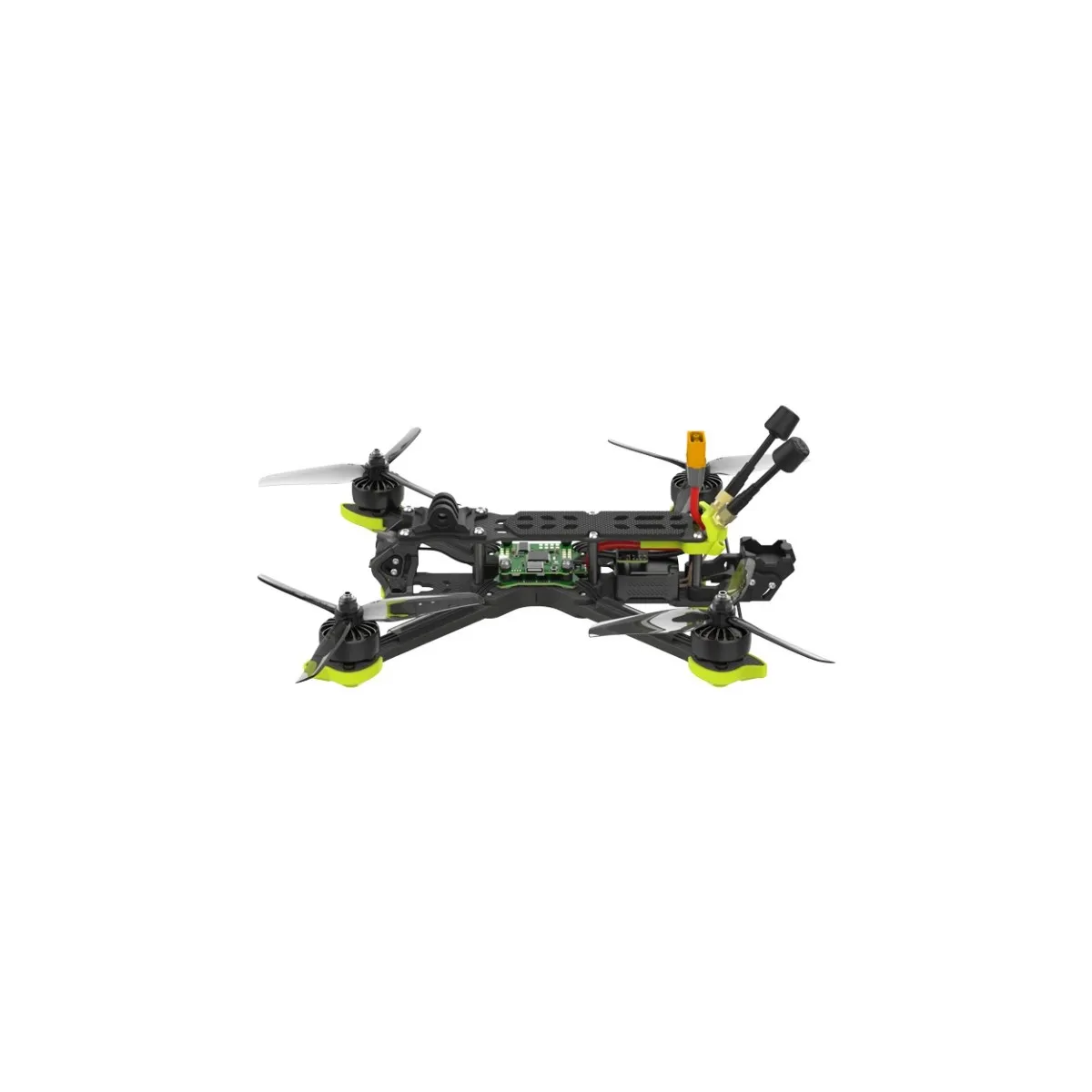

iFlight Nazgul5 V3 HD F7 6S 5 Inch Freestyle FPV Racing Drone PNP BNF with 45A ESC DJI O3 Air Unit Digital System

Price range: $665.04 through $802.67

BNF DJIBNF ELRS 2.4GHZ
Clear

Introduction:

This Nazgul5 V3 HD is a 5-inch quadcopter that comes with the DJI O3 Air Unit Digital HD System,
and Nazgul 5″ 3-Blade propellers. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you
need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight
Controller, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC, which make this quad a must-have!

Highlights:

XING-E 2207 motors and NAZGUL 5140 props
5-inch version also fits 5.1-inch style propellers
Fits both 30.5×30.5 and 20×20 stacks
DJI O3 Air Unit Digital HD System
5mm arm design for more durability
Popular True-X configuration
LED illuminated Logo
TPU crash-guards
Easy-Swap arms

Specification:

Model:Nazgul5 V3 6S HD

FC: BLITZ F722
ESC: BLITZ E45S 45A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 255mm wheelbase
Motor: XING-E Pro 2207 motors
Prop: Nazgul 5 inch propellers
Takeoff Weight: Approx. 620 g
Dimensions (L×W×H): 180×180×80 mm
Diagonal Distance: 245mm
Maximum Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Maximum Hover Time: Approx. 8 mins
Maximum Flight Distance: 5 km
Maximum Wind Speed Resistance: 130 Km/H (Level 4)
Operating Temperature Range:-10° to 40° C (14° to 104° F)
Antennas: 2 Antenna
GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit
Weight: Approx. 290 grams(headband included)
Dimensions (L×W×H): L167 * W1039 * H 813mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHzï¼›5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Max Video Transmission Bitrate: 50 Mbps
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power Input: 7-9 V (1.5 A)

Package Included:

1 x Nazgul5 V3 6S HD Drone
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)



Weight 23 kg
Dimensions 7 cm
Brand Name

EACHINE

Control Channels

2 CHANNELS

Flight Time

5~10

Transit Time (Days)

as show

Controller Mode

MODE2

Operator Skill Level

Beginner

Is Electric

No battery

Drone Weight

as show

Anti-wind Ability

as show

Package Includes

Original Box

Remote Control

No

Features

other

Indoor/Outdoor Use

outdoor

Video Capture Resolution

other

Camera Mount Type

other

Takeoff Weight

as show

Origin

Mainland China

Type

Airplane

Dimensions

11cm-30cm

Recommend Age

14+y

Remote Distance

as show

Charging Voltage

as show

Charging Time

as show

Material

Plastic

Model Number

Nazgul5 V3 6S HD

Power Source

Electric

Controller Battery

Not included

Maximum Takeoff Altitude

5000m
