Kamvas Pro 24 Huion Graphics Tablet Display 23.8 Inch Drawing Monitor Anti-Glare QHD Screen Pen Display 120%s RGB Dual Touch Bar

Kamvas Pro 24

1. The appearance of Kamvas Pro 24 is similar to Kamvas Pro 22/20.

2. With a 23.8 inch panel, Kamvas Pro 24 boasts the largest panel among all Huion pen displays.

3. It is also the first-ever Huion pen display that boasts 2.5K (2560 x 1440) resolution, which guarantees better display performance.

4. It also equipped with the new battery-free digital pen PW517 (Adopted the PenTech3.0)

Appearance — Frontside

Press keys and touch bars equipped on both side are programmable, which means you can program 20 functions into your pen display.

Appearance — Backside

The newly added DisplayPort(DP) not only offers more choices of interface but also enables higher resolution and refresh rate.

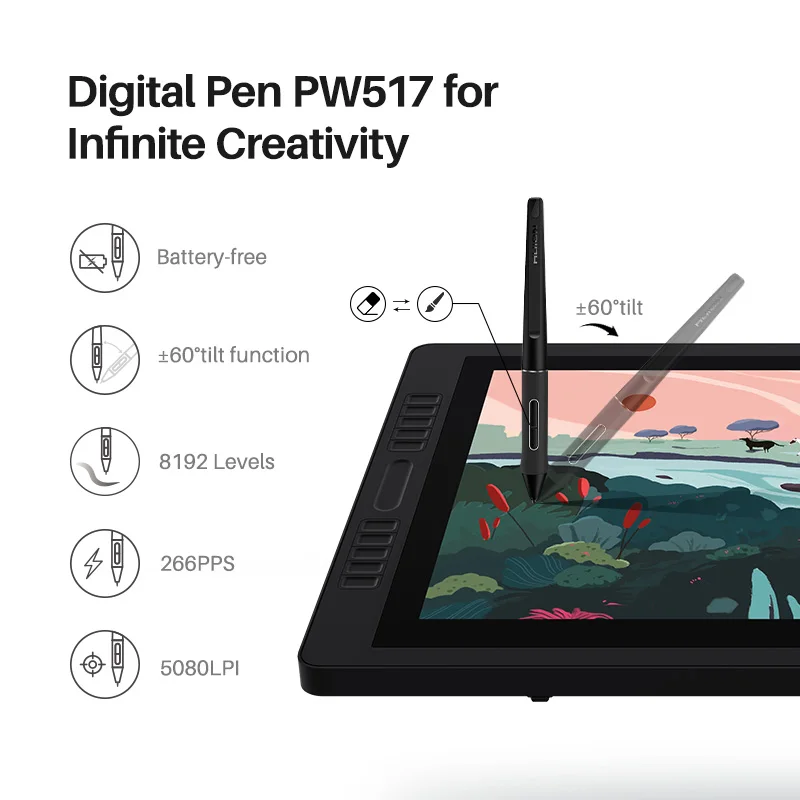

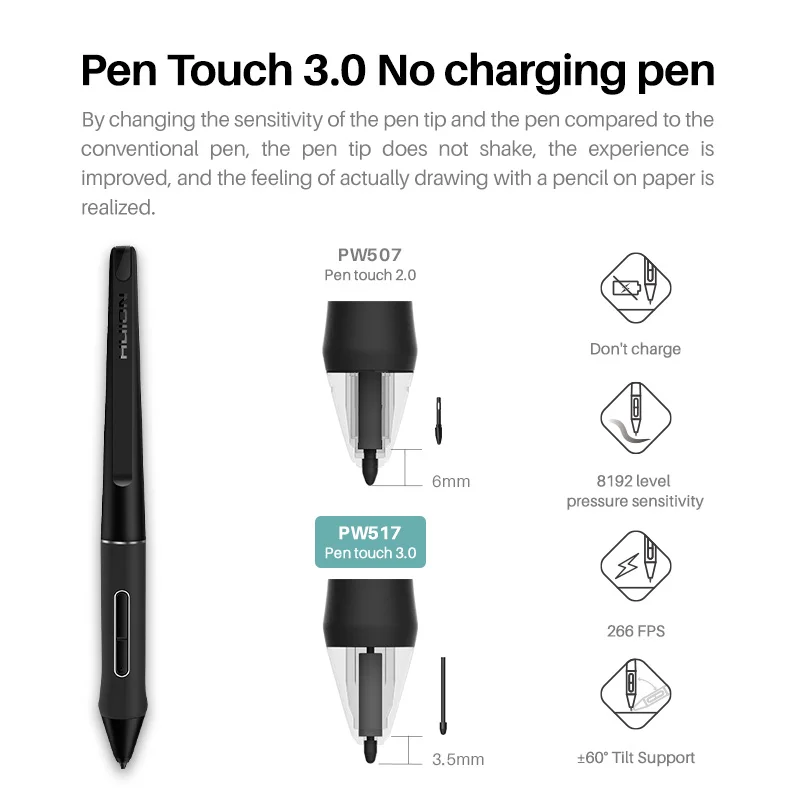

Digital Pen PW517

1. Adopted the PenTech3.0, digital pen PW517 needs no battery or charge and brings more accurate measurement on pressure sensitivity.

2. The magnetic core position of PW517 is lowered to 3.5mm which ensures more precise positioning.

3. From PW507 to PW517, idling distance is shortened from 0.8mm to 0.3mm, which ensures a more lifelike drawing experience, just like you're using a real pen.
(idling distance：the state when the pen nib contacts the surface of the tablet but doesn't work
)

4. The pen nib of PW517 is optimized

5. Pen Holder is optimized.
The bumpy surface feels more comfortable and brings better stability

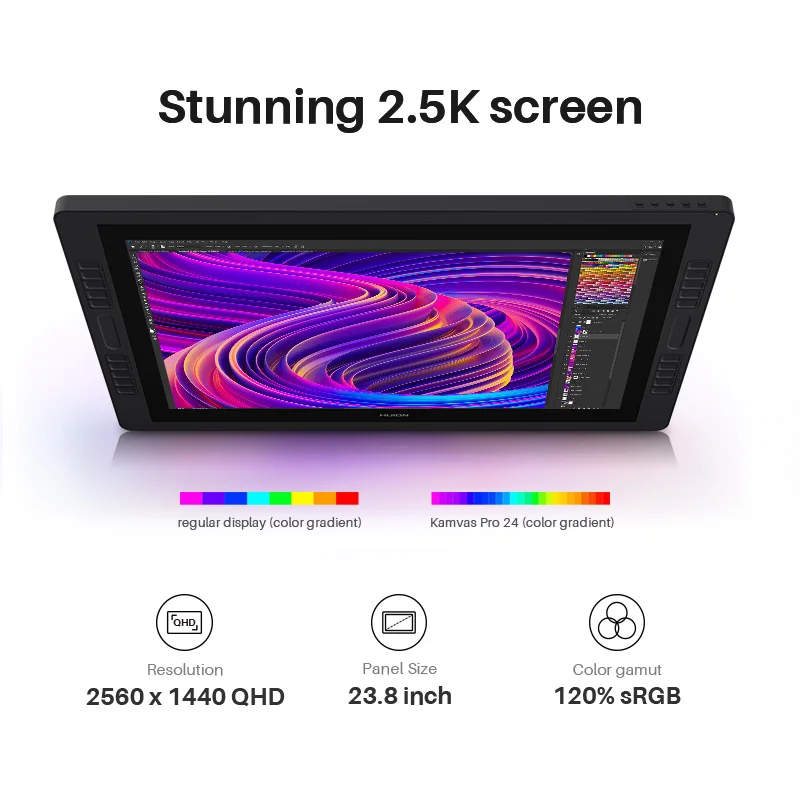

2.5K Resolution

Boasts 2.5K display resolution enables clear and sharp picture presentation on the 23.8 inch panel, the contrast ratio of 1000:1 can improve the gradation of the picture.

120% sRGB Color Gamut

Application of the same color space used in digital printing that covers 120% sRGB, enables Kamvas Pro 24 to have your works displayed in a more vibrant way.

Full Lamination

What full lamination optimizes：

1. No reflection will occur between the protector and LCD screen as there is no air gap, which helps to prevent light loss and improve the transparency.

2. Parallax is minimized and therefore the drawing experience is optimized.

3. The color and appearance of the screen look more harmonious when it is off.

4. Visual effects under outdoor glare is also optimized.

5. The interior of screen is airtight and moisture proof.

Anti-Glare Glass

Why AG Glass：

1. To alleviate glare effects caused by surroundings, enlarge the viewing angle and improve the brightness.

2. Surface of the AG glass is more similar to the texture of paper.

3. AG glass is more resistant to friction and corrosion, so there is no need of extra protector.

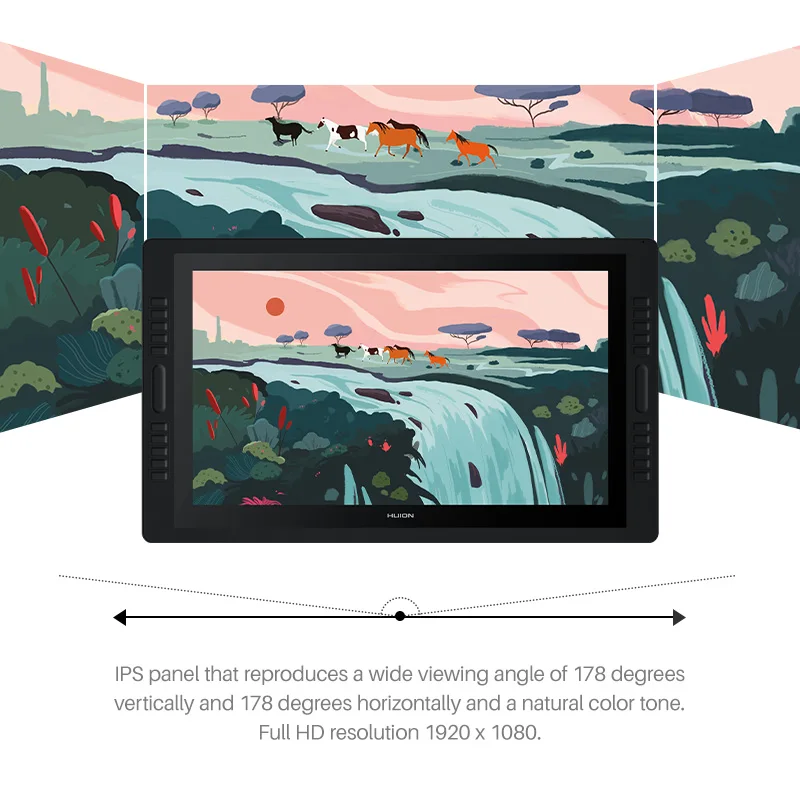

178° viewing angle

Extra wide viewing angle of 178° ensures clear and beautiful image display effects without color shifts.

Other Features

1. 8192 levels of pressure sensitivity – 8192 levels of pressure sensitivity enables every handwriting strokes input with different levels of pressure can be accurately sensed and therefore ensuring the smoothness and consistency of each line drawn.

2. 266PPS report rate- the report rate has been further improved to ensure instant capture of every pen movement without any lagging.

3. Tilt Support— tilt support enables the cursor to follow your pen nib tightly even when the pen tilt in ±60°.

4. Press Keys + Touch Bar – 20 press keys located on the both sides of the screen are programmable, while the nearby touch bar can be used for canvas zooming, brush adjusting and page scrolling.

5. Adjustable stand- The stand is easy to operate and stable to use, which allows users to pull the slider bar and adjust the pen tablet from 20° to 80° for a comfortable working position.

6. OS Compatibility – Windows and mac OS are supported, compatible with all major mainstream painting and design software (such as PS, SAI, AI, CDR).

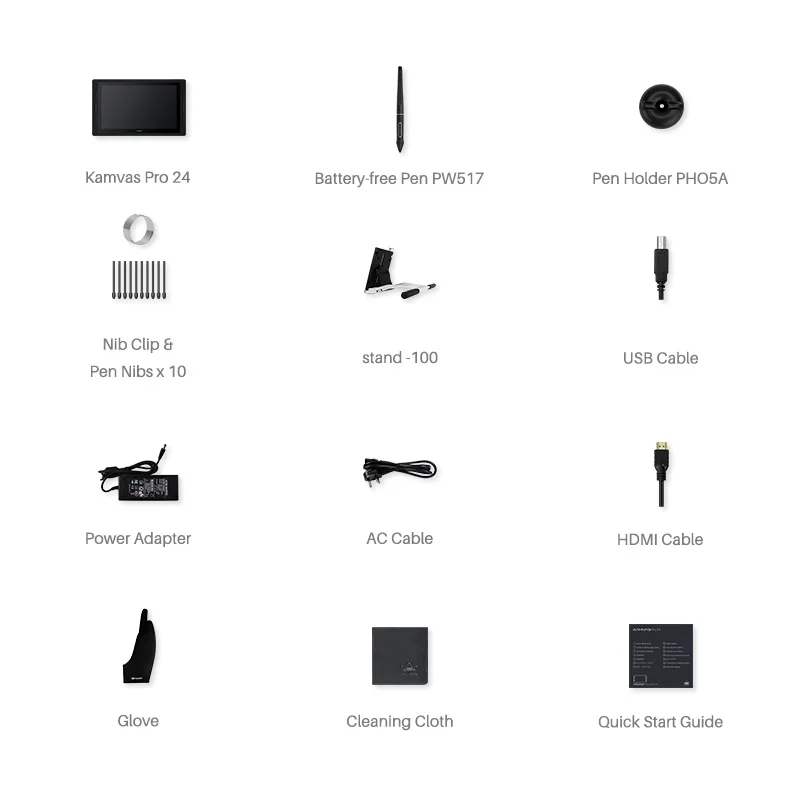

Accessories

1. Digital Pen
2. HDMI Cable
3. USB Cable
4. Power Adapter
5. Power Cable
6. Pen Holder PH05A
7. Pen Nibx10
8. Nib Clip
9. Glove
10. Cleaning Cloth
11. Warranty Card
12. Quick Start Guide
13. ST100 Stand
