LASER TREE K30 30W Optical Power 6 Diode Laser Module with Air Assist 450nm TTL PWM Laser Head for Engraver Cutting Wood Tools

LT-K30 Features:

1. Ultra High Power

LaserTree K30 is a true 30W+ output optical power laser engraving and cutting module. It uses beam compressed technology to combine six 5.5W laser diodes into a powerful laser beam with 30W+ laser power.

2. Powerful Cutting Ability

15mm basswood plywood: 180mm/min, one pass

15mm black acrylic: 35mm/min, one pass

20mm pine wood: 120mm/min, one pass

9mm MDF: 300mm/min, 2 passes

3. Built-in Air Assist Airway& Dual Fan Cooling Design

1>Built-in air assist airway to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

4. Working Status Indicator

The electrical connection status can be easily checked by the “Power” and “Signal” LED indicator.

5. Temperature Display & Alarm Function

Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

LaserTree K30 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.

6. Red Cross Line Locating

The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

7.Super Fast Egraving Speed

3 times engraving speed compare with 10W laser power module.

8. Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

9. Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

10. Widely Compatible Design

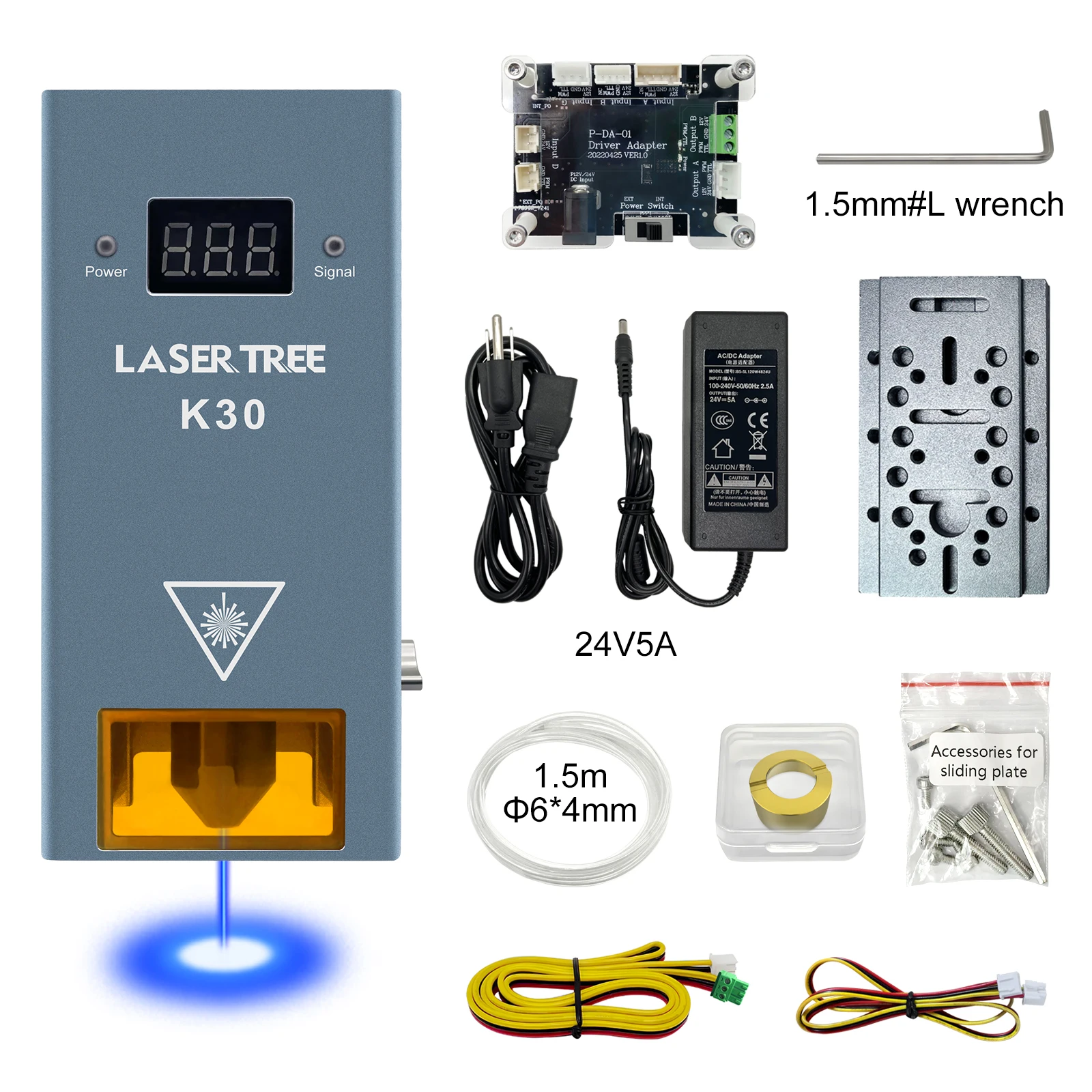

In order to improve the compatiblity to different laser engraver machine, K30 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.

LT-K30 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(please contact us if you are not sure about compatibility)

With Air Assist VS No Air Assist

Working Status Indicator

Power indicator: it is red when power supply is connected.

Signal indicator: it is green when signal is received.

Temperature Display & Alarm Function

1>The buzzer will sound an alarm when the operating temperature of the laser head is higher than 55°C.

2>Use in high temperature environments can affect the long term life of the laser head.(Suggested environmental temperature <35℃)

Red Cross Line Locating

The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

Super Fast Egraving Speed

3 times engraving speed compare with 10W laser power module.

40mm Fixed Focus Laser Module

1>Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

2>Equipped with fixed focus lever

Built-in Air Assist & Dual Fan Cooling Design

1>Built-in air assist to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

Easy-to-change Protection Window Design

1>Copper Core Protection Lens.

2>Easy to clean and replace when the lens is contaminated or dusty.

Easy to Set the Focus

Focus bar design makes it easy to set the focus of the module.

Lens Maintenance

When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.

When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.

When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.
