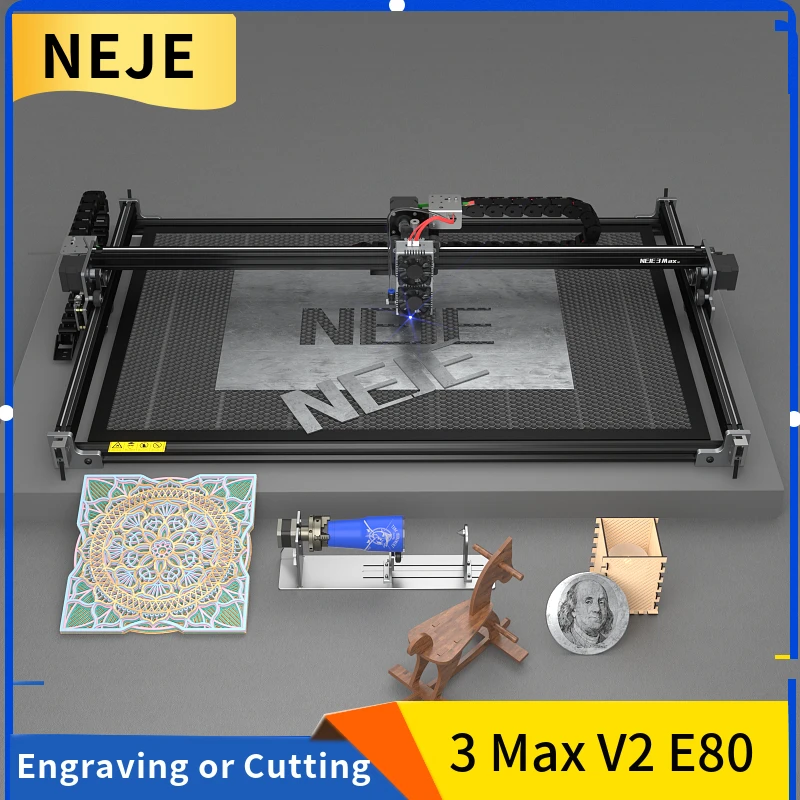

NEJE 3 Max V2 80W/120W Laser Engraving Cutting Machine Woodwork Tool Business Machine Air Assist Laser CNC Router Laser Engraver

NEJE 3Max-V2 is a general-purpose large-area DIY laser engraving and cutting machine with simple assembly, stable performance, and easy to maintain.

It is an improved version of the fourth generation based on NEJE 2 Max, NEJE 2s Max, and NEJE 3 Max. It improves structural strength, smoothness, and accuracy by optimizing alloy material matching and structural design, and conducts comprehensive calibration using precision CNC machines. While ensuring portability and ease of use, it perfectly meets the needs of both novice and commercial users.

The NEJE 3Max-V2 is very portable, allowing you to easily pick it up with one hand and complete your projects outdoors. It can also be easily hung on the wall when not in use.

The new control system supports native Z-axis and A-axis, and a single computer can control countless devices, supporting commercial production mode settings and lightburn wireless mode.

The NEJE H20 optical precision module focus adjuster is also configured. It is compatible with larger power modules such as E80, stable, easy to use, and efficient. If you want to retrofit the machine, you can update the firmware and upgrade it to an electric Z-axis to enhance the performance of the 3Max-V2 in multi-dimensional space. Alternatively, expanding the X-axis and Y-axis to achieve incredible working area, the all-new NEJE 3Max-V2 is a great helper for entry-level and commercial use.

【Laser Module Guide:】

NEJE E40 module is suitable for a wide range of materials. Mainly skilled in fine carving and cutting, E40 has a unique performance in grayscale carving ability and cutting details for metal materials, MDF boards, leather materials, and plywood (If you often use these materials and want more detailed carving and cutting, and the material is less than 4mm, then you can choose E40)

NEJE E80 module excels at fast engraving and cutting thicker materials efficiently. Its performance and durability are far better than competitors' high-power modules, and even better than 30-40W high-power modules. (For cutting thick materials or fast engraving, and for higher efficiency, choose E80)

NEJE 3MaxV2 is compatible with all series of NEJE functional laser modules, and has excellent fine carving or portrait grayscale effect on different materials. You can choose laser modules according to your needs.

↑ PRECISION OPTICAL LEVEL FOCUS ADJUSTER

NEJE has designed an optical laboratory level Z-axis height adjuster for 3MaxV2, providing a highly portable, precise, and stable operating experience. The Z-axis height adjuster has scale and locking functions, with a rotation of 0.7mm. You can even manually control the focus accuracy to 0.1mm. In the process of metal carving or cutting thick materials, it can greatly improve operational accuracy and portability, thereby improving operational efficiency.

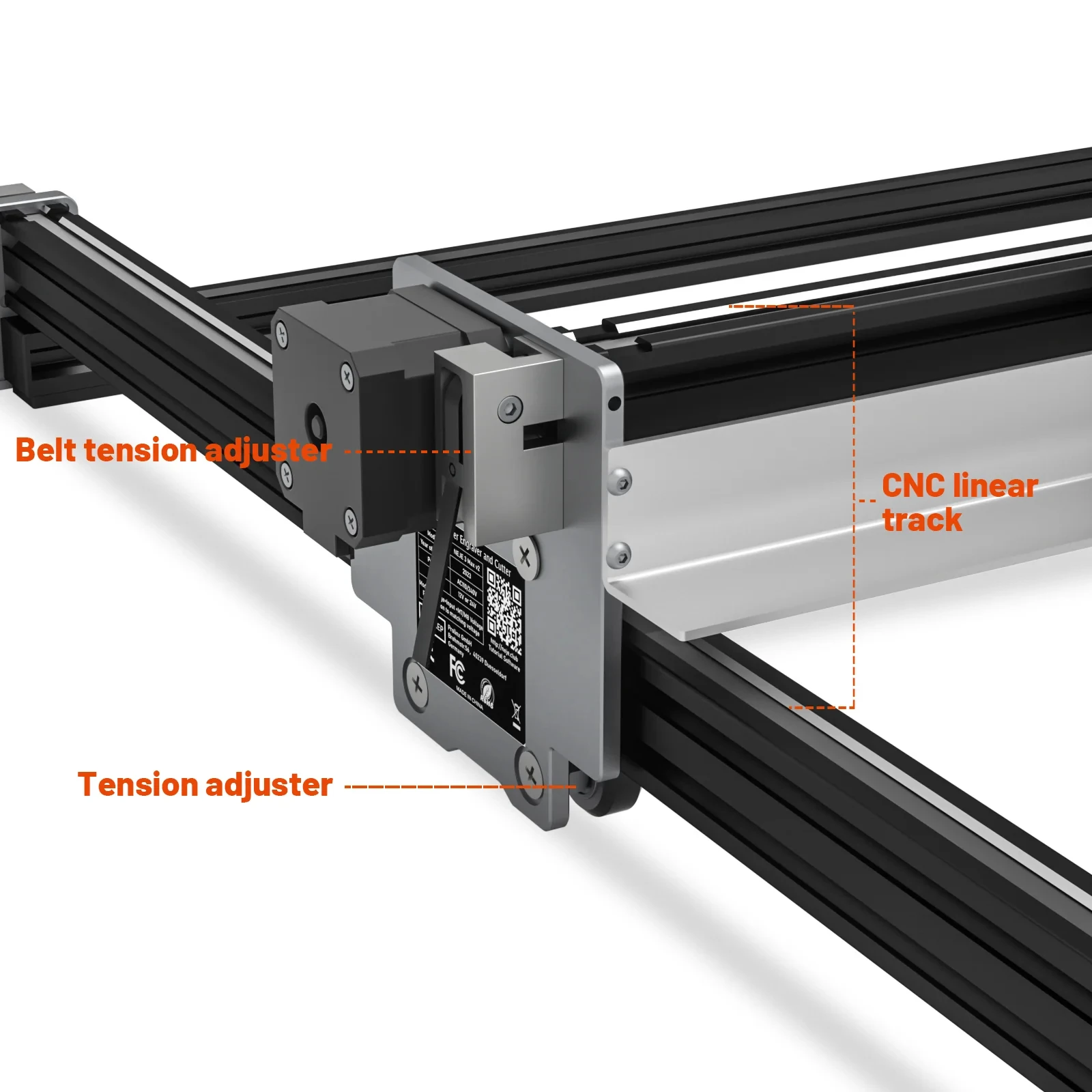

The newly upgraded 3MaxV2 framework's X and Y axis tracks are calibrated through high-precision industrial CNC master machines. Ensure precise and balanced X and Y axes through precise CNC structure nesting. The difference between CNC straight track and ordinary track lies in the elimination of profile extrusion deformation tolerance and improvement of smoothness, which improves the image quality of carving and cutting; In addition, the new framework has improved the track size structure, increased the hardness of aluminum materials, and additionally designed shock absorption treatment, making the framework more stable and precise, which has greatly improved the quality of artworks.

The newly upgraded 3MaxV2 has improved the adjustable damping function, which improves the smoothness of the X and Y direction modules and enhances the stability of repeated positioning accuracy on the X and Y axes. The repeated positioning accuracy is 0.01mm, making the image quality more stable and reliable

The NEJE team has equipped three original designed CNC precision belt tension adjusters for large-area laser engraving machines. It can easily solve the problem of image deviation in the X and Y directions, resulting in higher precision in large-scale cutting and carving, and a more perfect quality of the work

The 3MaxV2 is equipped with a stability control system based on the NEJE Master series, which has been iterated for 10 years. The new control system optimizes silence, performance, stability, portability, and functionality to the extreme. Supporting 4-axis independent control, equipped with native drive Z-axis and expandable A-axis interface, it can be used to transform Z-axis and expand other motor functions. The new BLE stable wireless control solution replaces traditional card insertion manual control solution, and can complete wireless real-time control and offline control directly through NEJE software, LaserGRBL, and Lightburn, greatly improving efficiency and saving time. Standard Door, M7, M8 expansion interfaces can be used to expand automatic air assist, automatic smoke exhaust, automatic lighting, and automatic safety sensing stop functions. This saves operating time and improves the ability of laser multi-layer automated processing.

3MaxV2 can use almost all accessories applicable to NEJE Max 4. You only need to pay attention to the matching voltage to complete the construction of a professional laser system and build a more safe and professional laser equipment. The NEJE team will also develop more features and compatible accessories for the NEJE 3MaxV2 framework to enhance user value.

【Specification】

Frame size (L – W -H): 590x980x160mm
Working area( X – Y): 790 x 470mm
Dot Pitch: 0.075mm, 338dpi
Pixel: 6133 x 10800 px
Drive accuracy: 0.01mm
Max Move Speed: X:1000mm/s(with E40 module 204g), Y:750mm/s
Frame Material: High precision All-aluminum alloy and PC material hybrid frame
Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly
Structure Feature: Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
Vertical Carving: Yes (45°)
Motor Size: 42 x 42 x 34mm
Motor Drive Current: 0.9A
Module Height Adjuster：Yes
Home: Rear Left
Origin: Front Left
Compatible Modules: All NEJE 4pin Laser Moudle, included E40 24V Laser module (The motherboard is above v1.1.0)

MCU: 32-bit 200Mhz MCU (Top 32-bit MCU)
BLE APP control: Yes
MEMS protection: Yes
M7 Control: Yes (For building automatic smoke extraction systems)
M8 Control: Yes (For building automatic air assist systems)
Door Control: Yes (Emergency Suspension and Safety Door Control)
Limit Switch: Yes
ON/OFF Switch: Yes
Input: DC 5.5 2.1, 12V 5A (Power Adapter)
System: Win 7 / Win 8/ Win 10, Android, iOS, ipadOS, macOS, HarmonyOS.
File format supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
OTA Upgrade: Yes
NEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use.
Lightburn and LaserGRBL: Yes, improved low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction.
Off-Line Working: Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone.
Repeat Engraving: Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work.
NEJE Android APP: Yes
NEJE iphone/iPad APP: Yes
NEJE Cloud Gallery Service: Yes
Software Download: Https://neje.wiki

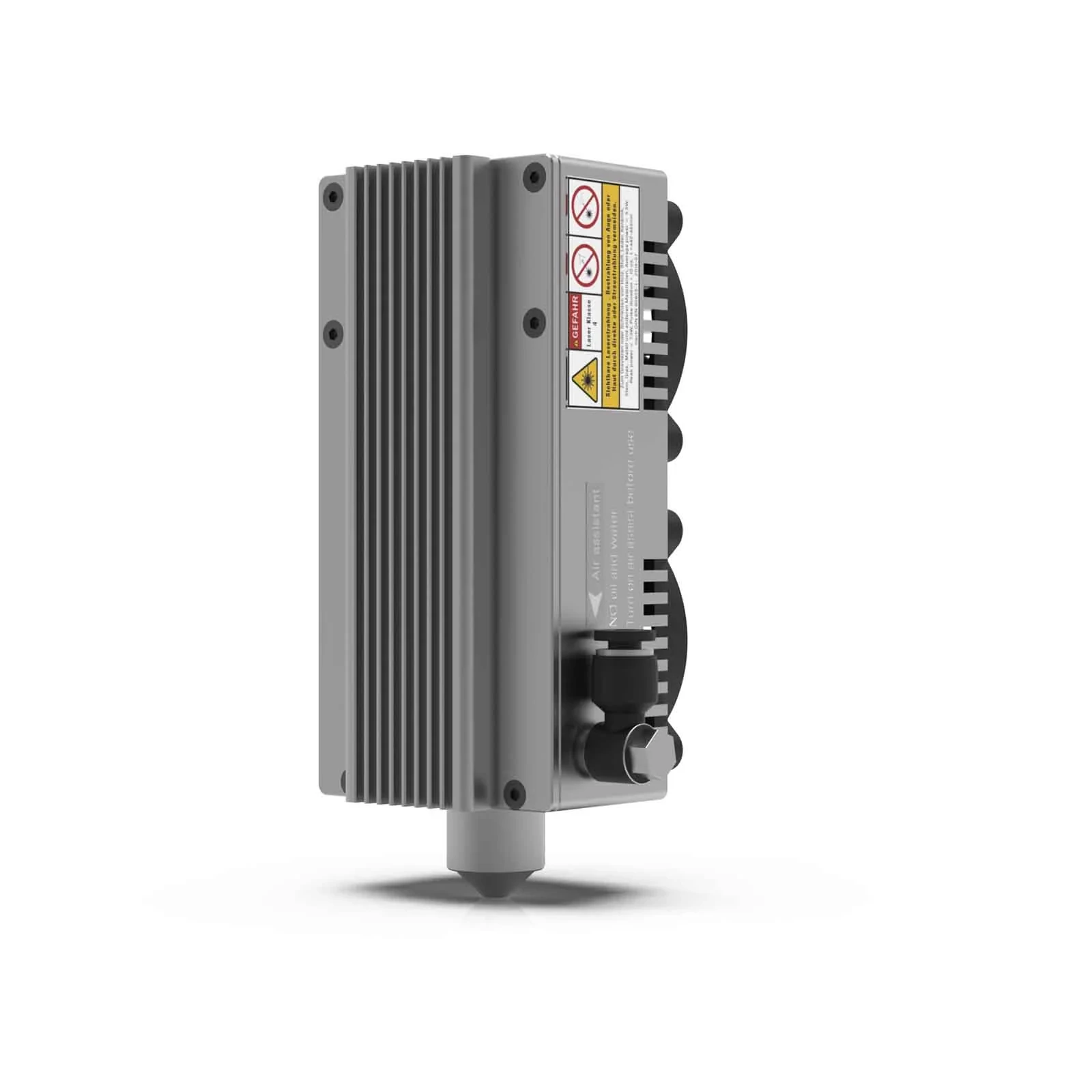

【New E40 Laser Module】

Module: NEJE E40

Focus: 0.03×0.04mm

Focus method: fixed ( 3mm from the radiator  )

Optical power: Pulse 11W+, CW 10W+

Wavelength: 450nm

Weight: 280g

Module Size: 40x48x130 mm

Input: DC 12V 4A

Interface: 4pin PH2.0 + ( 2pin DC12v extra power )

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc…

Power Control: PWM Power Modulation

Fan: Double Ball High Life Fan

Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.

Surge Protection: Yes

Smart Feedback: Yes

Temperature Feedback: Yes

Temperature control: 45℃

air pump: 0.5-1.5mpa clean air

Air interface: 4mm pvc trachea

Protective window lens: Yes ( withstand 1000℃ )

Original registered brand: Yes

Warranty: 2 years

Optical Power: Pulse 24W, CW 21W

Focus Size: 0.06×0.06mm

Input: 24V 5A

Interface: 4pin PH2.0 + ( 2pin DC 24V extra power)

Weight: 600g

Number of Diodes: 4 PWM

Input: VPP(3.3-24V), Recomend 1KHz, Quiet

Design: Drive the built-in control ic, judge the working state and adjust the fan work

Adapter Pluga: 5.5 2.1 port

Working Voltage: DC 24V TTL&PWM

Modulation: YES.

Compatible with Both TTL & PWM

Modulation Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

Warranty: 2 Years(If the laser module works 8 hours per day,the lifespan will be 7 years)
