Name: NEJE 3 N30820 40W Lightburn Cutting Printing Machine Portable Wood Engraver Cutter APP Control Bluetooth
SKU: 3256806639489699
Availability: InStock

WHY CHOOSE NEJE ？

CHOICE OF 100,000+ USERS

The updated NEJE 3 laser engraving and cutting machine is the fourth generation desktop portable engraving machine based on NEJE Master,NEJE Master 2, and NEJE Master 2s iteration. The fourth generation NEJE 3 series optimizes the mechanical, precision, andcontrol system usability to the top.

UPDATED PRECISION STRUCTURE

The frame structure adopts technology, precise assembly andbalanced structural design, ensuring the accuracy of the X,Y axis directions and carving quality.
The new structure adopts eccentric nut design in the X and Y directions, which can be adjusted to make the operation smoother and more reliable.

WIDLY APPLICATIONS

Support: Standard N30820 module (5.5W 450nm zoom module, widely used in woodworking, glass engraving, etc.), E40 module (comprehensive high-performance module, 12W 450nm can cut 0.05mm metal plate for ultra-fine engraving), N30610 (original model: 7W, ultra-high resolution rate module, image engraving), B30635 (original model: 3500mw, 405nm wood grayscale image engraving), A40640 Zoom Laser.

EASIER OPERATION

You only need to tighten 4 screws to start working with very simple assembly. Automatic reset,”one key start”, wireless offline function combined with software operation allow you to freely create anywhere. NEJE software and apps can achieve photo engraving, text engraving, and wireless transmission of engraving files injust one step, allowing you to create diverse works without professional engraving knowledge. NEJE 3 is also compatible with the new NEJE+lightburn/laserGRBL wireless control mode.

SAFER

Equipped with MEMS sensing protection as standard, you can setappropriate vibration protection functions to ensure safe operation incase of unexpected vibration and displacement. Supports Door safety sensor expansion, emergency stop button, safety door, flame detection and other safety expansion functions.

ACCESSORIES SUPPORT

As a native complete machine equipment manufacturer, NEJE provides users with permanent accessory support, a 2-year warranty for the complete machine, and permanent OTA software upgrade services. In addition, NEJE 3 supports automated transformation functions such as M7 M8 Z-axis expansion, and the Y-axis size can be passed the standard The 2040 profile can be extended to a larger area, and the area size can be modified directly through software such as NEJE software and lightburn.

Description

The updated NEJE 3 laser engraving and cutting machine is the fourth generation desktop portable engraving machine based on NEJE Master,NEJE Master 2,and NEJE Master 2s iteration.The fourth generation NEJE 3 series optimizes the mechanical, precision, and control system usability to the top.

The frame structure adopts technology, precise assembly and balanced structural design,ensuring the accuracy of the X,Y,and Z axis directions and carving quality.Automatic reset,”one key start”,wireless offline function combined with software operation allow you to freely create anywhere.NEJE software and apps can achieve photo engraving,text engraving,and wireless transmission of engraving files in just one step,allowing you to create diverse works without professional engraving knowledge.NEJE 3 is also compatible with the new NEJE+lightburn wireless control mode.If you plan to use NEJE 3 as a productivity tool,it is possible to wirelessly manage countless NEJE devices with a single laptop.

The updated NEJE 3 is compatible with extended functions such as NEJE rotaty and M8,M7,Door,compatible with native Z-axis,rotary and automation expansion.The newly designed module installation interface is compatible with the classic N30610,B30635,and N30820 manual zoom laser function modules.At the same time,it is also compatible with the NEJE simple height adjuster,which improves engraving efficiency by expanding the input power (12V 4A) and upgrading the NEJE E40 module and A40640 module. At the same time,the NEJE 3 control system can expand the X-axis and Y-axis areas by modifying area parameters.

Equipped with MEMS sensing protection as standard,you can set appropriate vibration protection functions to ensure safe operation in case of unexpected vibration and displacement.The NEJE 3 series is NEJE's classic development architecture, with very simple assembly.You only need to tighten 4 screws to start your creation,making it an excellent tool for beginners and commercial mass engraving and production.

NEJE E40 LASER MODULE

Industry-leading performance 10W+ Watt output module
Direct cutting, clean edges, no need for air assistance, built-in lens protection

NEJE N30820 LASER MODULE

5.5-7.5W Output laser module with strong & comprehensive capabilities
0.08×0.08mm focus size,external stainless air tube,clean cut

Details

The NEJE 3 is equipped with two types of modules: the variable focus high-power NEJE N30820 and the fixed focal length E40. Generally, the NEJE N30820 module can conceal the vast majority of carving, carving, and cutting needs. The NEJE E40 module has fine and fast carving performance on metal carving, stone carving, ceramics, wood, and other materials, with a thickness of 0.05mm stainless steel plate cutting, high-density plate cutting less than 6mm, and plywood less than 6mm, Leather and other materials with a thickness of less than 4mm have highly efficient and precise cutting capabilities.

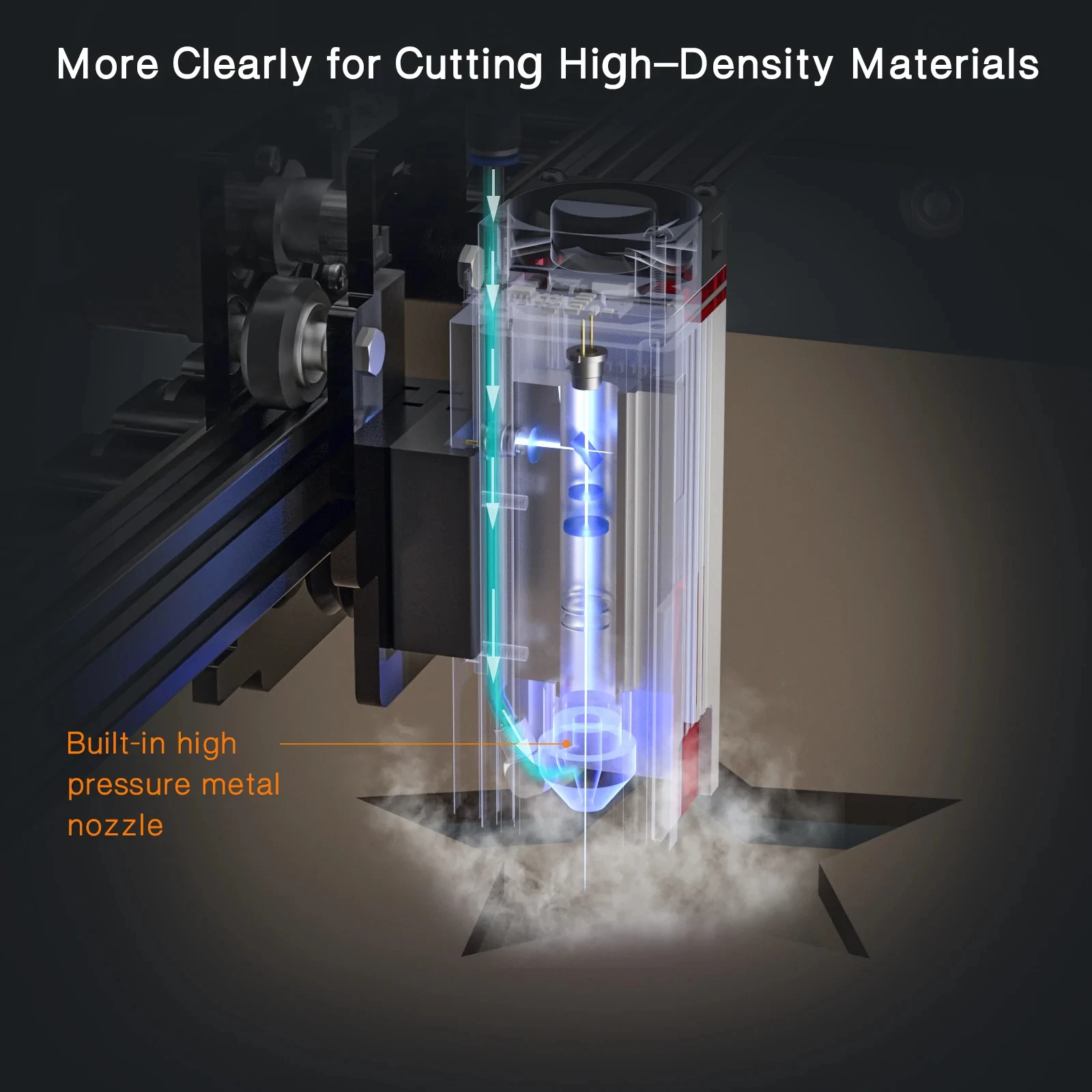

The NEJE E40 is equipped with an air assisted design, which generally eliminates the need for additional air source protection for the lens in engraving and cutting situations It is equipped with a high-pressure air nozzle, which can provide a more efficient effect when cutting materials such as high-density fiberboard and leather.The overall structure adopts precision nesting design, which is more balanced and stable, supports vertical work, and is flexible in use scenarios.The new NEJE 3 supports laserGRBL, lightburn, NEJE win software, NEJE APP wireless real-time control, yes, real professional software wireless control; what is exciting is that NEJE software supports the ability of one computer to manage countless NEJE devices, in your batch In the process of making a project, it does not take up your computer and has the ability to manage multiple devices very efficiently.

NEJE 3 currently supports independent M8, M7, DOOR and independent rotary axis control functions. This can make it possible for you to realize full automation control. You don't need to unplug the Y-axis motor anymore, you can connect NEJE rotary axis module to process your project .

This is a device that you don't really need to DIY. The NEJE team has fully tested all the functions, and you can use it directly after just screwing on 4 screws. It has very professional functions, but it is so simple that you only need to download the APP to realize the project.

3D images can be easily sculpted without adding air assist.

Rubber stamp engraving (requires air assist 0.4-1.5mpa)

Engraving glass, Burn the glass by painted

Join the NEJE community and learn more about creating

-The above pictures are all created by real NEJE fans, and more creative possibilities are waiting for you to discover.

MODULE COMPARISON

Difference	N30820 (classical)	E40 (NEW)
light source	Original diode X1	Original diode X2
Focal spot size	0.060.06mm zoom* focus	0.030.04mm fixed* focus
Continuous Power	5-5.5W	10-11W
Pulse power	6W	12W
Max cutting thickness	10mm	10mm
Recommended cutting thickness	<8mm	<5mm
Stainless steel cutting	No	Thickness:0.05 mm 300 mm/min
Stainless steel grayscale carving	No	Yes
Stone carving	No	Yes
Leather Cutting	Not recommended	The effect is good
Mdf Cutting (3mm)	Not recommended	The effect is good
Warranty	2 Years , Warranty statement: The warranty period for the module and motherboard is 2 years, and the power attenuation is not less than 70%; Due to accidental operation, the lens was damaged and not cleaned according to normal requirements, which is not covered by the free warranty To protect your rights and interests.	2 Years
Painted glass	Yes	Yes
Painted ceramic	Yes	The effect is better
Feature	N30820 (20W) is a classic 5.5W output 450nm module with a very large user base. Its copper core heat dissipation, reliable and intelligent drive, and portable operation make it a widely used module for general engraving and cutting. It is suitable for most organic material engraving and cutting of lightweight materials such as plywood within 3mm.	Having very fine carving and cutting expression abilities, for users with higher requirements for precision, such as ceramic carving, leather, MDF cutting within 4mm, etc., with perfect detail presentation.

SPECIFICATION

NEJE 3 Working Area (X-Y): 170 x 170mm, support expanded working area
X axis: Linear high-speed roller track with adjustable clearance
Y axis: Linear high-speed roller track with adjustable clearance
Z axis: With Z-axis interface, supporting expansion of roller and other roller modules
Limit Switch: Build in X Y, supporting Z limit expansion
Homing Repeat Position Accuracy: 0.01mm
Repeat Position Accuracy: X Y: 0.01mm;
Recommended acceleration and top speed: 400mm/s
Vertical Carving: Yes (90 °)
Accuracy: 2032 dpi (80 pixels per mm)
Input Voltage: 12V or 24V, Match according to module voltage
Interface: 5.5 * 2.1, Max 6A
Compatible: all 12V and 24V NEJE modules
Height adjuster: N30820, N30610, B30635 can directly adjust the module height up and down through the installation interface
Support the installation of NEJE fixed height adjuster
Compatible with other high-power modules: E40, A40640
Not recommended for heavy modules such as E80
M7, M8,Door Extension: Yes
Lightburn Offline Control: Yes
Lasergrbl Offline Control:Yes
BLE Bluetooth Function:Support Bluetooth 4,Windows 10, iOS 8 and Android 4.2 and above.
App control： Yes
MEMS protection： Yes
NEJE Software OTA Upgrade: Yes
Software: NEJE Win Soft, NEJE APP,Lightburn, LaserGRBL
Firmware: build in NEJE fireware and GRBL 1.1f(optimized)
Systems Support: Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOSFile
Format Supports: GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.

Packing list:

NEJE 3 N30820

1 x NEJE 3 Laser Engraving Machine
1 x N30820 Laser Module
4 x Nuts
1 x goggle
1 x L-shaped wrench
1 x USB Cable
1 x Small wrench
1 x 12V3A Power Adapter
1 x Eu adapter
1 x Test Paper

NEJE 3 E40

1 x NEJE 3 Laser Engraving Machine
1 x E40 Laser Module
4 x Nuts
1 x goggle
1 x L-shaped wrench
1 x USB Cable
1 x Small wrench
1 x 12V4A Power Adapter
