NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools
NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools - Image 2
NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools - Image 3
NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools - Image 4
NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools - Image 5
NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools - Image 6

NEJE A40640/A40630/N40630 450nm Laser Module Kits for 80W Laser Engraver Stainless Steel Engraving Wood Cutting Tools

$69.00 – $324.00

10W B30635 Module20W N30610 Module40W N30820 Module50W A30130 Module-180W A40640 Kit80W A40640 Laser80W A40640 Module-280W E40 Module
brazilChinaPolandUnited States
Clear

HOW TO CHOOSE NEJE LASER MODULE


B30635is a module specially designed for wood grayscale images and micro-engraving.

N30820andN40630have strong comprehensive capabilities, the optical power is 5.5 – 7.5W output, and the focus is square light spot, good at carving with wood , rubber stamping, glass, transparent acrylic and cutting Plywood, black acrylic, cloth, etc…These two modules are single-beam modules with comprehensive functions and high cost performance. They are the best choice for beginners. The difference between them is that N30820 can be used as air assist through a needle tube, not picky about the air pump. N40630 can install metal The air nozzle but air pump must be oil-free and water-free, so as to ensure that the lens is not damaged.

N30610, A40630, A30130modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials, They are all zoom modules. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic. N30610 can present 0.02mm detail, A40630 and A30130 are the same optical features, focal point 0.04×0.04mm, the difference in the different air-assisted extension forms and compatible air pumps.

A40640(Artist's Choice) is a classic creative master 2 beam laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, perfect cutting compatibility. Better application on a wider range of materials, The strongest power density (0.04×0.06mm with 12W+ pulse optical power and 11W CW power) of enables the A40640 to have the top engraving ability, Usually use 80% power 9W+ for long time cutting. There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, glass, hardwood reliefs, canvas art, and other materials. The adjustable focal length design enables the A40640 module to have a uniform cutting thickness of 20mm and short-focus fast cutting capabilities. If you only consider 1 module to help you solve all the needs, it is the best choice.

F30130, E30130, E40, E80are the series of modules specially designed by NEJE for long-time cutting. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft, E40 is 2 beam module, the spot shape is square, with 11W+ pulse and 10W+ continuous power output capability, is a cutting module with high cost performance and wide application. E80 is 4 beam module, 20W+ output, it is not recommended for engraving, the focus point is larger, heavy weight and the need to add air assist are the disadvantages of 4xLD. If you have requirements for cutting speed of 3-4mm materials, E80 is the right choice for you, Normally, 500mm/min can cut plywood cleanly, It should be noted that E80 is a 24V input module, which can only support the new NEJE-3-Max machine. The new motherboard of NEJE 3 Max (v1.1.0 and above) supports 24V input. NEJE does not plan to configure a separate machine set for the E80 module. You can Purchase an E80 kit to upgrade your NEJE 3 Max.. In addition to E80 modules, F30130, E30130, E40 can also remove the air nozzle and directly use it for engraving without air assistance.

NOTICE

The NEJE A40640 module adjusts the focus to 55mm by default. This is because the NEJE factory has to ensure the consistency of product testing.
When you receive the product, it is recommended to use a flat-blade screwdriver to adjust the focus to 2-3mm from the light shield.

The air nozzle must be aligned with the cutting port to blow off the carbonized material, otherwise it will be ineffective.
The focus must be located at the lower position of the material surface, otherwise there will be a certain degree of inhomogeneity in the X and Y axes. This is the optical feature of the optical diode laser, not a quality problem.

If you plan to cutting with A40640 module for a long time, it is recommended to adjust the power to 80%(obtain a stable heat balance in cutting mode). When the power is 80, the optical power is about 10W. This is because NEJE A40640 is mainly designed for the strongest and lightest high-definition engraving module. The pulse power reaches 12W+, only 202g.  NEJE E40 module specially designed by NEJE for long-term cutting needs has a built-in metal gas nozzle, but the weight is nearly 2 times the weight of the A40640 module. You can decide according to your actual needs. If your The proportion of time required for engraving is greater than that for cutting. A40640 module is recommended. If you basically use it for cutting, and there is no extreme requirement for engraving, the E40 module is recommended.

ABOUT AIR ASSIST

When do you need air assist?

Air-assisted engraving or cutting can only be used for engraving or cutting that produces more carbonized substances. Generally, the depth of engraving is less than 1mm, and the cutting of plywood less than 2mm does not require air assist. A small fan can be used to blow off the smoke generated by the engraving. Air assist is not recommended when engraving images, and adding air assist at this time will destroy image details.

What kind of air pump is suitable for cutting?

The main meaning of air assist is to blow off the carbonized material produced by cutting, and the general oxygener and electromagnetic inflator have almost no meaning. only the pressure of the oil pump and air compressor (0.4-1.5mPa) has the effect of blowing away the carbonized material. but it should be noted that the air of the oil pump contains oil and cannot be directly used for the air-assisted module of the closed cavity, otherwise the oil will contaminate the lens, resulting in power drop or damage to the lens. The air pressure of the air compressor can be used for a short time with the closed cavity, but When used for a long time, the water-containing gas will contaminate the lens, cause the power to drop, and even damage the lens.

How to add air assist on the A40640 laser module?

The NEJE A40640 module is an adjustable focus module. For the consistency of testing, the NEJE factory adjusts the module to 55mm focal length by default. This focal length is suitable for cutting thicker materials. This focal length is generally not commonly used. When you are suitable for the first use of the product, it is recommended to use a flat-head screw to adjust the focal length to about 30mm, which is 1-2mm away from the light baffle. This focal length has a very high focal power density and can directly engrave grayscale stainless steel images gray-black stone and other hard materials, NEJE A40640 can directly engrave 3D hardwood and other materials, and does not require air assistance, due to the high energy density design, A40640 can directly vaporize general wooden materials during the engraving and cutting process, so it is also unecessary to add air assist.

E40 Module RECOMMENDED REASON


NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40.  If most of your work is for carving, choose A40640.

E40‘S SPECIAL CAPABILITIES


E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

WHAT NEJE A40640 CAN BRING TO YOU?

A40640 (The most widely used module) is a classic creative master dual beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, thick material cutting compatibility, Make it the most widely used module. Due to the built-in NEJE unique fiber compression technology, It has a very strong energy density (0.04×0.06mm with 12W+ pulse and 11W continuous optical power),  There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials.  The A40640 is the only high-power module with variable focus section, The optimized A40640 II has higher cutting reliability, The short focus is suitable for carving hard materials such as metal stone and cutting materials with high density such as mdf, The long focus has better depth of field and smaller included angle for cutting thick wood and other materials. The excellent design makes the A40640 have a very strong vitality from the first creator of high-power diode laser to today, Due to the high power density, it has an equivalent application higher than 20W (optical power) laser in large area image engraving, If you only consider 1 module to help you solve all the needs, it is the best choice.

NOTICE

The NEJE A40640 module adjusts the focus to Long focal end by default. This is because the NEJE factory has to ensure the consistency of product testing.
When you receive the product, it is recommended to use a flat-blade screwdriver to adjust the focus to 2-3mm from the light shield.

It is normal for the A40640 module to be slightly non-uniform in the XY direction of the far focus. This is a compromise of zoom design, not a quality problem. You can reduce the non-uniform XY cutting by narrowing the focus.

The lens can be rotated with a flat blade screwdriver. prevent the lens from leaving the module and prevent dust from entering the interior to damage the optical system.

The outside of the lens will be stained with the surface due to smoke or oil and water, and the lens will be burned due to the accumulation of beam energy. Therefore, try to keep the habit of cleaning at the beginning of each use or after the introduction.

When cutting MDF leather and other materials, it is necessary to reduce the cutting focus, and add air assistance of no less than 30psi. The NEJE A40640 module gives away metal high-pressure air assistance, which does not require additional purchase.

When the air compressor is used as the air source, an oil-water filter needs to be added. Ordinary oil-water separators cannot filter oil-water 100%, so they need to be cleaned regularly (several hours) If you plan to use it for cutting wood, leather and other materials for a long time, it is recommended to purchase high-quality high-capacity oil and water filters Note that the ordinary oxygen generator can only be used for protecting the left and right of the lens. It is recommended to start it during normal engraving or ordinary cutting.

A40640 Laser Module Feature

Clearer of the engraving and cutting effect

The NEJE A40640 module is the benchmark for diode lasers. Since A40640 was released in 2020, as the inventor of the world's first diode laser module, its product performance cannot be surpassed so far. The mature and high-efficiency optical system design enables the output power to reach 10w -12w,  NEJE A40640 laser module has a minimum focus of 0.04mm and a maximum cutting thickness of 20mm. Combined with NEJE automatic air assist, in the multi-layer control mode of the lightburn software, you can Complete grayscale, 3D, high-quality cutting and other processes at one time. And the cutting angle is smaller, the cutting edge is more vertical and cleaner. The 204g lightweight design make the motion inertia smaller and the image clearer .

More reliable, The new laser uses a high temperature (1000℃) window glass to protect the lens, which effectively improves the service life of the lens.

Safer module design, NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.

Quiet design, NEJE A40640 module built-in NEJE unique intelligent drive design, so that the fan status can be automatically controlled.

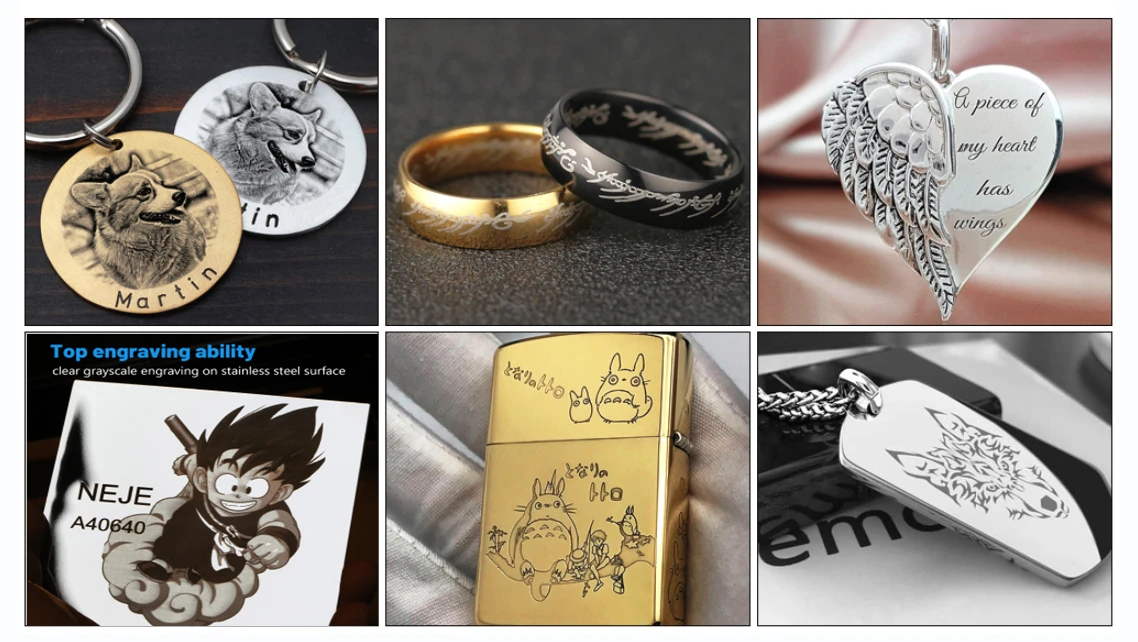

The strongest diode engraving module, 12W pulse power in 0.04×0.06mm

NEJE A40640 module has ultra-high energy density at 30mm focus, which is beyond the reach of other imitators. It does not require air assist when carving wood with a depth of less than 1mm, and can completely vaporize the material through plasma effect. Ultra-high energy The density can also directly engrave grayscale image on stainless steel planes, which cannot be achieved by 4 x beam 20W diode lasers.

Precise deep engraving

Deep 3mm relief on basswood, focused to 5mm clearance. – Creation by: Dean Napp

stone carving

copyright by Av Ros

glass art

plywood light box art

copyright by Przemysław Kuchta

The adjustable focal length design enables the NEJE A40640 module to have a maximum cutting depth of 20mm, which is best used when making furniture and cutting EPE and other materials.

acrylic cutting door plate

NOTE:

Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode:External ACC
Safe temperature range:<60 ℃
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:10000-20,000 hours

A40640 Module-1 Package Included

  • 1 x A40640 Laser Engraving Module

  • 1 x Laser Module Sliding fixture

  • 1 x 4 Pin Cable(30cm)

  • 1 x 2pin yellow and black signal line + 3pin input line

  • 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board

  • 1 x Interface adapter board

  • 1 x 2.5mm L-shaped wrench

  • 1 x 5mm L-shaped wrench

A40640 Module-2 Package Included

  • 1 x Air Assist

  • 1 x A40640 Laser Engraving Module

  • 1 x Laser Module Sliding fixture

  • 1 x 4 Pin Cable(30cm)

  • 1 x 2pin yellow and black signal line + 3pin input line

  • 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board

  • 1 x Interface adapter board

  • 1 x 2.5mm L-shaped wrench

  • 1 x 5mm L-shaped wrench

A40640 Module Kits Package Included

  • 1 x Air Assist

  • 1 x A40640 Laser Engraving Module

  • 1 x Laser Module Sliding fixture

  • 1 x 4 Pin Cable(30cm)

  • 1 x 2pin yellow and black signal line + 3pin input line

  • 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board

  • 1 x Interface adapter board

  • 1 x 2.5mm L-shaped wrench

  • 1 x 5mm L-shaped wrench

  • 1 x Charger

NEJE N40630 Laser Module-2 Package List

1 * N40630 Laser Engraving Module

1 * Laser Module Sliding slot

1 * 4 Pin Cable(320mm Cable)

1 * NEJE Interface adapter board

1 * 2.5mm L-shaped wrench

1 * 5mm L-shaped wrench

1 * 3pin input calbe

1 * 2pin ttl cable

NEJE N40630 Laser Module Kits Package List

1 * N40630 Laser Engraving Module

1 * Laser Module Sliding fixture

1 * 4 Pin Cable(1000mm)

1 * NEJE Digital PWM Wave Pulse Signal Generator Adjustable board,Interface adapter board

1 * 12V3A UL Certified Power Adapter (UP to 50W)

1 * Euro adapter

1 * 2.5mm L-shaped wrench

1 * 5mm L-shaped wrench

NEJE A30130 Laser Module Kits Package List

1 x laser module

1 x sliding card slot

1 x L wrench

1 x L-shaped small wrench

1 x interface adapter board

1 x 4pin laser line

1 x 3pin 2.54 interface output cable

1 x 2pin TTL control line

NEJE E40 Module Package list:

  • 1 x NEJE E40 laser module ( Built-in high pressure air nozzle )

  • 1 x Laser module height adjuster

  • 1 x 4 pin cable(30cm)

  • 1 x 2pin yellow and black signal line + 3pin input line

  • 1 x NEJE digital pwm temperature test / switch / interface adapter board

  • 1 x NEJEtest / switch /interface adapter board

  • 1 x 2.5mm L-shaped wrench

  • 1 x 5mm L-shaped wrench

  • 1 x Tube (4mm x 2m)

  • 1 x connector ( M8 to M4 )


Note：Polish warehouses and German warehouses cannot be shipped to the Canary Islands, Balearic Islands, and Ceuta. Spanish warehouses cannot be shipped to the Canary Islands and Ceuta.Customers in the above regions should not choose overseas warehouses for delivery.

Weight 17 kg
Dimensions 8 cm
Brand Name

NEJE
Certification

UL
Origin

Mainland China
Model Number

A40640
Brand

NEJE
Laser Module

A40640/A40630/N40630/F30130/N30820
input power

40W~80W
Optical power output

5.5W~12W
