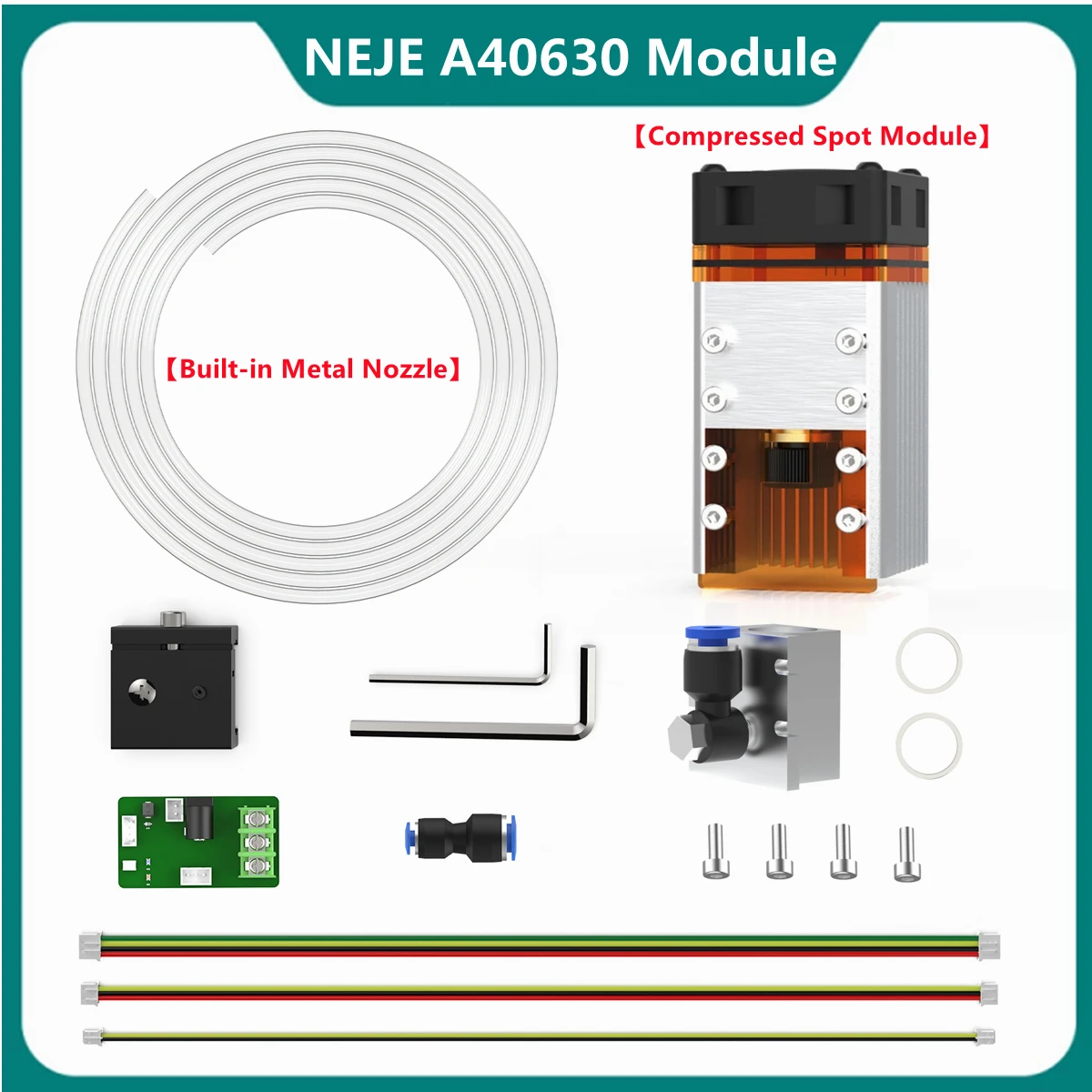

NEJE A40640/N40630/E40/E80 130W Laser Module Kits 450nm Blue Light TTL Module for Laser Engraver Wood Cutting Smarter Tool

NEJE E80 LASER MODULE FEATURE

Hybrid compression technology makes the focal point of NEJE E80 0.06×0.06mm, and the power density reaches 6666W/mm², Compared with *tool 40W module,power density:5000W/mm² (0.8×0.1mm,8xLD,Current highest power) , the performance of E80 is 35% higher than the 40W module. Due to the extremely strong power density and optical design, NEJE E80 has more excellent performance when the power is halved. Compared with other 20W modules, NEJE E80 has great advantages in terms of lifespan and performance.The E80 is a 4xLD module designed primarily for large stock removal and powerful cuts, yes it's a cute and rough guy, powerful but attention to detail. HYBRID Technology (Non-Destructive FAC and Combined Compression Laser System Technology) let the performance of E80 is much better than that of similar 20W and 40W laser modules, with smaller focus, smaller angle, XY symmetry, and differences in laser systems, which can bring a completely different experience, not easy to catch fire and cleaner edges , it can even cut high density materials without air assist, for cutting thick wood, this module may be revolutionary. E80 has very reliable stable performance and longevity at the same time, the service life is longer than Ordinary 20W modules are 50% higher, material process selection, thermal calculation and testing, NEJE has experienced 3 years of reliable verification testing and 10 years of manufacturing experience, summed up the design experience of diode lasers to create a reliable E80. NEJE summarizes the advantages and disadvantages of various optical system design methods. After 3 years of research, a perfect 20W laser system with complex and unique technology is finally adopted. The new laser system adopts external FAC and lens compression composite technology. The complexity is more than 3 times higher than that of ordinary 20W modules, so it has better optical characteristics than ordinary 20W lasers. X and Y have good symmetry in each focal length, and the focal energy density is 400% higher than ordinary 20W modules. , the divergence angle is reduced by 50%; and these can bring about cleaner cutting edges, faster cutting efficiency, not easy to catch fire, smaller smoke, more durable and reliable service life, and more comfortable experience. NEJE pursues perfect products and insists on 2 years of free warranty and establishment of a complete after-sales process. In order to maintain the goal of user value, we postponed the release of 20W-level new products for 2 years, but for the goal pursued by NEJE, we should insist on making a perfect module. You can start booking now, NEJE fans. NEJE will release more videos to beginners. In fact, we only released a short test video, which can explain many things. The symmetry of XY, the focus power density, and the divergence angle. This is to complete the cutting of medium density plates without the assistance of home air. If the 20W modules of other families are tested, most of them are directly on fire, which is the difference.

20MM PINEWOOD, 60MM/MIN, 1 PASS

4MM LEATHER, 400MM/MIN, 1 PASS

17MM PINE BOARD, 300MM/MIN,2 PASSES, HIGH VERTICALITY

0.15MM STAINLESS STEEL PLATE,  250MM/MIN, 1 PASS

5MM MDF, 200MM/MIN, 1 PASS

10MM BLACK ACRYLIC, 180MM/MIN, 1 PASS

10MM CHERRY WOOD, 250MM/MIN, 1 PASS

12MM BASSWOOD, 180MM/MIN, 1 PASS

30MM PINE WOOD, 200MM/MIN, 5 PASSES

30MM BLACK ACRYLIC, 100MM/MIN, 5 PASSES

SPECIFICATION

Optical Power: Pulse 24W, CW 21W
Focus Size: 0.06×0.06mm
Input: 24V 5A
Interface: 4pin PH2.0 + ( 2pin DC 24V extra power)
Weight: 600g
Number of Diodes: 4 PWM
Input: VPP(3.3-24V), Recomend 1KHz, Quiet
Design: Drive the built-in control ic, judge the working state and adjust the fan work
Adapter Pluga: 5.5 2.1 port
Working Voltage: DC 24V TTL&PWM
Modulation: YES.
Compatible with Both TTL & PWM

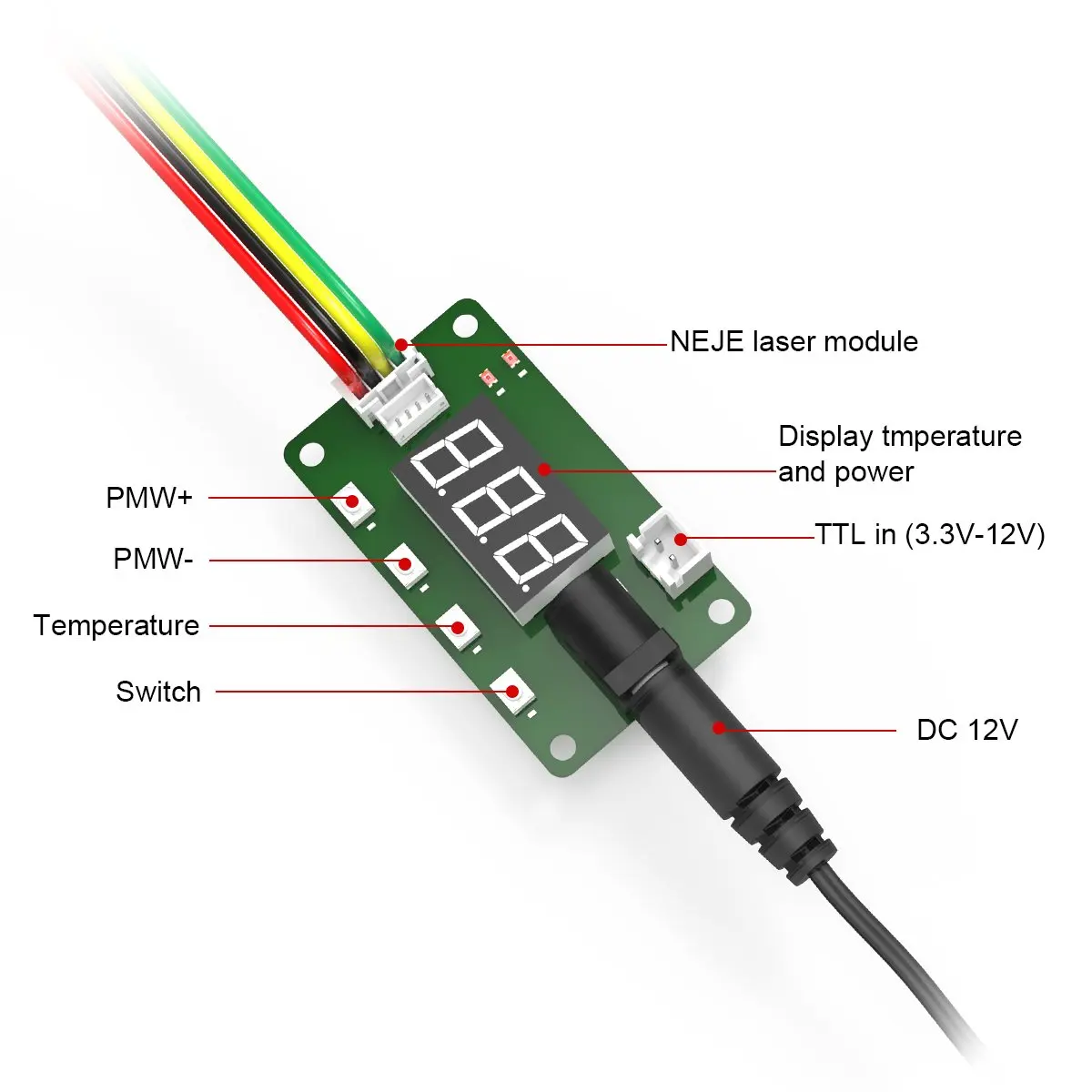

Modulation Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
Warranty: 2 Years(If the laser module works 8 hours per day,the lifespan will be7 years)
Register Your SN Code to Ensure 2-Year-Warranty

NEJE E80 – UNIQUE INDUSTRIAL PERFORMANCE AND DURABILITY MODULE

It adopts a unique solution that does not damage the original LD optical structure, retains the reliability and durability of the original LD, and has a service life up to 10 times longer than all other 20W output laser modules and CO2 modules. The production process of the E80 module is more complex, and currently only the NEJE team has completed batch manufacturing. It has a longer lifespan. Each module has an original SN registration number, and users can register SN registration information to enjoy after-sales protection of no less than 70% attenuation for up to 2 years. NEJE E80 has great advantages in terms of lifespan.

Hybrid compression technology makes the focal point of NEJE E80 0.06×0.06mm, the symmetrical XY shape make it achieve the ultimate in carving and cutting performance and the power density reaches 6666W/mm², Compared with 40W(output) module,power density:1777W/mm² (0.15×0.15mm,8xLD,Current highest power) , the performance of E80 is more higher than the 40W module. Due to the extremely strong power density and optical design (symmetrical XY shape), NEJE E80 has more excellent performance.

NEJE E80 CUT NEARLY 17MM PINE BOARD

16.73mm pine board, 300mm/min, 2.5 pass

The E80 has extremely strong optical quality, which is reflected in the good symmetry and minimal focus of XY, which leads to more efficient cutting. Even though the NEJE E80 only has half the power of 40W, its efficiency is twice that of 40W. Does this overturn your understanding.

NEJE E80 VS OTHER ORDINARY 20W MODULE

The ignition of high-power modules is a safety issue that cannot be ignored, and how to safely control high-power modules is a topic worth in-depth understanding Manufacturing a truly safe module is the bottom line for NEJE to launch new products.

Due to the large focus and angle, the cutting process is prone to ignition and poses an unsafe hazard The NEJE E80 utilizes internal dual compression technology to control the focus and angle to the extreme, and through Z-axis linkage, verticality and efficiency are significantly improved.

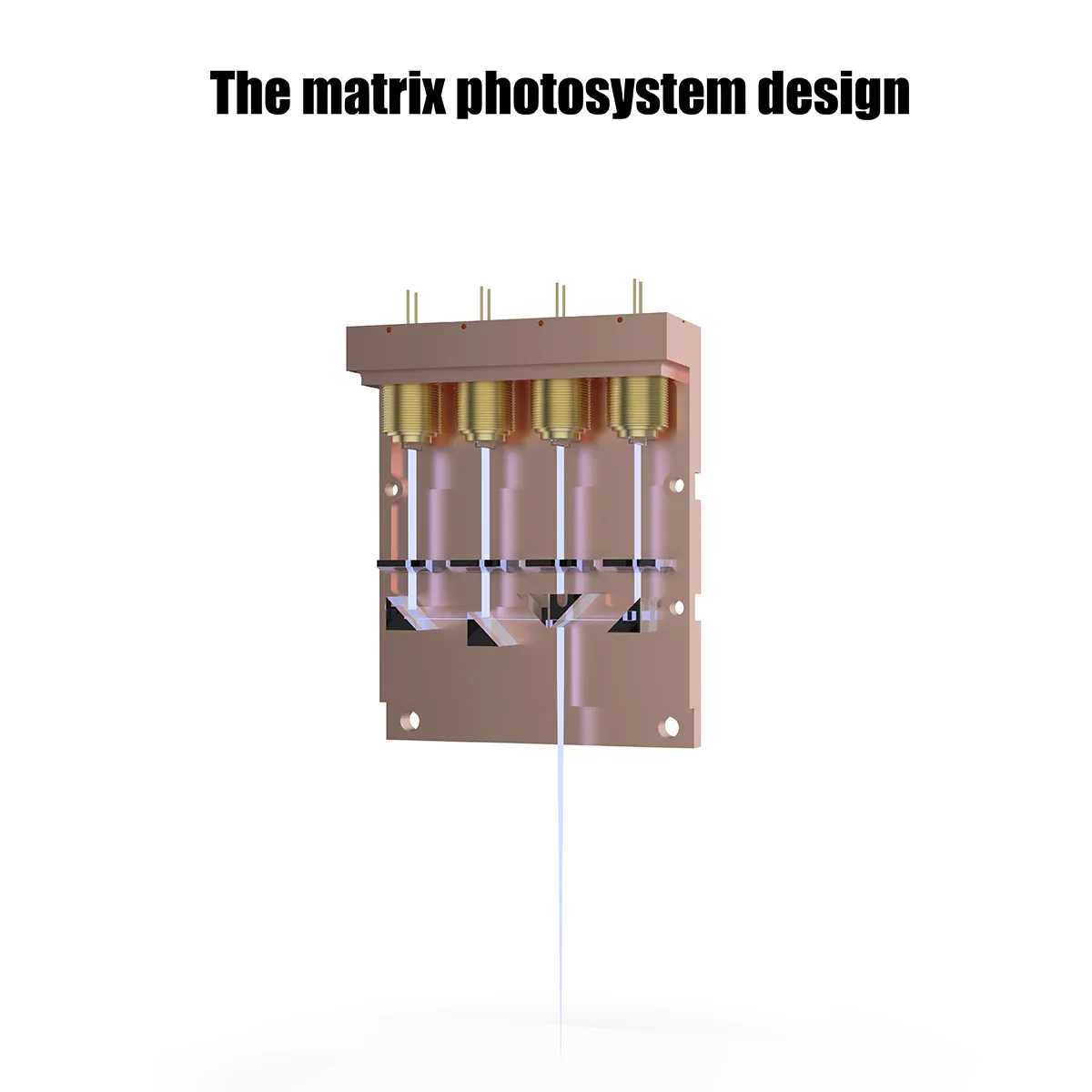

How to distinguish the internal optical processing method with the naked eye? E80 only has 2 beams of light hitting the wall, while the other 20W has 4 beams. After a single overlap, the angle and focus will be repeatedly compressed to a smaller size.

THE DESIGN DIFFERENCE BETWEEN NEJE 80 INDUSTRIAL MODULES AND OTHER HIGH-POWER MODULES IS THAT POWER IS NOT THE ONLY CRITERION FOR A MODULE’S PERFORMANCE.

NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40.  If most of your work is for carving, choose A40640.

E40‘S SPECIAL CAPABILITIES

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.
