Name: NEJE E80 E40 Laser Cutting Laser Engraver Cutter Laser Module DIY CNC Machine High Power Laser Head Air Assist Metal Nozzle
SKU: 3256804397715689
Availability: InStock

NEJE E80 E40 Laser Cutting Laser Engraver Cutter Laser Module DIY CNC Machine High Power Laser Head Air Assist Metal Nozzle

$159.22 – $569.00

【 E80 Laser Module】

It adopts a unique solution that does not damage the original LD optical structure, retains the reliability and durability of the original LD, and has a service life up to 10 times longer than all other 20W output laser modules and CO2 modules. The production process of the E80 module is more complex, and currently only the NEJE team has completed batch manufacturing. It has a longer lifespan. Each module has an original SN registration number, and users can register SN registration information to enjoy after-sales protection of no less than 70% attenuation for up to 2 years. NEJE E80 has great advantages in terms of lifespan.

Hybrid compression technology makes the focal point of NEJE E80 0.06×0.06mm, the symmetrical XY shape make it achieve the ultimate in carving and cutting performance and the power density reaches 6666W/mm², Compared with 40W(output) module,power density:1777W/mm² (0.15×0.15mm,8xLD,Current highest power) , the performance of E80 is more higher than the 40W module. Due to the extremely strong power density and optical design (symmetrical XY shape), NEJE E80 has more excellent performance.

E80 is a quasi-industrial-grade fixed-focus module. Unlike CO2 lasers, the 450nm semiconductor laser is visible, and the intensity of weak light can be set. Observe the minimum focus by observing the fluorescence reflected on the surface of the gray cardboard through protective glasses Location.

NEJE E80 recommends using NEJE Max 4 equipment control, through variable Z-axis multi-layer sinking settings, cutting from the material surface layer by layer to achieve high efficiency purpose of cutting.

【 E40 Laser Module】

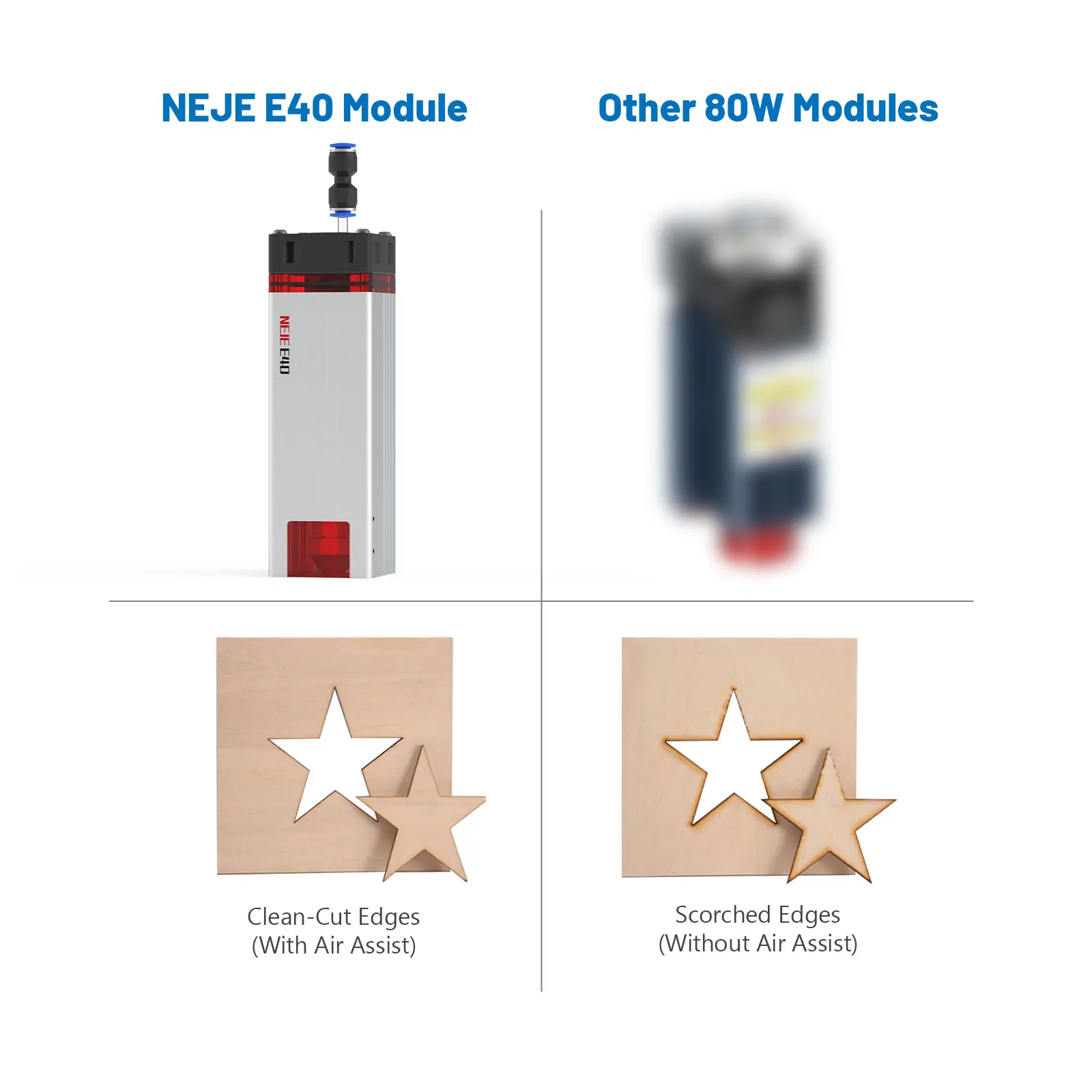

NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40. If most of your work is for carving, choose A40640.

E40 is 2 beam fixed module with 11W pulse and 10W+ continuous power output capability, Same engraving capability as A40640, It is a carving and cutting module with high cost performance and wide application

SPECIFICATION

Module: NEJE E40

Focus: 0.06×0.06mm

Focus method: fixed ( 3mm from the radiator )

Optical power: Pulse 11W+, CW 10W+

Wavelength: 450nm

Weight: 280g

Module Size: 40x48x130 mm

Input: DC 12V 4A

Interface: 4pin PH2.0 + ( 2pin DC12v extra power )

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc…

Power Control: PWM Power Modulation
