NEJE mini laser engraving machine miniature laser engraving machine DK-8-KZ 1500mw 2000mw 3000mw engraving wood paper plastic

Brand: NEJE

Model: DK-8-KZ

Color: Black & Red

Material: Acrylic + Aluminum + Stainless Steel

Laser Power: 1500/2000mw

Laser wavelength: 405nm;

Image formats: jpg、jpeg、png、bmp;

Image Size: 490x490pixels;0.075mm point distance

Supply voltage: 4.2V-5V;

Supply Current: 1A/2A;

Support system： XP, win7, win8, win10, Mac os

Support software: NEJE software, NEJE Scanner app

Supported languages: Chinese/English/French/Italian/German/Japanese

Can be carved objects: wood, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, Fruit and foodand,Paint materialetc ,. Can NOT engrave Metal/Aluminum/Acrylic.

Uses: engraving, hand tools

Work Area: 38*38mm

Size: 16×14.5x20cm

Net weight:1100g

Package size: 310*205*235mm

Package Weight: 1800g

1. Support our professional  design NEJE software .

2. Strong and cool design, high precision and stability, with 108 screws and alloy structure that make it strong.

3. Unique frame and weak light automatic positioning, Frame positioning makes the image positioning easier, Weak light even would not be difficult to engrave in toothpicks, Make engraving picture no excess residue and perfect, also more safe to prevent fire.

4. 490×490 high Resolution Print, Soft material can print out the 3D and the gradient effect.

5. Lone time use, NEJE developed the professional power IC and radiator, Carving time will last much longer than other laser and morestable.

6. 1500mw/2000mw is the 405nm laser module with the smallest spot. Has very high material absorption efficiency and better engraving grayscale effect

DK-8-KZ 1500/2000MW

Package List:

1 * Engraving Machine

1 * Protective Board

2 * USB Cables

1 * Allen Wrench

1 * Focusing Film

1* silicone pad

2* paper

2* wood chips

1* wood

1* whiteboard mark

1 * User Manual

DK-8-KZ 3000MW

Description:

NEJE DK-8-KZ 3000mw laser engraving machine is a portable multi-function engraving machine, which can engrave pictures in various formats such as bmp, jpg, etc. Customers can design materials by themselves, or directly use the “neje scanner” Android app to collect materials and transfer them directly Sculpture;

And only a 5V2A USB adapter or mobile power supply is needed, and it can be operated and used anywhere with a laptop. it's faster and more powerful to carve on various surface from wood to painted metal

NEJE DK-8-KZ 3000mW Features:

1. “NEJE CLOUD” provides thousands of engraving materials, and is constantly updated

2. Support “neje Scanner” app, hand-painted creation, photo scanning, intelligent algorithm automatically connect and print.

3. The software is automatically connected, and the control function is simple and easy to use

4. Professional word processing algorithm, the software can restore your design 1:1 losslessly, accurate to each pixel.

5. A variety of image algorithms can more present the image characteristics of your family or idols.

6. Support parallel engraving and offline work, only one computer can control up to 10 machines.

7. The motherboard is compatible with multiple power lasers, and supports 2pin mos control and 4pin TTL control with temperature sensing. It can be replaced with a higher power power supply device to achieve the effect of power expansion.

8. The all-metal precision mechanical drive screw structure, coupled with the full-frame stable mechanical structure, can ensure that the x and y axes are in motion to make the execution of instructions more accurate, which is more accurate than other plastic parts on the market.

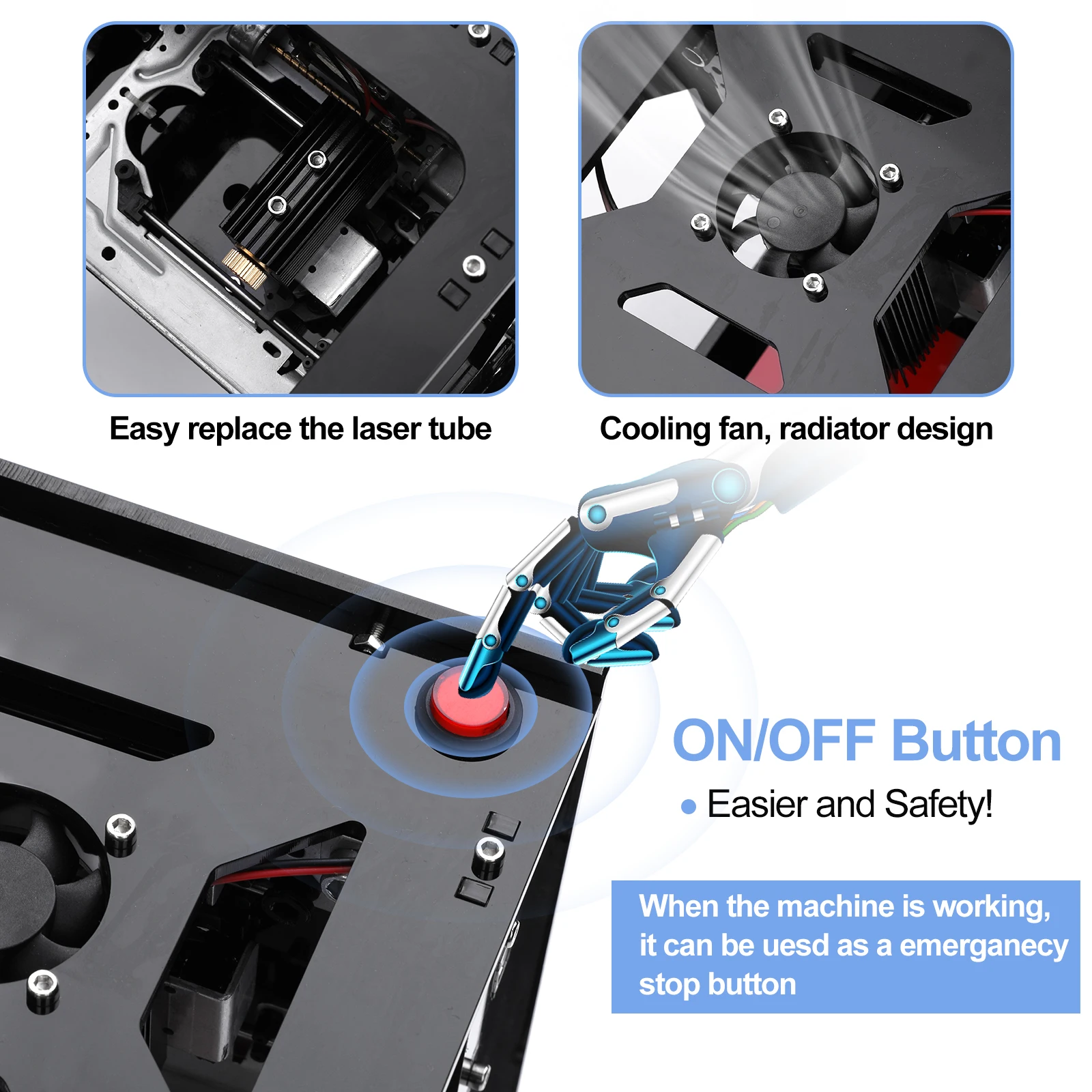

9. Safety design, magnetic easy-to-detach protective panel to protect your eyesight, emergency stop button, CE, FCC, FDA certification, no radiation

10.USB 5V low voltage power supply, 5V4A power supply can be replaced, maximum support 20W power supply, safe, portable and expandable.

11. Standard 445nm laser tube, high-power laser, ttl control, temperature sensor, can be used more safely, and the engraving depth is greater.

Brand: NEJE

Model: DK-8-KZ

Color: Black & Red

Material: Acrylic + Aluminum + Stainless Steel

Laser Power: 3000mw

Laser wavelength: 445nm;

Image formats: jpg、jpeg、png、bmp;

Image Size: 490x490pixels;0.075mm point distance

Image engraving pattern: Bitmap engraving;

Supply Voltage: 5V2A

Support system： XP, win7, win8, win10, Mac os

Support software: NEJE software, NEJE Scanner app

Supported languages: Chinese/English/French/Italian/German/Japanese

Can be carved objects: wood, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, Fruit and foodand,Paint materialetc ,. Can NOT engrave Metal/Aluminum/clear acrylic.

Uses: engraving, hand tools

Work Area: 38*38mm

Size: 16×14.5x20cm

Net weight:1100g

Package size: 310*205*235mm

Package Weight: 1800g

Package List:

1 * Engraving Machine

1 * Protective Board

2 * USB Cables

1 * Allen Wrench

1 * Focusing Film

1* silicone pad

2* paper

1* wood

1* whiteboard mark

1*5V2A Power Adapter

1*EU Adapter

1 * User Manual

Note:

1. This product is a amateur engraving machine for home use, it's not suitable for industrial use.

2.It's strictly prohibited to point at humans or animals with the module head, especially people's eyes.

3.The engraving machine should not be stopped while working, it will cause a damage.

4. Please keep away from children under the age of 14.
