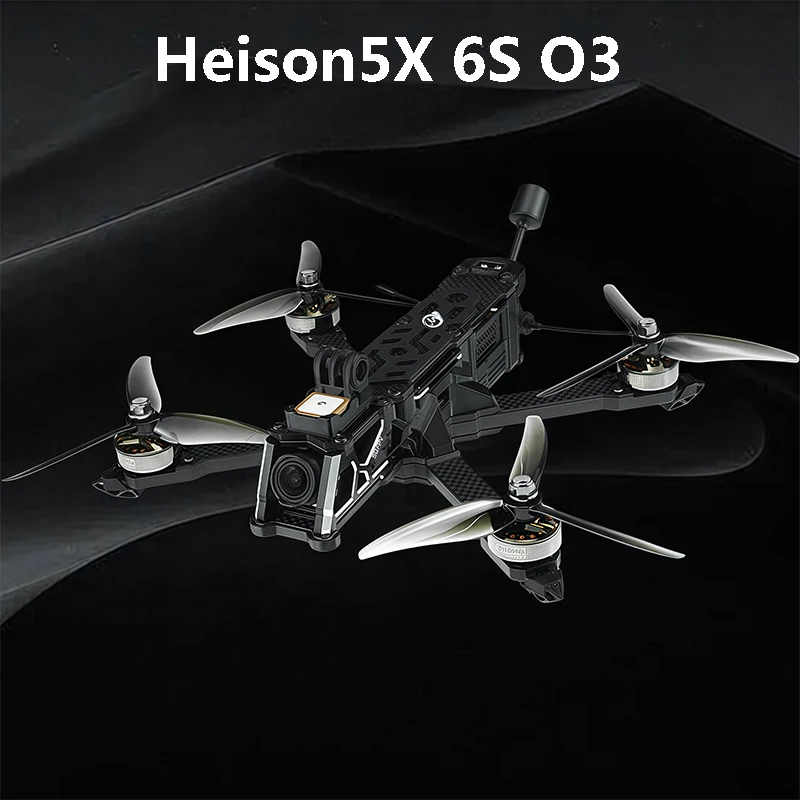

SEQURE SQFPV Heison 5X 6S Freestyle Cine FPV 5 Inch 1800KV Motor Drone with HD DJI O3 Camera Support 6S Batteries

SEQURE SQFPV Heison 5X 6S Freestyle Cine FPV 5 Inch 1800KV Motor Drone with HD DJI O3 Camera Support 6S Batteries

Original price was: $820.71.Current price is: $715.00.

ELRS 2.4G (AM32)ELRS 2.4G (BL32 p-r)ELRS 915M (AM32)ELRS 915M (BL32 p-r)
Clear

BL32 Configuration Tool Donload Link: //sequremall.com/pages/blhelisuite32

The option (BL32 p-r) is BLHeli_32 pre-release

Product Description:

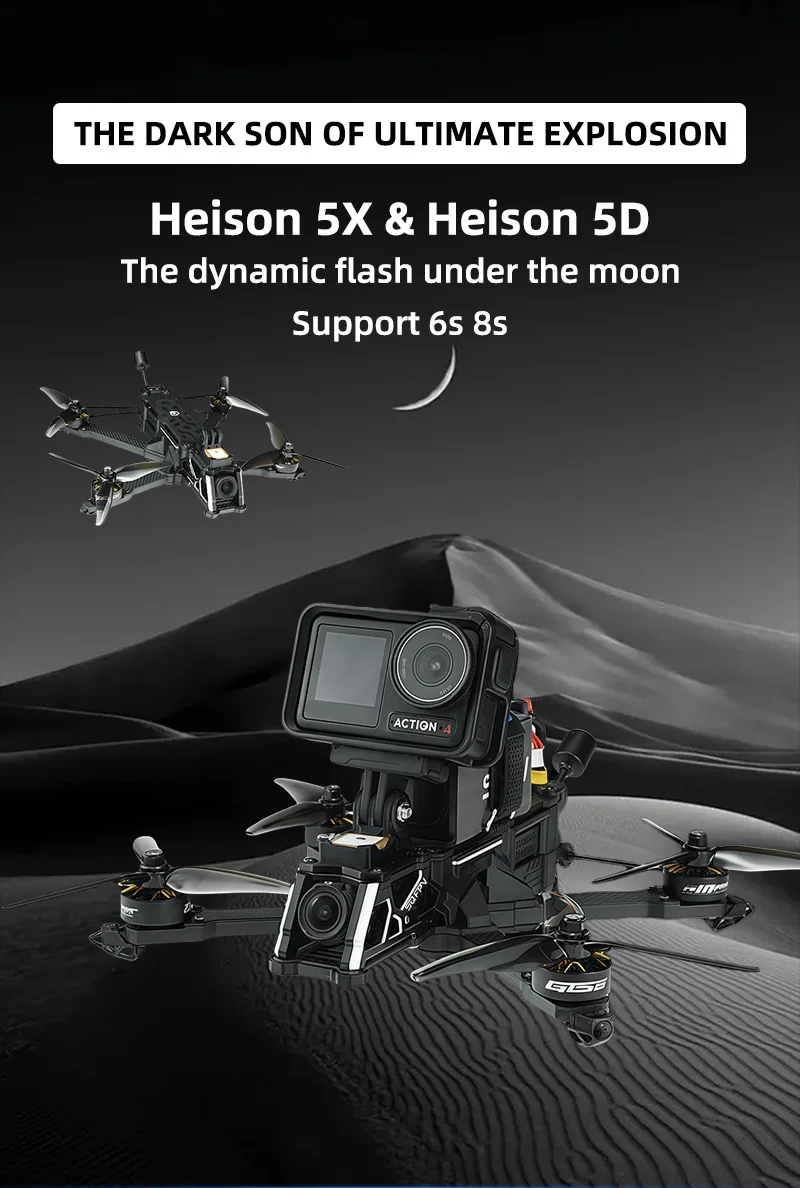

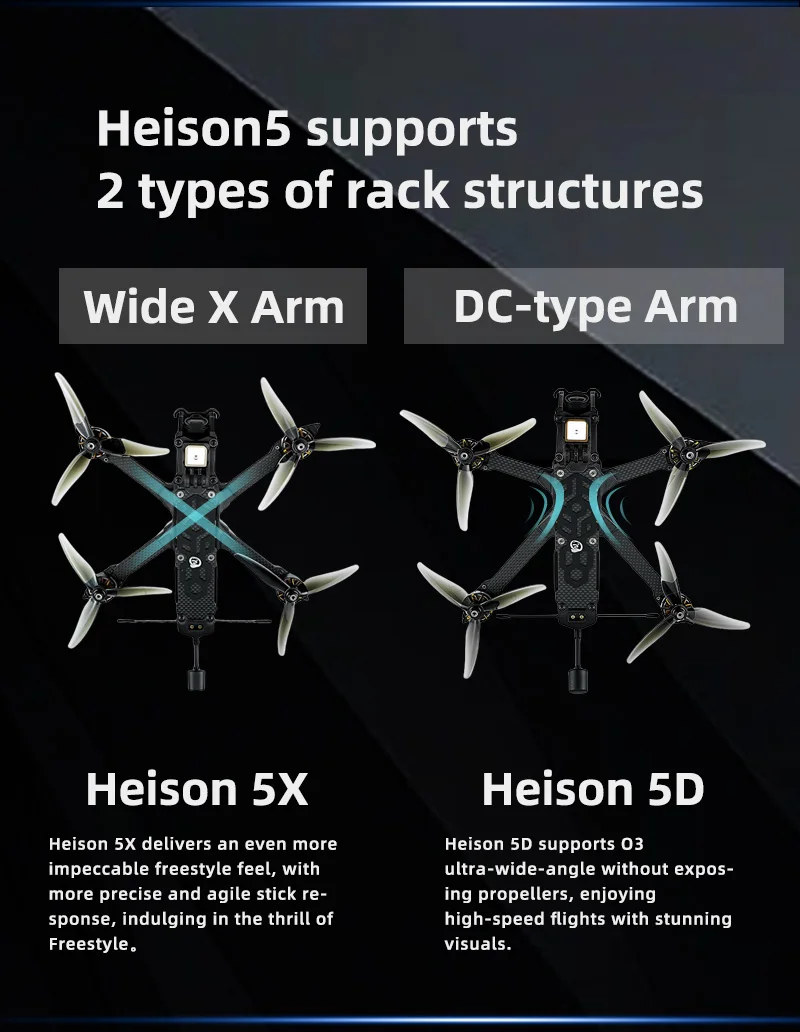

(1)2 Types of racks: Heison 5X & 5D, supporting 6S and 8S battery, DJI or analog VTX.

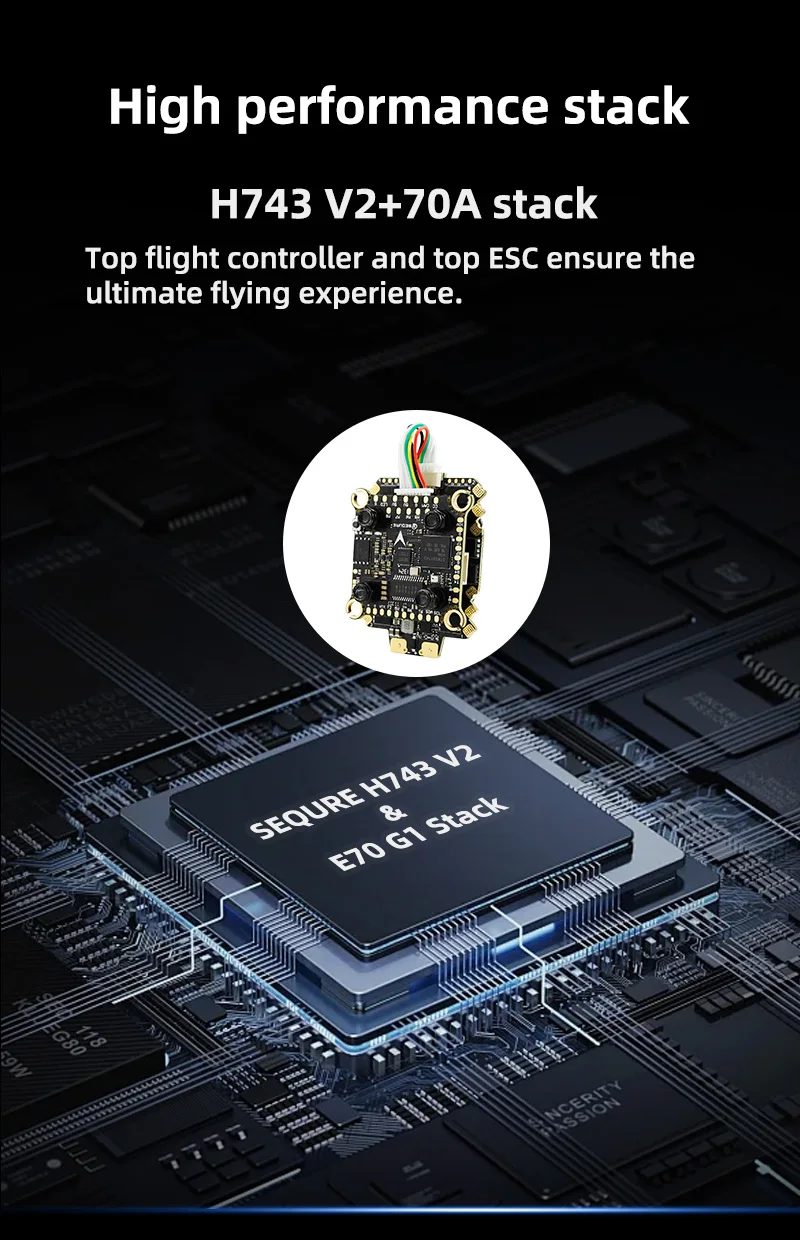

(2)Equipped with the advanced SEQURE H743 V2 FC &E70 G1 ESC, featuring  STM32H743 MCU, ICM-42688P Gyro, and high-performance 32-bit 70A 4IN1 ESC, this specificationsensures an unparalleled flying experience.

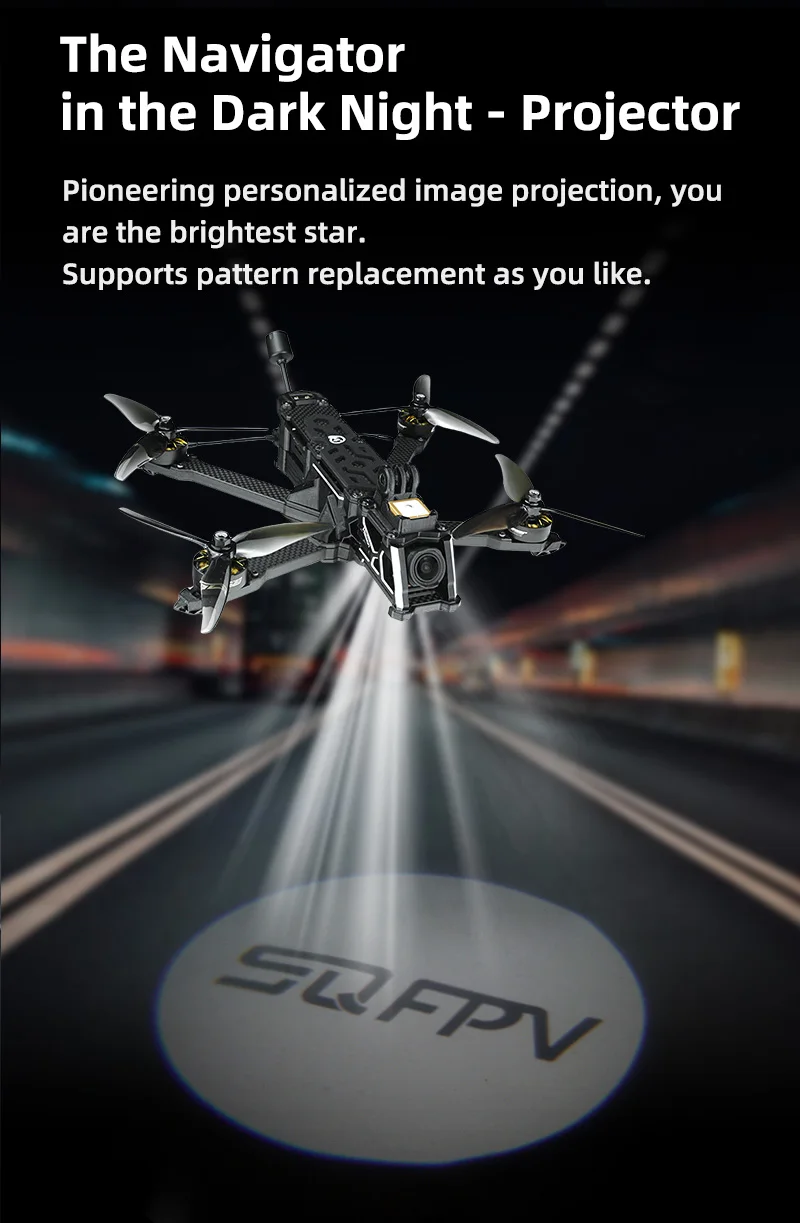

(3)It pioneers personality-infused image projection for FPV drones, making it navigable in the dark night. Support DIY patterns to meet different scene requirements.

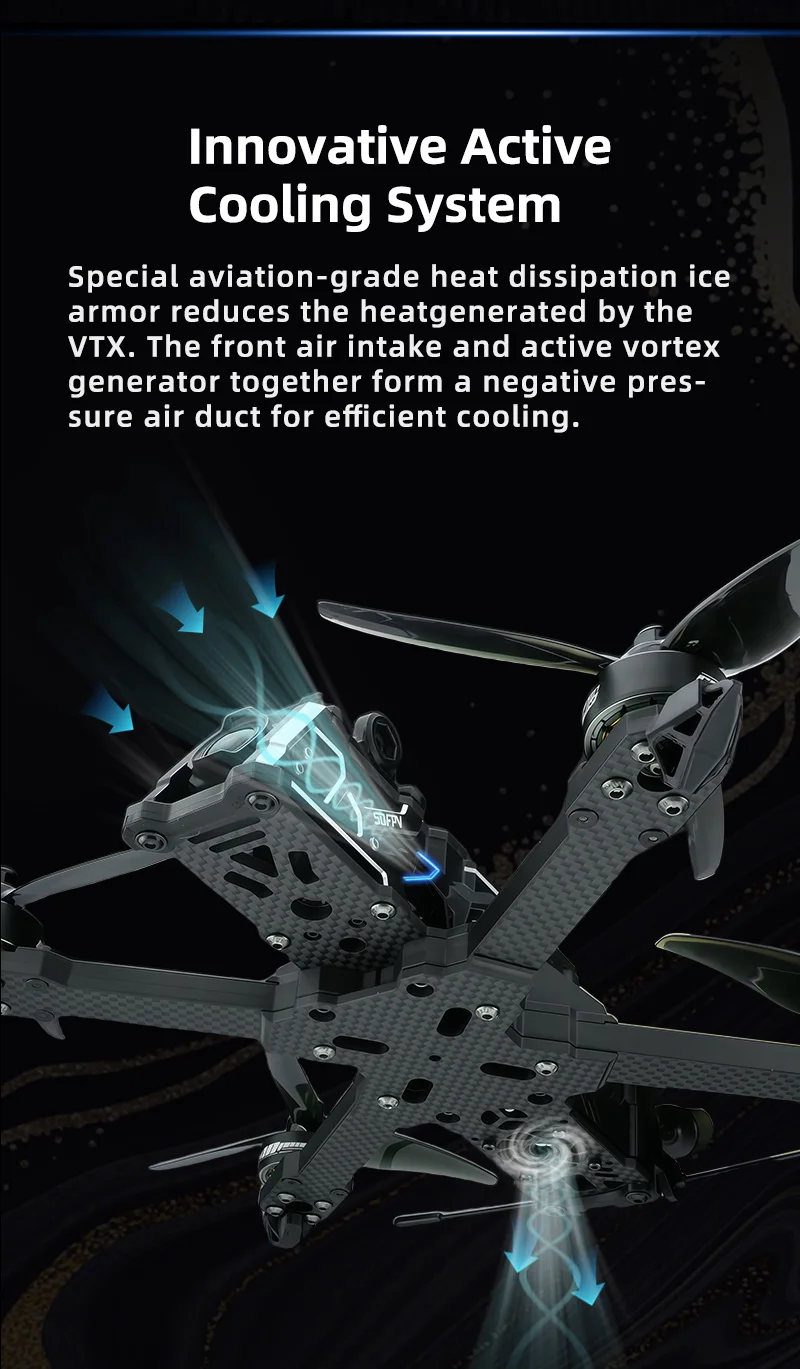

(4)Innovative Active Cooling System.Special aviation-grade heat dissipation ice armor reduces the heat generated by the VTX.The front air intake and active vortex generator together form a negative pressure air duct for efficient cooling.

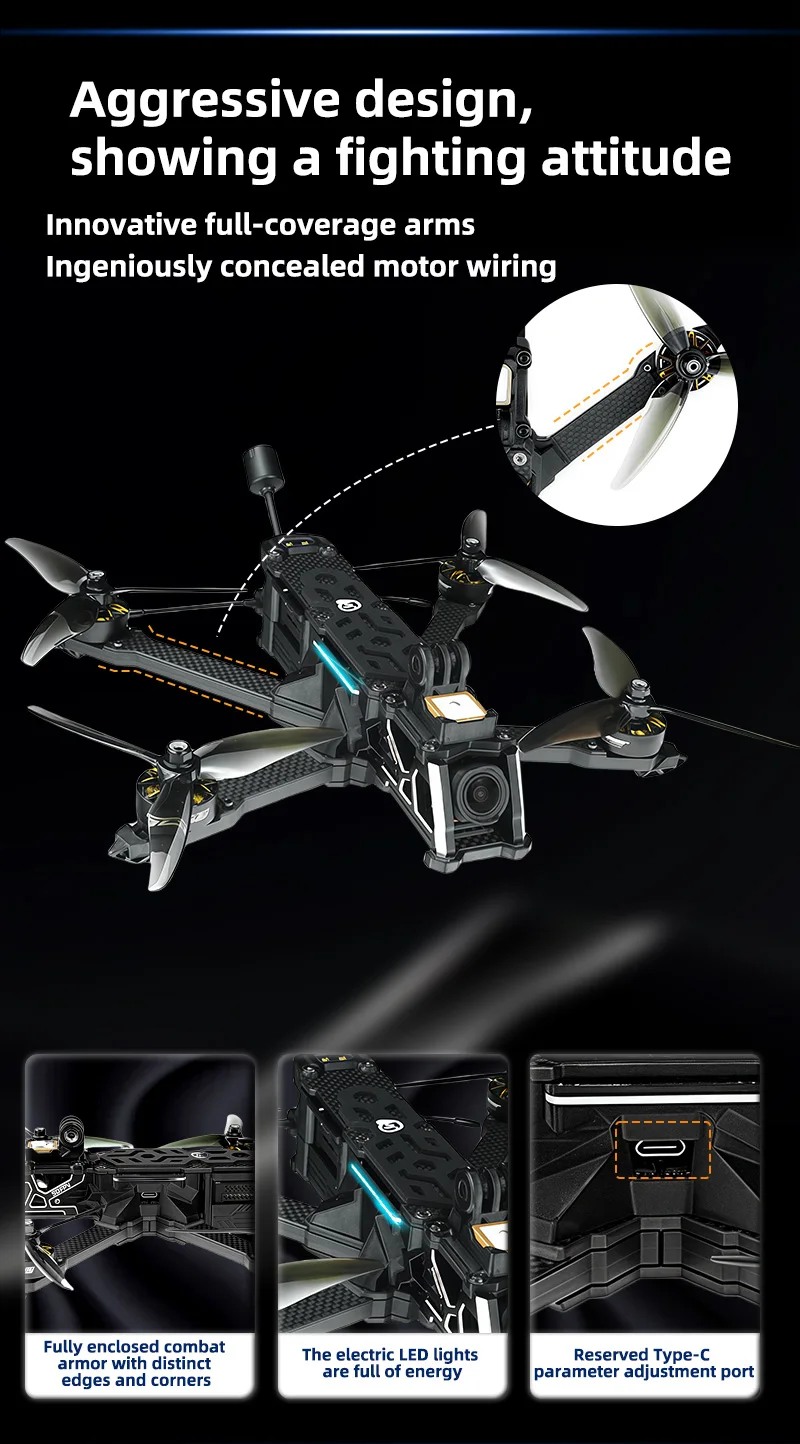

(5) Innovative Full Coverage Arms, Motor wiring ingeniously concealed, Effective protection of motor wire safety and a more aesthetically pleasing layout.

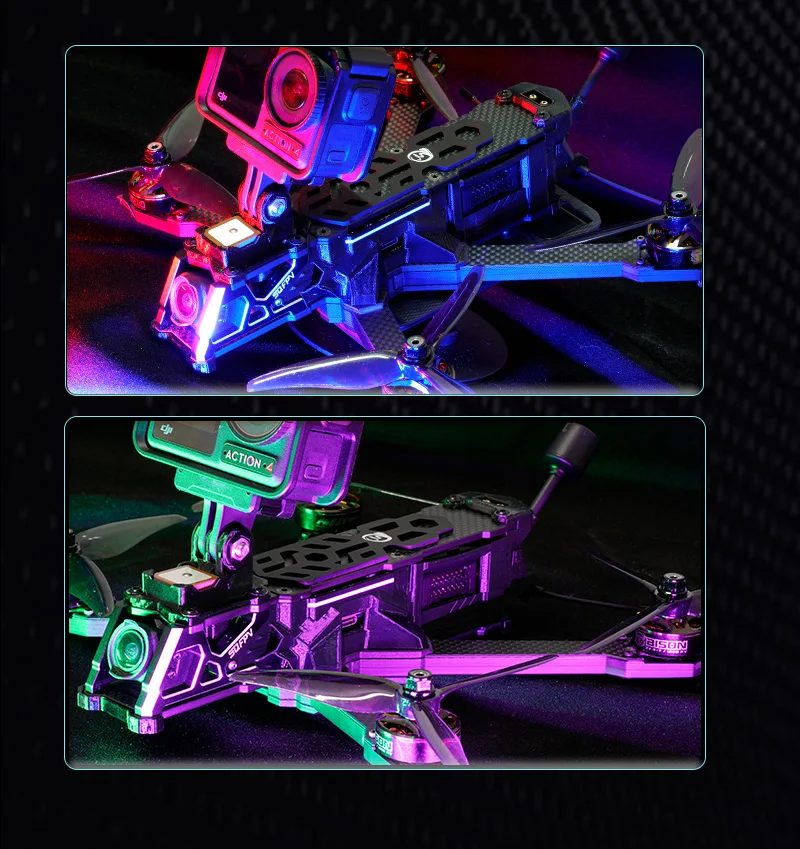

(6)Fully enclosed combat armor with distinct edges and corners, Electrifying LED strips pulsate dynamically, Reserved Type-C Portfor parameters tuning.

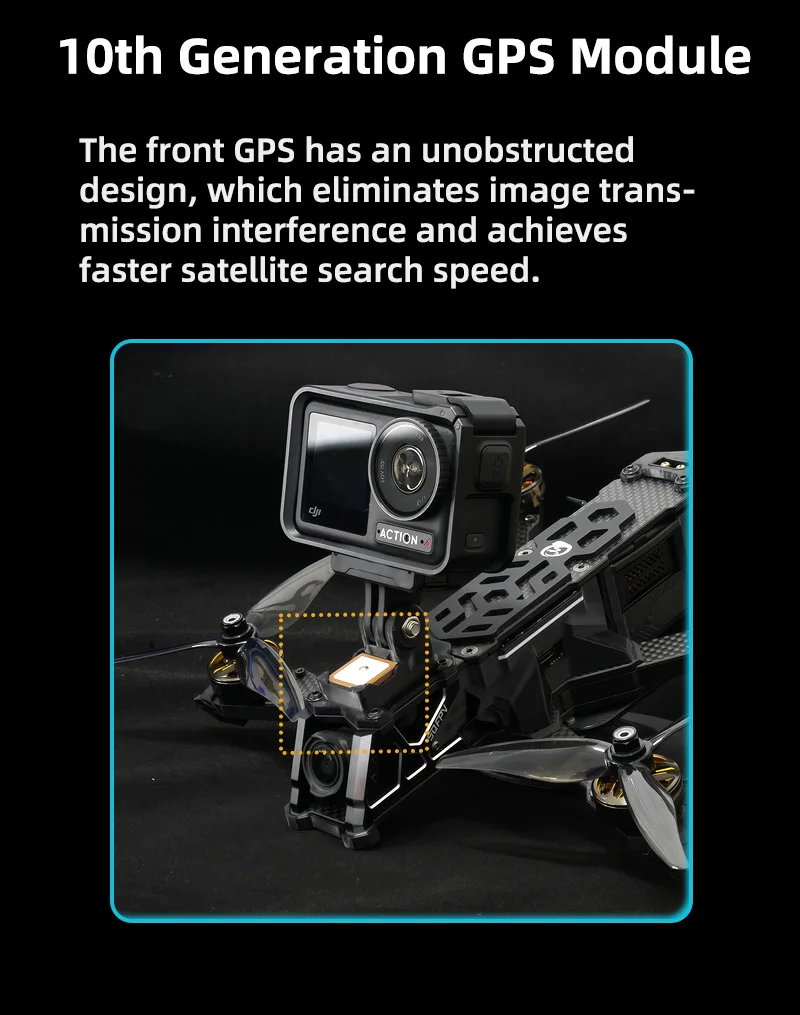

(7)10th Generation GPS Module. Forward-facing unobstructed GPS design, eliminating VTX interference. Faster satellites searching and locking up to 32 satellites for stable rescue.

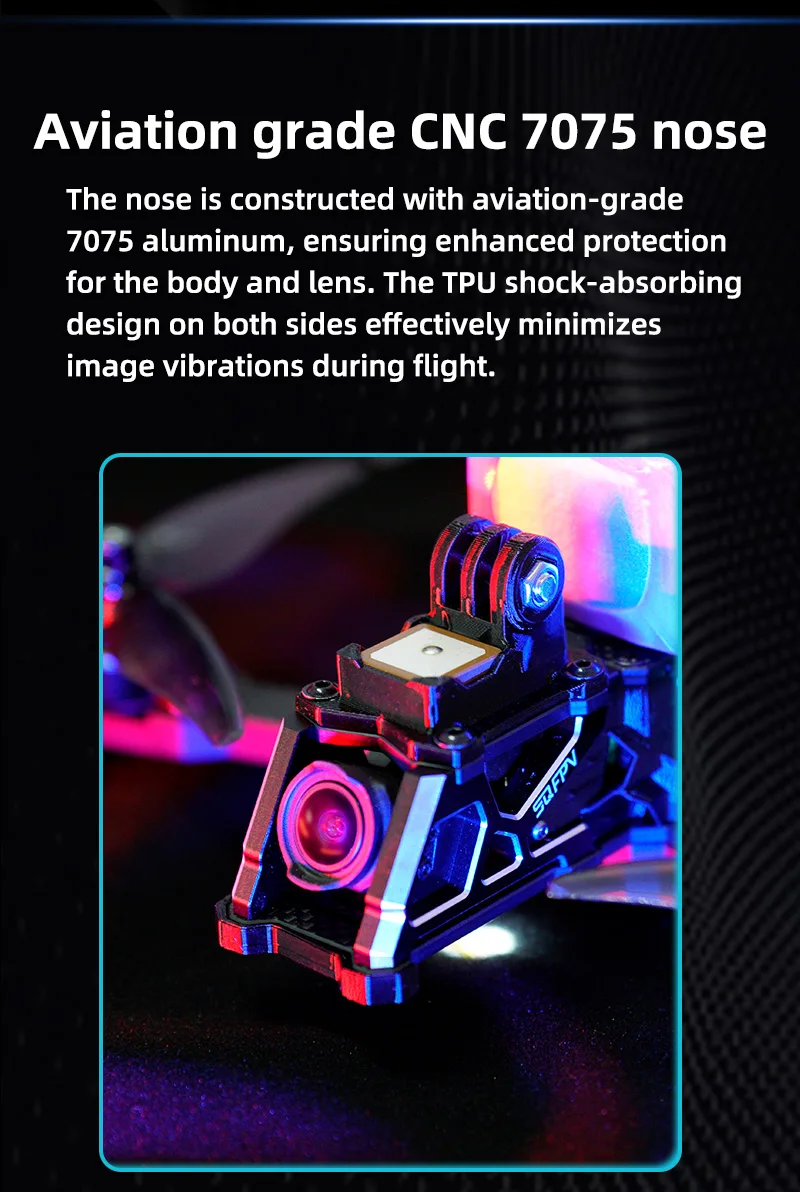

(8)The nose is constructed with aviation-grade 7075 aluminum, ensuring enhanced protection for the body and lens. The TPU shock-absorbing design on both sides effectively minimizes image vibrations during flight.

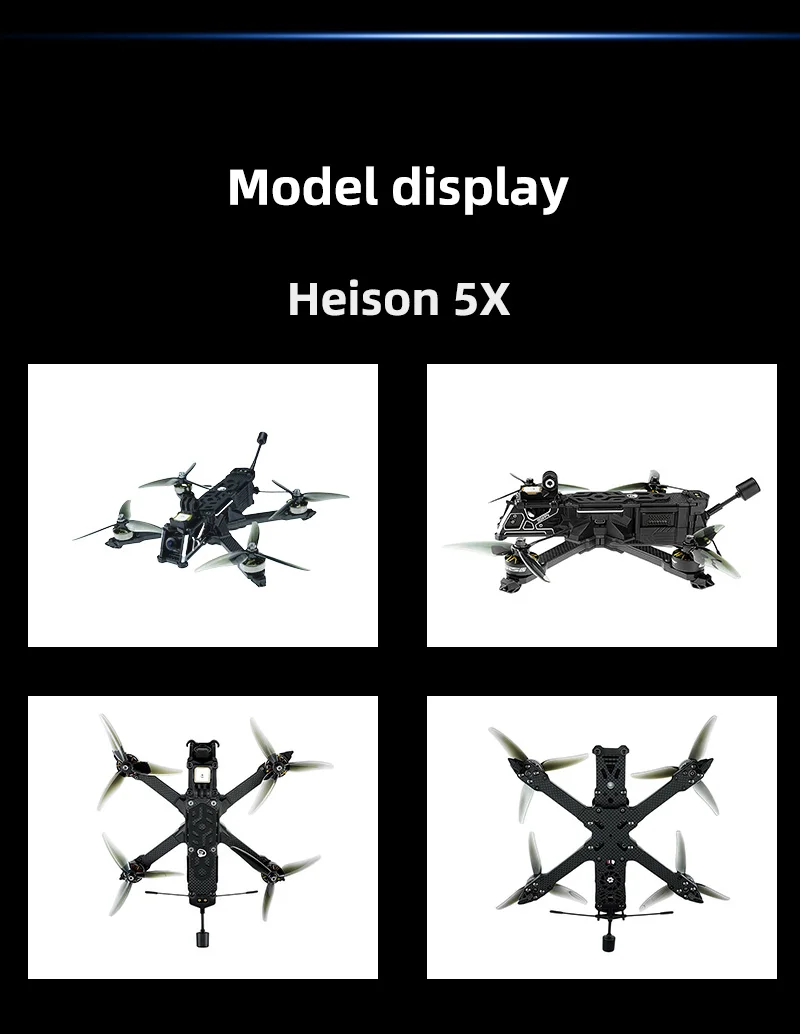

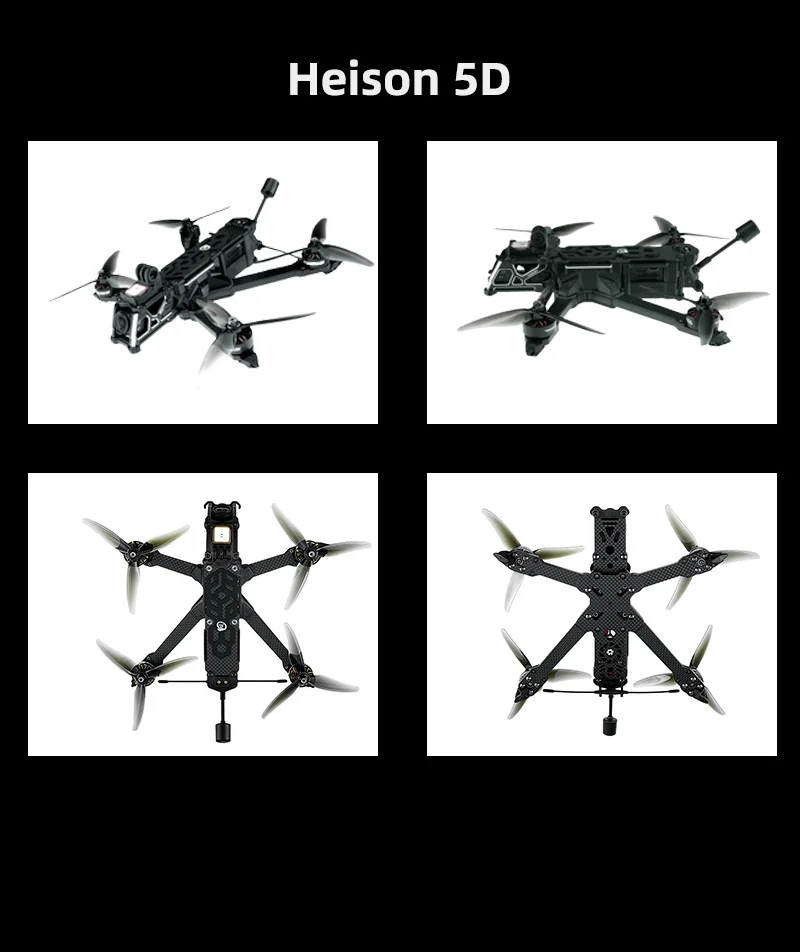

(9)Heison 5X delivers an even more impeccable freestyle feel, with more precise and agile stick response, indulging in the thrill of Freestyle.Heison 5D supports O3 ultra-wide-angle without exposing propellers, enjoying high-speed flights with stunning visuals.

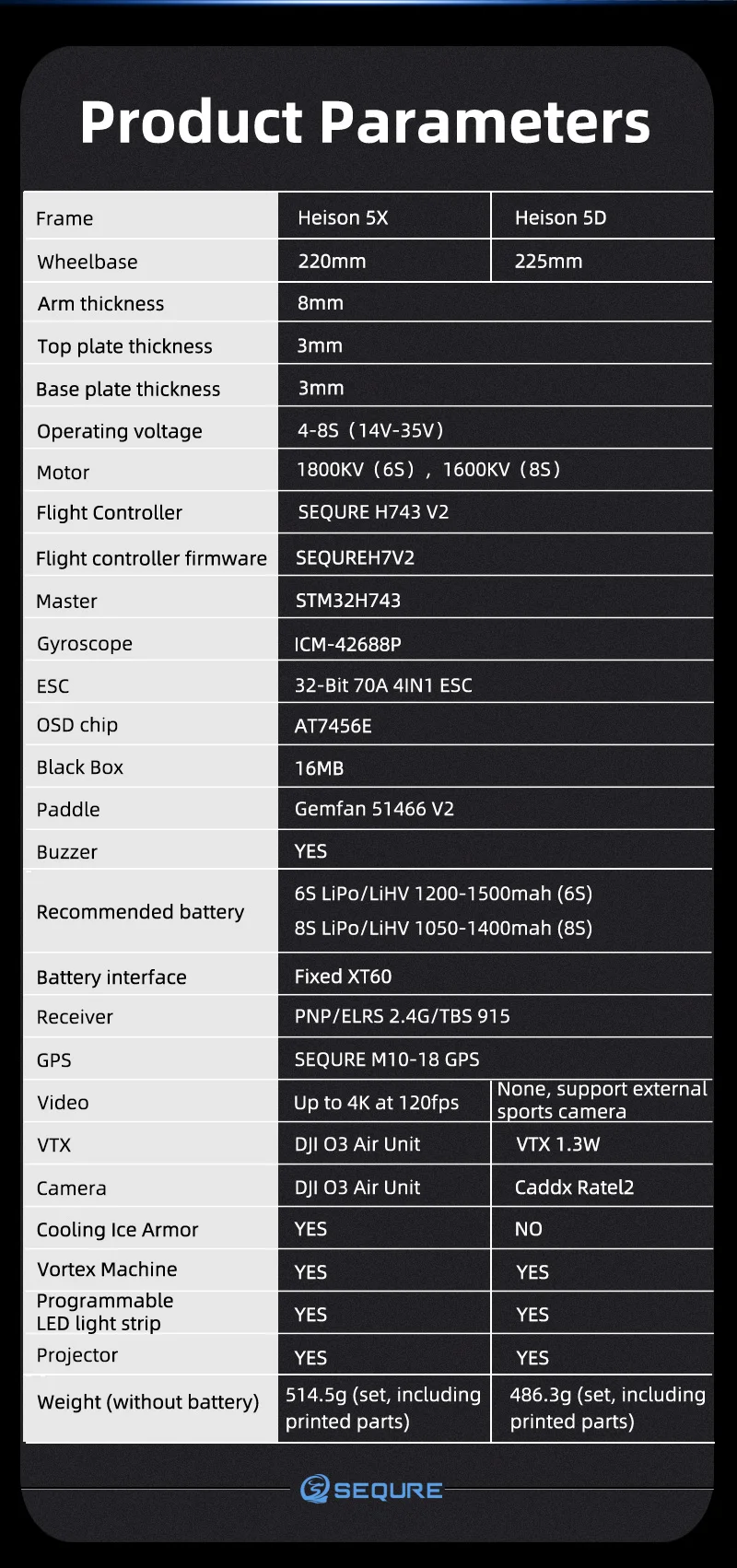

Parameters of Product

Heison 5

Frame

Heison 5X

Heison 5D

Wheelbase

220mm

225mm

Arm plate

8mm

Top plate

3mm

Bottom plate

3mm

Operating Voltage

4-8S（14V-35V）

Motors

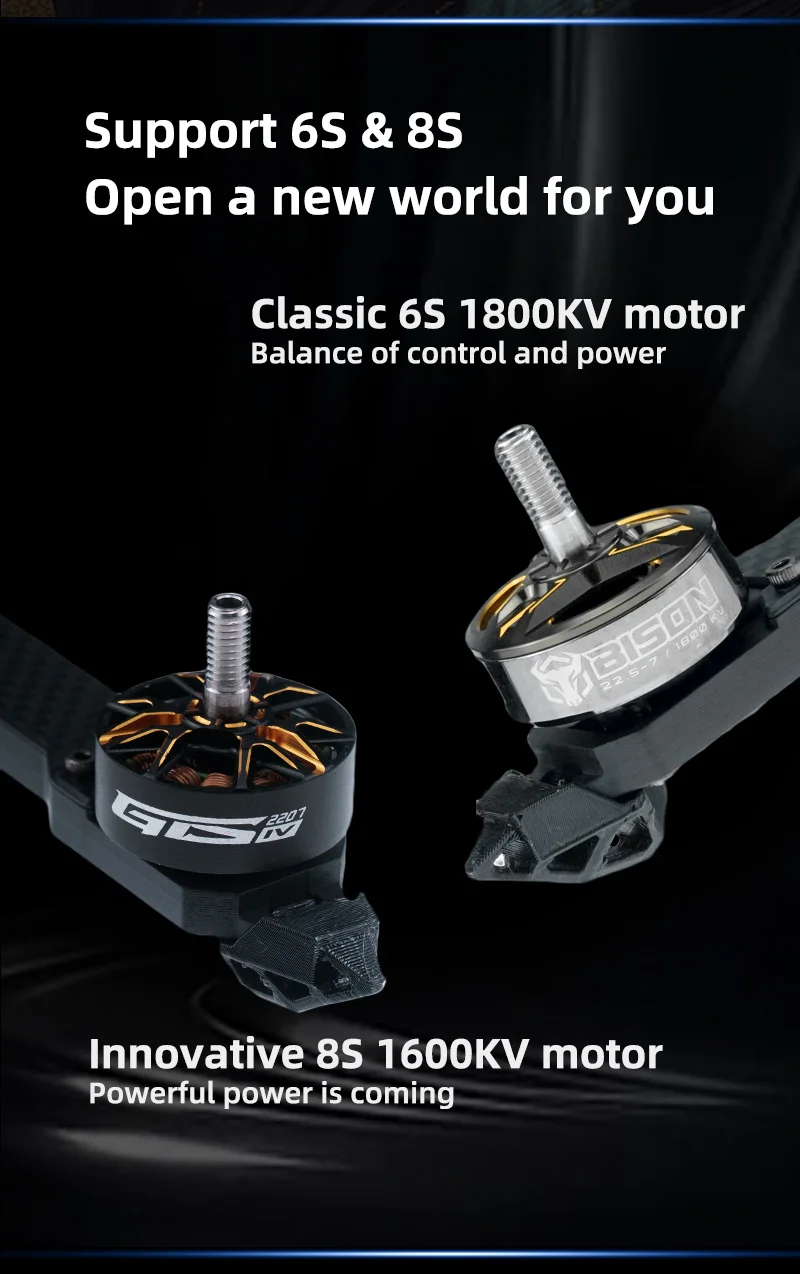

1800KV（6S），1600KV（8S）

Flight Controller

SEQURE H743 V2

Firmware

SEQUREH7V2

MCU

STM32H743

Gyro

ICM-42688P

ESC

32-Bit 70A 4IN1 ESC

OSDChip

AT7456E

BlackBox

16MB

Props

Gemfan 51466 V2

Buzzer

YES

Recommended Battery

6S LiPo/LiHV 1200-1500mah (6SVersion)
8S LiPo/LiHV 1050-1400mah (8SVersion)

Battery connector

Fixed XT60

Receiver

PNP/ELRS 2.4G，915M/TBS 915M

GPS

SEQURE M10-18 GPS

Video Recording

Up to 4K at 120fps

Support external sports camera

Video Transmission

DJI O3 Air Unit

VTX 1.3W

Camera

DJI O3 Air Unit

Caddx Ratel2

Ice Armor

YES

NO

Cooling Fan

YES

YES

LED strip

YES

YES

Projector

YES

YES

Weight(without battery)

514.5g*

486.3g*

*(including 3D printed parts)

Package included:

DJI O3 version:

Heison 5×1

Gemfan 51466V2 propellers (set) (gray) × 2

Battery StrapM20*270mm ×2

Battery Silicone Pads×2

Instructions×1

Screw accessories pack ×1

3D printed parts×1

DJI O3 Air Unit ×1

DJI O3 antenna ×1

Weight 27 kg
Dimensions 12 cm
Brand Name

SEQURE
Control Channels

8 CHANNELS
Flight Time

5~10
Transit Time (Days)

8km
Hign-concerned Chemical

none
Operator Skill Level

Intermediate
Is Electric

No battery
Drone Weight

514.5g
Anti-wind Ability

≥12m/s
Package Includes

Original Box
Remote Control

No
Features

Integrated Camera
Indoor/Outdoor Use

outdoor
Video Capture Resolution

4K UHD
Camera Mount Type

Fixed Camera Mount
Takeoff Weight

2kg
Origin

Mainland China
Remote Distance

10km
State of Assembly

Ready-to-Go
Material

Carbon Fiber
Model Number

Heison5X 6S DJI O3
Video Recording Resolution

1080P Image Transmission
Remote Controller

Not Included
Controller Mode

You can contact customer service to change
Recommended Battery

6S LiPo/LiHV 1200-1500mah (6S Version)
Video Transmission

DJI O3 Air Unit
Camera

DJI O3 Air Unit
Ice Armor

Yes
Video Recording

Up to 4K at 120fps
