Used Wacom STU500 STU-500 Electronic LCD Signature Tablet Pad

Used Wacom STU-500 LCD Signature Tablet Pad Color Display 5″

used STU-500 signature tablet pad is available now ,with limited quatity in stock

Used:not with original box, good working tested , include signature pad,pen ,pen tether and data cable .may with scratch on the signature pad and pen

the inside signature pad may not with protective film or bag,have been tested use before

Specification:

Model/Brand STU-500

Dimensions (W x H x D) 160 x 182.5 x 24.6 mm

Weight 0.4 kg

Operating Condition 5 to 35 degrees C,

Humidity: 20% to 80%
(no condensation)

Storage Condition -10 to 60 degree C, Humidity: 20% to 90%
(no condensation)

Safety & Regulation Compliance VCCI Class B, FCC Part15B classB,Subpart C, CE, CB,
C-tick, CCC

Compatibility Windows 98SE/Me/NT4/2000/XP/Vista

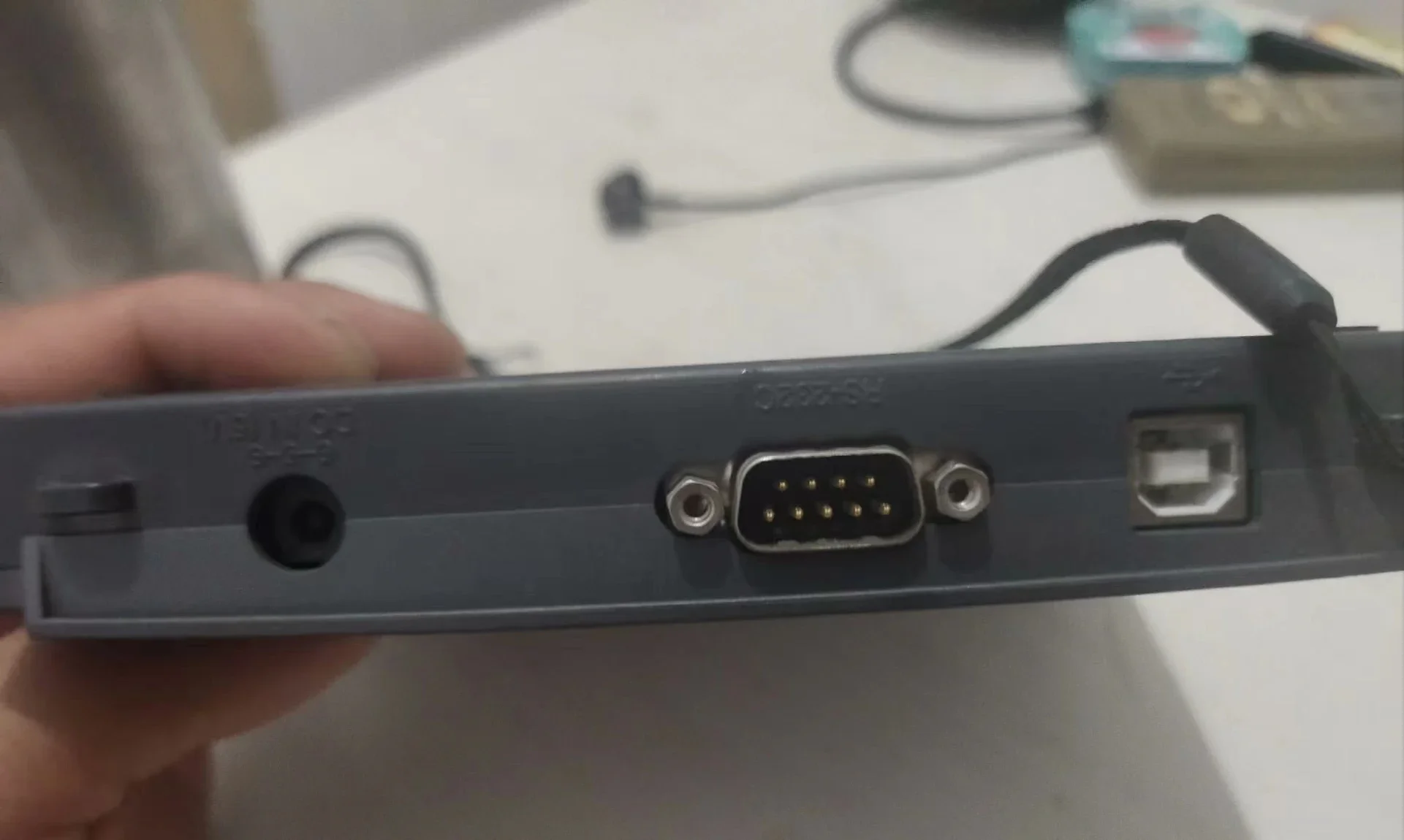

Cable USB cable or RS-232C cable

Cover plate Tempered Glass with AG coating etching

Power Supply
(external AC adapter)
Input: 100-240 VAC 60/50 Hz, Output: 5 VDC
Power Management USB

BUS powert
Power Consumption
(with AC adaptor)
With AC Adaptor: 2.6 W
(With USB BUS Power: under 2.5W)

DISPLAY

Display Panel Monochrome a-Si TFT 640 x 480

Number of pixels 640 x 480

Display Area 101.76 (W) x 76.32 (H) (mm)

Pixel Pitch 0.159 (W) x 0.159 (H) (mm)

Viewing Angles @ CR>=2
(horizontal/vertical)
60 deg

Display Color (Display: White) Xw:0.320.35 0.38 Yw:0.350.38 0.41

Contrast Ratio
(Display: White/Black)
12 (typ.)

Display Response Time (Tr + Tf)

Display: White
→
Black: 6 ms (typ.)
Black
→
White: 12 ms (typ.)

TABLET
Technology Electro-magnetic resonance technology

Active Area 103.76 x 78.32 [mm]

Resolution 0.01 [mm] (2540 [ppi])

Coordinate Accuracy ±0.5 [mm] (tilted ±50°from vertical)

Reading Height 5 [mm] or more (Height from the protective plate)

Accuracy Assurance Height 0 [mm] (Height from the protective plate)

Report Rate (max) 200 pps

Maximum Pen Tilt Range Up to 50°from vertical

Pressure sensitivity 512 levels

Interface Full speed USB or Rs-232C (Max 115kbps)

Pen and pen stand UP

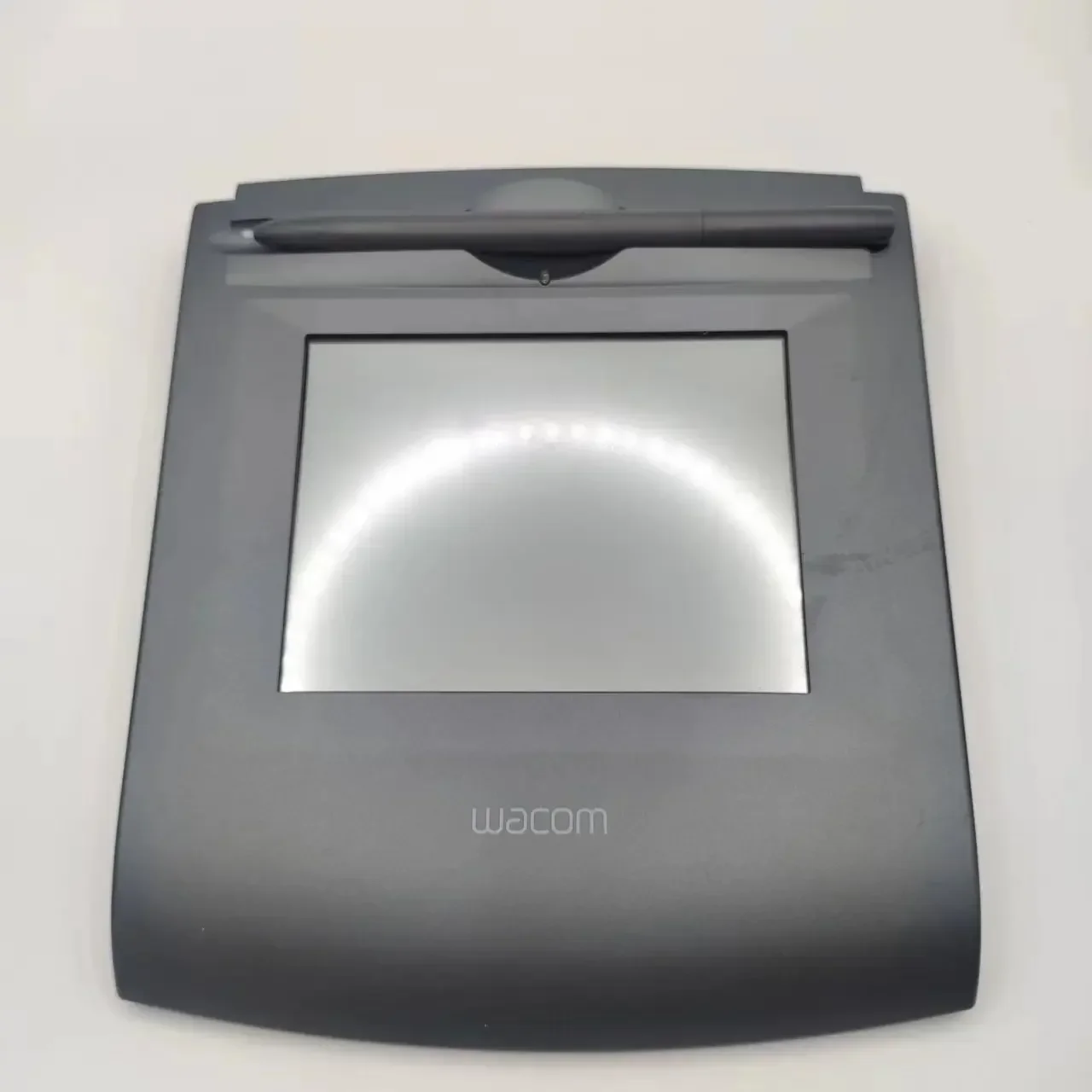

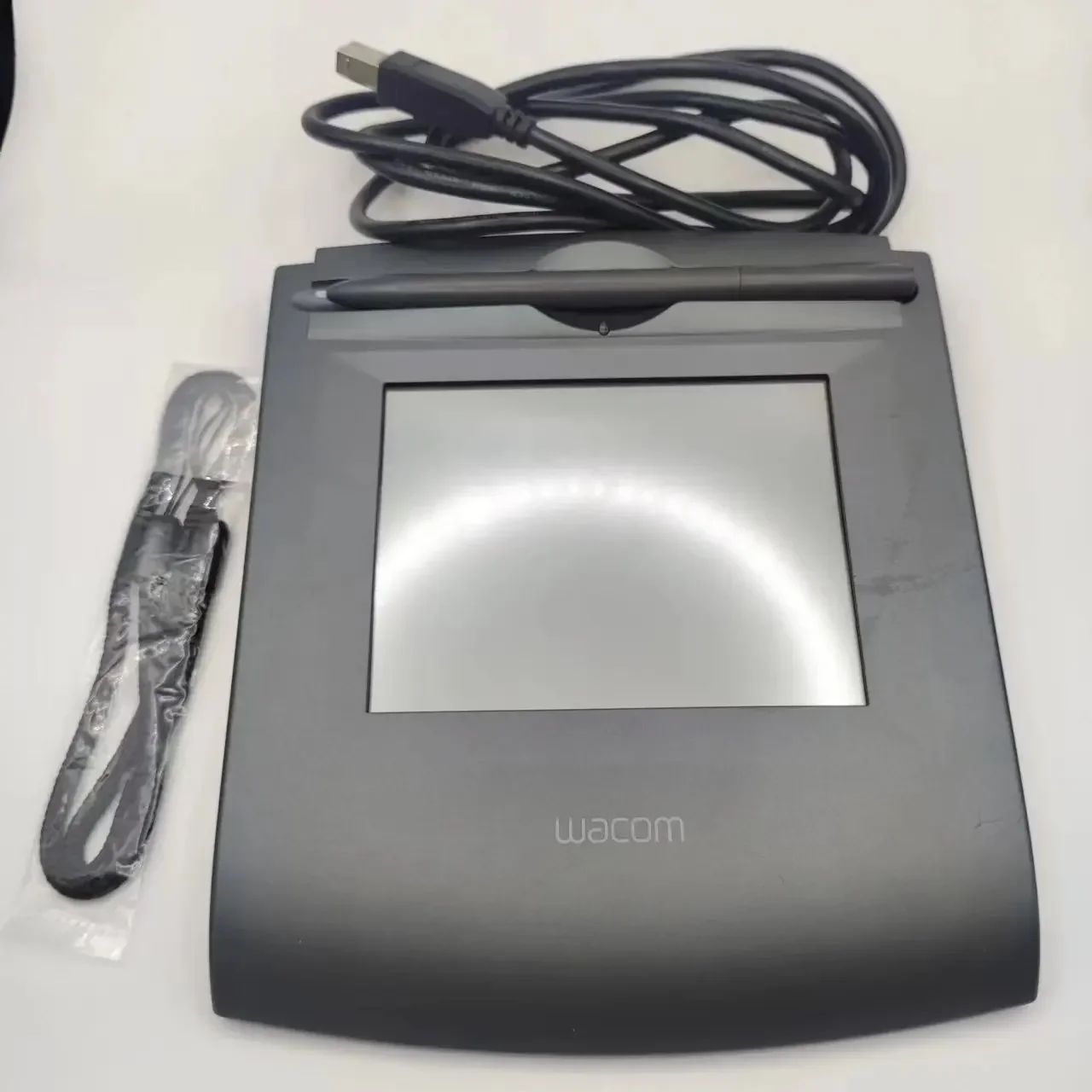

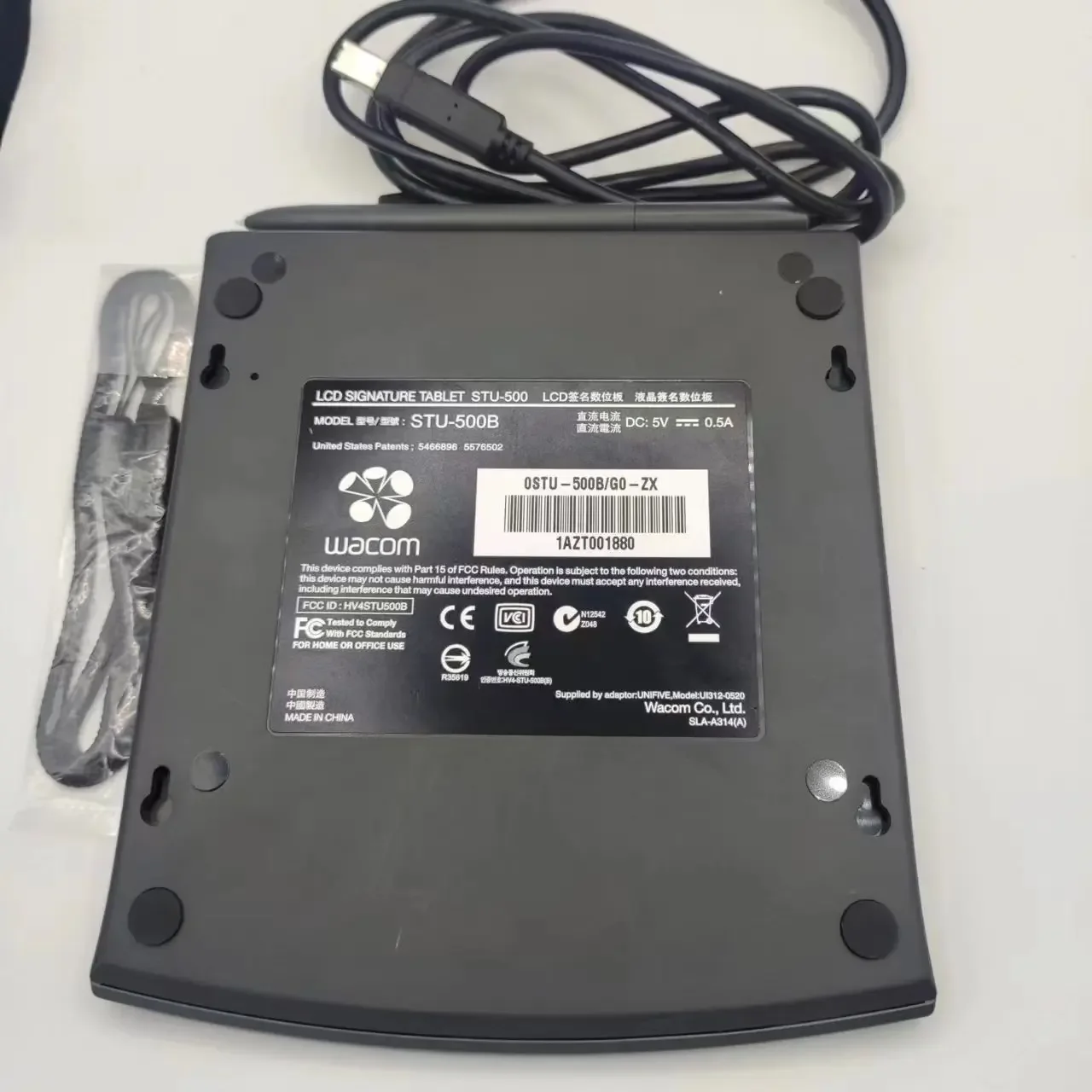

Opened box STU500 :

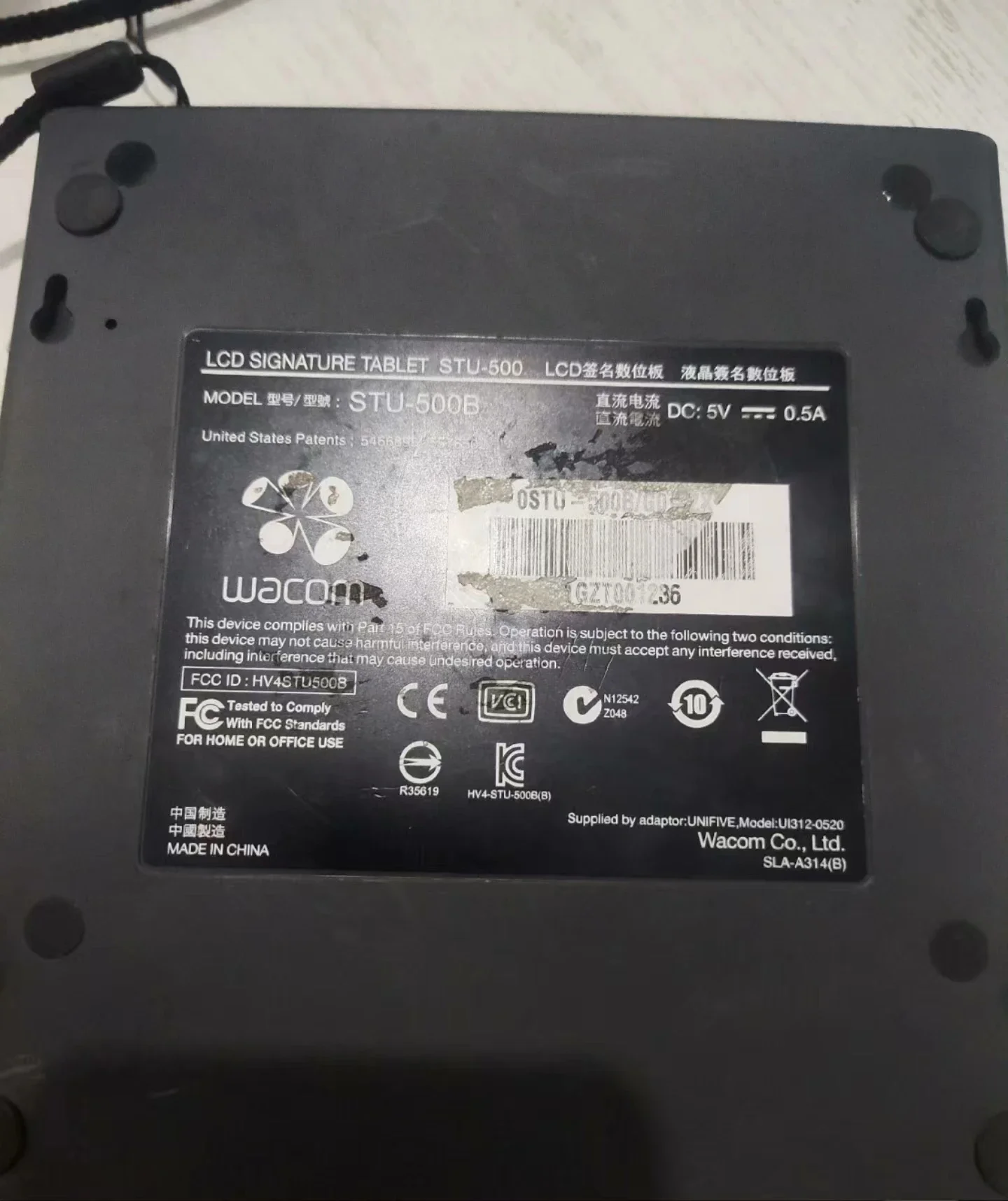

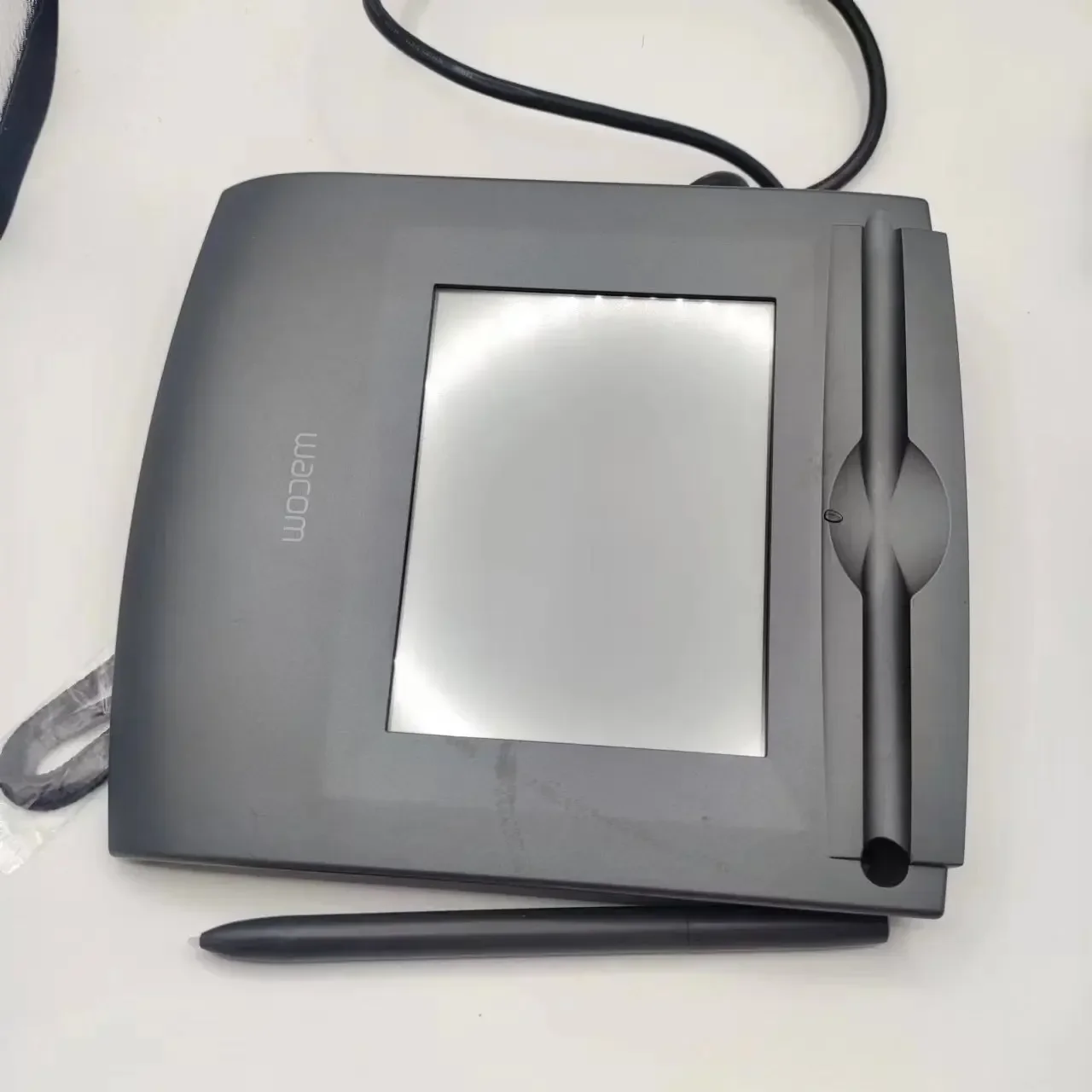

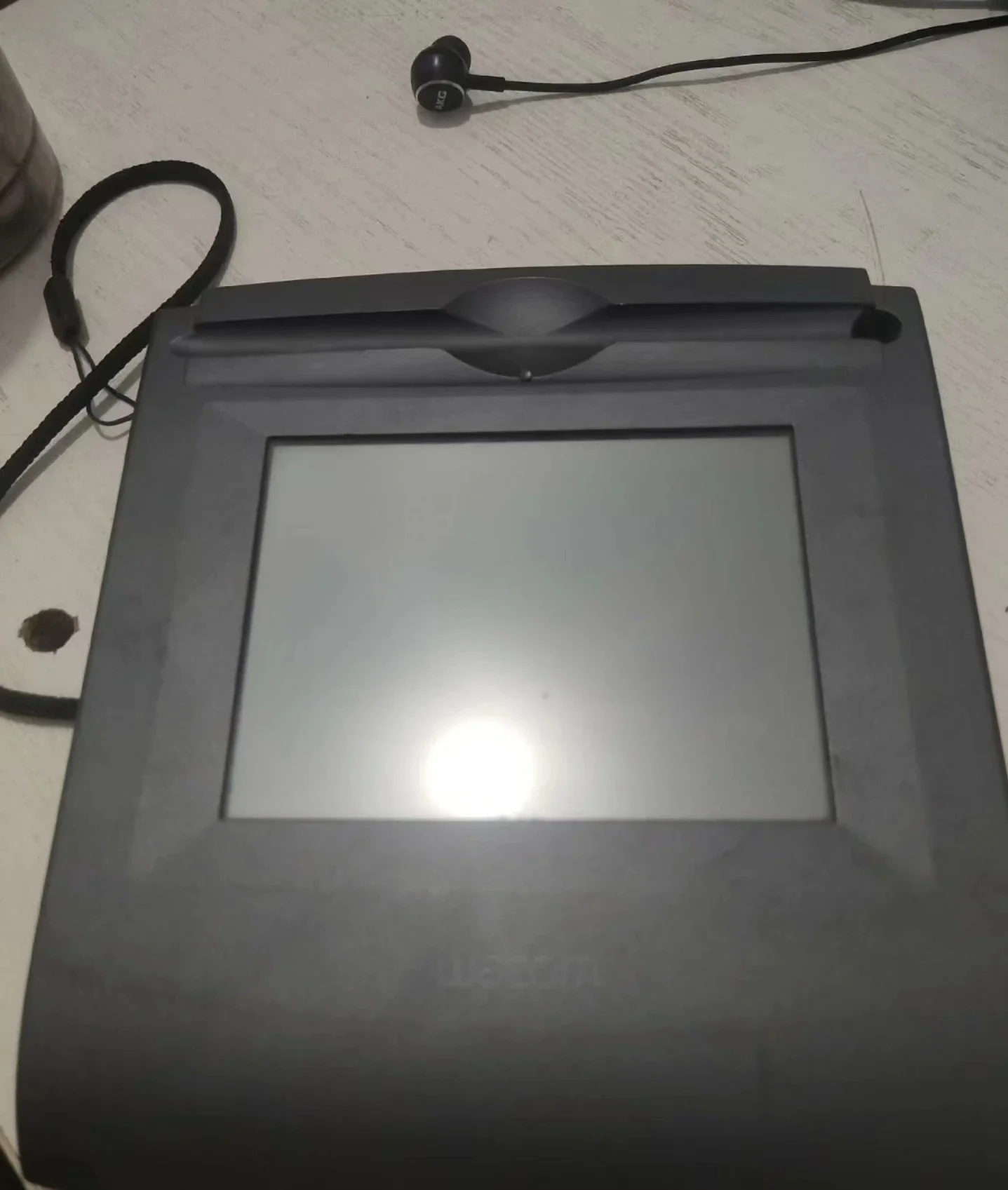

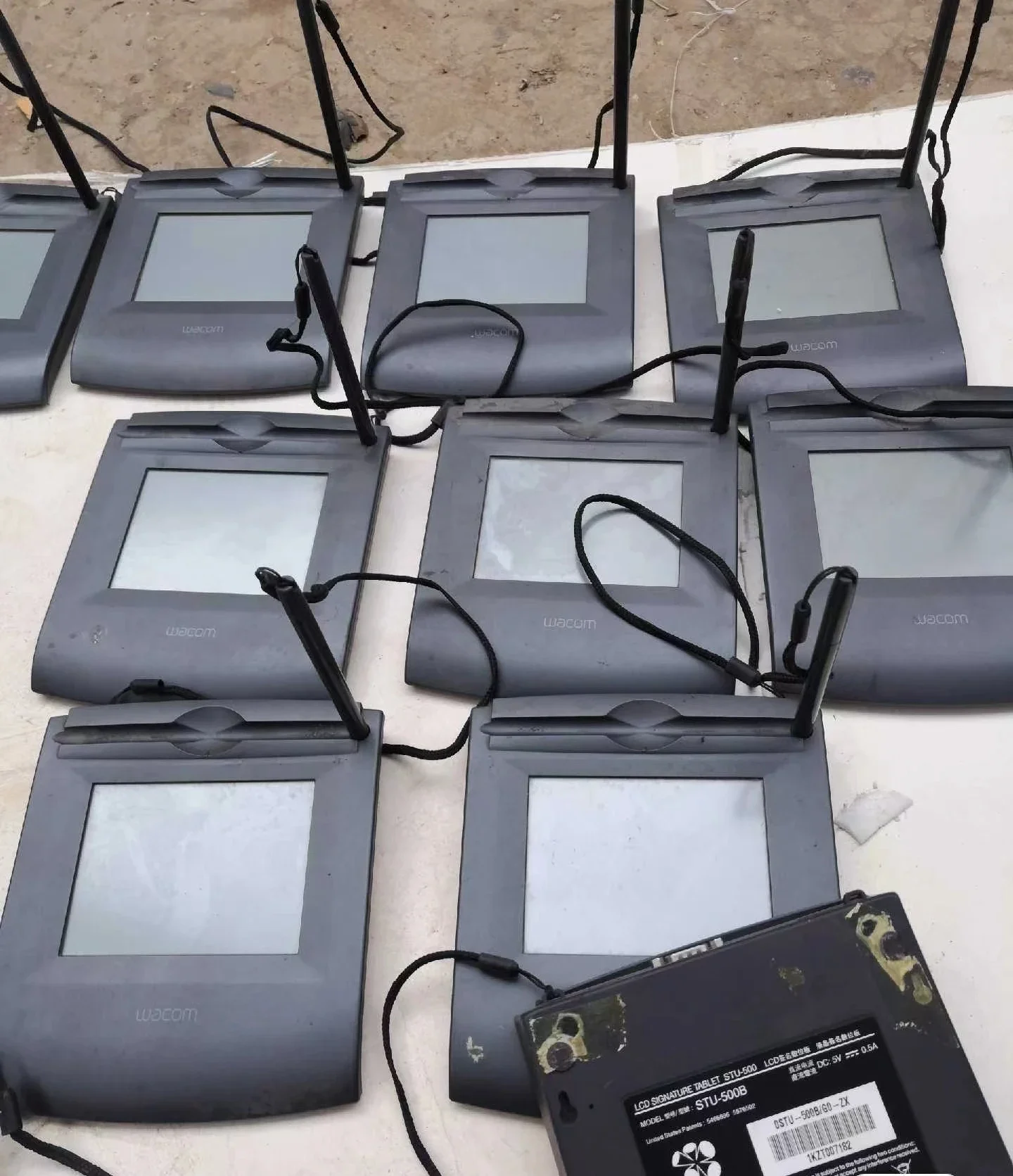

Used STU500 :
