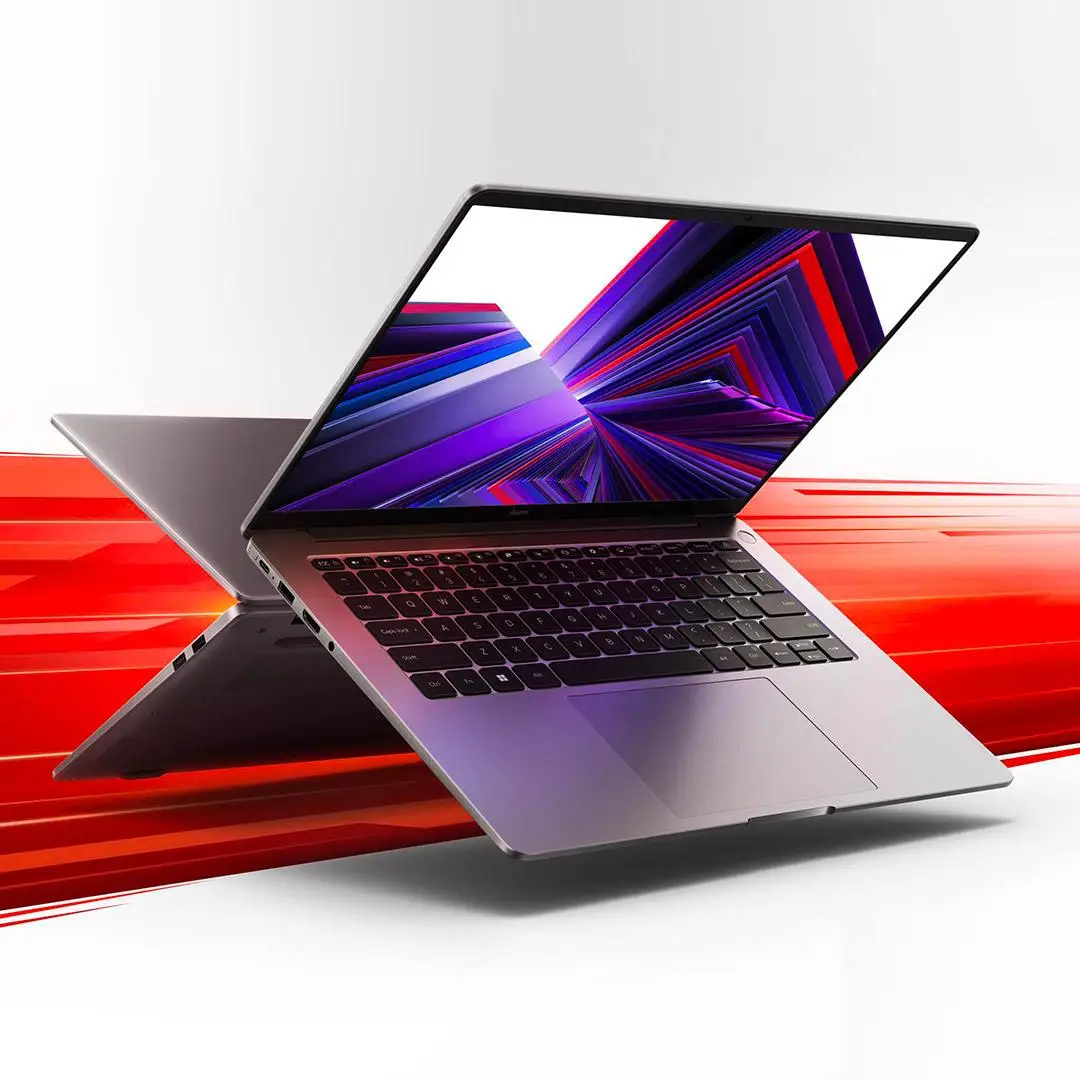

Xiaomi Redmi Book 14 2024 Laptop Intel Core i5-13420H /i5-13500H/ i7-13620H 16GB DDR5+512G/1TB SSD Notebook Fingerprint Power PC

Operating System

Windows 11 Home/Pro
Windows 10 (can free upgrade to windows 11 by yourself)
Multi-language avaiable,you can also leave us order message of what language you need.

Product configuration

13th generation Intel ® CoRE ™ I7-13620H processor

Intel® UHD Graphics

16GB LPDDR5 5200MT/s

1TB PCIe 4.0 SSD*

Starlight Silver

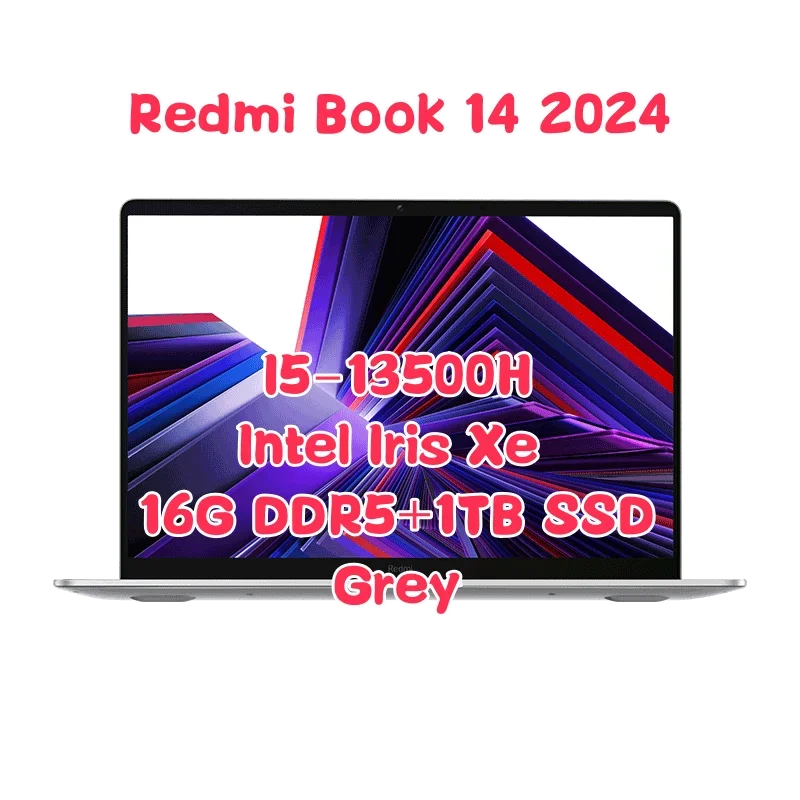

13th generation Intel ® CoRE ™ I5-13500H processor

Intel® Iris ® Xe Graphics eligible

16GB LPDDR5 6400MT/s

1TB PCIe 4.0 SSD*

Starlight Silver/Starlight Grey

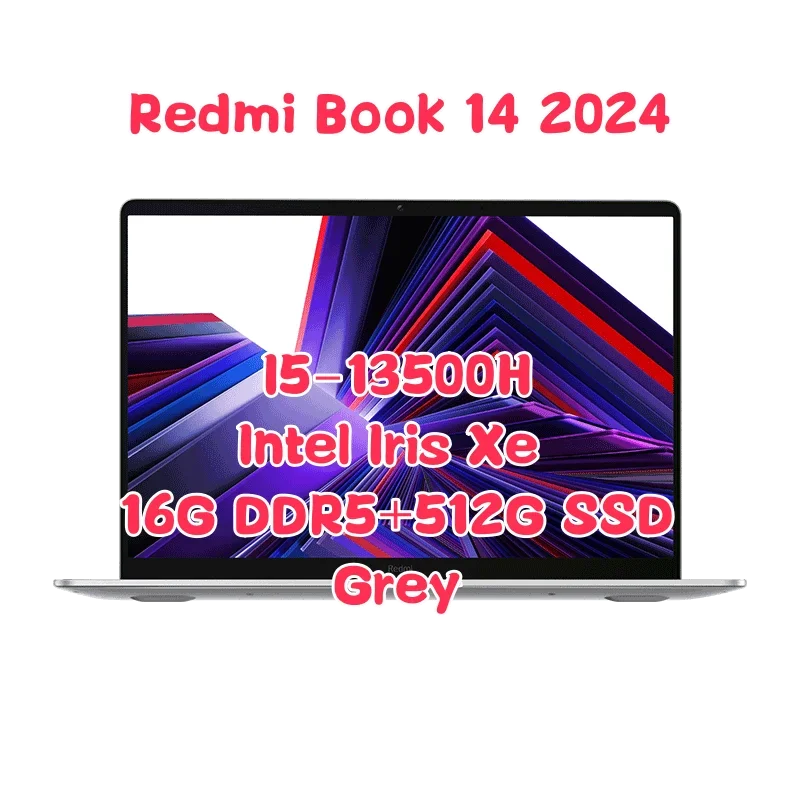

13th generation Intel ® CoRE ™ I5-13500H processor

Intel® Iris ® Xe Graphics eligible

16GB LPDDR5 6400MT/s

512GB PCIe 4.0 SSD*

Starlight Silver/Starlight Grey

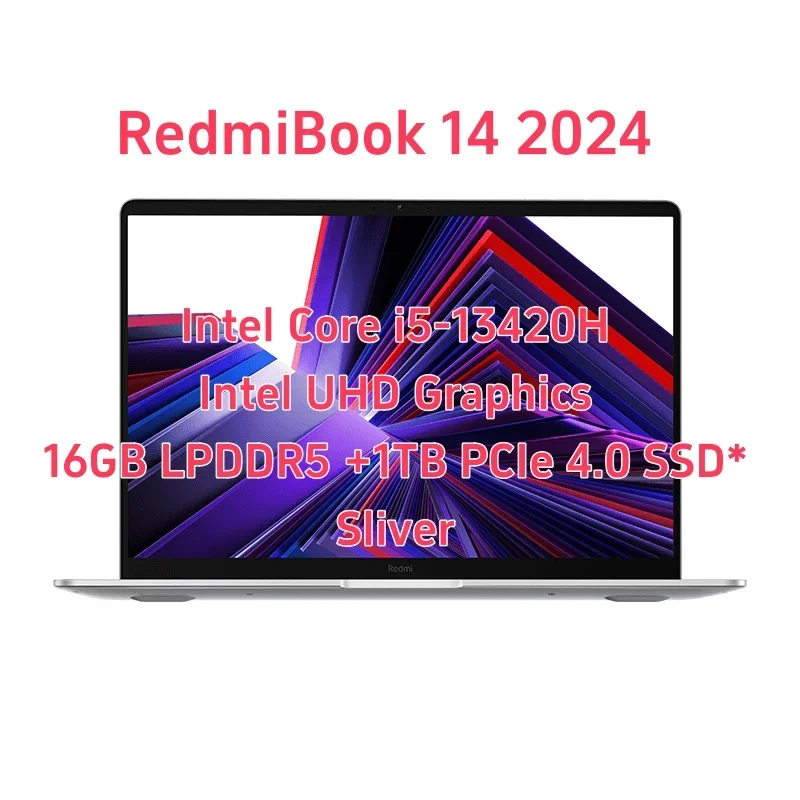

13th generation Intel ® CoRE ™ I5-13420H processor

Intel® UHD Graphics

16GB LPDDR5 5200MT/s

1TB PCIe 4.0 SSD*

Starlight Silver

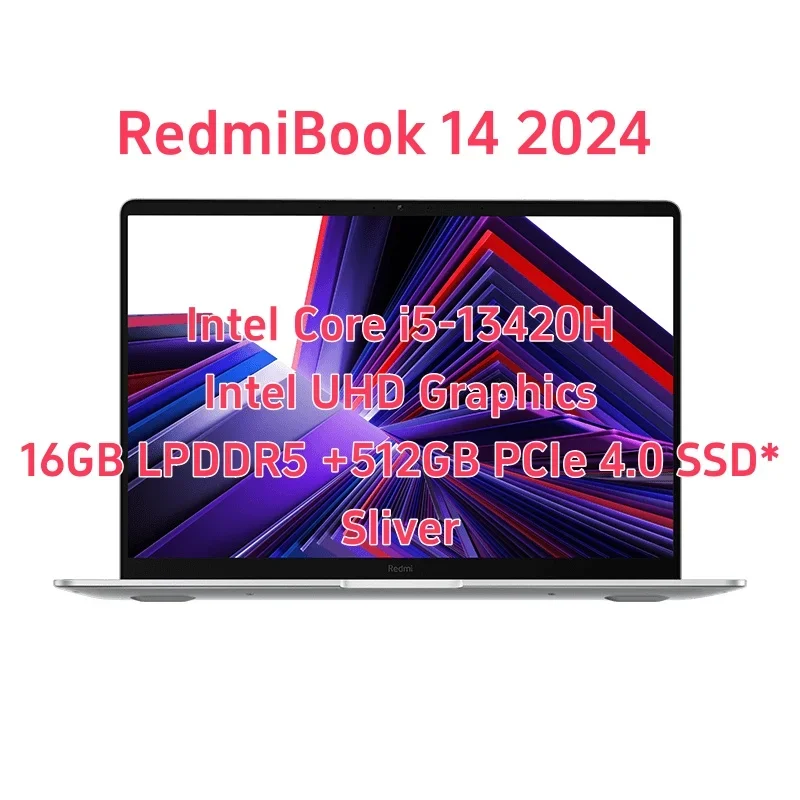

13th generation Intel ® CoRE ™ I5-13420H processor

Intel® UHD Graphics

16GB LPDDR5 5200MT/s

512GB PCIe 4.0 SSD*

Starlight Silver

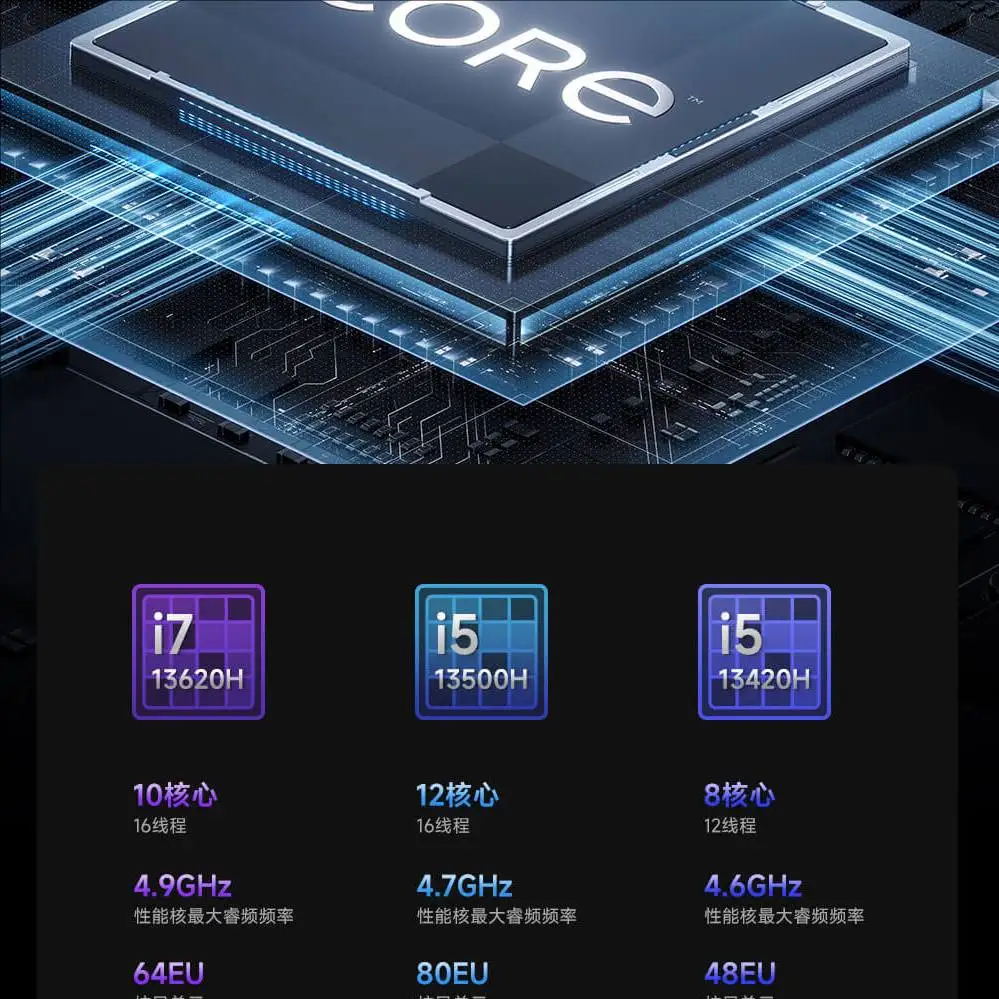

Processor

13th generation Intel ® CoRE ™ I7-13620H processor

The maximum turbo frequency of the energy-efficient core is 3.6GHz

Performance core maximum turbo frequency 4.9GHz

10 core 16 thread processor

Level 3 cache 24MB

13th generation Intel ® CoRE ™ I5-13500H processor

The maximum turbo frequency of the energy-efficient core is 3.5GHz

Performance core maximum turbo frequency 4.7GHz

12 core 16 thread processor

Level 3 cache 18MB

13th generation Intel ® CoRE ™ I5-13420H processor

The maximum turbo frequency of the energy-efficient core is 3.4GHz

Performance core maximum turbo frequency 4.6GHz

8-core 12 thread processor

Level 3 cache 12MB

Network

2 * 2 MIMO dual antennas
Supports 802.11ax (Wi Fi 6) network protocol, compatible with 802.11 a/b/g/n/ac
Supports dual frequencies of 2.4GHz and 5GHz
Supports Bluetooth 5.2

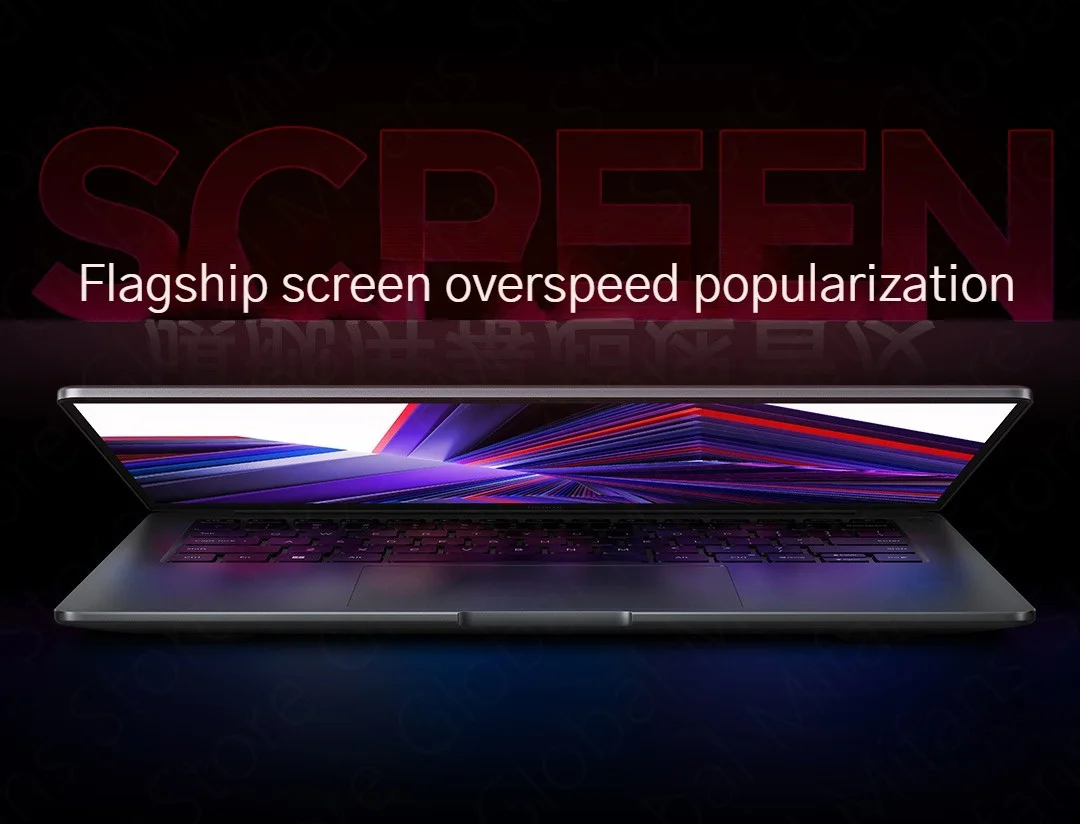

Display

14 “Super Retina Display Screen

16: 10 Display Scale

1500:1 contrast ratio (typical value)

300nits brightness (typical value)

100% sRGB color gamut, supports DC dimming

Support Dolby Vision

Passed the German TUV Rheinland hardware level low blue light certification/

Rheinland T Ü V flicker free certification

I5-13500H, i7-13620H versions:

2880 × 1800 resolution

60Hz/120Hz dynamically adjustable refresh rate

I5-13420H version:

2240 × 1400 resolution

Refresh rate supports adjustment between 48Hz and 60Hz

Cameras and Input Devices

Front camera 1080P
Fingerprint power button

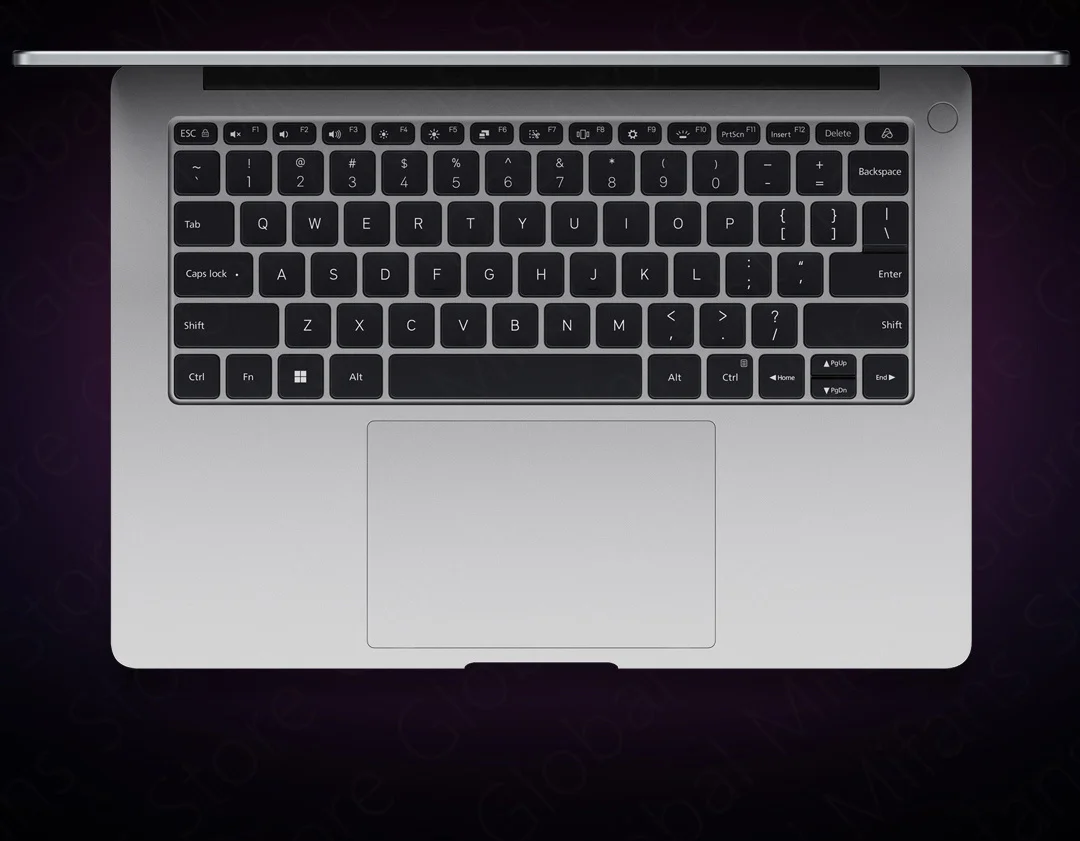

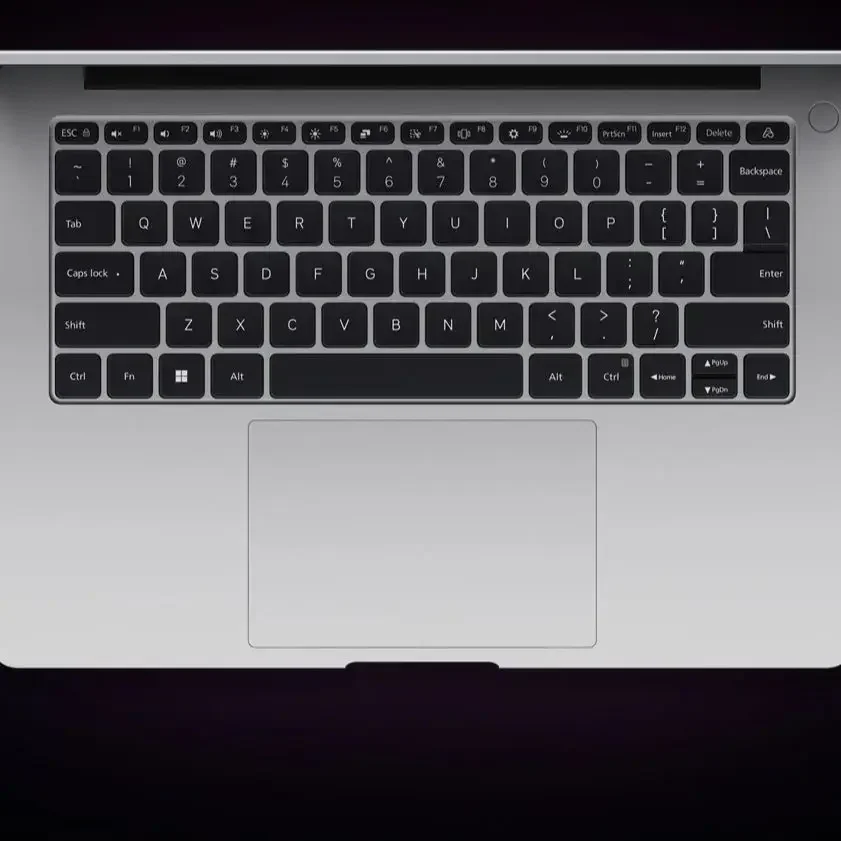

Full size keyboard, 3-speed keyboard backlight, 1.3mm key range
125mm × 81.6mm, PTP touchpad
Supporting Microsoft PTP clickpad technology, it can achieve precise cursor control and multi finger gesture control functions, such as full screen scrolling, program switching, screen zooming, and other gestures

Audio

Speaker: 2 × 2W
4 microphones
Sound effect software: Dolby Atmos

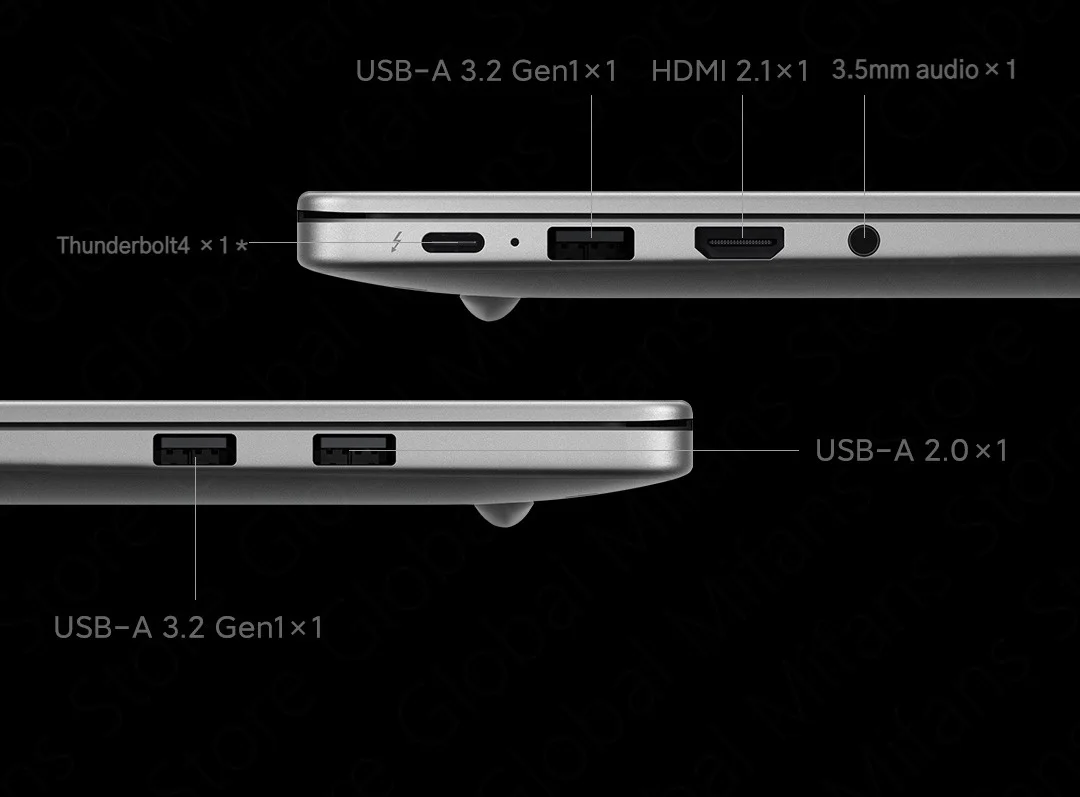

Peripheral interface

USB-A 2.0 x 1
USB-A 3.2 Gen1 x 2
Thunderbolt 4 x 1*
HDMI 2.1 x 1
3.5mm headphone microphone jack x 1

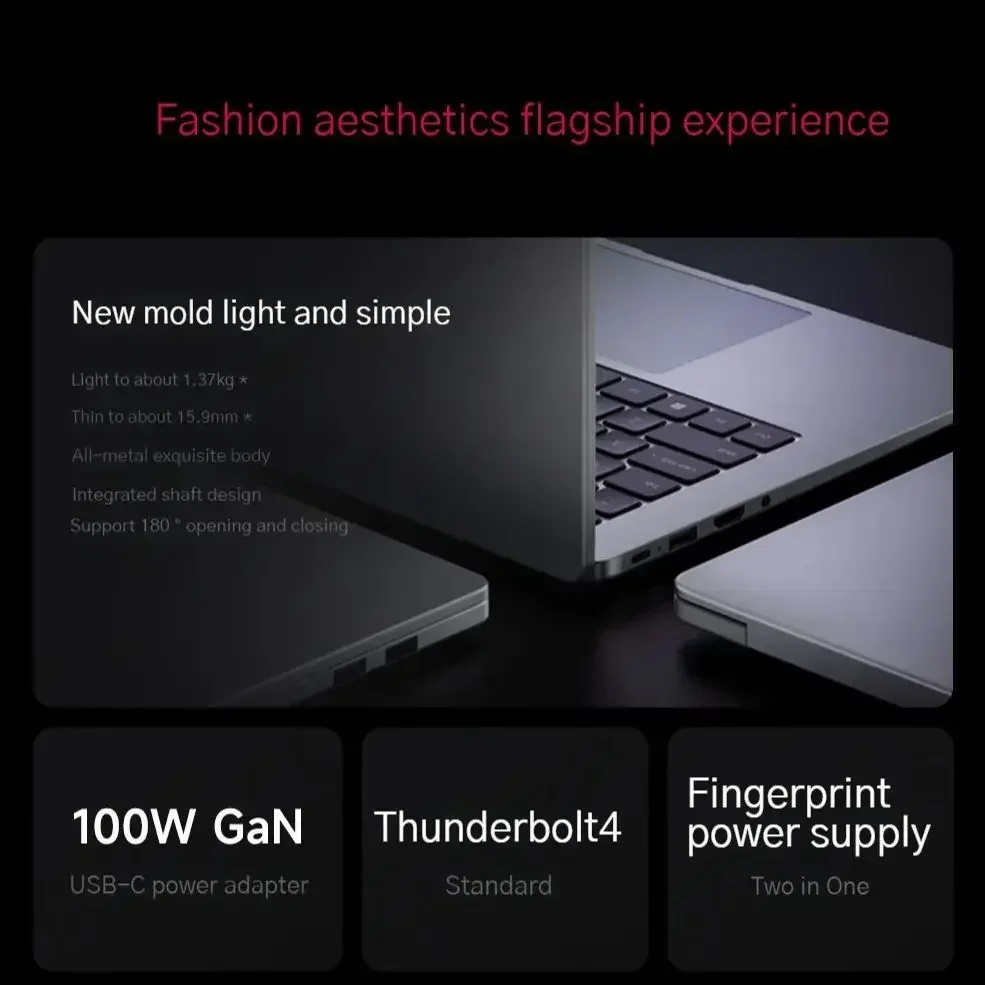

Size and weight

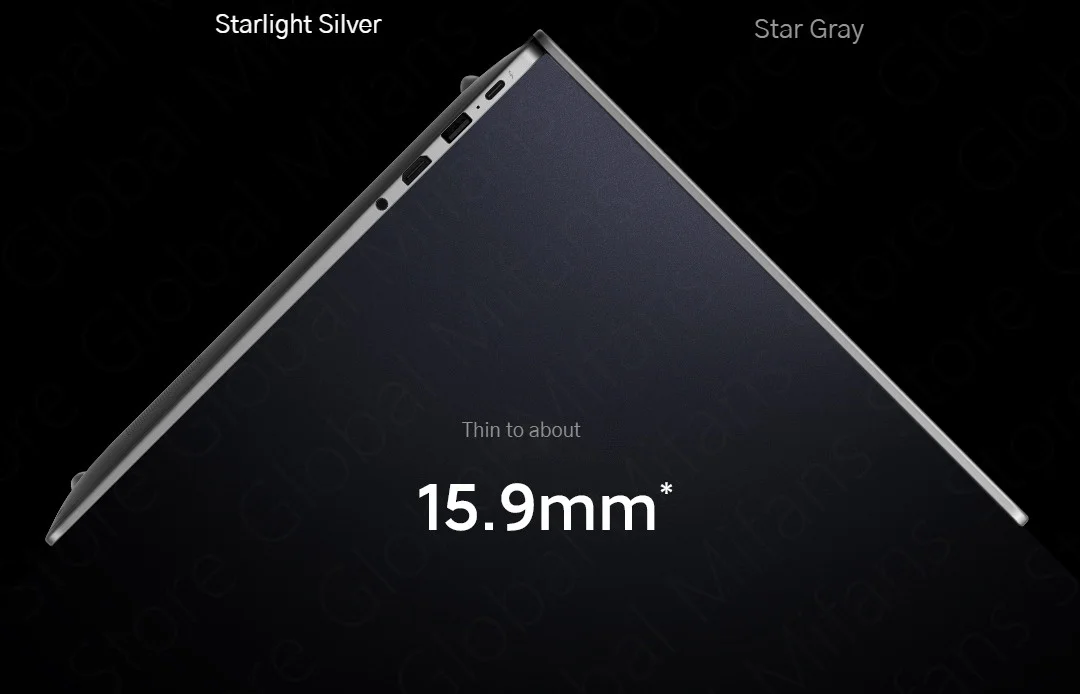

312.24mm long × Width 220.15mm × Thin to approximately 15.9mm*

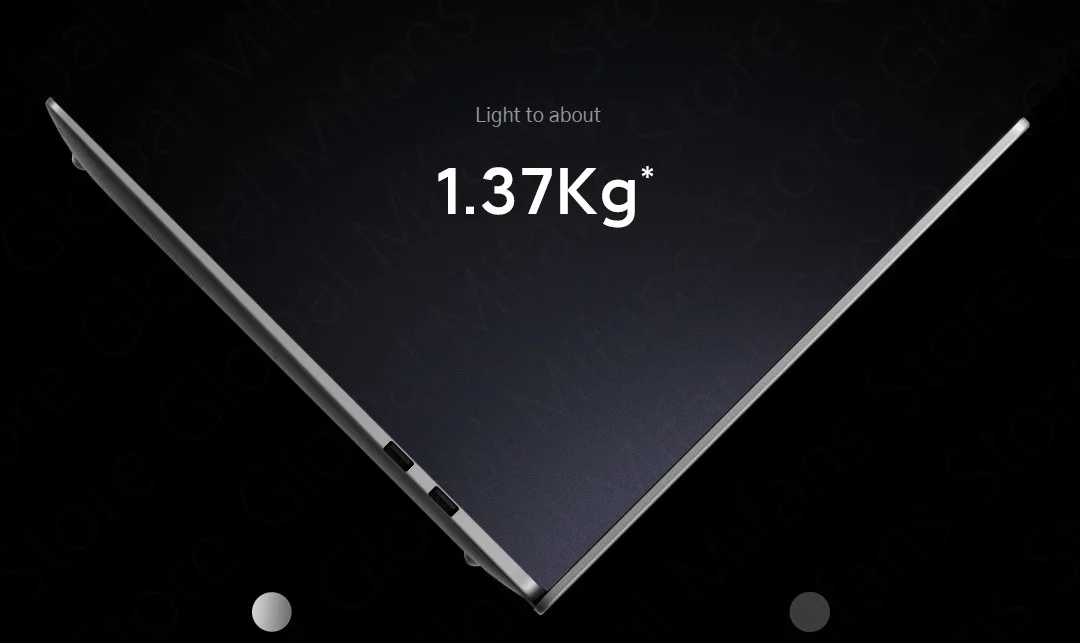

Lightweight to approximately 1.37kg*
Opening and closing angle: 180 ° ± 5 ° (theoretical design value, positive or negative 5 ° in actual measurement is within a reasonable range)

Battery Power

I5-13500H version:

Rated capacity: 56Wh

100W GaN adapter

Screen brightness of 150 nits, 50% volume, temperature of 25 degrees Celsius, not connected to Wi Fi, under laboratory testing conditions,

Tested local 1080p video playback time up to 12.58h*

I7-13620H version:

Rated capacity: 56Wh

100W GaN adapter

Screen brightness of 150 nits, 50% volume, temperature of 25 degrees Celsius, not connected to Wi Fi, under laboratory testing conditions,

Tested local 1080p video playback time up to 12.15h*

I5-13420H version:

Rated capacity: 56Wh

68W adapter

Screen brightness of 150 nits, 50% volume, temperature of 25 degrees Celsius, not connected to Wi Fi, under laboratory testing conditions,

Tested local 1080p video playback time up to approximately 18.13h*

Outer packaging specifications

Laptop host x 1

Gift set x1

I5-13500H, i7-13620H versions:

409mm × 75mm × 296mm

100W GaN power adapter x 1

USB-C fast charging cable x 1

I5-13420H version:

461mm × 75mm × 296mm

68W power adapter x 1

Commen tips:

1. Global Version windows, default English/Russian.
The original keyboard and touchpad language system of the notebook computer is originally Windows 11 Home Edition, Chinese language. Before shipment, we will modify the operating language for you to the English version ( What we have installed for you is the genuine global version of windows system,need open the box ,please know that ).
*The laptop is a high-value product.after you receive the laptop to activate the system, we do not support returns if it is not a quality problem of laptop itself. Please understand
If there are special language changes, you can contact our Customer service in advance,such as Spanish .Russian.

2. The original laptop has an English keyboard layout. We can give you keyboard stickers from different countries, but the keyboard layout cannot be modified,hope you can understand.

3. The laptop has multiple parameter configurations. Please read the corresponding configuration parameters carefully before placing an order. Due to the wrong configuration selection due to personal reasons, we will not accept any form of return or refund
I wish you a happy shopping, if you have any questions, you can consult our customer service, we are very happy to serve you!

4 . It is originally US Plug. We will add a free EU / UK / AU plug converter into package.

Note:

The nominal storage capacity is based on the product specifications. Due to differences in calculation methods and functional occupancy, the actual available space is less than the nominal value. Please refer to the actual product for accuracy
*The storage capacity can be expanded to 3TB, and the M.2 2280 interface can expand up to 2TB; M. 2 2242 interface can scale up to 1TB
*Lightweight to approximately 1.37kg, data from Xiaomi Laboratory, specific weight may vary, subject to actual shipment
*Thin to about 15.9mm, the data is sourced from Xiaomi Laboratory, and the measurement method is the thickness data from the back of the bottom front foot pad perpendicular to the A-plane. The actual thickness may have slight errors due to testing accuracy
*German Rheinland T Ü V hardware level low blue light certification ID: 0217008752, German Rheinland T Ü V flicker free certification ID: 0217009731
*The processor related data is sourced from official Intel and Xiaomi Labs
*The entire series supports Thunderbolt 4 interfaces
*Paired with a 100W GaN adapter, the laptop can be turned off at room temperature (25 degrees Celsius) without any additional devices. The charging time is as follows: 35 minutes to charge to 50%
*Both the mobile phone and PC need to be upgraded to the corresponding latest system version. The specific upgrade methods for the laptop are as follows: 1. Open the laptop. 2. Update according to the pop-up prompt of the Xiaomi Miaoxiang software (when Xiaomi Miaoxiang starts and discovers a new version, a pop-up prompt will prompt the user to upgrade). 3. Upgrade within the Xiaomi Computer Assistant or Xiaomi Miaoxiang application (actively upgrade in “Settings – About – Check for Updates”). 4. Complete. The above are general steps. If you need to learn more, please click //hyperos.mi.com/ For further understanding, please refer to the support devices for Xiaomi Computer Manager //pc.mi.com/pc-manager-help
*By using the same Xiaomi account, you can link with Mi Home’s smart devices
*The NFC one touch second transmission function is subject to the actual online experience; Application Relay currently supports WPS and the system’s built-in browser
*Play local 1080P videos for up to 12.58 hours. The data source is a laboratory testing environment with a screen brightness set to 150 nits and fully charged. Actual usage may vary due to individual differences in the product, software version, usage conditions, and environmental factors. Please refer to the actual usage situation
